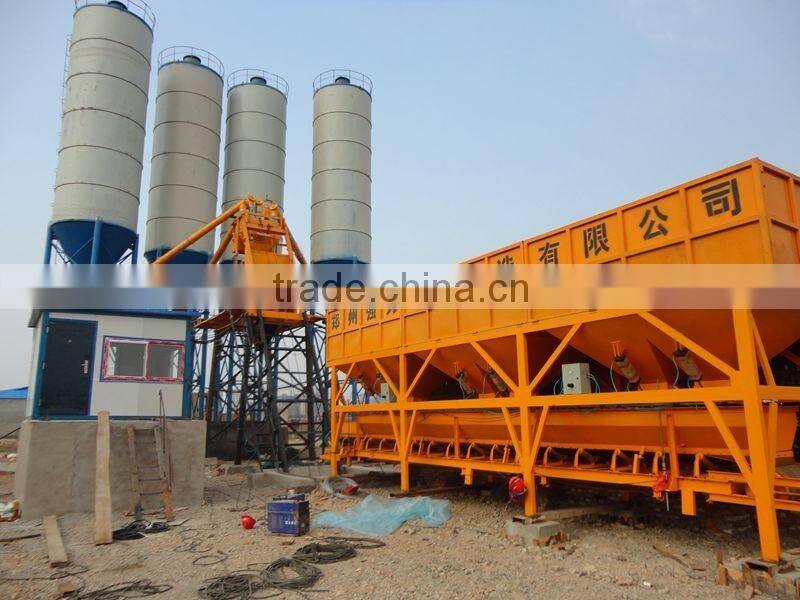

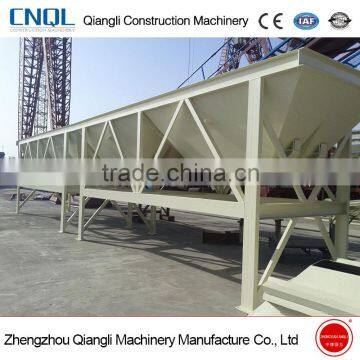

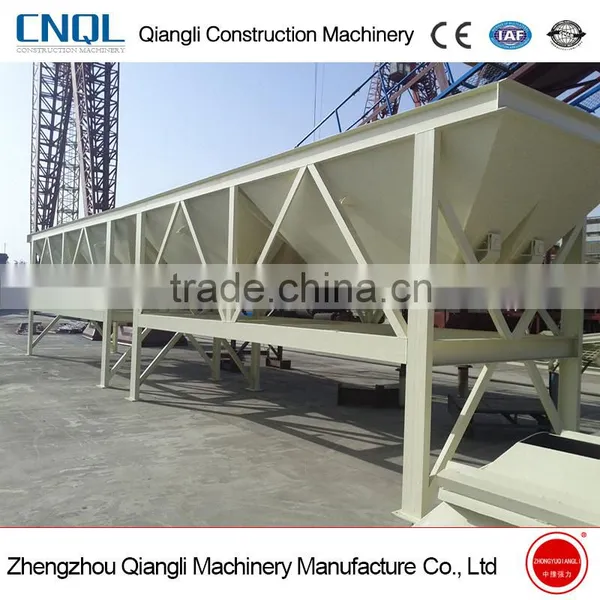

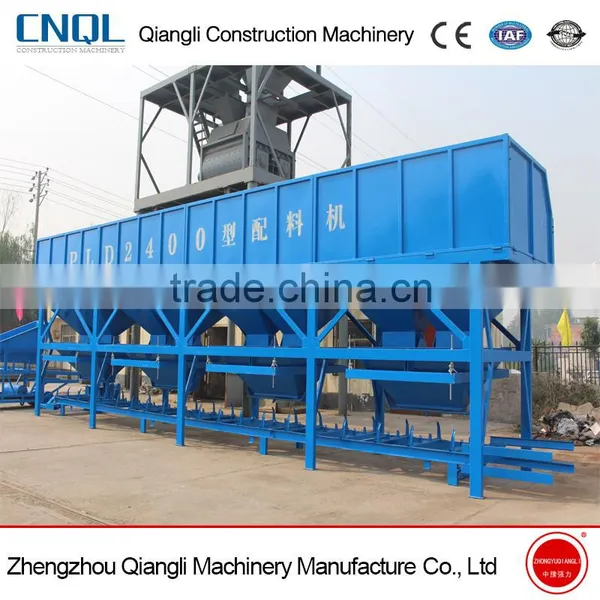

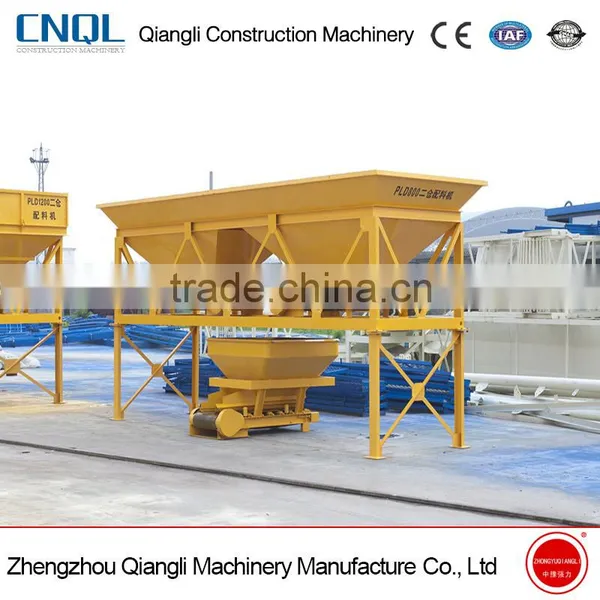

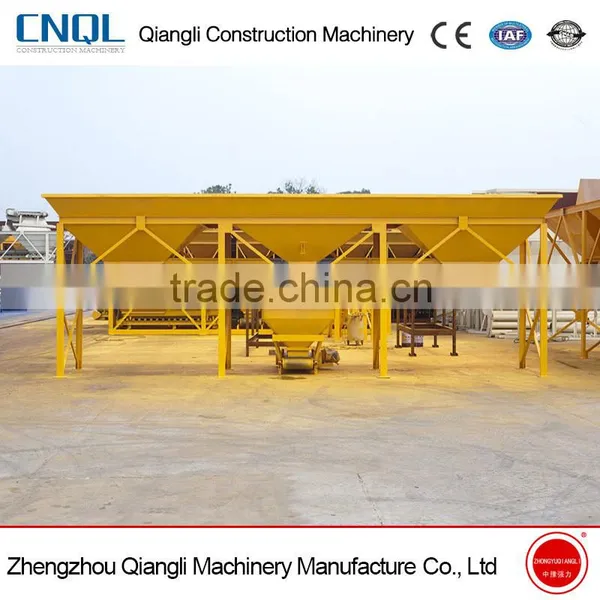

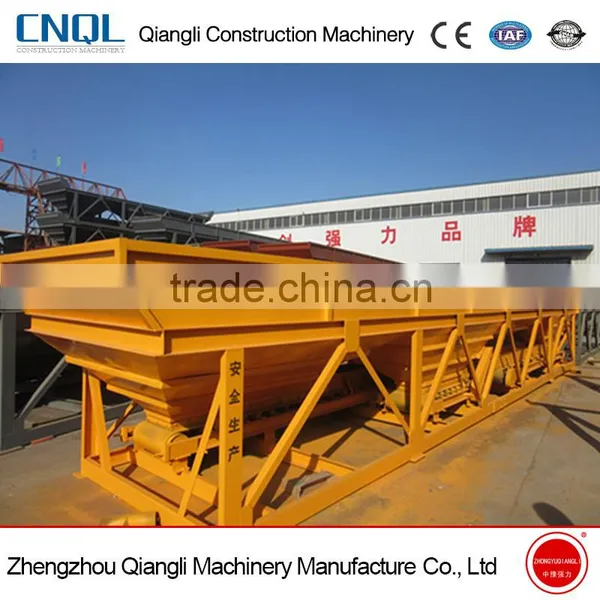

PLD series concrete dosing machine
PLD series concrete dosing machine is a mixer supporting the use of front automatic dispensing equipment.It is done automatically according to the user-designed concrete mix sand,stone,cement and other ingredients of 3-6 materials program.
The products are designed in accordance with the technical standards GB10172 "Concrete mixing station technical conditions of the batching system.Electronic weighing machine uses microcomputer control,digital display,remote control operation,with accurate weighing,high batching accuracy,speed,and control functions and other advantages to each time simply press a key.
This series concrete batching machine and concrete mixer combination,can be composed of a variety of different forms,different specifications of the modular mixing station,and the cost is only with the specifications of mixing station 1/2-1/3,and moves very easy to install,is the idea equipment for on-site production of high-quality concrete.
This series includes:PLD800 PLD1200 PLD1600 type products,Of each stand-alone other than(PLD800S is) and bi-directional conveyor belt machine supporting a batching machine for two blenders,excellent economic results.
Main parameter of the concrete dosing machine:
Item | Weighing capacity | Storage capacity | Productivity | Batching accuracy | Max. weighing | Kinds of aggregate | Feeding height |
PLD800 | 0.8m³ | 2*2m³ | 48m³/h | ±2% | 1500kg | 2 | 3000mm |
PLD1200 | 1.2m³ | 2*2m³ | 60m³/h | ±2% | 2000kg | 2 | 3000mm |
PLD1200II | 1.2m³ | 3*2.2m³ | 60m³/h | ±2% | 2000kg | 3 | 3000mm |
PLD1600 | 1.6m³ | 3*3.7m³ | 80m³/h | ±2% | 3000kg | 3 | 3000mm |
PLD1600II | 1.6m³ | 4*3.7m³ | 80m³/h | ±2% | 3000kg | 4 | 3000mm |

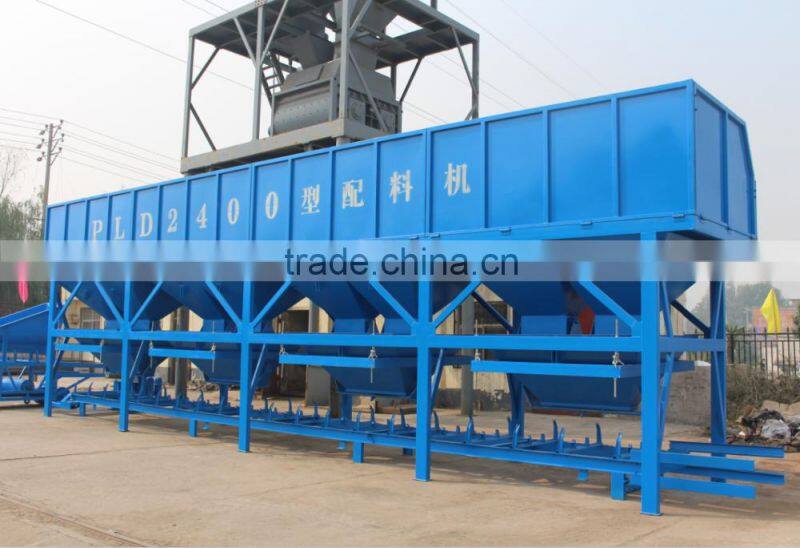

PLD2400 | 2.4m³ | 4*3.7m³ | 120m³/h | ±2% | 4000kg | 4 | 3200mm |
PLD3200 | 3.2m³ | 3*20m³ | 160m³/h | ±2% | 5000kg | 3 | 3500mm |
PLD3200II | 3.2m³ | 4*20m³ | 160m³/h | ±2% | 5000kg | 4 | 3500mm |
PLD4800 | 4.8m³ | 4*25m³ | 280m³/h | ±2% | 8000kg | 4 | 3800mm |

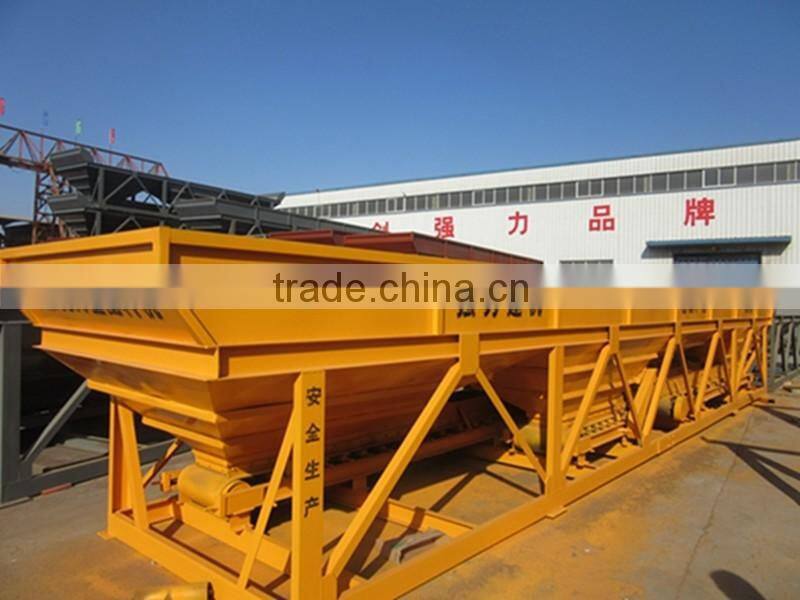

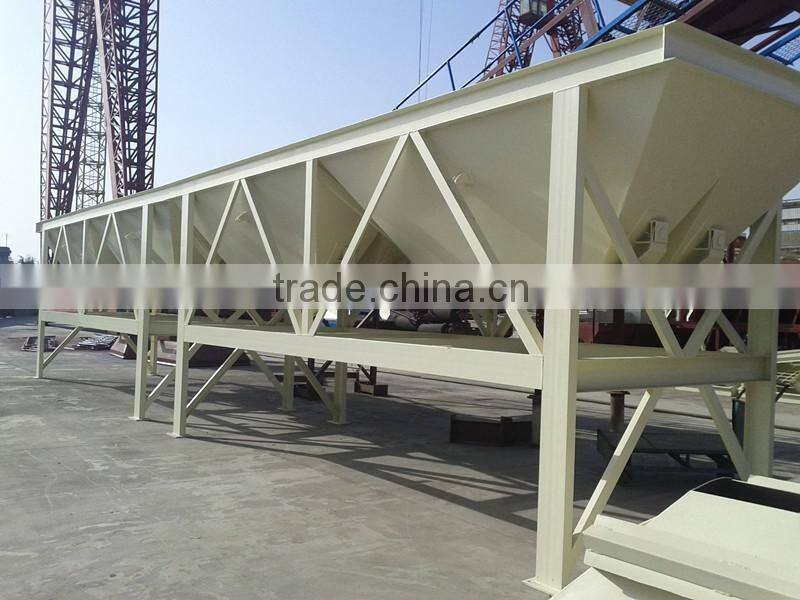

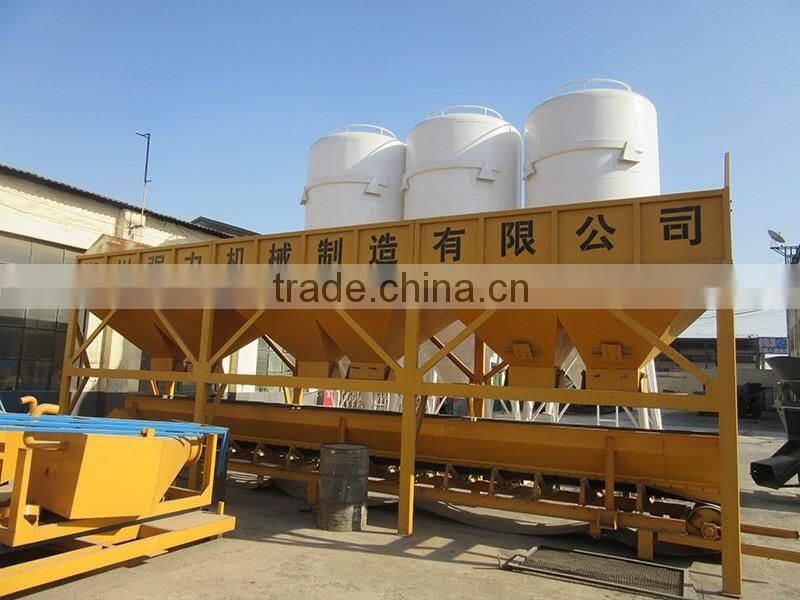

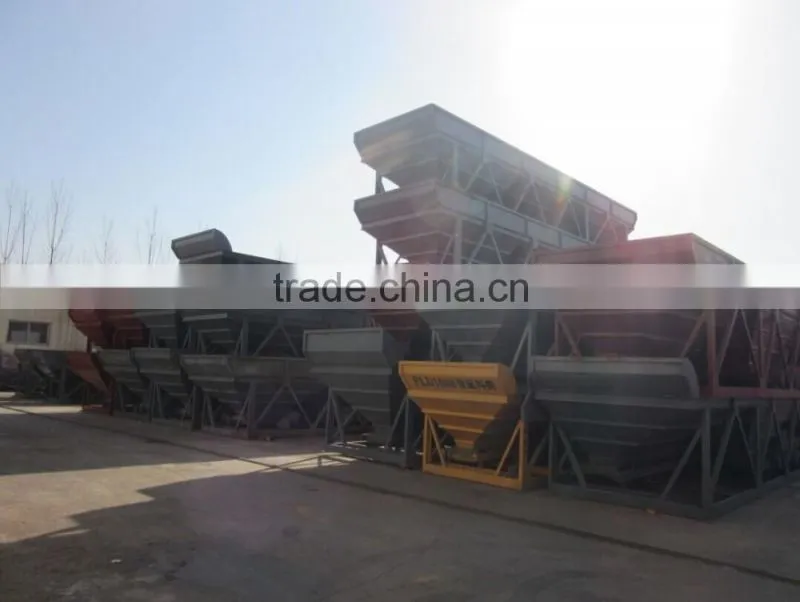

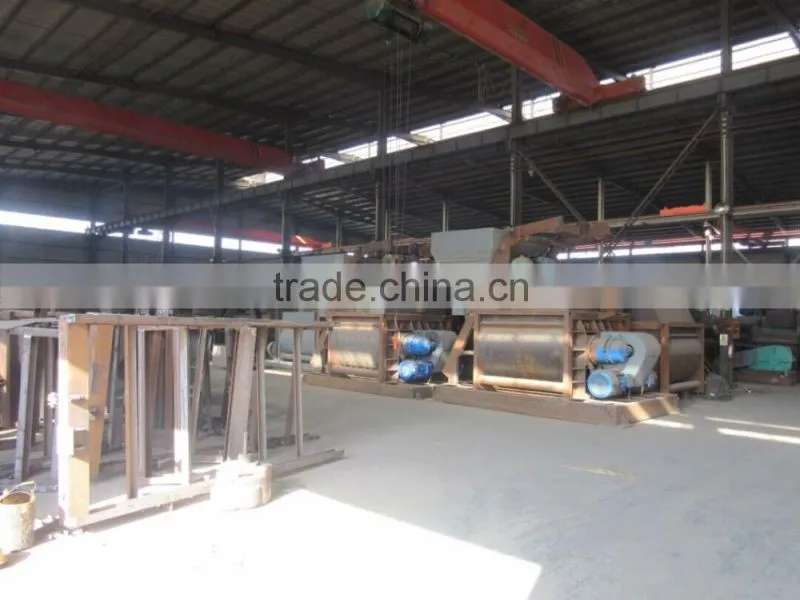

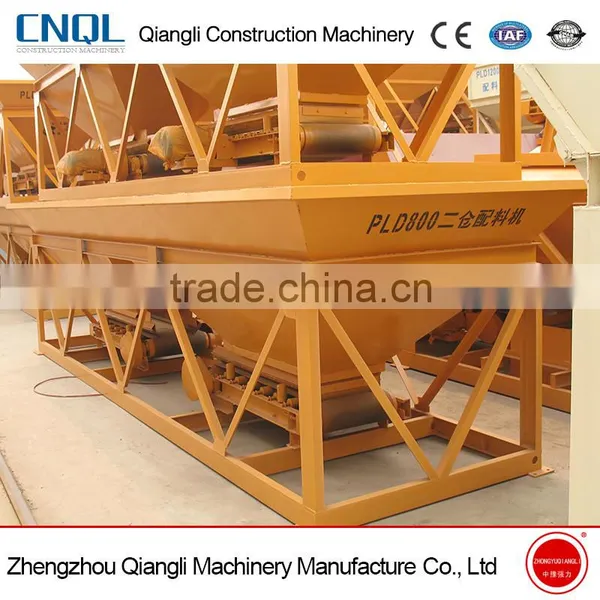

Our concrete dosing machine workshop:

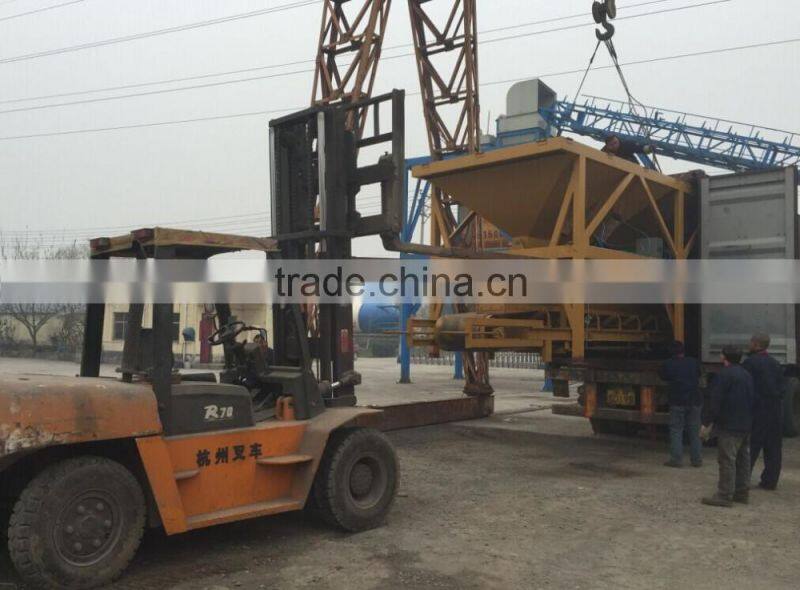

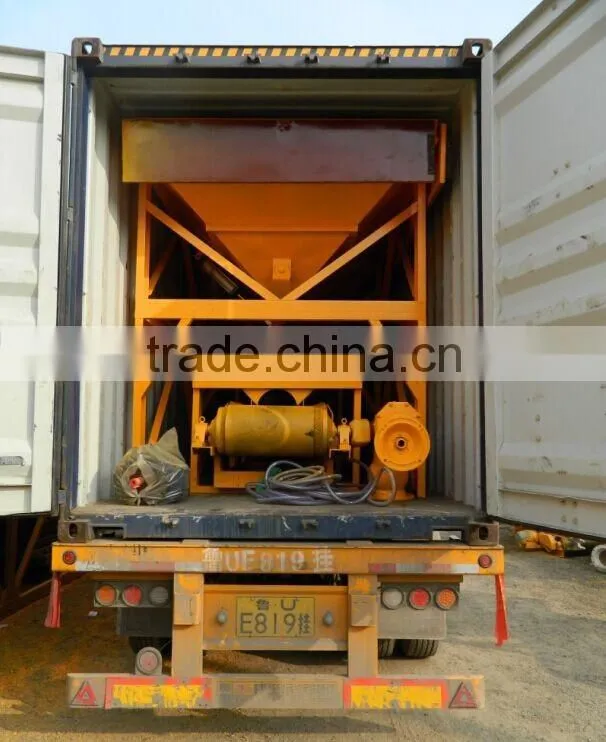

As a professional manufacture in this trade for over 10 years,we have rich experience of shipping by sea and by train and other transportation.
1. We have over 10 years experience.
2. When trainning your operators, our engineers will give them advice on how to operate the machines correctly;
3. We will send you the operation manual which can help you operate the machins properly, it can also help you to solve the common problems;
4. Call us at any time if you have problems about our concrete plants;
5. If needed, we will send engineers to your site to solve your problems.
6. Providing some documents needed for your customs clearance, like commercial invoice, packing list, certificate of origin etc;
7. We will send the spare parts as soon as possible when necessary, equipment repair parts provided by the seller are original, authentic, quality goods.
We also can supply other construction machinery like concrete batching plant, concrete mixer,concrete pump, tower crane, construction elevator, asphalt mixing plant etc.
We are in concrete dosing machine exhibition:
Zhengzhou Qiangli Machinery Manufacturing Co., Ltd. was established in 2002. It is a comprehensive
group corporation combined with design, production and sale sectors, located in Construction Machinery
Base---Xingyang, Zhengzhou City.
Our main products are Concrete Mixing/Batching plant, Stabilized Soil Mixing Station, Concrete Batching
Machine, Concrete Mixer, Concrete Pump, Concrete Mixing Truck, Concrete Block Making Machine,Tower Crane, and other construction machinery.
We have got certificate ISO9001:2000 and passed SGS test. At present, our products are popular at home
and abroad. Holding high quality products and honest operation as tenets, we have developed international market very well, such as Russia, Southeast Asia, Central Asia, Mid-East, South Africa,America, etc, more than twenty countries and regions.
How to order:
If you are interest in our concrete dosing machine,please contact with me at any time:
