electric chalk making machine
Product Characteristics
Introduction of electric chalk making machine
The machine is supplied water automatically, mixing material by electric mixer, filling
mould, taking off mould, all the work are in a round assemblyline. The work efficie-
ncy is higher than the traditional machine. And it can save 30% material. The rate of
eligible product is 99%.The chalk size and shape can be customized. This machine
can make kinds of chalks: such as chalk with fragrance, dustless chalk and color
chalk.
The chalk that is made by this kind of machine has slick surface.
School Chalk Machine procedure
1. Lubricating the moulds with oil uniformly.
2. Supplying water: step on the supplying switch,then the water in the pail can be auto-
matic put into the agitation vat..
3. Pouring gypsum powders. Putting the quantitative gypsum powders into the agitation
vat and close the cover.
4. Mixing the material. Switch on the power switch and mix materials about 10-20 seconds.
5. Filling the moulds. Open the switch in the bottom of the agitation vat and then make the
materials pour into the mould.
6. Pushing out the chalks. Turn the mould in reverse and put the tray into the mould, then
rotate the ejection structure to push-out the chalks.
parameters of electric chalk making machine
Model |
Capacity |
Weight |
Volume |
TZ800-1 |
6,000-8,000 pcs/h |
70 kg |
0.8 m3 |
TZ800-2 |
8,000-12,000 pcs/h |
300 kg |
1.65 m3 |
TZ800-4 |
12,000-24,000 pcs/h |
400 kg |
2.5 m3 |
TZ800-6 |
24,000-32,000 pcs/h |
650 kg |
3 m3 |
TZ800-8 |
35,000-48,000pcs/h |
820 kg |
3.5 m3 |
|
Remarks: the size of the chalk: the diameter of two heads are 10mm and 8mm. The length is 75mm.Or we can produce mold as your requirement. | |||
Remarks
Chalk dimensions: 10mm (big head)×8mm (small head)×75-105mm(length)
The model capacity can be as per customers’ request
Chalk shape: round, rectangle, star or on customers’ request

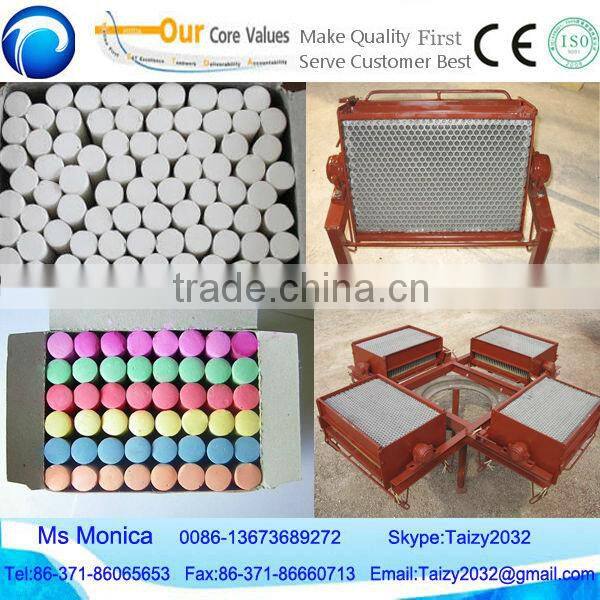

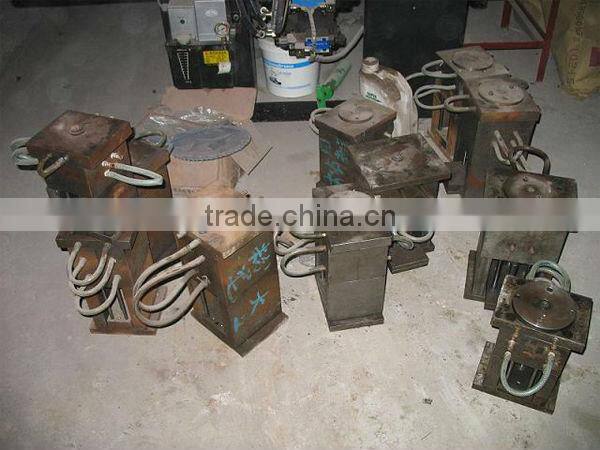

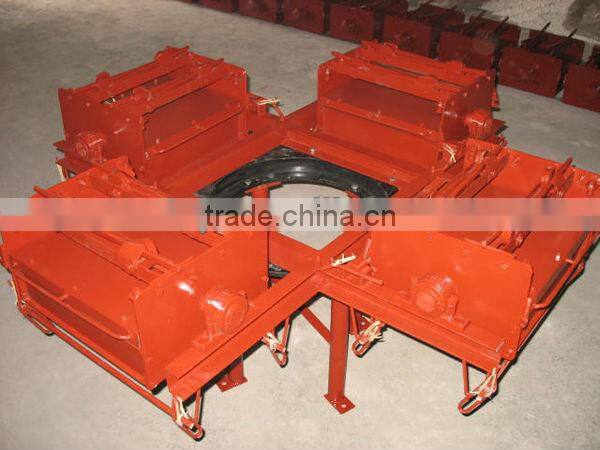

More Photos of electric chalk making machine
If you are interested in electric chalk making machine, pls
contact us.
