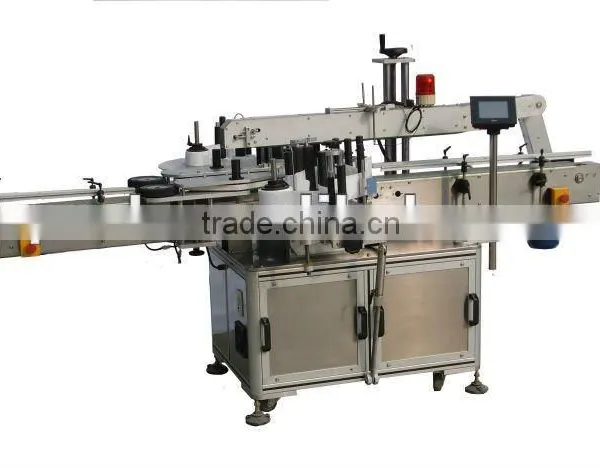

Help CenterNP-TS Automatic Flat Bottle Label Machine
Related Products
-
NP-TS Box Labeling MachineUS$ 15,000 - 20,000MOQ: 1 Set -
NP-TS Flat Bottle Sticker Labeling MachineUS$ 15,000 - 20,000MOQ: 1 Set
-
NP-TS Square Bottle Labeling MachineUS$ 15,000 - 20,000MOQ: 1 Set
-
NP-TS Double Sided Label Labeling MachineUS$ 15,000 - 20,000MOQ: 1 Set
-
NP-TS Flat Labeling MachineUS$ 15,000 - 20,000MOQ: 1 Set
Specifications
flat bottle label machine1. Omron,LEUZE sensors, Mitsubishi or delta servo motor PLC control
2.2.High speed,accuray
flat bottle label machine
Features:

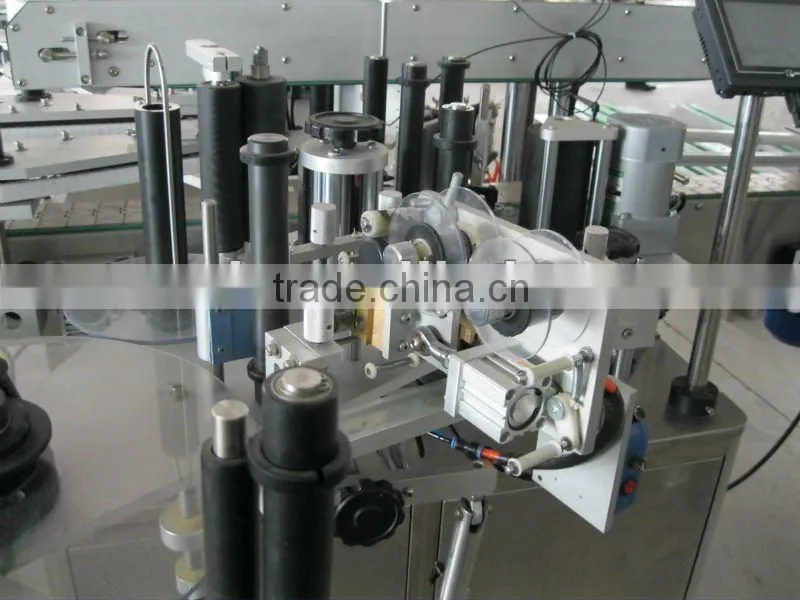

The NP-TS High Speed Servo Front &back Labeler is applicable for labeling Flat, square or other container with Front &back labeling, it can label two labels at front &back surface at same time; If adding a round bottle device, it also can label round bottles with one or two labels. If adding a top label head, it also can label a label on top of bottles, boxes, caps and so on.

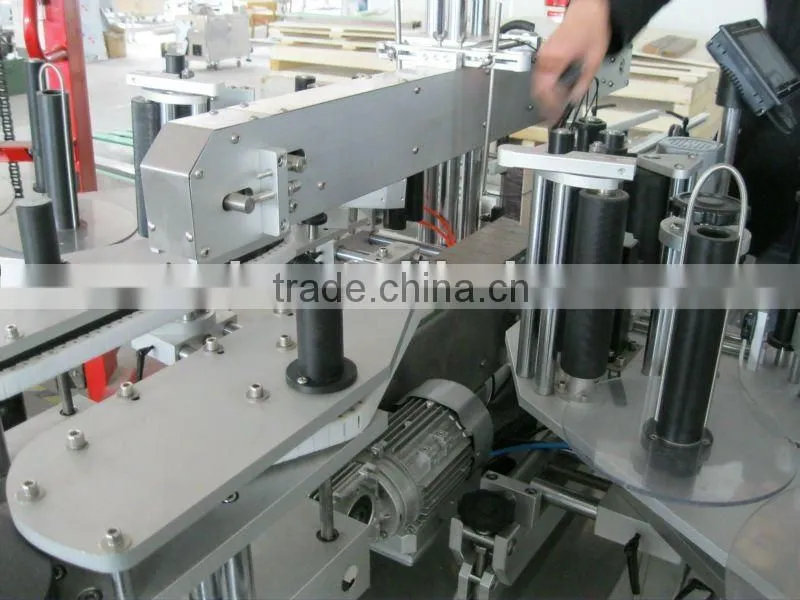

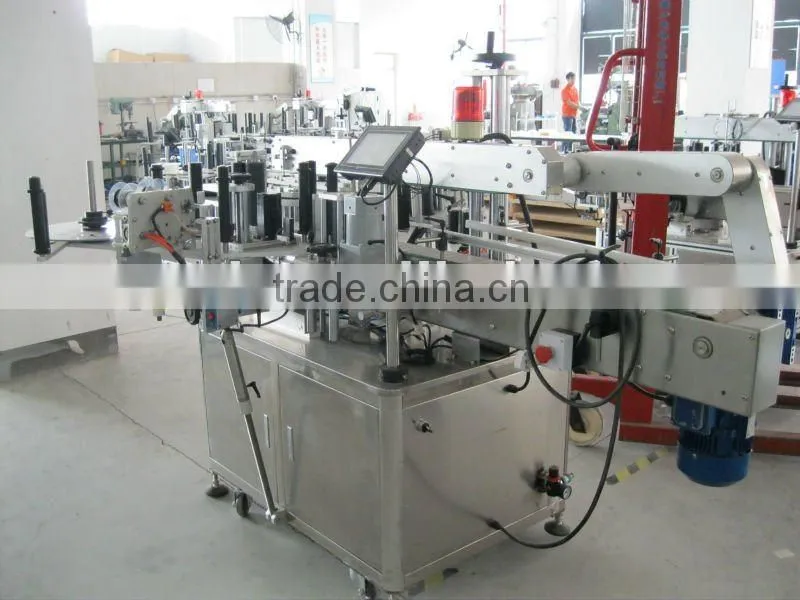

Labeling machine in factory
Hot Stamp printers
Conveyors

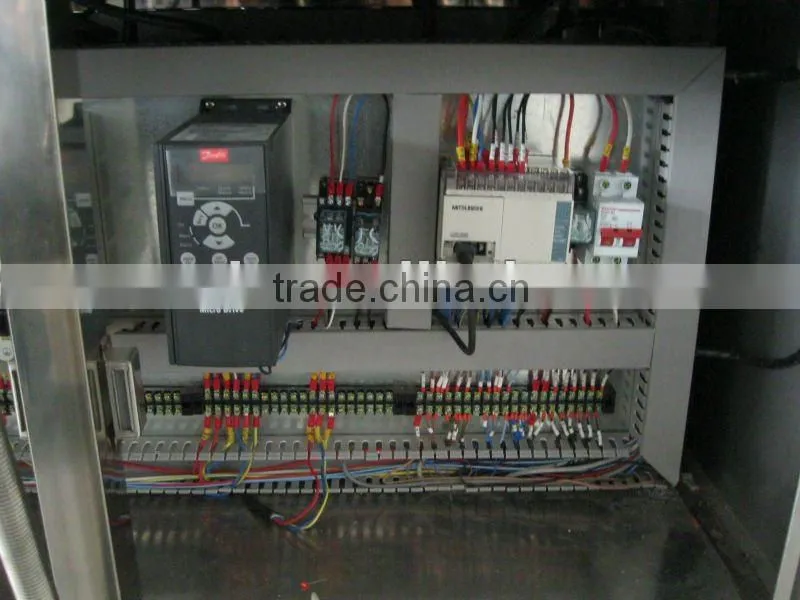

Electrical Cabinet
Adapt with Mitsubishi PLC control, Omron and LEUZE sensors, Mitsubishi Servo motor or delta servo motor. It is Easy control and operation, working stably and High speed and accuracy. Automatic warning on failures, no bottle no labeling.
Technical parameters
(Dimension) 2800(L)×1650(W)×1500(H)mm
(Capacity) 60-350pcs/min
(Bottle Height) 30-350mm
(Bottle Diameter ) 20-120mm
(Label Height) 5-180mm
(Label Length) 25-300mm
(Accuracy)±1mm
(Roll inside Diameter) 76mm
(Roll Outside Diameter) 420mm
(Power Supply)220V 50/60HZ 3.5KW
