Specifications
filling machine small bottle1.filling and capping machine monoblock
2.suitable for filling liquid
3.economy,high quality

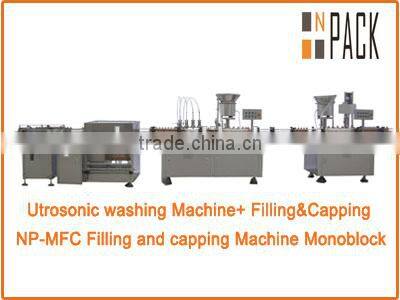

Filling machine small bottle
NP-MFC Full automatic Filling & capping machine monoblock .The machine adapt 316L stainless steel pump to fill different types of liquid, the filling and capping are in one machine. Adapt for cosmetic, foodstuff , pharmaceuticals and chemical industry.
Filling machine small bottle Feature
1.Adapt with pump which can fill viscosity liquid, high accuracy, easy to clean and sterilizing
2.The liquid contact parts can be different material to suit for different liquids.Filling Volume easy adjustment, and micro adjustment equipped for each filling nozzles.
3.Filling nozzles can be anti-drops, silk, and leakage; Bottom filling adapted for foamy liquids.
Filling machine small bottle Technical parameters
Item | NP-MFC8/2 | NP-MFC4/1 |
Fillling nozzles | 8 | 4 |
Capping nozzles | 2 | 1 |
Filling range | 20~1000ml | |
Ideal Filling range | 20-100ml 50-250ml100-500ml200ml-1000ml | |
Cap types | Locked caps,screw caps,ROPP | |
Capacity | 3600~5000b/h | 2400~3000b/h |
Accuracy | ≤±1% | |
Capping rate | ≥99% | |
Voltage | 220V 50/60Hz | |
Power | ≤2.2kw | ≤1.2kw |
Air pressure | 0.4~0.6MPa | |
Net Weight | 1100kg | 900kg |
Dimension(mm) | 2600×1300×1600 | 2200×1300×1600 |
