screw cap bottle capperNPACK spindle capping machine is suitable for spindle screw caps, locked caps, and spray caps
screw cap bottle capper
NPACK spindle capping machine is suitable for spindle screw caps, locked caps, and spray caps .lid caps and so on. The caps can be metal , plastic.
Features
1.We adopt the mode of 'one motor controls one capping wheel', which can ensure the machine to work stably and keep consistent torque under long term working condition.
2. The clamping belts can be adjusted separately, which allow the machine to be suitable for capping bottles with various heights and shapes.
3. If you choose the optional cap guiding system together with the machine, it will then also fit for pump caps.
4. The convenient construction adjustment system is equipped with precise ruler and counter.
5. The mainframe can be lifted and descended automatically by a motor.
NAME MODEL |
NP-LC Automatic linear spindle capping machine,screw capping machine |
|
Capacity |
0~200b/m(subject to bottles and cap size) |
|
Bottle and cap diameter |
Φ20~120 no need to change any molds for different caps |
|
Bottle Height |
40~460mm |
|
Spindle capping machine dimension |
L1060*W896*H1620mm |
|
Voltage |
AC 220V50Hz |
|
Power |
1600W |
|
Weight |
500kg |
|
Cap Feed system |
Elevator feeder |
Viberator feeder |
Dimension |
L880×W1000×H2600mm |
800×600×1700mm |
The npack NP- LC screw capper can be conenct with the filling machine to be a production packaging line.

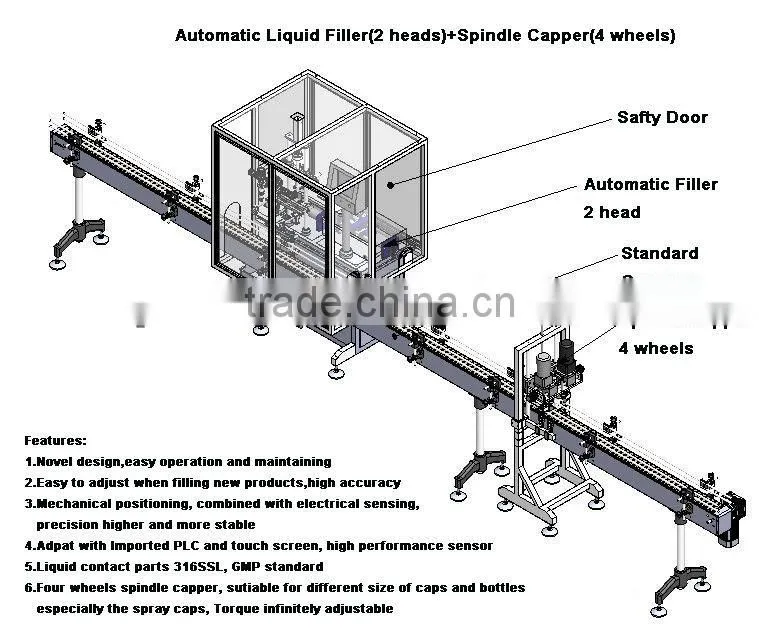

Linear piston filler and screw capper(spindle capper)
The customer also can choose a enocomical filler and screw capper as below to save the invest cost.
