Help CenterMulti Channel Digital Stereo Home Audio Amplifier
Related Products
-
China Factory Supply BTA-250 High Quality Mini Amplifier With Bluetooth Optical InputNegotiableMOQ: 300 Pieces -
High Efficiency Amplifier Power 2.1 Hi-Fi Ahuja Stereo Home Audio AmplifierNegotiableMOQ: 1 Set
-
Factory Perfect Digital Audio Power Amplifier 100W Made In China Extreme Power AmplifierNegotiableMOQ: 1 Piece
-
MIX-4DUSB New High Quality 4 Channel DJ MixerNegotiableMOQ: 100 Pieces
-
Hot Sale VA-500 Class-D Subwoofer AmplifierNegotiableMOQ: 100 Pieces
* 50 Watts X 2 (8 Ohm)
* 75 Watts X 2 (4 Ohm)
* 160 Watts mono bridged
* Auto switching dual inouts
* A / B speaker output switching
* Signal sensing "power on" and Trigger mode
* Main / Interrupt priority input switching
* Main auxiliary output
* Front panel balance and volume controls
* Rear mounted treble and bass controls
* Ultra rigid chassis construction to minimize the effects of external vibrations
Specifications of the stereo amplifier:
Front panel controls of the stereo power amplifier:
1. Power Switch
Switches the VAMP-100 amplifier ON or OFF. A red LED indicates connection to AC power while in standby mode, turns green indicating audio signal is present.
2. Speaker Selector
Selects speaker zone A or B. For A+B zones push both bottons in.
3. Balance
Fades speaker output between the right and left channels.
4. Volume
Adjusts the power amplifier volume
Rear panel controls of the stereo power amplifier:
6. Bass and Treble Controls
Those controls can adjust bass and treble frequency +/- 12dB at 100 and 10kHz
7. Interrupting Line Input
This is the secondary input, use MAIN IN for main input.
INTERRUPTING INPUT can be used if a second source is designed and takes over when signal is present and has at least a 5mV level.
When there is no signal or a signal with less than 5mV level, the power amplifier switches back to MAIN IN after a brief delay.
8. Main Input / Output
MAIN IN should be the primary or main input for the digital power amplifier.Connect your receiver or main source to this input.
Use MAIN OUT to pass MAIN IN signal to another amplifier.
9. 12V Trigger
Allows the VAMP-100 amplifier to be powered on by other electronics or to power on other electronics via a 3.5mm mini phone plug cable.
10. Mode Select Switch
Switches the power amplifier from Stereo mode to Bridged Mono mode.
STEREO MODE
If you connect one or two pair of speakers to the amplifier, place the switch to the "Stereo" position. NOTE: For playing 2 pairs of speakers (A plus B),
make sure each speaker has an impedance of 8 ohms or greater.
BRIDGED MODE
When set to "bridged" mode, the amplifier is a single channel mono amplifier.
11. AUTO ON Select Switch
Power can be turned on and off manually via the switch on the front panel or automatically by signal sensing.
12&13. Speaker Zone A or B output
Speaker output terminal for zone A / B . Minumum impedance: 8 Ohm bridged or 4 ohm stereo.

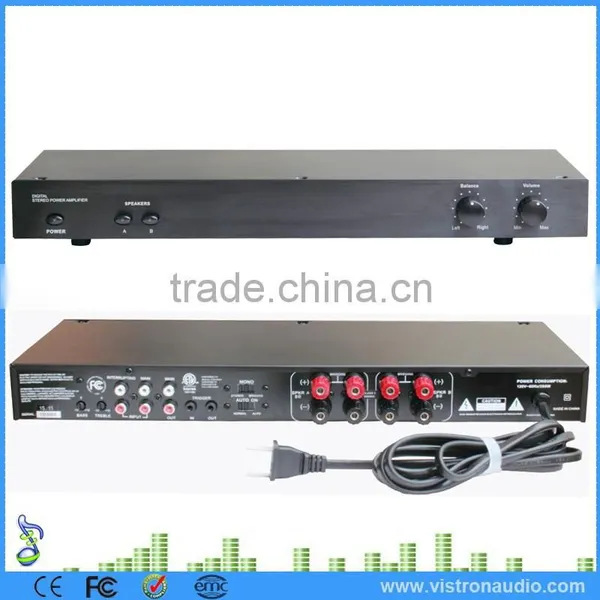

Pictures of the power amplifier:
front panel of the VAMP-100 power amplifier
rear panel of the VAMP-100 power amplifier
All our products have certificates such as CE, ROHS, FCC...
Packing Including:
1 X power amplifier
1 X Power cord
1 X User manual
Shipping
(1).For samples,we usually ship the items by international express,such as FEDEX,DHL,UPS,etc
(2).For large order quantity,we can ship by sea or air transporation.
R&D
We are professional audio products manufacture for 10 years.
Our R&D team dedicated to the creation of new and innovative products,can fulfill our customers’ specialized OEM orders.
QC
We pay attention to High Quality.
All raw materials and accessories must be tested before entering production facilities.
Mass production will begin only if the products have been tested and have passed inspection.
During mass production, personnel will periodically check products to ensure randomized testing.
Before shipping,our QC will check it again strictly to ensure the High Quality.
All products 100% QC before shipment.
Warranty & Return
We offer one-year warranty for our products.
As long as there's no man-made problem, usually we can just add some pieces in your next order.
Professional service
best production capability ,best quality control, Best Service .
What we can provide to you is not only just the products,but also the satisfying service.
Well-trained and experienced staffs to answer all your questions in time.
Welcome to Vistron Audio!
We have more than 10 years experience in Audio field, main products including: power amplifier, amplifier plate, speaker, subwoofer, DJ mixer, DJ controller, CD DJ player.
OEM / ODM welcome.
Should you have any question or concern, please feel free to contact us:
Tel: 86-769-82526118 15920690634
QQ:517297545
Skype : dreamforever520
E-MAIL: jason@
Your attention will be highly appreciated!
