Specifications
Specifications1,DSP Effect Control
2,High Efficiency Class-D Amplifier
3,Rated Power Output:70W
4,Comply with CE, UL

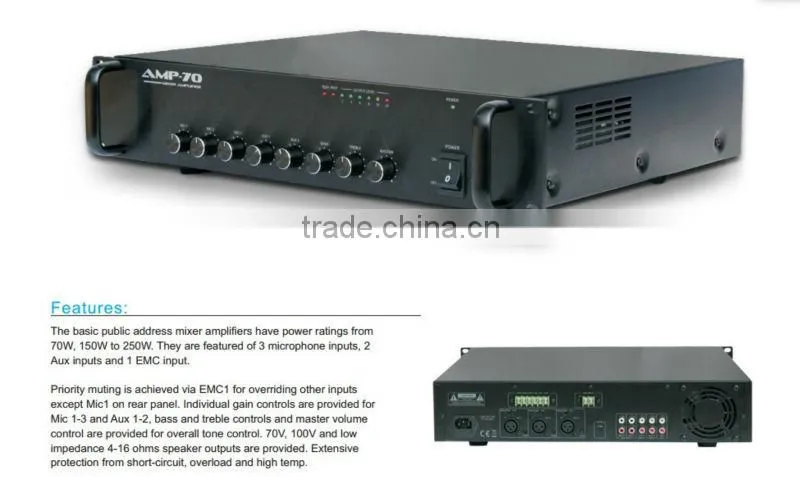

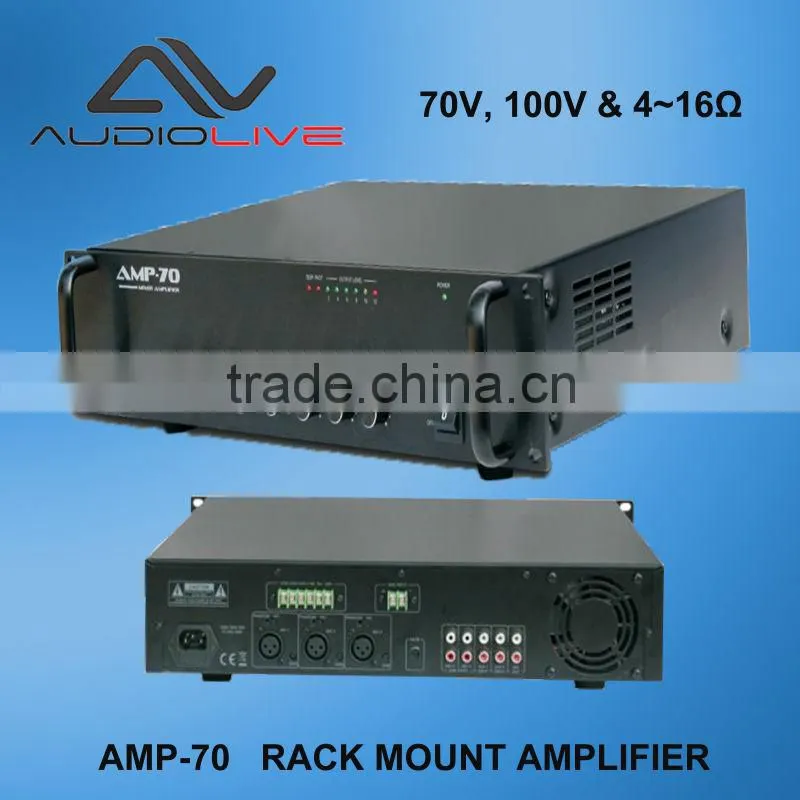

AMP-70 Rack Mount Amplifier
Features:
The basic public address mixer amplifiers have power ratings from
70W, 150W to 250W. They are featured of 3 microphone inputs, 2 Aux
inputs and 1 EMC input.
Priority muting is achieved via EMC 1 for overriding other inputs
except Mic 1 on rear panels. Indivudual gain controls are provided for
Mic 1-3 and Aux 1-2, bass and treble controls and master volume
control are provided for overall tone control. 70V, 100V and low
impedance 4-16Ω speaker outputs are provided. Extensive protection
from short-circuit, overload and high temp.
Specifications:
Rated Power Output: 70W
Input Sensitivity & Impedance: MIC 1, 2, 3: 2.5mV/600Ω, Unbalanced phone jack input
MIC 2, 3: 775mV/10KΩ, Unbalanced RCA input
AUX 1, 2: 350mV/10KΩ, Unbalanced RCA input
EMC: 775mV/10KΩ, Unbalanced RCA input
Output Sensitivity & Impedance: MIX OUT: 1000mV/470Ω, Unbalanced RCA output
Tone: Bass:±10dB at 100Hz, Treble:±10dB at 10KHz
Frequency Response: 50Hz~16KHz(+1dB, -3dB)
S/N Ratio: MIC 1, 2, 3:66dB; AUX 1,2:80dB
THD: Less than 0.5% at 1KHz, 1/3 rated power
Mutng Function: MIC 1 overrides other input signals with 0-30dB attenuation
Crosstalk: ≤50dB
Cooling: Fan automatically start up when temp reaches 55ºC
Protection: High temp, overload & short-circuit
Power Supply: ~110V/60Hz or ~230V/50Hz
Power consumption: 80W
Weight: 6.7kg
Dimensions: 484x335x88mm
Packaging Detail: Polybag + Foam Padding + Giftbox + Master Carton
Delivery Detail: 35 days since placing order
Shippment Term: FOB or EXW
