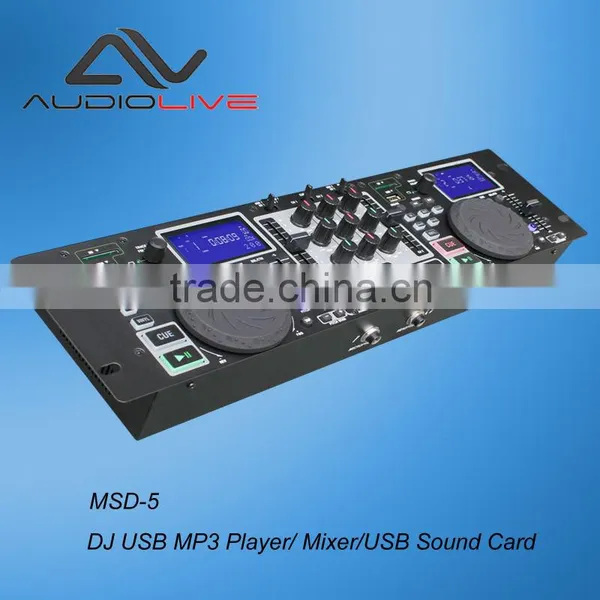

MSD-5 4channel dj mp3 mixer dj player

MSD-5 SD CARD/ USB/ MIXER PLAYER

Feature:

USB in/out (USB 1.1 and USB 2.0 compatible)

USB input/output recording computer

Scratch and brake, reverse DSP effect.

Two universal SD CARD and Two universal USB port.

Supports multi-partitions for external hard disks (FAT 16/32).

Full viewing direction display with ID3 TAG

SD card/Usb/Phono/Line/ Mic input.

Pitch V.R adjust the desired speed.

Control function: play/pause, stop, cue, skip +/-, search +/-, time, single/continue, brake, reverse, loop reloop (In & out), Pitch+/- (16%), jog (searching +/-).

Single / continuous play mode.

CUE on and off switch for each channel.

Assign able crossfader.

2 channel RCA master output & 2 channel REC output.

2 channel MIXER & 2 band EQ control.

Specification:

Pitch Band: ±16%

Bass (Channels 1-2): +/-12dB

High (Channel 1-2): +/-12dB

Gain (Channel 1-2):   0 to -20 dB

Headphone Impedance: 32 Ohm

Frequency Response: 20Hz-20kHz

Distortion: < 0.1%

S/N Ratio: > 80 dB

Channel Separation:   55dB(1kHz)

Phono Sensitivity: 10mV, 47kOhm

Line Sensitivity: 1V,10kOhm

MIC Sensitivity: 10mV, 600 Ohm

EQ Control (2 BAND): ±12dB

Line Output: 1.9V, 600 Ohm

REC Output: 1.9V, 600 Ohm

Power Supply:   AC 110--240V,60/50 Hz

Dimension : (W)482x(D)132x(H)60mm
