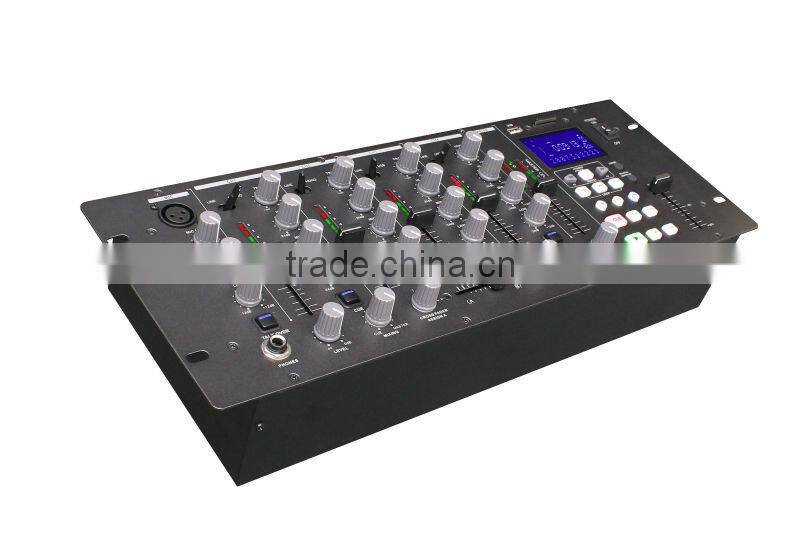

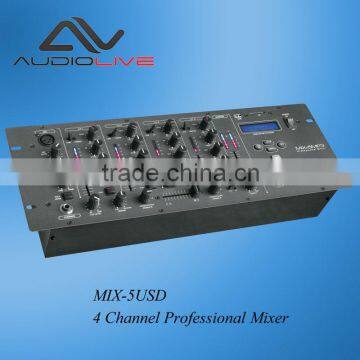

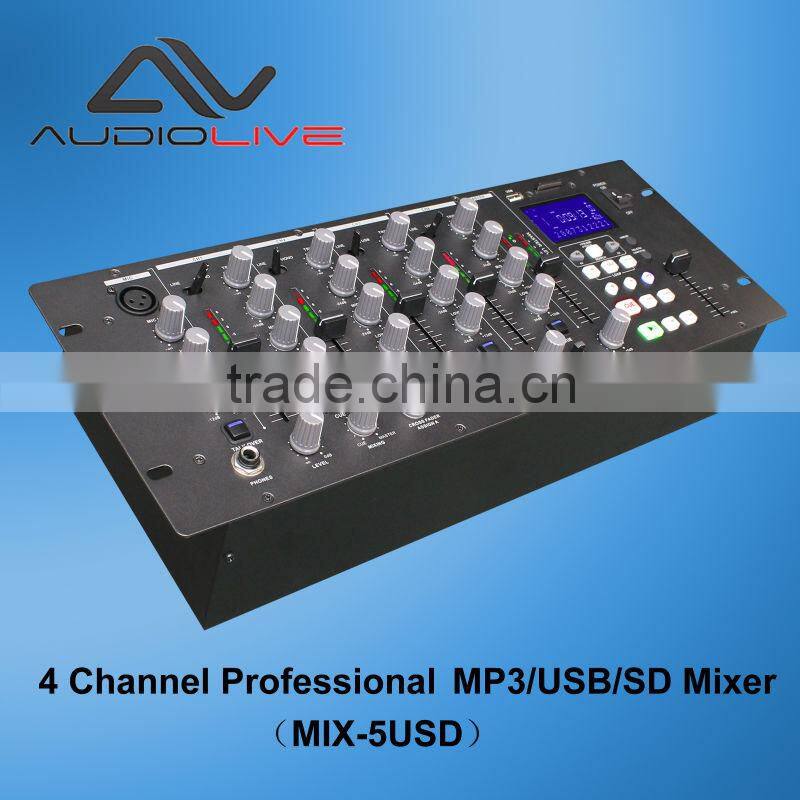

20W 4 Channel Professional pioneer Digital Audio DJ Mixer player MIX-5USD
Feature:
USB in/out (USB 1.1 and USB 2.0 compatible)
OPTION: USB input/output recording computer
Headphone Monitor Split.
Cross Fader Curve: Choose from three types of cross fader start-up option.
Talk Over: Mutes -14dB all levels apart from the microphone.
Peak Level Meter: Allows the user to instantly determine the source input condition for each channel to make possible certain operation without loss time.
Trim: Track input level composition is available. This function is compatible with diverse sound sources.
Independent Monitor Switch: Enables independent or simultaneous monitoring of each CH, MIC, MASTER.

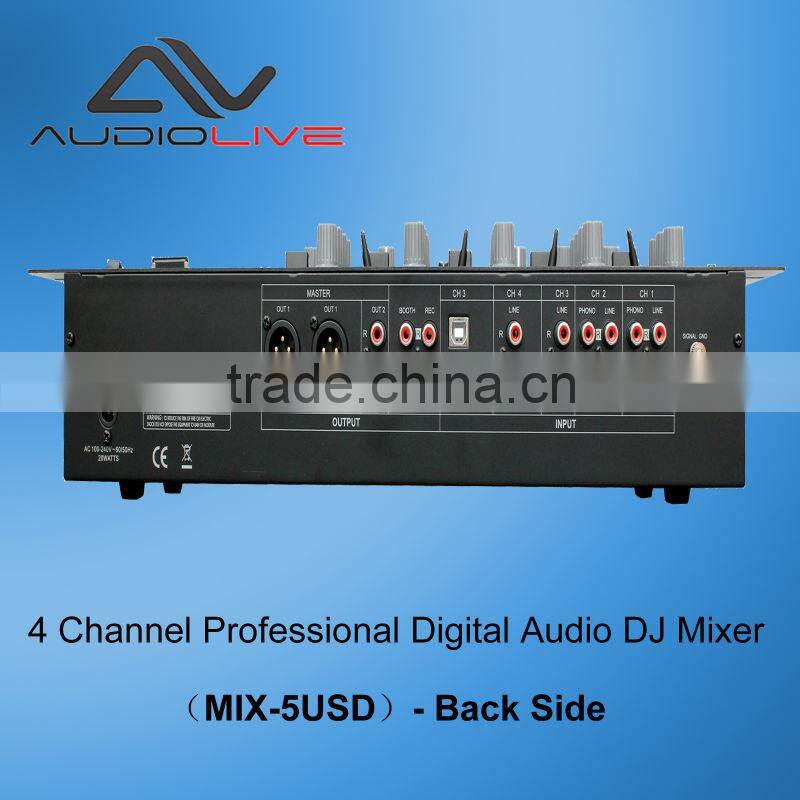

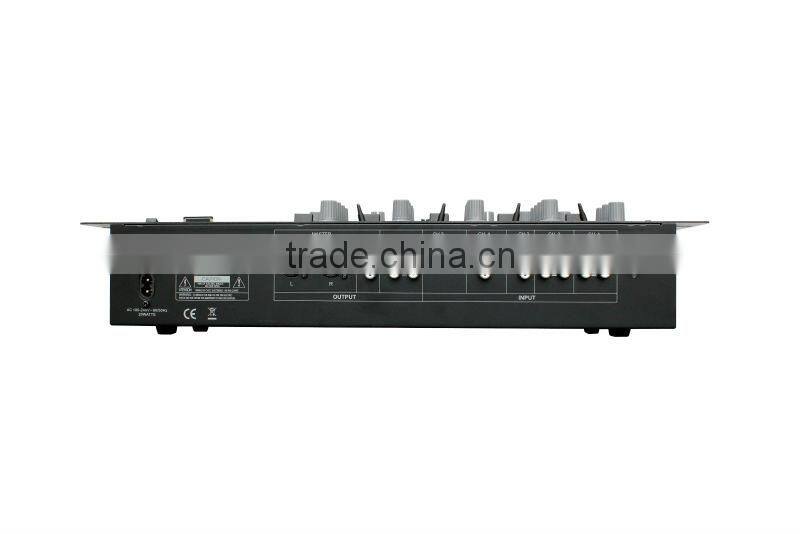

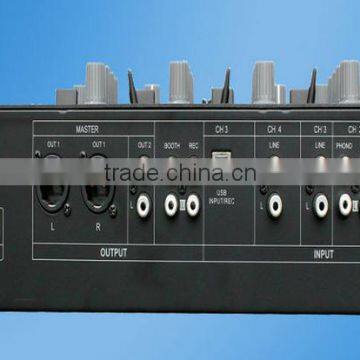

Outputs:2 Master(Master 1:XLR,Master 2: RCA),1 Rec: RCA, Booth Output: RCA.
Inputs:2 phono:RCA,4 Line:RCA,1 Mic(Mic 1:XLR).
Specification:
Input terminal (input level/impedance)
CD/LINE: 300mV/22kΩ
PHONO: 5mV/47kΩ
MAIN MIC: 5mV/3kΩ
MIC: 5mV/3kΩ
Frequency characteristics
CD/LINE/PHONO/MIC: 20Hz t0 20kHz
SN ratio
CD/LINE: 86dB (with effects off)
PHONO: 76dB
MIC: 69dB
Total harmonic distortion rate
CD/LINE/PHONO: Below 0.02%
Cross talk: Over 70dB
Channel equalizer
HI: +12dB, -24dB (13 kHz)
MID: +12dB, -24dB (1 kHz)
LOW: +12dB. -24dB (70 Hz)
Microphone equalizer
HI: +12dB, -12dB (10 kHz)
MID: +12dB, -12dB (1 kHz)
LOW: +12dB, -12dB (100Hz)
Power supply voltage: AC 100-240V ~ 60/50Hz
Power consumption: 20W
Operating temperature: +5°C to +35°C
Operating humidity: 5% to 85%
Dimensions: 483 (W) x 178 (D) x80 (H) mm
Package including:
1 X Portable Bluetooth Speaker Or Audio amplifier
1 X Power cord
1 X Audio cable
1 X Giftbox
1 X User manual
Shipping methods:
1.For samples, we usually send out via international express such as DHL,UPS.
2.For small order,we can send by air freight or LCL.
3.For mass production order, we can ship by sea.
Q1.Are you a trading company or factory?
A1.We are the real and professional manufacturer .
Q2.Can I start from sample order?
A2.Yes,sample order is supported.It is our pleasure to service you and you can test our superior quality and excellent service.
Q3.How about your payment methods?
A:For sample:T/T, Paypal, west union;
For production: T/T, L/C,or negotiable terms.
Q4.How do you handle the shipment for my order?
A4.Express,we offer express service (DHL,UPS,Fedex,TNT&EMS),it’s the fastest way to receive your order;
Air or Sea,we can send your order by air or sea.Its the most economic way to receive your order.
Q5.What is your company warranty policy?
A5.We offer 12 months warranty.For regular customers,we always offer them lifetime warranty.
Q6.Do you offer any replacement for my order?
A6.Yes,we will offer you the replacements based on the model and quantity you are going to order.
Q7.What kind of plug does your company offer with the amplifier?
A7.We can offer the plug of amplifier as your demands .
