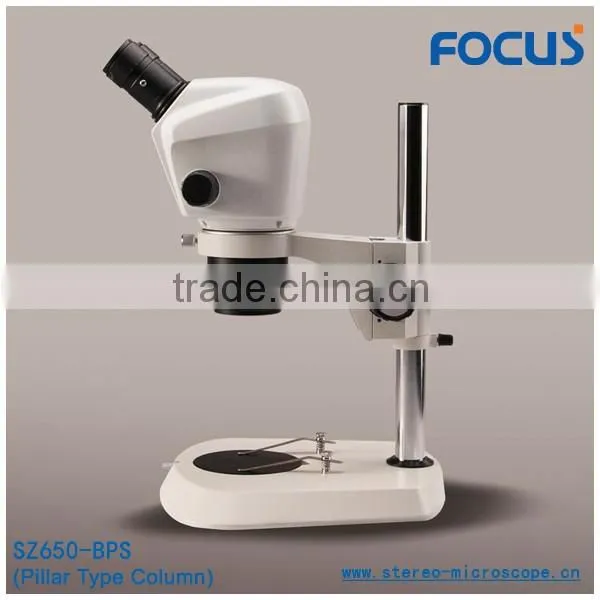

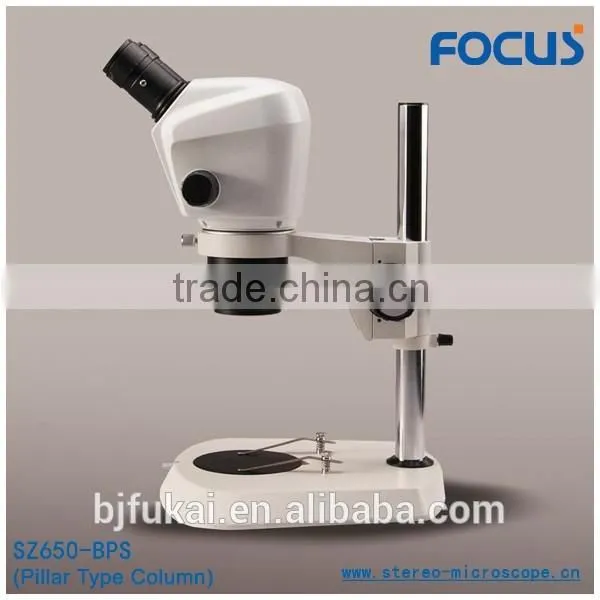

SZ 650 series Optical Microscope

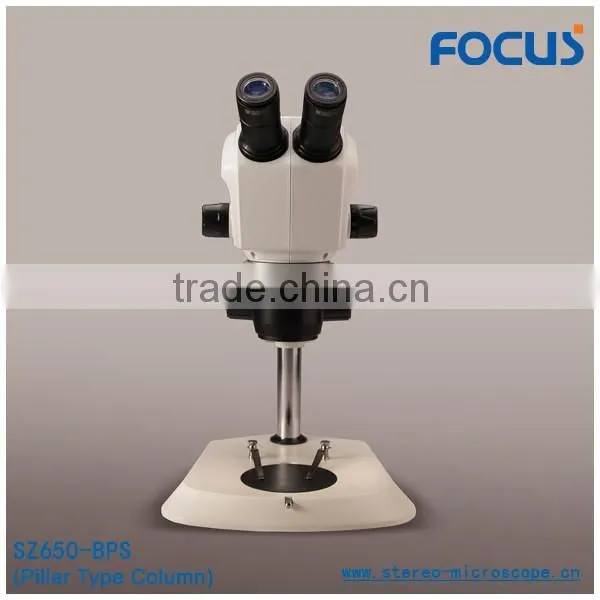

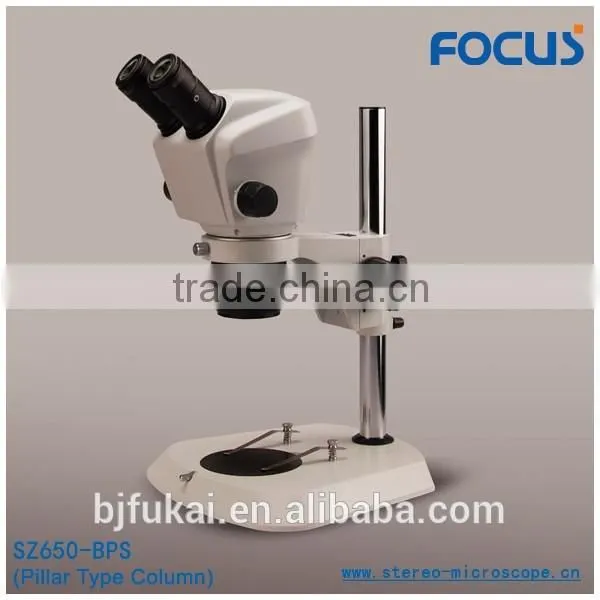

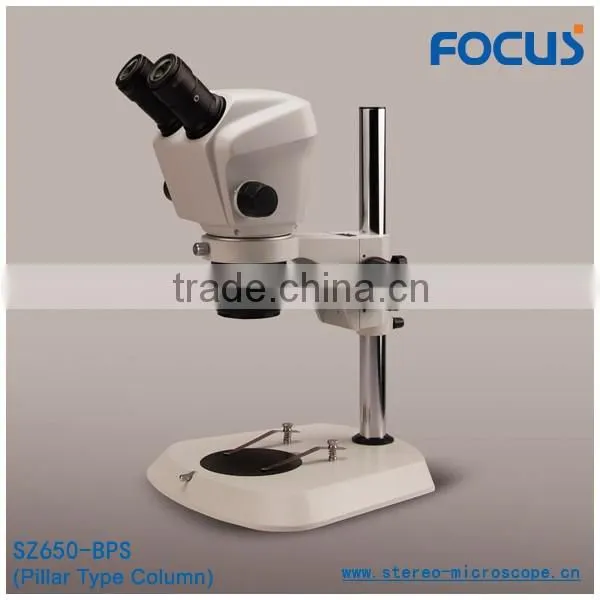

SZ 650 BPS Optical Microscope is binocular without up and down lights, small base, an all-new with Galilean Optical System. The quality is up to international level. Magnification range reaches 14X~90X .
Outstanding Ergonomic Design
1. 40° viewing angle, suitable for long-term sitting observation.
2.330mm×300mm big stand, high stability , apply to all kinds of anatomy of specimen.
3. Greenough optical system, built-in rotating shaft zoom system.
4. No tilting Image in left &right light path in complete pupillary distance , No dizziness feeling after long time observing.
5. Stereo angle for left & right light path is 12°,stereoscopic effect, large viewing field, high zoom ration.
6. High resolution, large depth of field, excellent color restoration and contrast.
7.Operation comfortable(manufactured by high-precision machine, excellent assembly
technology ).
8.High- end material(PC resin cover, aluminium alloy ,copper alloy parts, austenite stainless steel driving parts).
9.International Level Appearance Design
10. Elegant shape , high-end and integrated appearance design, comfortable operation.
Product Description
SZ 650 series Stereo Zoom Microscope
Main Technical Specification
Type |
SZ 650-BPS |
Magnification Range |
14X~90X |
Zoom Ratio |
1 : 6.5 |
Actual Field of Image Space |
Φ22 mm |
Working Distance |
110 mm |
Stereo Angle |
12° |
Viewing Angle |
40° |
Interpupillary Distance Adjustment |
50 mm to 75 mm |
SZ650 Series Objective & Eye piece Parameter List( 14X~90X )
Auxiliary Objective |
0.5X |
0.75X |
1X(Built-in) |
1.5X |
2X |
|
Working Distance |
189mm |
122mm |
110mm |
42mm |
36mm |
|
|
Eyepieces 10X φ22mm |
Magnification |
3.5 to 22.5X |
5.25 to 33.75X |
7 to 45X |
10.5 to 67.5X |
14 to 90X |
Actual Field(mm) |
62.9 to 9.8X |
41.9 to 6.52X |
31.43 to 4.89X |
20.95 to 3.26 X |
15.71 to 2.44X |
|
Eyepieces 15X /φ16mm |
Magnification |
5.25 to 33.75X |
7.88 to 50.63X |
10.5 to 67.5X |
15.8 to 105.8X |
21 to 135X |
Actual Field(mm) |
45.71 to 7.11X |
30.48 to 4.74X |
22.86 to 3.56X |
15.24 to 2.37 X |
11.43 to 1.78X |
|
Eyepieces 20X/φ12mm |
Magnification |
7 to 45X |
10.5 to 67.5X |
14 to 90X |
21 to 135X |
28 to 180X |
Actual Field |
34.28 to 5.33X |
22.85 to 3.55X |
17.14 to 2.67X |
11.42 to 1.78 X |
8.57 to 1.33X |
|
| SZ650 Series Stereo Zoomo Microscope Configuration List | |||
| Name | Type | Basic Specification | Weight(KG) |
| SZ 650 Series ( 14X~90X ,1:6.4) Size of the packing with Big Base:380X380X480mm | |||
| Stereo Zoom Microscope | SZ650-BPS | Binocular,No light Souce,Square Column with small base. | |
| Stereo Zoom Microscope | SZ650-B2LS | Binocular,3W-LED Light Souce with Up and Down( Wide Voltage),Pillar Type Column with Small Base |
|
| Stereo Zoom Microscope | SZ650-BP | Binocular, No light Source,Square Column. | |
| Stereo Zoom Microscope | SZ650-B2L | Binocular,3W-LED Light Souce with Up and Down( Wide Voltage),Square Column |
|
| 10X Eyepiece | SZ680-10X | φ22mm,Adjustable diopter | |
| 20X Eyepiece | SZ680-20X | φ12mm,Adjustable diopter | |
|

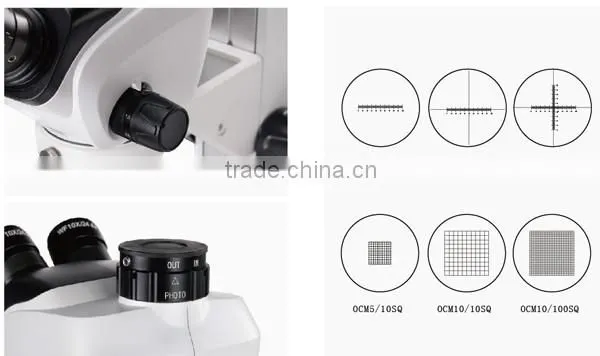

10X Micrometer eyepiece |
SZ680-10XF |
φ22mm,Adjustable diopter (Refering to six kinds of Spec of the Catologue) |
|
| Binocular Zoom Host | Without Eyepiece,Bracket Inner diameter 76mm | ||
| SZ650/SZ680/SZ690/SZ780General Accessories | |||
| Additional objective | SZ 0.5X | SZ10210201 | |
| Additional objective | SZ 2.0X | SZ10210501 | |
| Camera C interface | SZ 1.0X C | Invariable focus | SZ10260802 |
| Camera C interface | SZ 0.7X C | Invariable focus | SZ10260804 |
| Camera C interface | SZ 0.5X C | Variable focus | SZ10260801 |
| Electronic eyepiece interface | SZ-DZ | SZ10260803 | |
| SLR Camera Interface | SZ 1.0X P | Apply to the frame digital SLR camera of APS and Under APS format SLR camera. | SZ10260803 |
| SLR Camera Interface | SZ 2.0X P | Apply to 135 Full-frame digital SLR camera. | SZ10260803 |
| Ring lights up lap | Connect Circular fluorescent lamp with Circular LED Lamp. | LG104104 | |
| Round Column Bracket no Light | SZ10230101+ | ||
| SZ10230201 | |||
| Round Column Bracket with Light |
3W-LED Light Souce with Up and Down (Same price as the Halogen lamp,Single Adapt) |
SZ10230102+ | |
| SZ10230202 | |||
| Optional(Base with adjectable reflector) | Viewing the embryo for its rotate fuction | ||
| Square Column no light Bracket | SZ10230301 | ||
| Square Column with light Bracket |
3W-LED Light Souce with Up and Down ( Wide Voltage) |
SZ10230302 | |
| Single crossbar universal stand | Contain Focusing parts. | SZ10710301+ | |
| SZ10230201 | |||
|
Rocker gimbal (aluminum alloy) (see a big object) |
Contain Focusing Parts and Up 3W-LED Light Souce ( Wide Voltage) |
SZ10710303+ | |
| SZ10230201 | |||

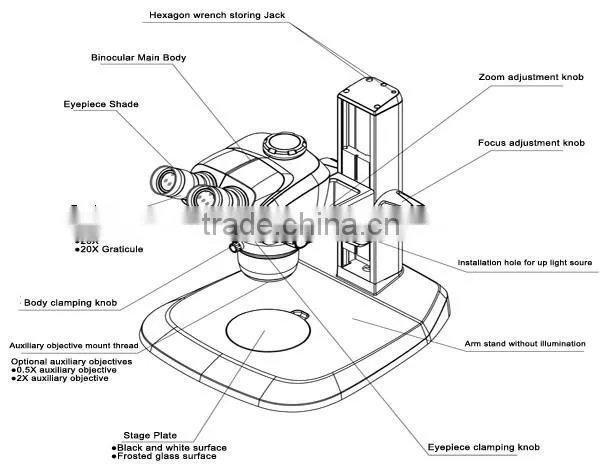

Product Structure
Other Series
External Dimension

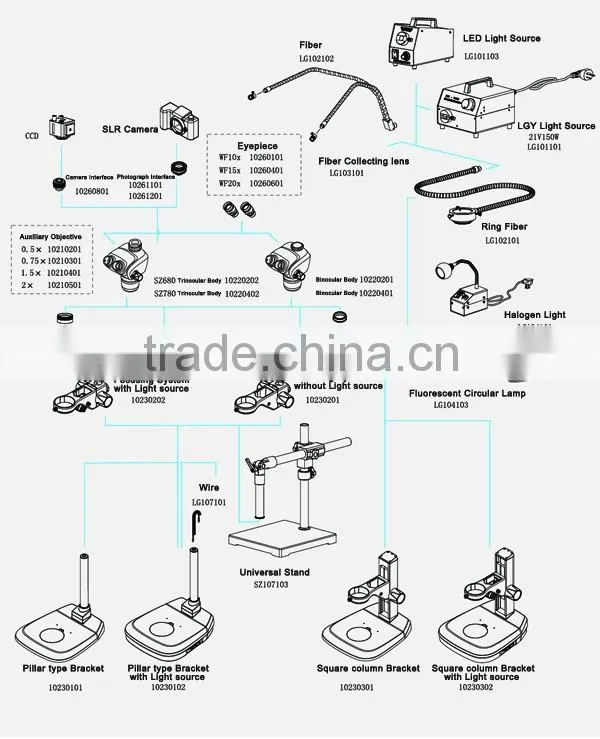

System Layout
