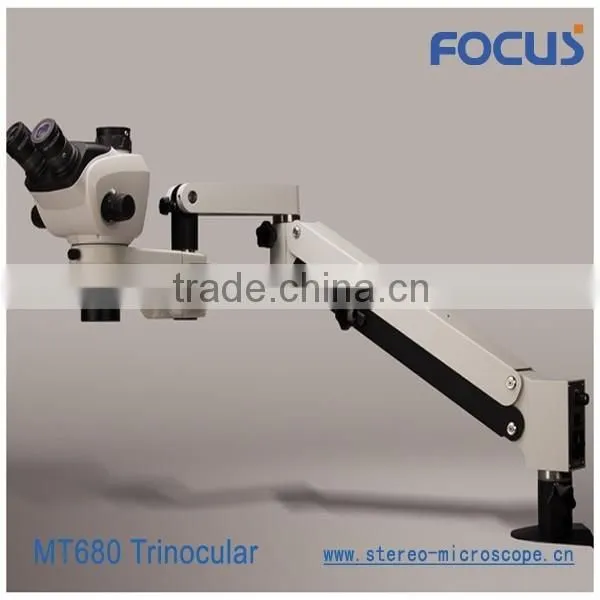

MT680 Series Microsurgery Surgical MicroscopesUS$ 445 - 794.5MOQ: 1 Unit -
MT780 Series Ent Operating MicroscopeUS$ 548.6 - 794.5MOQ: 1 Unit
-
MTZ6000 Series Hand-held Economic Type Dental Ophthalmology Surgical Microscope Quality ChoiceUS$ 6,250 - 7,812MOQ: 1 Unit
-
MT Series Operating Microscope Microsurgery Training MicroscopeUS$ 582.6 - 794.5MOQ: 1 Unit
-
SZ66 0.68~4.5x Parallel Optical System Zoom Stereo MicroscopeUS$ 1,078 - 1,298MOQ: 1 Unit
MT650 series price of operating microscope
1.Unique optical design, the optical path around the whole IPD range like no inclination, prolonged endoscopic operating without vertigo
2. Host optical path towards a low eye point eyepiece layout is conducive to long-term sitting endoscopic operation
3. Body around 12 ° viewing angle light path (with1.0X lens configuration), three-dimensional sense of strong visual, spatial positioning accuracy
4. Using a large field of view, high zoom ratio continuous zoom optical system, excellent performance parameters, the international advanced
5. Optical system resolution, large depth of field; lifelike color reproduction, contrast, sharpness
Elegant appearance, the international brand style, sophisticated manufacturing technology
6. The Series accessories complete, functional coverage

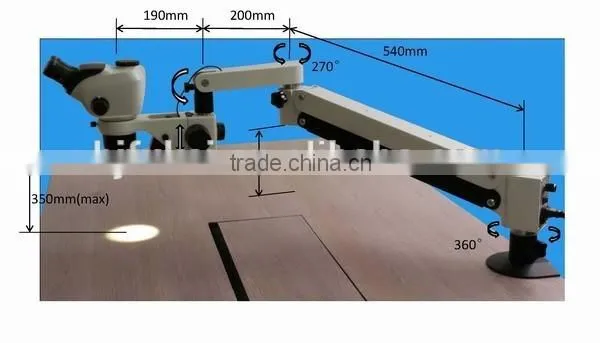

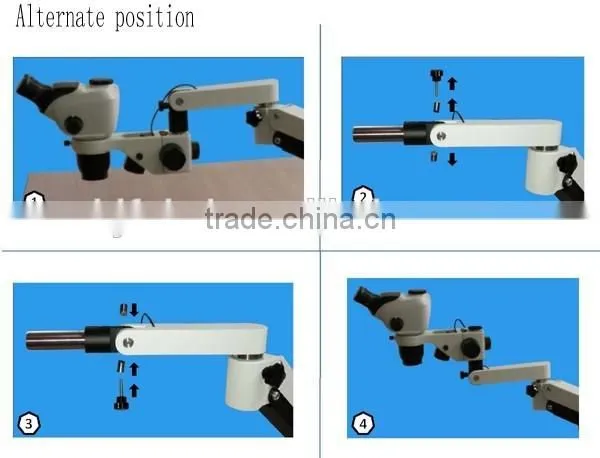

7. Stent system in various forms, and reliable operation: Standard table bracket, multidimensional rocker bracket, floor stand
Product Description
MT650 series the price of operating microscope
Type |
MT650 |
MT 680 |
MT 780 |
Remark |
|
Total magnification |
3.5X-22.5X |
3.4X-23.5X |
3.3X-25.5X |
0.5X auliaryObjective,10X Eyepiece |
|
Zoom ratio |
1:6.4 |
1 : 6.8 |
1 : 7.8 |
||
Eyepiece field (mm) |
Φ22 |
Φ24 |
Φ24 |
Φ24 High-end flat-field eyepiece |
|
Working distance (mm) |
189 |
189 |
189 |
||
Stereo angle ( °) |
7 |
7 |
7 |
||
Viewing angle ( °) |
40 |
35 |
35 |
||
Interpupillary distance (mm) |
50-75 |
50-75 |
50-75 |
||
Pho/Video Export |
N/A |
100%;50% |
100%;50% |
Type:MT680TP,MT780TP |
|
Video |
N/A |
0.5X,0.7X,1.0X |
0.5X,0.7X,1.0X |
||
Focussing stroke (mm) |
45 |
45 |
45 |
||
|
Bracket type:Standard Base( LED Light with Up and Down);Tables Cassette Rocker Bracket(LED Epi light);Floor-arm bracket(High-power halogen cold light source fiber) |
|||||
MT 650 Technical Data Sheet
(Total magnification:0.35X-2.25X )
Auxiliary obj |
0.5X |
|
Working distance |
189mm |
|
10XEyepiece /φ22mm |
Magnification |
3.5X~22.5X |
Line field(mm) |
62.86~8.78 |
|
20XEyepiece /φ12mm |
Magnification |
7X~45X |
Line field(mm) |
34.29~5.33 |
|
Technical Data Sheet
(Total magnification:0.34X-2.35X )
auxiliary obj |
0.5X |
|
Working distance |
189mm |
|
10XEyepiece /φ24mm |
Magnification |
3.4X~23.5X |
Line field(mm) |
70.60~10.21 |
|
20XEyepiece /φ12mm |
Magnification |
6.8X~47X |
Line field(mm) |
35.294~5.11 |
|

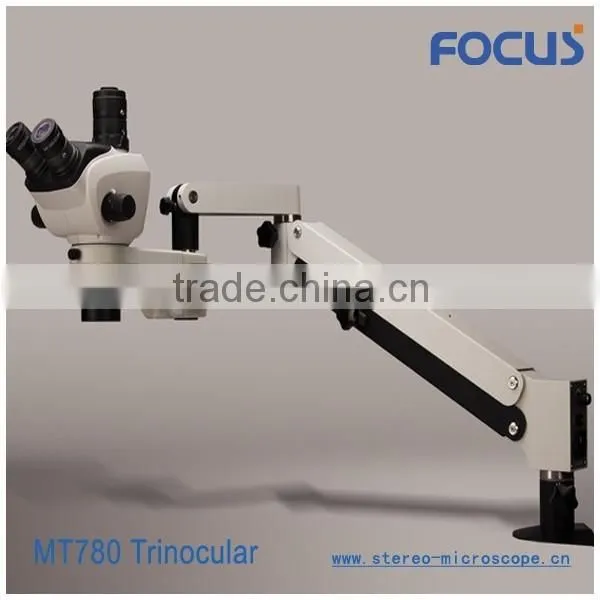

MT 780 series Technical Data Sheet
(Total magnification:0.33X-2.55X)
Auxiliary obj |
0.5X |
|
Working distance |
189mm |
|
10XEyepiece /φ24mm |
Magnification |
3.3X~25.5X |
Line field(mm) |
72.73~9.41 |
|
20XEyepiece /φ12mm |
Magnification |
6.6X~51X |
Line field(mm) |
396.36~4.71 |
|
Operating Microscope is one of our main products. All accessories are researched and produced by our factory.
MT650 series Operating Microscope
MT Operating Microscope
Product Structure

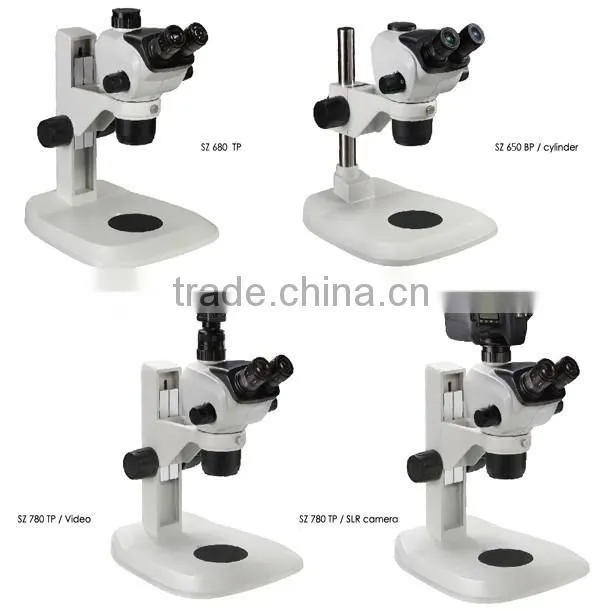

All Series
| SZ650/680/780 Main Technical Specification | |||
| Model | SZ650 | SZ680 | SZ780 |
| Objectives Zoom Range | 0.7X-4.5X | 0.68X-4.7X | 0.66X-5.1X |
| Zoom Ratio | 1:6.5 | 1:6.8 | 1:7.7 |
| Field Diameter (mm) | Φ22 | Φ23 | Φ24 |
| Working Distance (mm) | 110 | 110 | 110 |
| Stereo Angle ( °) | 12 | 12 | 12 |
| Viewing Angle ( °) | 40 | 35 | 35 |
| Interpupillary Adjustable Distance (mm) | 50-75 | 50-75 | 50-75 |
| Video Output Distribution | N/A | 100%;50%/50% | 100%;50%/50% |
| Guide Rail Stand Focusing Distance (mm) | 80 | ||
| Pillar Stand Focusing Distance (mm) | 115 | ||
Advantages
1. Any inquiries will be replied within 24 hours.
2. Professional manufacturer. Welcome to visit us:
3.OEM/ODM available:
Please let us know your details, then we can help you to design and put it into production.
4. High quality, reasonable and competitive price, fast lead time.
5. After-Sale Service:
1). All the products will have been strictly Quality Checked in the house before packing.
2). All the products will be well packed before shipping.
3). All our products have 1 year warranty. Free Technology Support at any time.
6. Faster delivery:
Small order in stock, and 2 to 4 weeks for large order(above 50pcs).
7. Payment:
You can pay for the order via:T/T,L/C,D/P and Western Union.
8.Shipping
We have strong cooperation with EMS and UPS.
You also can choose your own shipping forwarder.
