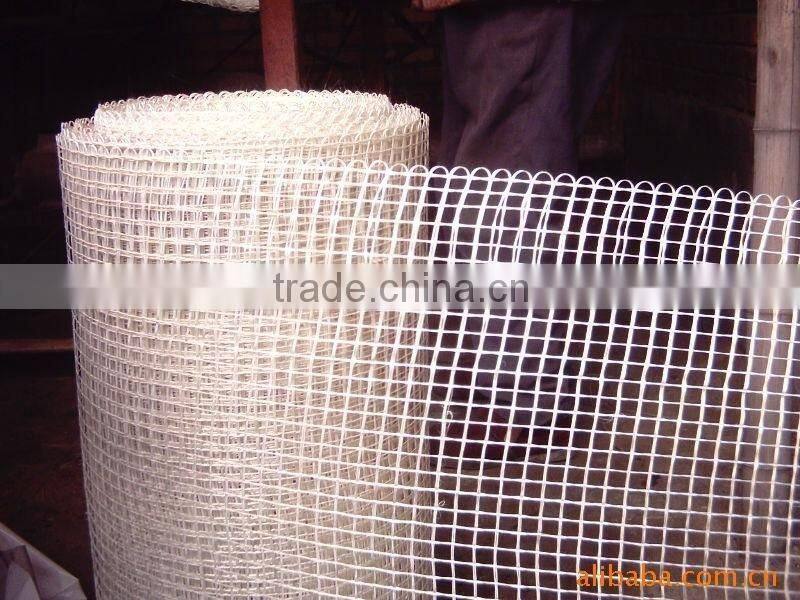

Fiberglass Screen Cloth
Specifications
fiberglass screen clothAdvantage:the properties of alkali-resistance
and high tensile strength.
Fiberglass Mesh is combined with specially designed mesh surface treatments.
Fiberglass mesh.
Fiberglass Mesh is combined with specially designed mesh surface treatments. It is a kind of necessary structure material in the EIFS (Exterior insulation and finish systems). The fiberglass mesh has high strength, good cohesion and can combine with EPS board firmly. Moreover, it cans resistant alkaline material among the building material such as cement and others, prevents the walls cracks and reinforces walls stress resistance and impact resistance; therefore, it is an ideal reinforcement material in the EIFS.
Package:
Product is manufacture in form of a roll wrap on a paper tube then after packed in a plastic bag and placed with in a cardboard carton. Rolls can be loaded in a container directly or on pallets
Deposited:
Fiberglass mesh should be stored in dry, cool, clean and rain-proof area. Recommended temperature range of storage is between 10-30 and relative humidity between 40%-70%.
Specifications:
Item Number |
Mesh Size (mm) |
Finished weight (g/m2) |
Tensile StrengthX20cm |
Content of resin %(≥) |
||
Warp |
Weft |
Warp |
Weft |
|||
CNP10X10-60 |
10 |
10 |
60 |
500 |
650 |
17 |
CNP4X5-75 |
4 |
5 |
75 |
600 |
650 |
18 |
CNP5X5-80 |
5 |
5 |
80 |
700 |
850 |
18 |
CNP5X5-90 |
5 |
5 |
90 |
700 |
1050 |
18 |
CNP4X4-100 |
4 |
4 |
100 |
750 |
1000 |
18 |
CNP10X10-100 |
10 |
10 |
100 |
1000 |
1250 |
20 |
CNP4X5-120 |
4 |
5 |
120 |
1000 |
1300 |
18 |
CNP5X5-125 |
5 |
5 |
125 |
1200 |
1300 |
18 |
CNP10X10-125 |
10 |
10 |
125 |
1250 |
1450 |
20 |
CNP5X5-135 |
5 |
5 |
135 |
1300 |
1400 |
18 |
CNP4X4-135 |
4 |
4 |
135 |
1000 |
1300 |
18 |
CNP4X5-140 |
4 |
5 |
140 |
1300 |
1350 |
18 |
CNP10X10-145 |
10 |
10 |
145 |
1250 |
1700 |
20 |
CNP5X5-145 |
5 |
5 |
145 |
1400 |
1500 |
18 |
CNP4X5-150 |
4 |
5 |
150 |
1300 |
1300 |
18 |
CNP5X5-160 |
5 |
5 |
160 |
1450 |
1600 |
18 |
CNP4X4-160 |
4 |
4 |
160 |
1550 |
1650 |
18 |
CNP4X5-165 |
4 |
5 |
165 |
1300 |
1300 |
18 |
CNP4X4-170 |
4 |
4 |
170 |
1450 |
1700 |
18 |
CNP4X5-200 |
4 |
5 |
200 |
1500 |
2200 |
18 |
CNP4X5-280 |
4 |
5 |
280 |
1900 |
2850 |
20 |
CNP4X5-300 |
4 |
5 |
300 |
2000 |
3000 |
20 |
Fiberglass Mesh is combined with specially designed mesh surface treatments.
Fiberglass mesh.
Fiberglass Mesh is combined with specially designed mesh surface treatments. It is a kind of necessary structure material in the EIFS (Exterior insulation and finish systems). The fiberglass mesh has high strength, good cohesion and can combine with EPS board firmly. Moreover, it cans resistant alkaline material among the building material such as cement an
Package:
Product is manufacture in form of a roll wrap on a paper tube then after packed in a plastic bag and placed with in a cardboard carton. Rolls can be loaded in a container directly or on pallets
Deposited:
Fiberglass mesh should be stored in dry, cool, clean and rain-proof area. Recommended temperature range of storage is between 10-30 and relative humidity between 40%-70%.
