Moving Beam Rechargeable Led Lighting Mining Safety Helmet Lamp
SB-7306 moving beam rechargeable led lighting mining safety helmet lamp
- High quality + Competitive price
- CE RoHs FDA..
- MOQ: 2000PCS
- OEM and ODM are accepted
Working Principle:
This product adopts 16340 600mAh/3.7V chargeable lithium battery. First time to use this product need to press the activate button. With a torch switch to open the middle LED and switch to open the two sides LEDs by hold and press the torch switch.
Functions & Features:
1. Replaceable and chargeable battery.
2. High luminance LED lighting.

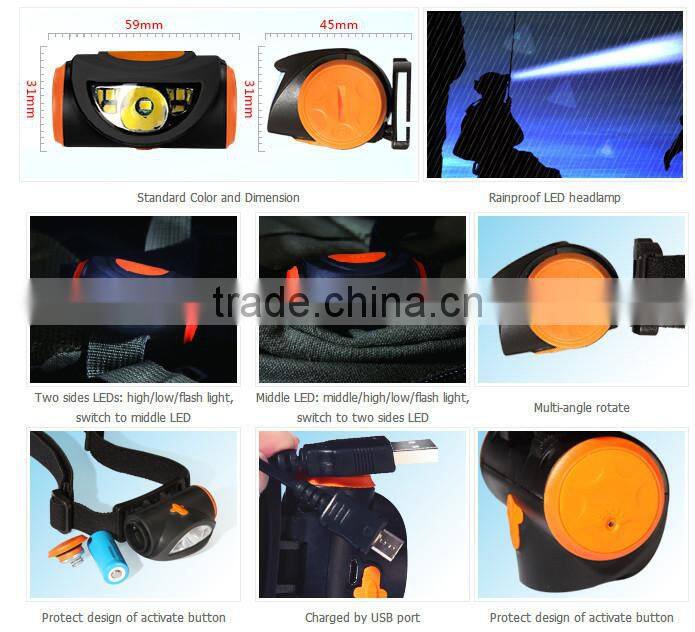

3. Switch models:
Middle LED: Middle level brightness→ High level brightness→ Low level brightness→ Flashing→ Off. ( by press the button once)
Two sides LEDs: High level brightness→ Low level brightness→ Flashing→ Off. ( by hold and press the button until it works)
4. Rainproof: IP44.
5. Battery smart protection: Over charging protection, over-discharge protection, short circuit protection.
6. It can be used as headlamp ( e.g. when walking at night ), also can be used asindicator light.
7. Controlled by electric switch, long life-span.
8. Lightweight size, convenient to carry.
9. Product protected design via activate button.
Main Technical Parameters:
Item |
Parameter |
Unit |
Static current |
10 |
uA |
Middle LED current (High level) |
120-160 |
mA |
Middle LED current (Low level) |
20-40 |
mA |
Two sides LEDs current (High level) |
90-120 |
mA |
Two sides LEDs current (Low level) |
40-65 |
mA |
Middle LED high level lighting time after being fully charged |
≥10 |
Hour |
Middle LED low level lighting time after being fully charged |
≥24 |
Hour |
Two sides LEDs high level lighting time after being fully charged |
≥11 |
Hour |
Two sides LEDs low level lighting time after being fully charged |
≥17 |
Hour |
Charge time |
5-8 |
Hour |
Middle LED luminous flux (High level) |
35 |
lm |
Middle LED luminous flux (low level) |
5 |
lm |
Two sides LEDs LED luminous flux (High level) |
12 |
lm |
Two sides LEDs LED luminous flux (low level) |
7 |
lm |
The whole unit lifetime |
≥5 |
Year |
The plastic part lifetime |
≥5 |
Year |
Others:
Specification of built-in battery |
Chargeable lithium battery, 16340 600mAh, 3.7V |
Operation Method:

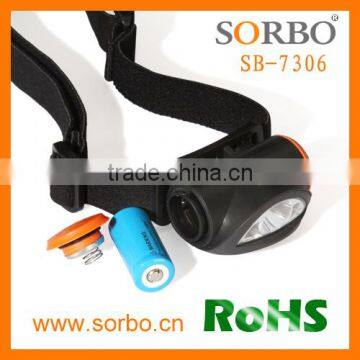

1. Activate button: First time to use this product or replace the battery need to press the activate button.
2. Lighting:
Switch models:
Middle LED: Middle level brightness→ High level brightness→ Low level brightness→ Flashing→ Off. ( by press the button once)
Two sides LEDs: High level brightness→ Low level brightness→ Flashing→ Off. ( by hold and press the button until it works)
3.Charge: Connect the product via V8-USB cable to charge. The charge indicator will flash red light until it’s fully charged.
Cautions:
1. Don’t point at eyes directly, so as not to hurt the eyes.
2. In order to assure the using life of the battery and the mechanical parts, please pay attention to the instructions below:
a) When the light is dim, it means the battery is lack of power badly, please charge it.
3. Do not place this product in where temperature or humidity is high. Don’t drop or hit this product.
4. We reserve the right to change the specifications of the hardware and software described in this manual without prior notice.
1. OEM or ODM
2. Factory Price
3. High-end Desigh Package. Our own designer can help you design the packaging for free.
4. Fast Delivery. Deliver day is 15 days to 28 days (depend on inventory)
5. 100% QC inspection before shippment
6. Full Refund or Replacement for Qaulity Faulty
7. One Year Warranty
Premium Related Products:


Factory packaging is Blister Packaging.
Print custom logo and custom design packaging are accepted.
