Schenck Horizontal Balancing Machines for Small Rotors and Complete Assemblies

Schenck Horizontal Balancing Machines for Small Rotors and Complete Assemblies thumbnail-1
Schenck Horizontal Balancing Machines for Small Rotors and Complete Assemblies photo-1
US$ 1,000 - 100,000 MOQ: 1 Pack
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Schenck
Model Number:
R
Contact Supplier Request Quote Chat Now
Schenck Shanghai Machinery Corp., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shanghai, China
Brand Name Schenck
Model Number R
Power Electronic
Usage Vibration Testing Machine

Specifications

Horizontal balancing machines
for Small rotors and complete assemblies
schenck
Modular design for various applications

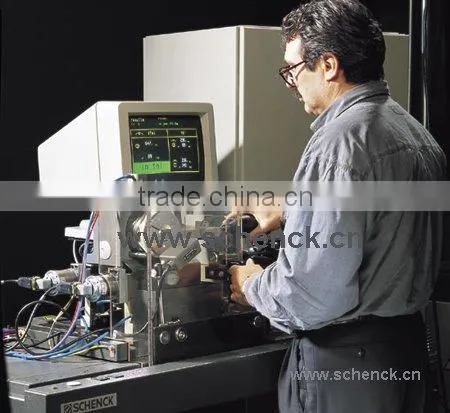

Schenck Horizontal balancing machines for Small rotors and complete assemblies
  • Complete workplace designed for standing or seated operator
  • Highest balancing accuracy through super-critical support pedestals and digital meaurement processing
  • Short change-over times, simple and safe operation
  • Modular design for various applications

Range of application

Universal balancing machines R1B is especially suitable for very small work-pieces such as small armatrues, miniature ventilators and complete assemblies, when high balancing tolerances at high speed must be achieved. They are used in small production lots as well as research and development applications.

They can be used at varying locations and the change-over for other rotor types is possible in a short time.

Design

Displacement measuring, horizontal balancing machines of tabletop design for standing or seated opertor with semi or fully automatic operating sequence.

If the machine is to be used for assemblies, the two support pedestals are connected by a frame. An adapter and clamping arrangement is mounted onto this frame for supporting the rotors.

The drive can be by tangential, under slung, over slung, compressed air or, in case of complete assemblies, by an integrated supply for self-drive.

Product parameters

rotor weight  W

Occasional overload permitted up to

provided the rotor weight is equally shared between the two bearings, i.e. per bearing pedestal

Max.

Max.

Max.

6 kg

10 kg

5 kg

Rotor weight

(as long as an accommodation of the rotor is possible due to the geometric data and the minimum achievable residual unbalance is sufficient for the balancing task.)

Min.

unlimited

distance between bearing centers

(500 mm length machine base)

distance between bearing centers with belt drive

Max.

Min.

Min.

400 mm

15 mm

36 mm

rotor swing diameter above the machine base

rotor swing diameter within the motor range

Max.

Max.

360 mm

150 mm

journal bearing diameter

Max.

Min.

22 mm

8 mm

Belt driving diameter



10-150 mm

Balancing speeds based upon 40 mm belt driving diameter approx.

(With other belt driving diameters, the speeds change accordingly. In addition, the speed range of the measuring unit must be taken into account. See item 2)

280 – 2 850 rpm

Wn2-value     for permanent calibration

W·n2 = 50·106kg/min2

Minimum achievable residual unbalance (Umar)

but not better than  (MARU)

0.1 gmm/kg

According to item 2

Unbalance reduction ratio (URR)



≥ 95%



Schenck Horizontal balancing machines for Small rotors and complete assemblies
