Home > Consumer Electronics > Display & Accessories > LCD Module > 128x160 8 Bit MCU 1.8 Inch Tft LCD Module

128x160 8 Bit MCU 1.8 Inch Tft LCD Module

Name: 128x160 8 Bit MCU 1.8 Inch Tft LCD Module
Brand: Palm Technology
SKU: 122663077
Availability: InStock

Palm Technology Co., Ltd.

128x160 8 Bit MCU 1.8 Inch Tft LCD Module thumbnail-1

128x160 8 Bit MCU 1.8 Inch Tft LCD Module thumbnail-2

128x160 8 Bit MCU 1.8 Inch Tft LCD Module thumbnail-3

128x160 8 Bit MCU 1.8 Inch Tft LCD Module thumbnail-4

128x160 8 Bit MCU 1.8 Inch Tft LCD Module thumbnail-5

128x160 8 Bit MCU 1.8 Inch Tft LCD Module thumbnail-6

128x160 8 Bit MCU 1.8 Inch Tft LCD Module photo-1

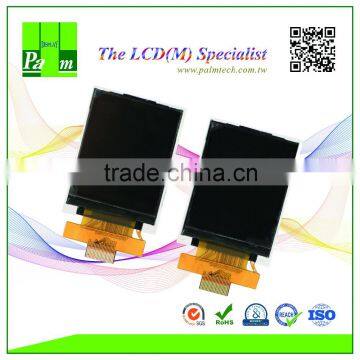

128x160 8 Bit MCU 1.8 Inch Tft LCD Module photo-2

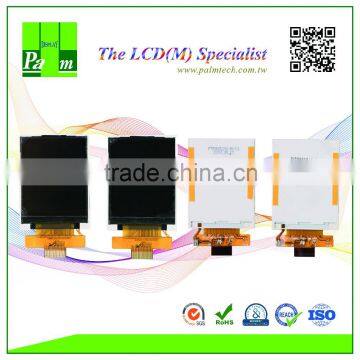

128x160 8 Bit MCU 1.8 Inch Tft LCD Module photo-3

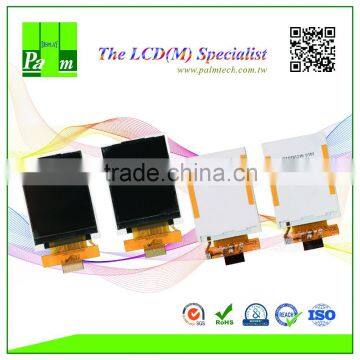

128x160 8 Bit MCU 1.8 Inch Tft LCD Module photo-4

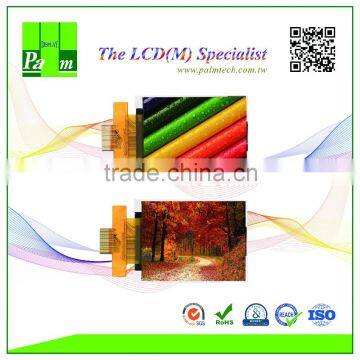

128x160 8 Bit MCU 1.8 Inch Tft LCD Module photo-5

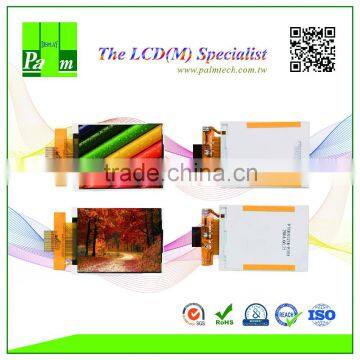

128x160 8 Bit MCU 1.8 Inch Tft LCD Module photo-6

US$ 2.2 - 5 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

Palm Technology

Model Number:

PT0181216-B101

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Kaohsiung

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name Palm Technology

Model Number PT0181216-B101

Type TFT

https://www.china.cn/product-detail/128x160-8-bit-MCU-1-8_60538693613.html

Product: 1.77" 128x160 TFT PT0181216-B101

Key Specifications/Special Features:

TFT Module

Outline dimensions: 34.00 x 45.83x 2.75mm

Polarizer mode: transmissive type

B/L: LED backlight, color white

Active area: 28.03 2x 35.040mm

Number of dots: 128 x 160 dots

Pixel size: 0.219 x 0.219mm

Viewing angle: 12:00

**To know more about performances and dimensions of the products, welcome to purchase our samples.

***Price can be discussed by real requirement.

TFT product list:

Display Size (inch)	Model No.	Resolution	Outline Dimension W x H x D mm	Active Area W x H mm	Interface	Luminance cd/m²
1.5"	PT0151212-A704	128 * 128	32.35 x 38 x 2.6	25.5 x 26.5	MCU / SPI	140
1.77"	PT0181216-B101	128 * 160	34.0 x 45.83 x 2.75	28.032 x 35.040	8 bit MCU	180
2.0"	PT0201722-B301	176 * 220	38.08 x 51.3 x 2.45	31.68 x 39.60	8/16 bit MCU	195
2.0"	PT0201722-B606	176 * 220	38.5 x 51.15 x 2.5	31.68 x 39.60	MCU / SPI	300
2.0"	PT0201722T-B606(RTP)	176 * 220	38.5 x 51.15 x 4.1	31.68 x 39.60	MCU / SPI	240
2.4"	PT0242432-B707	240 * 320	42.72 x 60.26 x 2.6	36.72 x 48.96	MCU	220
2.4"	PT0242432T-B707(RTP)	240 * 320	42.72 x 60.26 x 3.75	36.72 x 48.96	MCU	176
2.4"	PT0242432-D101	240 * 320	42.72 x 60.26 x 2.3	36.72 x 48.96	3-line SPI	350
2.4"	PT0242432T-D101(RTP)	240 * 320	42.72 x 60.26 x 3.4	36.72 x 48.96	3-line SPI	280
2.4"	PT0242432-D201	240 * 320	42.72 x 60.26 x 2.3	36.72 x 48.96	MCU	350
2.4"	PT0244823-A001	480 * 272	55.20 x 47.55 x 2.8	48.00 x 35.685	RAW DATA / SERIAL RGB / CCIR	220
2.8"	PT0282432-B704	240 * 320	50.0 x 69.2 x 2.6	43.20 x 57.60	MCU / RGB / SPI	260
2.8"	PT0282432T-B704(RTP)	240 * 320	50.0 x 69.2 x 3.8	43.20 x 57.60	MCU / RGB / SPI	208
2.8"	PT0282432-D503	240 * 320	50.0 x 69.2 x 2.5	43.20 x 57.60	MCU	260
2.8"	PT0282432-E501	240 * 320	50.0 x 69.2 x 2.45	43.20 x 57.60	MCU / RGB / SPI	300
2.8"	PT0282432T-E501(RTP)	240 * 320	50.0 x 69.2 x 3.6	43.20 x 57.60	MCU / RGB / SPI	220
3.5"	PT0353224-C601	320 * 240	76.9 x 64.0 x 3.1	70.08 x 52.56	MCU / RGB / SPI	400
3.5"	PT0353224T-C601(RTP)	320 * 240	76.9 x 64.0 x 4.2	70.08 x 52.56	MCU / RGB / SPI	320
3.5"	PT0353224-C701	320 * 240	76.9 x 63.9 x 3.26	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601	300
3.5"	PT0353224T-C701(RTP)	320 * 240	76.9 x 63.9 x 4.4	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601	200
3.5"	PT0353224-D102	320 * 240	76.9 x 63.9 x 3.2	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601	400
3.5"	PT0353224T-D102(RTP)	320 * 240	76.9 x 63.9 x 4.3	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601	350
3.5"	PT0353224-E201	320 * 240	76.9 x 63.9 x 3.15	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601	360
3.5"	PT0353224T-E201(RTP)	320 * 240	76.9 x 63.9 x 4.25	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601	288
3.5"	PT0353224-E501	320 * 240	76.9 x 63.9 x 3.05	70.08 x 52.56	MCU / RGB / SPI	300
3.5"	PT0353248-B207	320 * 480	55.66 x 85.04 x2.40	48.96 x 73.44	MCU / RGB / SPI	300
3.5"	PT0353248-B701	320 * 480	54.66 x 82.94 x 2.05	48.96 x 73.44	MCU	180
3.5"	PT0353248-C001	320 * 480	54.5 x 83.0 x 2.1	48.96 x 73.44	8 bit MCU	300
3.5"	PT0353248T-C001(RTP)	320 * 480	54.5 x 83.0 x 3.3	48.96 x 73.44	8 bit MCU	240
4.0"	PT0404880-B001	480 * 800	57.14 x 96.85 x 2.05	51.84 x 86.4	MIPI	300
4.0"	PT0404880-B701	480 * 800	58.94 x 97.80 x 2.0	51.84 x 86.4	MIPI	300
4.0"	PT0404880T-B701(RTP)	480 * 800	58.94 x 97.80 x 3.2	51.84 x 86.4	MIPI	280
4.0"	PT0404880-B901	480 * 800	57.14 x 96.85 x 1.80	51.84 x 86.4	SPI + RGB	300
4.3"	PT0434827-A413	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856	TTL Parallel RGB	600
4.3"	PT0434827T-A413(RTP)	480 * 272	105.5 x 67.2 x 4.05	95.04 x 53.856	TTL Parallel RGB	480
4.3"	PT0434827-A416	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856	TTL Parallel RGB	450
4.3"	PT0434827T-A416(RTP)	480 * 272	105.5 x 67.2 x 4.05	95.04 x 53.856	TTL Parallel RGB	360
4.3"	PT0434827-C801	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856	TTL Parallel RGB	400
4.3"	PT0434827T-C801(RTP)	480 * 272	105.5 x 67.2 x 4.0	95.04 x 53.856	TTL Parallel RGB	350
4.3"	PT0434880-B101	480 * 800	60.86 x 104.5 x 1.95	56.16 x 93.60	3-wire SPI + RGB interface	300
4.3"	PT0434880TC-B101(CTP)	480 * 800	85 x 120 x 3.68	56.16 x 93.60	3-wire SPI + RGB interface	250
4.5"	PT0454885-A001	480 * 854	60.62 x 108.25 x 1.9	55.44 x 98.637	MPU / RGB+SPI	300
5.0"	PT0508048-A701	800 * 480	120.8 x 75.9 x 3.2	108.0 x 64.8	TTL Parallel RGB	350
5.0"	PT0508048T-A701(RTP)	800 * 480	120.8 x 75.9 x 4.31	108.0 x 64.8	TTL Parallel RGB	250
5.0"	PT0508048TC-A701(CTP)	800 * 480	120.8 x 76.0 x 4.43	108.0 x 64.8	TTL Parallel RGB	350
5.0"	PT0508048-B001	800 * 480	120.7 x 75.8 x 2.9	108.0 x 64.8	TTL Parallel RGB	250
5.0"	PT0508048T-B001(RTP)	800 * 480	120.7 x 75.8 x 4.1	108.0 x 64.8	TTL Parallel RGB	200
5.0"	PT0508048TC-B001(CTP)	800 * 480	120.8 x 76.0 x 4.13	108.0 x 64.8	TTL Parallel RGB	200
5.0"	PT0508048TC-B301(CTP)	800 * 480	128.8 x 88.3 x 4.45	108.0 x 64.8	TTL Parallel RGB	240
7.0"	PT0708048-A302	800 * 480	165 x 104.44 x 5.2	152.4 x 91.44	TTL Parallel RGB	350
7.0"	PT0708048T-A308(RTP)	800 * 480	165 x 104.44 x 6.4	152.4 x 91.44	TTL Parallel RGB	300
7.0"	PT0708048-A902	800 * 480	165 x 100 x 6.6 max.	154.08 x 85.92	TTL Parallel RGB	250
7.0"	PT0708048T-A902(RTP)	800 * 480	165 x 100 x 6.6	154.08 x 85.92	TTL Parallel RGB	200
7.0"	PT0708048-C603	800 * 480	164.9 x 100.0 x 3.4	154.08 x 85.92	TTL Parallel RGB	250
7.0"	PT0708048T-C604(RTP)	800 * 480	164.9 x 100.0 x 5.1 max.	154.08 x 85.92	TTL Parallel RGB	200
7.0"	PT0708048TC-C603(CTP)	800 * 480	164.9 x 100.0 x 5.3 max.	154.08 x 85.92	TTL Parallel RGB	250
7.0"	PT0708048TC-D204(CTP)	800 * 480	195.6 x 130.0 x 5.75	153.84 x 85.63	24-bit Parallel RGB	400
7.0"	PT0708048TC-D204T(CTP)	800 * 480	164.9 x 101.55 x 5.75	153.84 x 85.63	24-bit Parallel RGB	400
7.0"	PT0708048-D205	800 * 480	164.9 x 100.0 x 3.5	153.84 x 85.63	24-bit Parallel RGB	500
7.0"	PT0708048T-D205(RTP)	800 * 480	164.9 x 100.0 x 4.7	153.84 x 85.63	24-bit Parallel RGB	400
7.0"	PT0708048TC-D205T(CTP)	800 * 480	164.9 x 101.55 x 5.75	153.84 x 85.63	24-bit Parallel RGB	400
7.0"	PT0708048-D301	800 * 480	165.0 x 104.4 x 5.2	154.08 x 85.92	MPU	250
7.0"	PT0708048TC-D202(CTP)	800 * 480	195.60 x 130.00 x 7.95	154.08 x 85.92	TTL Parallel RGB	800
7.0"	PT07010260-B401	1024 * 600	165.75 x 105.39 x 3.5	153.6 x 90.0	LVDS	300
12.1"	PT121XGA-A001	1024 * 768	260.5 x 240 x 7.2	245.76 x 184.32	LVDS	500

** For more products, please kindly feel free to contact with us!

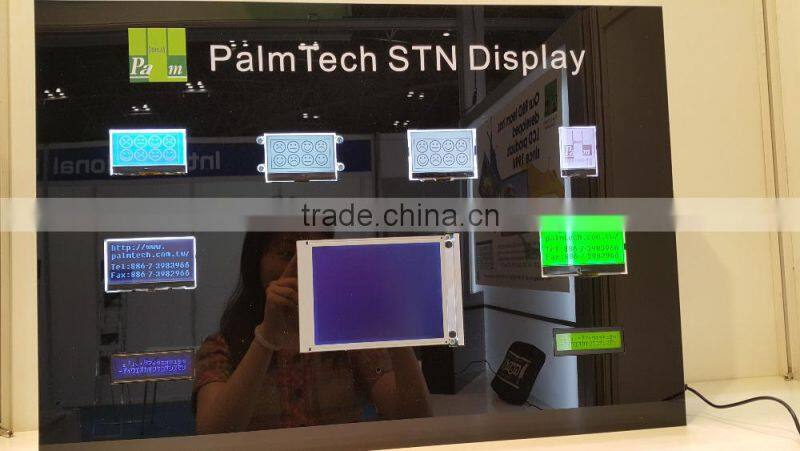

Exhibition pictures:

Factory pictures:

Company Introduction:

One of the Leading Suppliers of LCD/LCM Modules

Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.

To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.

Well Experienced Leadership

Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.

Providing Excellent Services

Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.

Owning Factories in Taiwan and Mainland China

Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.

We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.

To know more, contact us today.
