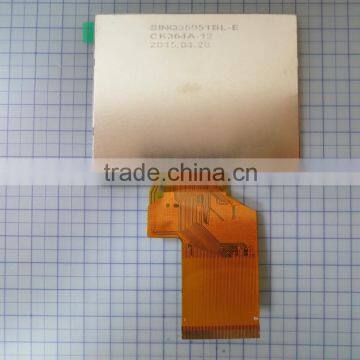

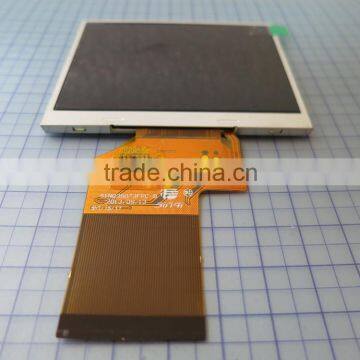

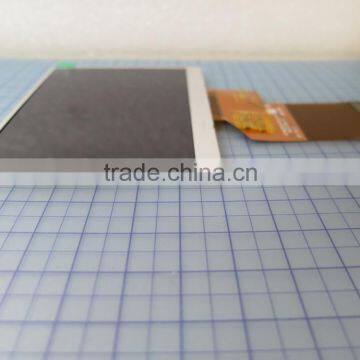

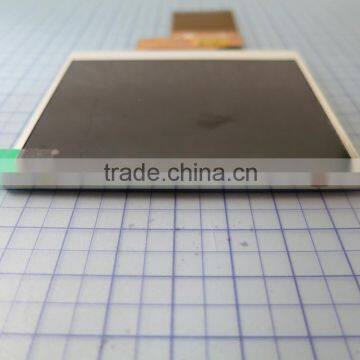

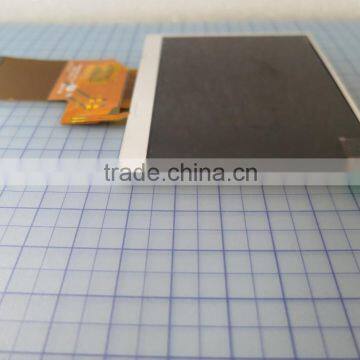

PT0353224-E201 TFT 3.5" Landscape Color QVGA 320x240 dots with or without touch screen LCD display
- Kaohsiung
- T/T
You May Like
-
TFT 3.5" Landscape Color QVGA 320x240dots touch screen LCD display PT0353224T-E201
-
2.4 inch tft OEM ODM PT242432T-B707 240*320 with resistive touch screen 2.4 inch TFT module
-
ODM OEM PT242432-B707 small size TFT 2..4" 240*320 resolution without touch panel
-
PT242432-B707 OEM ODM Small size TFT 2..4" 240*320 LCD
-
OEM ODM PT242432T-B707 Small size TFT 2..4" 240*320 with touch screen
-
3.5" PT0353248T-C001 320 *480 small size 3.5" tft with resistive touch panel
Product Details
Place of Origin | Taiwan, China | Brand Name | Palm Technology | |
Model Number | PT0353224-E201 | Type | TFT |
Product Description
product: PT0353224-E201 TFT 3.5" Landscape Color QVGA 320x240 dots with or without touch screen LCD display
Key Specifications/Special Features:
TFT LCD module 3.5-inch
Outline dimensions: 76.90 x 63.90 x 3.15 mm
Polarizer modes: transmissive type/positive
B/L: LED backlight, color white
Active area: 70.08 x 52.56 mm
Number of dots: 320 x 240 dots
Pixel size: 0.219x 0.219 mm
Viewing angle: 6:00
**The real dimensions of the product, welcome to purchase our samples.
*** Price can be discussed by real requirement.
TFT PRODUCT LIST | |||||
Display Size (inch) | Model No. | Resolution | Outline Dimension W x H x D mm | Active Area W x H mm | Interface |
1.5" | PT0151212-A701 | 128 * 128 | 32.35 x 38 x 2.6 | 25.5 x 26.5 | MCU / SPI |
1.77" | PT0181216-B101 | 128 * 160 | 34.0 x 45.83 x 2.75 | 28.032 x 35.040 | 8 bit MCU |
2.0" | PT0201722-B301 | 176 * 220 | 38.08 x 51.3 x 2.45 | 31.68 x 39.60 | 8/16 bit MCU |
2.0" | PT0201722-B606 | 176 * 220 | 38.5 x 51.15 x 2.5 | 31.68 x 39.60 | MCU / SPI |
2.0" | PT0201722T-B606 | 176 * 220 | 38.5 x 51.15 x 4.1 | 31.68 x 39.60 | MCU / SPI |
2.4" | PT0242432-B707 | 240 * 320 | 42.72 x 60.26 x 2.6 | 36.72 x 48.96 | MCU |
2.4" | PT0242432T-B707 | 240 * 320 | 42.72 x 60.26 x 3.75 | 36.72 x 48.96 | MCU |
2.4" | PT0242432-D201 | 240 * 320 | 42.72 x 60.26 x 2.4 | 36.72 x 48.96 | MCU |
2.4" | PT0243224-A302 | 320 * 240 | 53.00 x 46.42 x 2.05 | 48.00 x 36.00 | Serial / RGB |
2.8" | PT0282432-B704 | 240 * 320 | 50.0 x 69.2 x 2.6 | 43.20 x 57.60 | MCU / RGB / SPI |
2.8" | PT0282432T-B704 | 240 * 320 | 50.0 x 69.2 x 3.8 | 43.20 x 57.60 | MCU / RGB / SPI |
2.8" | PT0282432-D503 | 240 * 320 | 50.0 x 69.2 x 2.5 | 43.20 x 57.60 | MCU |
3.5" | PT0353224-C601 | 320 * 240 | 76.9 x 64.0 x 3.1 | 70.08 x 52.56 | MCU / RGB / SPI |
3.5" | PT0353224T-C601 | 320 * 240 | 76.9 x 64.0 x 4.2 | 70.08 x 52.56 | MCU / RGB / SPI |
3.5" | PT0353224-C701 | 320 * 240 | 76.9 x 63.9 x 3.26 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
3.5" | PT0353224T-C701 | 320 * 240 | 76.9 x 63.9 x 4.4 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
3.5" | PT0353224-D102 | 320 * 240 | 76.9 x 63.9 x 3.2 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
3.5" | PT0353224T-D102 | 320 * 240 | 76.9 x 63.9 x 4.3 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
3.5" | PT0353224-E201 | 320 * 240 | 76.9 x 63.9 x 3.15 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
3.5" | PT0353224T-E201 | 320 * 240 | 76.9 x 63.9 x 4.25 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
3.5" | PT0353224-E501 | 320 * 240 | 76.9 x 63.9 x 3.05 | 70.08 x 52.56 | MCU / RGB / SPI |
3.5" | PT0353248-B207 | 320 * 480 | 55.66 x 85.04 x2.40 | 48.96 x 73.44 | Serial and RGB interface |
3.5" | PT0353248-B701 | 320 * 480 | 54.66 x 82.94 x 2.05 | 48.96 x 73.44 | MCU |
3.5" | PT0353248-C001 | 320 * 480 | 54.5 x 83.0 x 2.1 | 48.96 x 73.44 | 8 bit MCU |
3.5" | PT0353248T-C001 | 320 * 480 | 54.5 x 83.0 x 3.3 | 48.96 x 73.44 | 8 bit MCU |
4.0" | PT0404880-B001 | 480 * 800 | 57.14 x 96.85 x 2.05 | 51.84 x 86.4 | MIPI |
4.3" | PT0434827-A413 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
4.3" | PT0434827T-A413 | 480 * 272 | 105.5 x 67.2 x 4.05 | 95.04 x 53.856 | TTL Parallel RGB |
4.3" | PT0434827-A416 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
4.3" | PT0434827T-A416 | 480 * 272 | 105.5 x 67.2 x 4.05 | 95.04 x 53.856 | TTL Parallel RGB |
4.3" | PT0434827-C801 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
4.3" | PT0434827T-C801 | 480 * 272 | 105.5 x 67.2 x 4.0 | 95.04 x 53.856 | TTL Parallel RGB |
4.3" | PT0434880-B001 | 480 * 800 | 61.06 x 104.6 x 2.05 | 56.16 x 93.60 | MIPI |
4.5" | PT0454885-A001 | 480 * 854 | 60.62 x 108.25 x 1.9 | 55.44 x 98.637 | MPU / RGB+SPI |
4.5" | PT0454885-A101 | 480 * 854 | 60.52 x108.15 x 1.85 | 55.44 x 98.637 | MIPI |
5.0" | PT0508048-A701 | 800 * 480 | 120.8 x 75.9 x 3.2 | 108.0 x 64.8 | TTL Parallel RGB |
5.0" | PT0508048T-A701 | 800 * 480 | 120.8 x 75.9 x 4.31 | 108.0 x 64.8 | TTL Parallel RGB |
5.0" | PT0508048TC-A701(CTP) | 800 * 480 | 120.8 x 76.0 x 4.43 | 108.0 x 64.8 | TTL Parallel RGB |
5.0" | PT0508048-B001 | 800 * 480 | 120.7 x 75.8 x 2.9 | 108.0 x 64.8 | TTL Parallel RGB |
5.0" | PT0508048T-B001 | 800 * 480 | 120.7 x 75.8 x 4.1 | 108.0 x 64.8 | TTL Parallel RGB |
5.0" | PT0508048TC-B001(CTP) | 800 * 480 | 120.8 x 76.0 x 4.13 | 108.0 x 64.8 | TTL Parallel RGB |
7.0" | PT0708048-A302 | 800 * 480 | 165 x 104.44 x 5.2 | 152.4 x 91.44 | TTL Parallel RGB |
7.0" | PT0708048T-A308 | 800 * 480 | 165 x 104.44 x 6.4 | 152.4 x 91.44 | TTL Parallel RGB |
7.0" | PT0708048-A902 | 800 * 480 | 164.9 x 100 x 5.1 | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT0708048T-A902 | 800 * 480 | 165 x 100 x 6.6 | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT0708048-C603 | 800 * 480 | 164.9 x 100.0 x 3.4 | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT0708048T-C603 | 800 * 480 | 164.9 x 100.0 x 5.1 | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT0708048-D001 | 800 * 480 | 164.9 x 100.0 x 5.7 | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT0708048-D002 | 800 * 480 | 164.9 x 100.0 x 5.7 | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT0708048-D301 | 800 * 480 | 165.0 x 104.4 x 5.2 | 154.08 x 85.92 | MPU |
7.0" | PT0708048TC-D202(CTP) | 800 * 480 | 195.60 x 130.00 x 7.95 | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT07010260-B401 | 1024 * 600 | 165.75 x 105.39 x 4.785 | 153.6 x 90.0 | LVDS |
8.0" | PT0808060-A201 | 800 * 600 | 183.0 x 141.0 x 5.6 | 162.0 x 121.5 | TTL Parallel RGB |
8.4" | PT0848060-A001 | 800 * 600 | 203.0 x 145.9 x 5.7 | 170.40 x 127.80 | LVDS |
10.1" | PT101WXGA-A301 | 1280 * 800 | 229.46 x 149.1 x 2.5 | 216.96 x 135.60 | LVDS |
10.1" | PT101WXGA-B001 | 1280 * 800 | 229.46 x 149.2 x 2.8 | 216.96 * 135.60 | LVDS |
10.4" | PT104XGA-A001 | 1024 * 768 | 238.6 x 175.8 x 7.47 | 210.4 x 157.8 | LVDS |
10.4" | PT104XGATC-A001 | 1024 * 768 | 264.60 x 204 x 9.9 | 210.4 x 157.8 | LVDS |
12.1" | PT121XGA-A001 | 1024 * 768 | 260.5 x 240 x 7.2 | 245.76 x 184.32 | LVDS |
