5.6 tft 640x480 resistive lcd module

Name: 5.6 tft 640x480 resistive lcd module
Brand: Palm Technology
Availability: InStock

FOB Price

USD $29 - $39 / Piece

100 Pieces(Min.Order)

Port Kaohsiung
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Taiwan, China		Brand Name	Palm Technology
Model Number	PT0566448T-A2		Type	TFT

Product Description

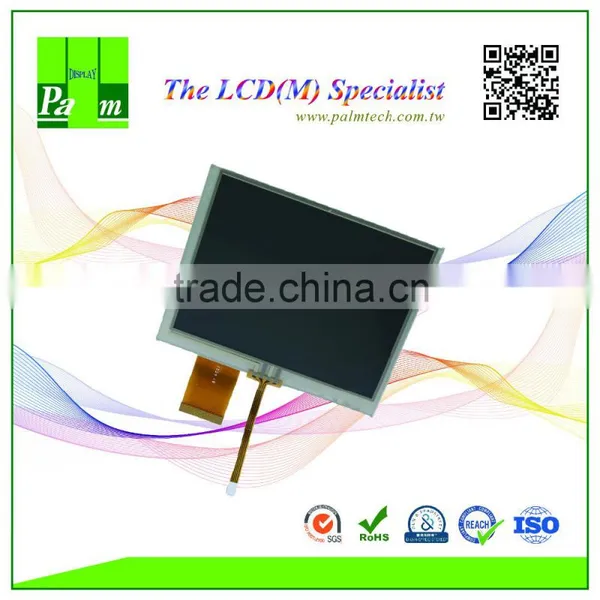

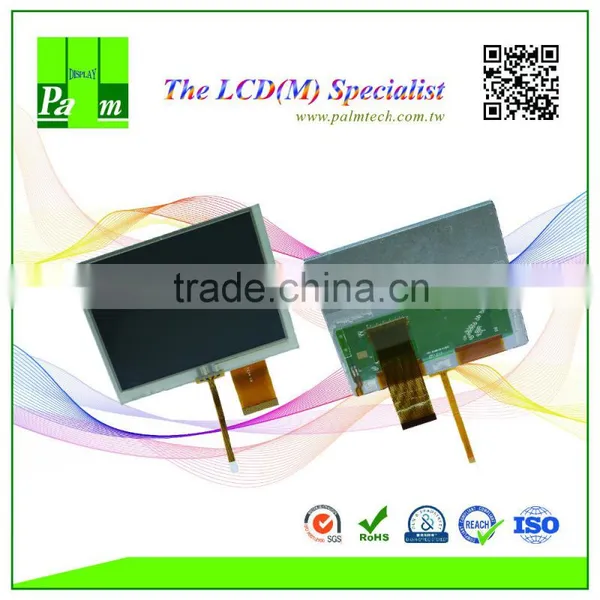

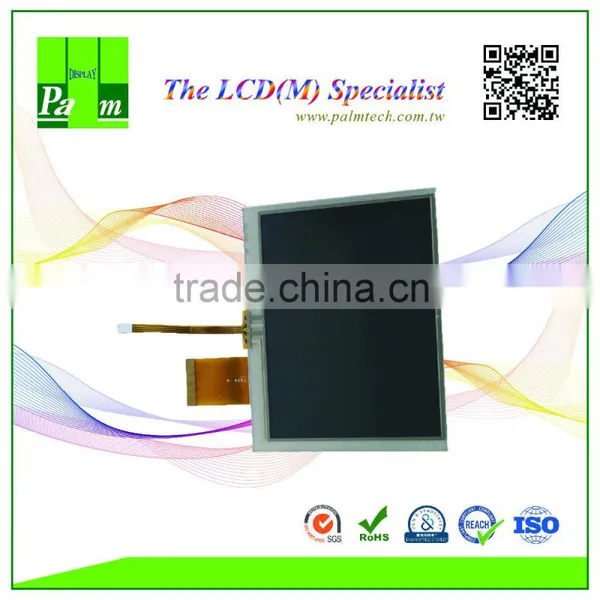

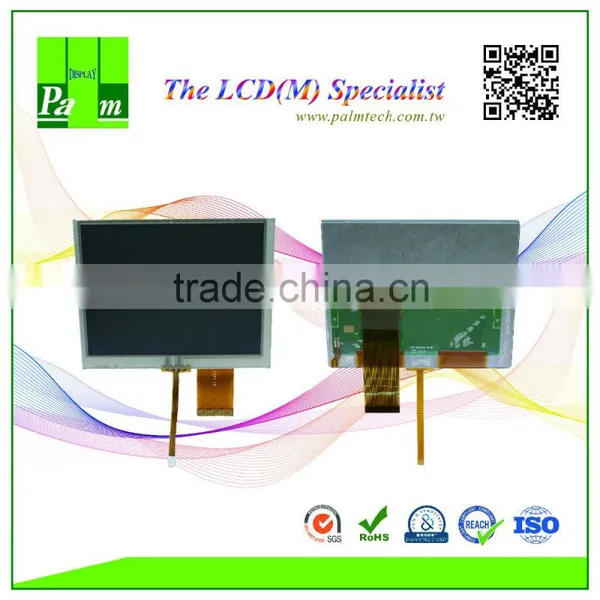

product: 5.6 inch tft 640x480 VGA with resistive touch lcd module PT0566448T-A2

Key Specifications/Special Features:

TFT Module: 5.6 inch TFT

Dimensions: 126.5 x 100.0 x 7.1 mm

Active area: 108.0 x 64.8 mm

Number of dots: 640 x 480 dots (RGB)

Resistive Touch Panel

**The real dimensions of the product, welcome to purchase our samples.

*** Price can be discussed by real requirement.

Product List- TFT:

Display Size (inch)	Model No.	Resolution	Outline Dimension W x H x D mm	Active Area W x H mm	Interface
1.5"	PT0151212-A704	128 * 128	32.35 x 38 x 2.6	25.5 x 26.5	MCU / SPI
1.77"	PT0181216-B101	128 * 160	34.0 x 45.83 x 2.75	28.032 x 35.040	8 bit MCU
2.0"	PT0201722-B301	176 * 220	38.08 x 51.3 x 2.45	31.68 x 39.60	8/16 bit MCU
2.4"	PT0242432-B707	240 * 320	42.72 x 60.26 x 2.6	36.72 x 48.96	MCU
2.4"	PT0242432T-B707(RTP)	240 * 320	42.72 x 60.26 x 3.75	36.72 x 48.96	MCU
2.4"	PT0242432-D101	240 * 320	42.72 x 60.26 x 2.3	36.72 x 48.96	3-line SPI
2.4"	PT0242432T-D101(RTP)	240 * 320	42.72 x 60.26 x 3.4	36.72 x 48.96	3-line SPI
2.4"	PT0242432-D201	240 * 320	42.72 x 60.26 x 2.3	36.72 x 48.96	MCU
2.4"	PT0244823-A001	480 * 272	55.20 x 47.55 x 2.8	48.00 x 35.685	RAW DATA / SERIAL RGB / CCIR
2.8"	PT0282432-B704	240 * 320	50.0 x 69.2 x 2.6	43.20 x 57.60	MCU / RGB / SPI
2.8"	PT0282432T-B704(RTP)	240 * 320	50.0 x 69.2 x 3.8	43.20 x 57.60	MCU / RGB / SPI
2.8"	PT0282432-D503	240 * 320	50.0 x 69.2 x 2.5	43.20 x 57.60	MCU
2.8"	PT0282432-E501	240 * 320	50.0 x 69.2 x 2.45	43.20 x 57.60	MCU / RGB / SPI
2.8"	PT0282432T-E501(RTP)	240 * 320	50.0 x 69.2 x 3.6	43.20 x 57.60	MCU / RGB / SPI
3.5"	PT0353224-C601	320 * 240	76.9 x 64.0 x 3.1	70.08 x 52.56	MCU / RGB / SPI
3.5"	PT0353224T-C601(RTP)	320 * 240	76.9 x 64.0 x 4.2	70.08 x 52.56	MCU / RGB / SPI
3.5"	PT0353224-C701	320 * 240	76.9 x 63.9 x 3.26	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601
3.5"	PT0353224T-C701(RTP)	320 * 240	76.9 x 63.9 x 4.4	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601
3.5"	PT0353224-E201	320 * 240	76.9 x 63.9 x 3.15	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601
3.5"	PT0353224T-E201(RTP)	320 * 240	76.9 x 63.9 x 4.25	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601
3.5"	PT0353224-E501	320 * 240	76.9 x 63.9 x 3.05	70.08 x 52.56	MCU / RGB / SPI
3.5"	PT0353248-B207	320 * 480	55.66 x 85.04 x2.40	48.96 x 73.44	MCU / RGB / SPI
3.5"	PT0353248-B701	320 * 480	54.66 x 82.94 x 2.05	48.96 x 73.44	MCU
3.5"	PT0353248-C001	320 * 480	54.5 x 83.0 x 2.1	48.96 x 73.44	8 bit MCU
3.5"	PT0353248T-C001(RTP)	320 * 480	54.5 x 83.0 x 3.3	48.96 x 73.44	8 bit MCU
4.0"	PT0404880-B701	480 * 800	58.94 x 97.80 x 2.0	51.84 x 86.4	MIPI
4.0"	PT0404880T-B701(RTP)	480 * 800	58.94 x 97.80 x 3.2	51.84 x 86.4	MIPI
4.0"	PT0404880-B901	480 * 800	57.14 x 96.85 x 1.80	51.84 x 86.4	SPI + RGB
4.3"	PT0434827-A413	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856	TTL Parallel RGB
4.3"	PT0434827T-A413(RTP)	480 * 272	105.5 x 67.2 x 4.05	95.04 x 53.856	TTL Parallel RGB
4.3"	PT0434827-C801	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856	TTL Parallel RGB
4.3"	PT0434827T-C801(RTP)	480 * 272	105.5 x 67.2 x 4.0	95.04 x 53.856	TTL Parallel RGB
4.3"	PT0434880-B101	480 * 800	60.86 x 104.5 x 1.95	56.16 x 93.60	3-wire SPI + RGB interface
4.3"	PT0434880TC-B101(CTP)	480 * 800	85 x 120 x 3.68	56.16 x 93.60	3-wire SPI + RGB interface
4.5"	PT0454885-A001	480 * 854	60.62 x 108.25 x 1.9	55.44 x 98.637	MPU / RGB+SPI
5.0"	PT0508048-B001	800 * 480	120.7 x 75.8 x 2.9	108.0 x 64.8	TTL Parallel RGB
5.0"	PT0508048T-B001(RTP)	800 * 480	120.7 x 75.8 x 4.1	108.0 x 64.8	TTL Parallel RGB
5.0"	PT0508048TC-B001(CTP)	800 * 480	120.8 x 76.0 x 4.13	108.0 x 64.8	TTL Parallel RGB
5.0"	PT0508048TC-B301(CTP)	800 * 480	128.8 x 88.3 x 4.45	108.0 x 64.8	TTL Parallel RGB
7.0"	PT0708048-A302	800 * 480	165 x 104.44 x 5.2	152.4 x 91.44	TTL Parallel RGB
7.0"	PT0708048T-A308(RTP)	800 * 480	165 x 104.44 x 6.4	152.4 x 91.44	TTL Parallel RGB
7.0"	PT0708048-A902	800 * 480	165 x 100 x 6.6 max.	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048T-A902(RTP)	800 * 480	165 x 100 x 6.6	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048-C603	800 * 480	164.9 x 100.0 x 3.4	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048T-C604(RTP)	800 * 480	164.9 x 100.0 x 5.1 max.	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048TC-C603(CTP)	800 * 480	164.9 x 100.0 x 5.3 max.	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048-D001	800 * 480	164.9 x 100.0 x 5.7	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048-D002	800 * 480	164.9 x 100.0 x 5.7	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048T-D201(RTP)	800 * 480	164.9 x 100.0 x 7.3	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048-D204	800 * 480	164.9 x 100.0 x 3.5	153.84 x 85.63	24-bit Parallel RGB
7.0"	PT0708048T-D204(RTP)	800 * 480	164.9 x 100.0 x 4.6	153.84 x 85.63	24-bit Parallel RGB
7.0"	PT0708048TC-D204(CTP)	800 * 480	195.6 x 130.0 x 5.75	153.84 x 85.63	24-bit Parallel RGB
7.0"	PT0708048TC-D204T(CTP)	800 * 480	164.9 x 101.55 x 5.75	153.84 x 85.63	24-bit Parallel RGB
7.0"	PT0708048-D205	800 * 480	164.9 x 100.0 x 3.5	153.84 x 85.63	24-bit Parallel RGB
7.0"	PT0708048T-D205(RTP)	800 * 480	164.9 x 100.0 x 4.7	153.84 x 85.63	24-bit Parallel RGB
7.0"	PT0708048TC-D205(CTP)	800 * 480	195.6 x 130.0 x 5.75	153.84 x 85.63	24-bit Parallel RGB
7.0"	PT0708048TC-D205T(CTP)	800 * 480	164.9 x 101.55 x 5.75	153.84 x 85.63	24-bit Parallel RGB
7.0"	PT0708048-D301	800 * 480	165.0 x 104.4 x 5.2	154.08 x 85.92	MPU
7.0"	PT0708048TC-D202(CTP)	800 * 480	195.60 x 130.00 x 7.95	154.08 x 85.92	TTL Parallel RGB
7.0"	PT07010260-B401	1024 * 600	165.75 x 105.39 x 3.5	153.6 x 90.0	LVDS
8.0"	PT0808060-A201	800 * 600	183.0 x 141.0 x 5.6	162.0 x 121.5	TTL Parallel RGB
8.4"	PT0848060-A001	800 * 600	203.0 x 145.9 x 5.7	170.40 x 127.80	LVDS
10.1"	PT10110260-B101	1024 * 600	235.3 x 143.0 x 4.8	222.72 * 125.28	LVDS
10.1"	PT10110260TC-B101(CTP)	1024 * 600	255.4 x 154.2 x 10.0	222.72 * 125.28	LVDS
10.1"	PT10110260-B201	1024 * 600	233.70 x 137.70 x 2.60	222.72 * 125.28	LVDS
10.1"	PT101WXGA-A301	1280 * 800	229.46 x 149.1 x 2.5	216.96 x 135.60	LVDS
10.1"	PT101WXGA-B001	1280 * 800	229.46 x 149.2 x 2.8	216.96 * 135.60	LVDS
10.1"	PT101WXGA-B201	1280 * 800	229.46 x 149.20 x 2.40	216.96 * 135.60	LVDS
10.1"	PT101WXGAT-B201(RTP)	1280 * 800	229.46 x 149.20 x 4.3 max.	216.96 * 135.60	LVDS
10.4"	PT104XGA-A001	1024 * 768	238.6 x 175.8 x 7.5	210.4 x 157.8	LVDS
10.4"	PT104XGATC-A001(CTP)	1024 * 768	264.60 x 204.0 x 9.99	210.4 x 157.8	LVDS
12.1"	PT121XGA-A001	1024 * 768	260.5 x 240 x 7.2	245.76 x 184.32	LVDS

Factory pictures:

Exhibition pictures:

Company Introduction:

One of the Leading Suppliers of LCD/LCM Modules

Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.

To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.

Well Experienced Leadership

Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.

Providing Excellent Services

Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.

Owning Factories in Taiwan and Mainland China

Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.

We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.
