PT0434880TC-B101 TFT 480*800 IPS panel with CTP 4.3 inch

Name: PT0434880TC-B101 TFT 480*800 IPS panel with CTP 4.3 inch
Brand: Palm Technology
Price: USD $27.7 - 32 / Piece

FOB Price

USD $27.7 - $32 / Piece

100 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Kaohsiung
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Taiwan	Brand Name:	Palm Technology	Model Number:	PT0434880TC-B101
Type:	TFT

Product Description

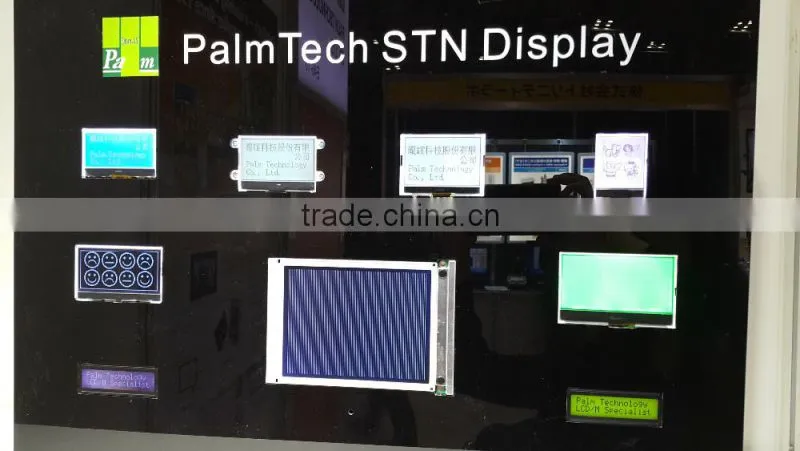

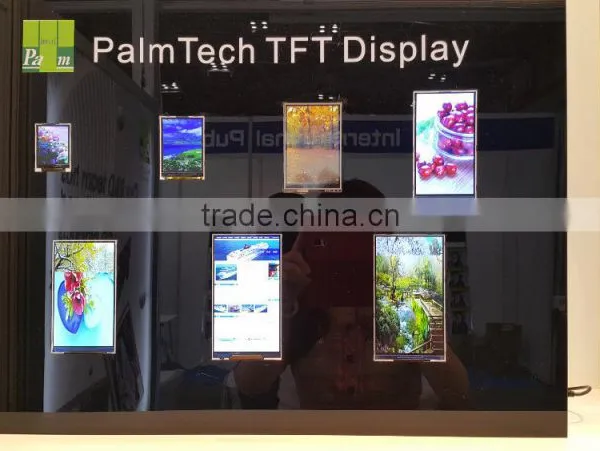

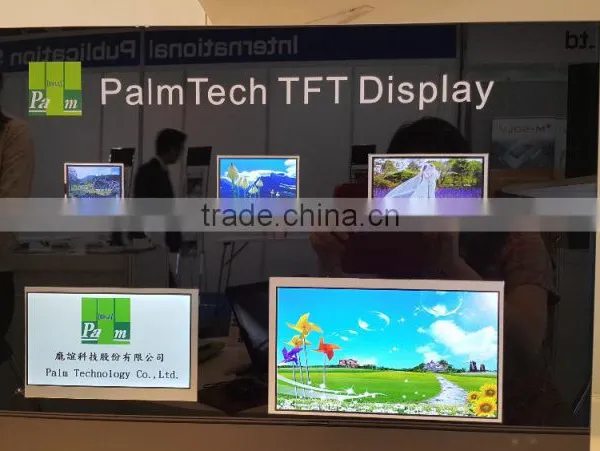

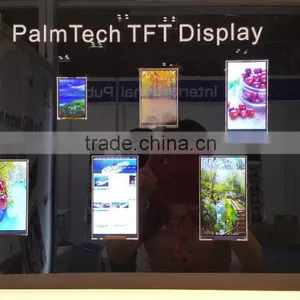

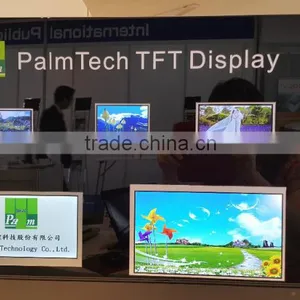

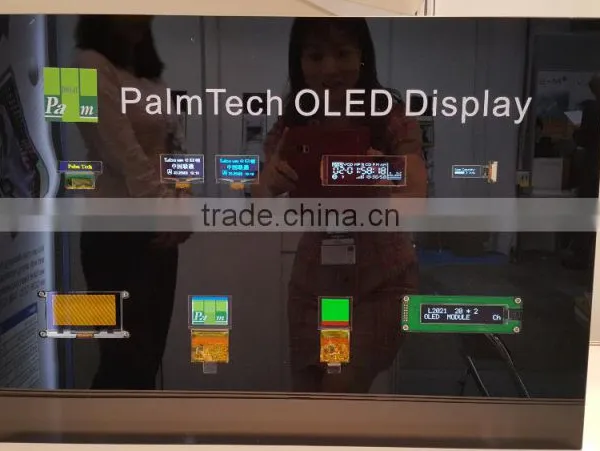

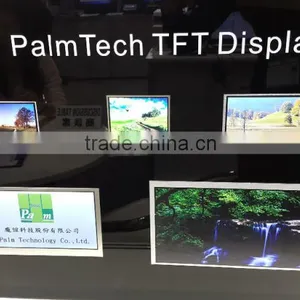

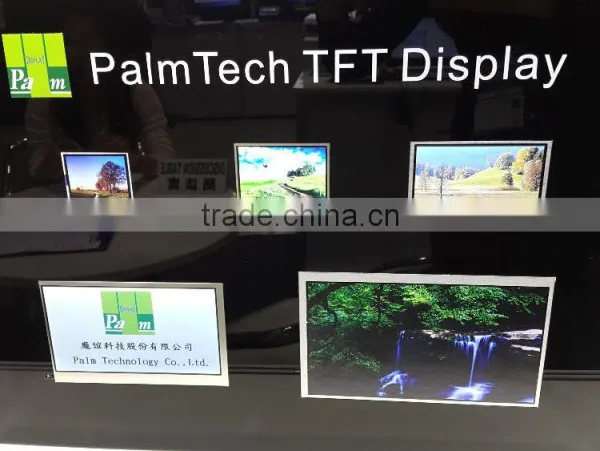

Exhibition pictures:

Factory pictures:

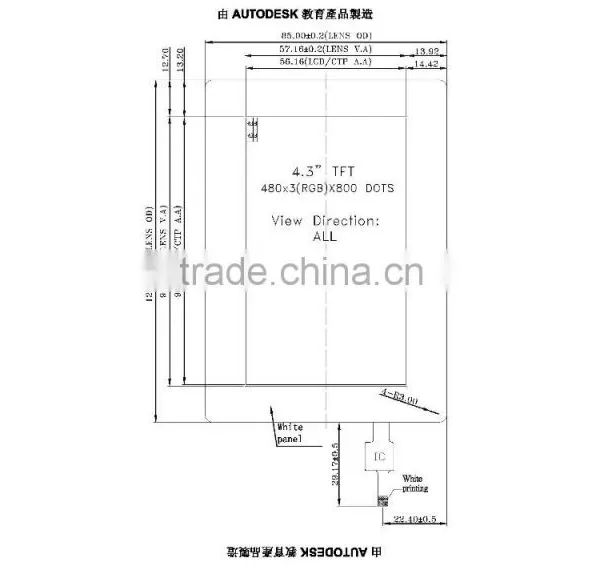

Key Specifications/Special Features:

TFT Module: 4.3 inch/ IPS

Dimensions: 85 x 120 x 3.85 mm

Active area: 56.16 x 93.60 mm

Number of dots: 800 x 480 resolution

Viewing angle: 80/80/80/80

With capacitive touch panel

**The real dimensions of the product, welcome to purchase our samples.

*** Price can be discussed by real requirement.

TFT PRODUCT LIST
Display Size (inch)	Model No.	Resolution	Outline Dimension W x H x D mm	Active Area W x H mm	Interface
1.5"	PT0151212-A701	128 * 128	32.35 x 38 x 2.6	25.5 x 26.5	MCU / SPI
1.77"	PT0181216-B101	128 * 160	34.0 x 45.83 x 2.75	28.032 x 35.040	8 bit MCU
2.0"	PT0201722-B301	176 * 220	38.08 x 51.3 x 2.45	31.68 x 39.60	8/16 bit MCU
2.0"	PT0201722-B606	176 * 220	38.5 x 51.15 x 2.5	31.68 x 39.60	MCU / SPI
2.0"	PT0201722T-B606	176 * 220	38.5 x 51.15 x 4.1	31.68 x 39.60	MCU / SPI
2.4"	PT0242432-B707	240 * 320	42.72 x 60.26 x 2.6	36.72 x 48.96	MCU
2.4"	PT0242432T-B707	240 * 320	42.72 x 60.26 x 3.75	36.72 x 48.96	MCU
2.4"	PT0242432-D201	240 * 320	42.72 x 60.26 x 2.4	36.72 x 48.96	MCU
2.4"	PT0243224-A302	320 * 240	53.00 x 46.42 x 2.05	48.00 x 36.00	Serial / RGB
2.8"	PT0282432-B704	240 * 320	50.0 x 69.2 x 2.6	43.20 x 57.60	MCU / RGB / SPI
2.8"	PT0282432T-B704	240 * 320	50.0 x 69.2 x 3.8	43.20 x 57.60	MCU / RGB / SPI
2.8"	PT0282432-D503	240 * 320	50.0 x 69.2 x 2.5	43.20 x 57.60	MCU
3.5"	PT0353224-C601	320 * 240	76.9 x 64.0 x 3.1	70.08 x 52.56	MCU / RGB / SPI
3.5"	PT0353224T-C601	320 * 240	76.9 x 64.0 x 4.2	70.08 x 52.56	MCU / RGB / SPI
3.5"	PT0353224-C701	320 * 240	76.9 x 63.9 x 3.26	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601
3.5"	PT0353224T-C701	320 * 240	76.9 x 63.9 x 4.4	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601
3.5"	PT0353224-D102	320 * 240	76.9 x 63.9 x 3.2	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601
3.5"	PT0353224T-D102	320 * 240	76.9 x 63.9 x 4.3	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601
3.5"	PT0353224-E201	320 * 240	76.9 x 63.9 x 3.15	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601
3.5"	PT0353224T-E201	320 * 240	76.9 x 63.9 x 4.25	70.08 x 52.56	Serial/Parallel RGB / CCIR656 / CCIR601
3.5"	PT0353224-E501	320 * 240	76.9 x 63.9 x 3.05	70.08 x 52.56	MCU / RGB / SPI
3.5"	PT0353248-B207	320 * 480	55.66 x 85.04 x2.40	48.96 x 73.44	Serial and RGB interface
3.5"	PT0353248-B701	320 * 480	54.66 x 82.94 x 2.05	48.96 x 73.44	MCU
3.5"	PT0353248-C001	320 * 480	54.5 x 83.0 x 2.1	48.96 x 73.44	8 bit MCU
3.5"	PT0353248T-C001	320 * 480	54.5 x 83.0 x 3.3	48.96 x 73.44	8 bit MCU
4.0"	PT0404880-B001	480 * 800	57.14 x 96.85 x 2.05	51.84 x 86.4	MIPI
4.3"	PT0434827-A413	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856	TTL Parallel RGB
4.3"	PT0434827T-A413	480 * 272	105.5 x 67.2 x 4.05	95.04 x 53.856	TTL Parallel RGB
4.3"	PT0434827-A416	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856	TTL Parallel RGB
4.3"	PT0434827T-A416	480 * 272	105.5 x 67.2 x 4.05	95.04 x 53.856	TTL Parallel RGB
4.3"	PT0434827-C801	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856	TTL Parallel RGB
4.3"	PT0434827T-C801	480 * 272	105.5 x 67.2 x 4.0	95.04 x 53.856	TTL Parallel RGB
4.3"	PT0434880-B001	480 * 800	61.06 x 104.6 x 2.05	56.16 x 93.60	MIPI
4.5"	PT0454885-A001	480 * 854	60.62 x 108.25 x 1.9	55.44 x 98.637	MPU / RGB+SPI
4.5"	PT0454885-A101	480 * 854	60.52 x108.15 x 1.85	55.44 x 98.637	MIPI
5.0"	PT0508048-A701	800 * 480	120.8 x 75.9 x 3.2	108.0 x 64.8	TTL Parallel RGB
5.0"	PT0508048T-A701	800 * 480	120.8 x 75.9 x 4.31	108.0 x 64.8	TTL Parallel RGB
5.0"	PT0508048TC-A701(CTP)	800 * 480	120.8 x 76.0 x 4.43	108.0 x 64.8	TTL Parallel RGB
5.0"	PT0508048-B001	800 * 480	120.7 x 75.8 x 2.9	108.0 x 64.8	TTL Parallel RGB
5.0"	PT0508048T-B001	800 * 480	120.7 x 75.8 x 4.1	108.0 x 64.8	TTL Parallel RGB
5.0"	PT0508048TC-B001(CTP)	800 * 480	120.8 x 76.0 x 4.13	108.0 x 64.8	TTL Parallel RGB
7.0"	PT0708048-A302	800 * 480	165 x 104.44 x 5.2	152.4 x 91.44	TTL Parallel RGB
7.0"	PT0708048T-A308	800 * 480	165 x 104.44 x 6.4	152.4 x 91.44	TTL Parallel RGB
7.0"	PT0708048-A902	800 * 480	164.9 x 100 x 5.1	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048T-A902	800 * 480	165 x 100 x 6.6	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048-C603	800 * 480	164.9 x 100.0 x 3.4	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048T-C603	800 * 480	164.9 x 100.0 x 5.1	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048-D001	800 * 480	164.9 x 100.0 x 5.7	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048-D002	800 * 480	164.9 x 100.0 x 5.7	154.08 x 85.92	TTL Parallel RGB
7.0"	PT0708048-D301	800 * 480	165.0 x 104.4 x 5.2	154.08 x 85.92	MPU
7.0"	PT0708048TC-D202(CTP)	800 * 480	195.60 x 130.00 x 7.95	154.08 x 85.92	TTL Parallel RGB
7.0"	PT07010260-B401	1024 * 600	165.75 x 105.39 x 4.785	153.6 x 90.0	LVDS
8.0"	PT0808060-A201	800 * 600	183.0 x 141.0 x 5.6	162.0 x 121.5	TTL Parallel RGB
8.4"	PT0848060-A001	800 * 600	203.0 x 145.9 x 5.7	170.40 x 127.80	LVDS
10.1"	PT101WXGA-A301	1280 * 800	229.46 x 149.1 x 2.5	216.96 x 135.60	LVDS
10.1"	PT101WXGA-B001	1280 * 800	229.46 x 149.2 x 2.8	216.96 * 135.60	LVDS
10.4"	PT104XGA-A001	1024 * 768	238.6 x 175.8 x 7.47	210.4 x 157.8	LVDS
10.4"	PT104XGATC-A001	1024 * 768	264.60 x 204 x 9.9	210.4 x 157.8	LVDS
12.1"	PT121XGA-A001	1024 * 768	260.5 x 240 x 7.2	245.76 x 184.32	LVDS

Company Introduction:

One of the Leading Suppliers of LCD/LCM Modules

Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.

To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.

Well Experienced Leadership

Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.

Providing Excellent Services

Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.

Owning Factories in Taiwan and Mainland China

Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.

We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.

To know more, contact us today.
