Home > Consumer Electronics > Display & Accessories > LCD Module > White Color 128X64 1.3 Inch OLED Mono LCD Display

White Color 128X64 1.3 Inch OLED Mono LCD Display

Name: White Color 128X64 1.3 Inch OLED Mono LCD Display
Brand: Palm Technology
SKU: 122656909
Availability: InStock

White Color 128X64 1.3 Inch OLED Mono LCD Display thumbnail-1

White Color 128X64 1.3 Inch OLED Mono LCD Display thumbnail-2

White Color 128X64 1.3 Inch OLED Mono LCD Display thumbnail-3

White Color 128X64 1.3 Inch OLED Mono LCD Display thumbnail-4

White Color 128X64 1.3 Inch OLED Mono LCD Display thumbnail-5

White Color 128X64 1.3 Inch OLED Mono LCD Display thumbnail-6

White Color 128X64 1.3 Inch OLED Mono LCD Display photo-1

White Color 128X64 1.3 Inch OLED Mono LCD Display photo-2

White Color 128X64 1.3 Inch OLED Mono LCD Display photo-3

White Color 128X64 1.3 Inch OLED Mono LCD Display photo-4

White Color 128X64 1.3 Inch OLED Mono LCD Display photo-5

White Color 128X64 1.3 Inch OLED Mono LCD Display photo-6

US$ 4.2 - 7.5 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

Palm Technology

Model Number:

PTOG1206W-A601

Contact Supplier Request Quote Chat Now

Palm Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Kaohsiung

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name Palm Technology

Model Number PTOG1206W-A601

Type Other, OLED

https://www.china.cn/product-detail/OLED-128X64-1-3-inch-mono_60506026523.html

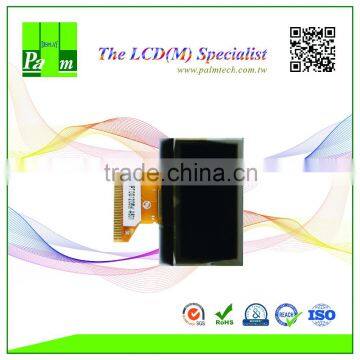

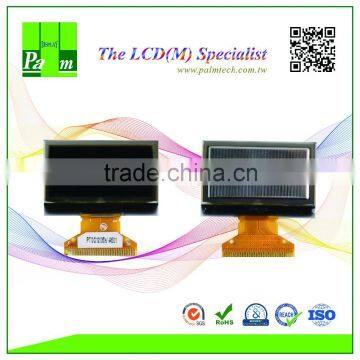

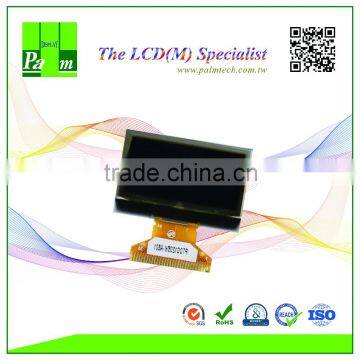

Product: PTOG1206W-A601small panel 1.3" OLED display module 128x64 monochrome LCD display in white color SH1106G IC

Exhibition Pictures:

Factory pictures:

Key Specifications/Special Features:

LCD type: OLED 1.3"

Number of dots: 128 x 64 dots

Module dimensions: 34.50 * 23.00 *1.45 mm

Active area:29.42 * 14.70 mm

Display color: White

IC: SH1106G

**To know more about performances and dimensions of the products, welcome to purchase our samples.

***Price can be discussed by real requirement.

Product List of OLED:

Display Size(inch)	Display Format	Model No.	Outline Dimension			Viewing Area		Active Area
Display Size(inch)	Display Format	Model No.	W	H	D	W	H	W	H
0.48''	72 x 32	PTOG0703W-A001	14.90	11.29	1.2	12.46	6.15	11.21	4.97
0.66"	64 x 48	PTOG0604W-A001	18.46	18.10	1.25	15.42	12.06	13.42	10.06
0.84"	96 x 18	PTOG0901W-A001	29.40	8.40	1.61	23.10	2.58	21.10	3.58
0.91"	128 x 32	PTOG1203x-A001	30.00	11.5	1.45	24.38	7.58	22.38	5.58
0.95"	96 x 64	PTOG0906W-A001	24.90	20.53	1.45	21.95	15.42	19.95	13.42
0.96''	128 x 64	PTOG1206x-A101	26.70	19.26	1.45	23.74	13.20	21.74	11.175
0.96''	128 x 64	PTOG1206B-A501	26.70	19.26	1.45	23.74	13.20	21.74	11.175
0.96''	128 x 64	PTOG1206W-A801	26.70	19.26	0.96	23.74	13.20	21.74	11.175
1.02''	128 x 64	PTOG1206x-A001	30.00	20.16	1.45	25.02	13.82	23.02	11.82
1.1"	96 x 96	PTOG0909x-A001	25.49	29.10	1.45	21.65	21.65	19.655	19.655
1.1"	96 x 96	PTOG0909C-A101	25.49	29.10	1.45	21.85	21.85	19.85	19.85
1.12"	128 x 128	PTOG1212W-A201	27.00	30.10	1.25	22.14	22.14	20.14	20.14
1.3"	128 x 64	PTOG1206W-A601	34.50	23.00	1.45	31.42	16.70	29.42	14.7
1.45"	132 x 16	PTOG1301x-A001	43.06	11.75	1.5	38.412	6.62	36.412	4.62
1.46"	128 x 128	PAOG1212C-A001	33.5	33.5	1.61	28.0	28.0	26.279	26.284
1.46"	128 x 128	PAOG1212C-A002	33.5	33.5	1.61	28.0	28.0	26.279	26.284
1.50"	128 x 128	PAOG1212W-A101	33.8	36.5	1.41	28.86	28.86	26.86	26.86
1.50"	128 x 128	PAOG1212W-A102	33.8	36.5	1.41	28.86	28.86	26.86	26.86
1.50"	128 x 128	PAOG1212Y-A202	33.8	36.5	1.41	28.86	28.86	26.86	26.86
1.50"	128 x 128	PTOG1212x-A101	33.90	37.30	1.45	28.86	28.86	26.86	26.86
1.50"	160 x 160	PTOG1616W-A001	33.90	37.30	1.45	28.86	28.86	26.86	26.86
1.54''	128 x 64	PTOG1206x-A401	42.04	27.22	1.5	37.04	19.51	35.04	17.51
1.80"	160 x 128	PAOG1612C-A101	42.7	33.4	2.01	37.015	30.012	35.015	28.012
1.80"	160 x 128	PAOG1612C-A102	42.7	33.4	2.01	37.015	30.012	35.015	28.012
1.80"	160 x 128	PAOG1612C-A103	42.7	33.4	2.01	37.015	30.012	35.015	28.012
2.05"	128 x 32	PTOG1203x-A101	55.60	21.80	1.45	52.54	14.62	50.54	12.62
2.70"	128 x 64	PTOG1206Y-A701	73.00	40.24	2.0	63.41	32.69	61.41	30.69
2.70"	128 x 64	PTOG1206x-A301	73.00	40.24	2.0	63.41	32.69	61.41	30.69
2.70"	256 x 64	PTOG2506x-A001	82.00	25.50	1.5	68.53	18.61	66.53	16.61
2.80"	256 x 64	PTOG2506Y-A101	28.50	80.50	2.0	19.26	71.095	17.255	69.10
2.80"	256 x 64	PTOG2506W-A201	28.50	80.50	2.0	19.26	71.095	17.255	69.10
2.93"	20 x 2	PAOC2002Y-A001	116.00	37.00	7.7	75.52	13.52	73.52	11.52
3.08"	20 x 2	PTOC2002Y-A101	89.45	19.85	2	79.30	13.85	77.30	11.85

Model No.	Resolution	Outline Dimension W x H x D mm	Active Area W x H mm
PT0151212-A704	128 * 128	32.35 x 38 x 2.6	25.5 x 26.5
PT0181216-B101	128 * 160	34.0 x 45.83 x 2.75	28.032 x 35.040
PT0201722-B301	176 * 220	38.08 x 51.3 x 2.45	31.68 x 39.60
PT0201722-B606	176 * 220	38.5 x 51.15 x 2.5	31.68 x 39.60
PT0201722T-B606	176 * 220	38.5 x 51.15 x 4.1	31.68 x 39.60
PT0242432-B707	240 * 320	42.72 x 60.26 x 2.6	36.72 x 48.96
PT0242432T-B707	240 * 320	42.72 x 60.26 x 3.75	36.72 x 48.96
PT0242432-D101	240 * 320	42.72 x 60.26 x 2.3	36.72 x 48.96
PT0242432T-D101	240 * 320	42.72 x 60.26 x 3.4	36.72 x 48.96
PT0242432-D201	240 * 320	42.72 x 60.26 x 2.3	36.72 x 48.96
PT0244823-A001	480 * 272	55.20 x 47.55 x 2.8	48.00 x 35.685
PT0282432-B704	240 * 320	50.0 x 69.2 x 2.6	43.20 x 57.60
PT0282432T-B704	240 * 320	50.0 x 69.2 x 3.8	43.20 x 57.60
PT0282432-D503	240 * 320	50.0 x 69.2 x 2.5	43.20 x 57.60
PT0282432-E501	240 * 320	50.0 x 69.2 x 2.45	43.20 x 57.60
PT0282432T-E501	240 * 320	50.0 x 69.2 x 3.6	43.20 x 57.60
PT0353224-C601	320 * 240	76.9 x 64.0 x 3.1	70.08 x 52.56
PT0353224T-C601	320 * 240	76.9 x 64.0 x 4.2	70.08 x 52.56
PT0353224-C701	320 * 240	76.9 x 63.9 x 3.26	70.08 x 52.56
PT0353224T-C701	320 * 240	76.9 x 63.9 x 4.4	70.08 x 52.56
PT0353224-D102	320 * 240	76.9 x 63.9 x 3.2	70.08 x 52.56
PT0353224T-D102	320 * 240	76.9 x 63.9 x 4.3	70.08 x 52.56
PT0353224-E201	320 * 240	76.9 x 63.9 x 3.15	70.08 x 52.56
PT0353224T-E201	320 * 240	76.9 x 63.9 x 4.25	70.08 x 52.56
PT0353224-E501	320 * 240	76.9 x 63.9 x 3.05	70.08 x 52.56
PT0353248-B207	320 * 480	55.66 x 85.04 x2.40	48.96 x 73.44
PT0353248-B701	320 * 480	54.66 x 82.94 x 2.05	48.96 x 73.44
PT0353248-C001	320 * 480	54.5 x 83.0 x 2.1	48.96 x 73.44
PT0353248T-C001	320 * 480	54.5 x 83.0 x 3.3	48.96 x 73.44
PT0404880-B001	480 * 800	57.14 x 96.85 x 2.05	51.84 x 86.4
PT0404880-B701	480 * 800	58.94 x 97.80 x 2.0	51.84 x 86.4
PT0404880T-B701	480 * 800	58.94 x 97.80 x 3.2	51.84 x 86.4
PT0404880-B901	480 * 800	57.14 x 96.85 x 1.80	51.84 x 86.4
PT0434827-A413	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856
PT0434827T-A413	480 * 272	105.5 x 67.2 x 4.05	95.04 x 53.856
PT0434827-A416	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856
PT0434827T-A416	480 * 272	105.5 x 67.2 x 4.05	95.04 x 53.856
PT0434827-C801	480 * 272	105.5 x 67.2 x 2.9	95.04 x 53.856
PT0434827T-C801	480 * 272	105.5 x 67.2 x 4.0	95.04 x 53.856
PT0434880-B101	480 * 800	60.86 x 104.5 x 1.95	56.16 x 93.60
PT0434880TC-B101	480 * 800	85 x 120 x 3.68	56.16 x 93.60
PT0454885-A001	480 * 854	60.62 x 108.25 x 1.9	55.44 x 98.637
PT0508048-A701	800 * 480	120.8 x 75.9 x 3.2	108.0 x 64.8
PT0508048T-A701	800 * 480	120.8 x 75.9 x 4.31	108.0 x 64.8
PT0508048TC-A701(CTP)	800 * 480	120.8 x 76.0 x 4.43	108.0 x 64.8
PT0508048-B001	800 * 480	120.7 x 75.8 x 2.9	108.0 x 64.8
PT0508048T-B001	800 * 480	120.7 x 75.8 x 4.1	108.0 x 64.8
PT0508048TC-B001(CTP)	800 * 480	120.8 x 76.0 x 4.13	108.0 x 64.8
PT0508048TC-B301(CTP)	800 * 480	128.8 x 88.3 x 4.45	108.0 x 64.8
PT0708048-A302	800 * 480	165 x 104.44 x 5.2	152.4 x 91.44

for more products, please feel free to contact with us!

Company Introduction:

One of the Leading Suppliers of LCD/LCM Modules

Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.

To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.

Well Experienced Leadership

Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.

Providing Excellent Services

Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.

Owning Factories in Taiwan and Mainland China

Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.

We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.

To know more, contact us today.
