Mono Graphic 128x160 FSTN STN LCD Display

Mono Graphic 128x160 FSTN STN LCD Display thumbnail-1
Mono Graphic 128x160 FSTN STN LCD Display thumbnail-2
Mono Graphic 128x160 FSTN STN LCD Display thumbnail-3
Mono Graphic 128x160 FSTN STN LCD Display thumbnail-4
Mono Graphic 128x160 FSTN STN LCD Display thumbnail-5
Mono Graphic 128x160 FSTN STN LCD Display thumbnail-6
Mono Graphic 128x160 FSTN STN LCD Display photo-1

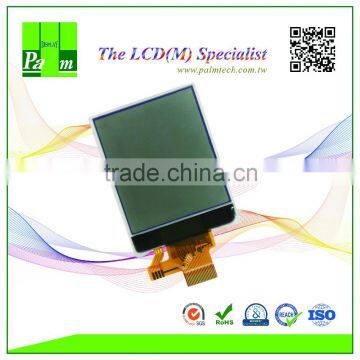

Mono Graphic 128x160 FSTN STN LCD Display photo-2

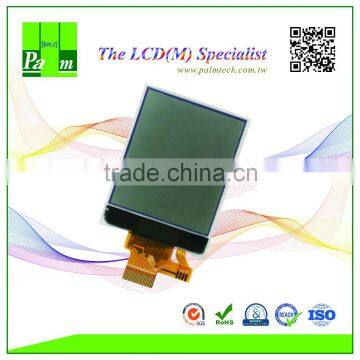

Mono Graphic 128x160 FSTN STN LCD Display photo-3

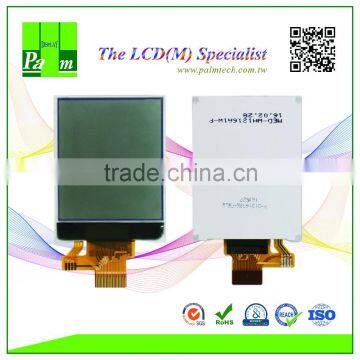

Mono Graphic 128x160 FSTN STN LCD Display photo-4

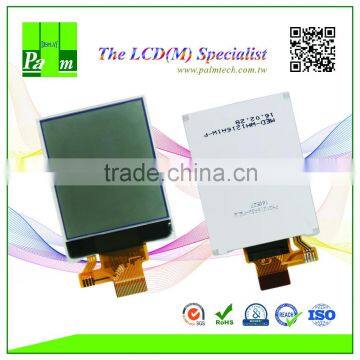

Mono Graphic 128x160 FSTN STN LCD Display photo-5

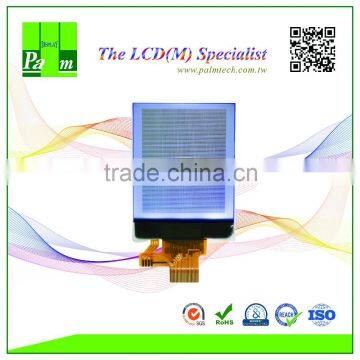

Mono Graphic 128x160 FSTN STN LCD Display photo-6
US$ 4.16 - 7 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Palm Technology
Model Number:
PHG1216A3W-FWLW
Contact Supplier Request Quote Chat Now
Palm Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Kaohsiung
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Palm Technology
Model Number PHG1216A3W-FWLW
Type Graphic

 https://www.china.cn/product-detail/mono-Graphic-128x160-FSTN-STN-LCD_60517364596.html

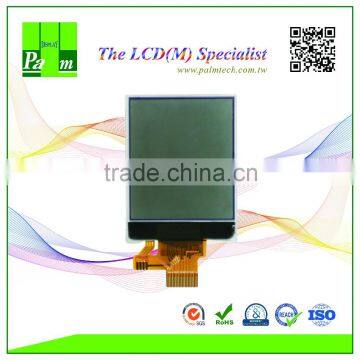

product: PHG1216A3W-FWLW  128x160 COG FSTN LCD/ White led backlight

mono Graphic 128x160 FSTN STN LCD display



Key Specifications/Special Features:

LCD type: FSTN, Positive

Number of dots: 128 x 160 dots

Module dimensions:  37.0*49.0 mm

Viewing area: 32.9*38.2mm

With backlight: white



  **The real dimensions of the product, welcome to purchase our samples.

*** Price can be discussed by real requirement.



Product list- Graphic Type LCD Module:

Display Format
Dots x Dots 		Model No. Outline Dimension
LCM W x H mm
(COG LCD W x H mm) 		Viewing Area
W x H mm 		Dot Size
W x H mm 		Dot Pitch
W x H mm
128 x 32 PHG1203D1 42.0 x 17.66 39.0 x 8.66 0.22 x 0.22 0.24 x 0.24
128 x 64 PHG1206A4 40.5 x 34.0
(38.3 x 33.0)		 33.8 x 22.2 0.225 x 0.285 0.24 x 0.30
128 x 64 PHG1206E 42.0 x 30.0 37.0 x 20.0 0.24 x 0.25 0.27 x 0.28
128 x 64 PHG12061F2 65.0 x 39.2
(63.0 x 37.7)		 60.0 x 29.0 0.38 x 0.38 0.41 x 0.41
128 x 64 PHG12061G 77.0 x 39.2
(63.0 x 37.7)		 60.0 x 29.0 0.38 x 0.38 0.41 x 0.41
128 x 64 PHG1206I 46.1 x 33.0
(43.8 x 30.7)		 39.5 x 20.0 0.245 x 0.245 0.27 x 0.27
128 x 64 PHG12062M 35.2 x 29.0
(34.0 x 27.8)		 31.0 x 19.0 0.2 x 0.24 0.22 x 0.26
128 x 64 PHG1206Q 65.0 x 39.15
(63.0 x 37.7)		 60.0 x 29.0 0.38 x 0.38 0.41 x 0.41
128 x 64 PHG1206S1 47.4 x 44.4
(46.0 x 36.0)		 41.8 x 26.1 0.29 x 0.34 0.307 x 0.357
128 x 64 PHG1206X2 80.5 x 45.0
(64.0 x 43.0)		 60.0 x 32.6 0.40 x 0.40 0.43 x 0.43
128 x 64 PHG12A06A 74.8 x 54.5
(63.0 x 42.5)		 59.0 x 32.0 0.40 x 0.40 0.43 x 0.43
128 x 64 PHG12A06B 78.0 x 50.5
(68.0 x 47.0)		 63.84 x 35.68 0.44 x 0.46 0.46 x 0.48
128 x 64 PHG12A06C 38.2 x 27.13
(36.0 x 26.0)		 34.0 x 18.5 0.21 x 0.233 0.235 x 0.258
128 x 64 PHG12A06D 35.2 x 33.0
(33.0 x 31.0)		 30.0 x 24.0 0.1809 x 0.298 0.2109 x 0.328
128 x 64 PQG1206B 93.0 x 70.0 70.7 x 38.8 0.48 x 0.48 0.52 x 0.52
128 x 80 PHG1208A1 40.5 x 34.0
(38.3 x 33.0)		 35.3 x 24.34 0.259 x 0.259 0.274 x 0.274
128 x 128 PHG1212CW6 36.6 x 44.5
(36.5 x 42.5)		 33.5 x 33.5 0.20 x 0.215 0.22 x 0.235
128 x 128 PHG1212G 46.0 * 54.4
(46.0 * 52.4)		 43.0 x 42.8 0.275 x 0.285 0.29 x 0.30
128 x 128 PHG1212I 36.6 x 39.3
(34.0 x 37.3)		 28.0 x 28.0 0.182 x 0.182 0.202 x 0.202
128 x 128 PLG1212B 92.0 x 106.0 73.0 x 73.0 0.50 x 0.50 0.55 x 0.55
132 x 64 PHG1306H 77.0 x 47.5
(75.0 x 45.5)		 72.0 x 36.5 0.5 x 0.5 0.52 x 0.52
240 x 64 PBG2406A 125.0 x 60.0 111.6 x 37.0 0.41 x 0.47 0.44 x 0.50
240 x 64 PQG2406A 180.0 x 65.0 132.0 x 39.0 0.49 x 0.49 0.53 x 0.53
240 x 128 PQG2412A 144.0 x 104.0 114.0 x 64.0 0.40 x 0.40 0.45 x 0.45
240 x 160 PHG2416A1 69.1 x 52.4
(69.1 x 51.4)		 60.6 x 41.4 0.22 x 0.22 0.24 x 0.24
240 x 160 PQG2416A2 77.4 x 61.0 73.4 x 48.0 0.261 x 0.261 0.281 x 0.281
240 x 320
(Duty :1/320)		 PMGG2432A 83.3 x 92.1 60.6 x 79.8 0.225 x 0.225 0.24 x 0.24
320 x 240 PFG3224A 167.1 x 109.0 122.0 x 92.0 0.33 x 0.33 0.36 x 0.36
320 x 240
(Duty : 1/240)		 PMGG2432B 92.1 x 83.3 79.8 x 60.6 0.225 x 0.225 0.24 x 0.24
320 x 240                     (Duty : 1/240) PMGG2432C 92.1 x 83.3 79.8 x 60.6 0.225 x 0.225 0.24 x 0.24



Product list- TFT LCD Module:

Display Size
(inch)		 Model No. Resolution Outline Dimension
W x H x D mm		 Active Area
W x H mm		 Interface Luminance
 cd/m²
1.5" PT0151212-A704 128 * 128 32.35 x 38  x 2.6 25.5 x 26.5 MCU / SPI 140
1.77" PT0181216-B101 128 * 160 34.0 x 45.83 x 2.75 28.032 x 35.040 8 bit MCU 180
2.0" PT0201722-B301 176 * 220 38.08 x 51.3 x 2.45 31.68 x 39.60 8/16 bit MCU 195
2.0" PT0201722-B606  176 * 220 38.5 x 51.15 x 2.5 31.68 x 39.60 MCU / SPI 300
2.0" PT0201722T-B606(RTP) 176 * 220 38.5 x 51.15 x 4.1 31.68 x 39.60 MCU / SPI 240
2.4" PT0242432-B707 240 * 320 42.72 x 60.26 x 2.6 36.72 x 48.96 MCU 220
2.4" PT0242432T-B707(RTP) 240 * 320 42.72 x 60.26 x 3.75 36.72 x 48.96 MCU 176
2.4" PT0242432-D101 240 * 320 42.72 x 60.26 x 2.3 36.72 x 48.96 3-line SPI 350
2.4" PT0242432T-D101(RTP) 240 * 320 42.72 x 60.26 x 3.4 36.72 x 48.96 3-line SPI 280
2.4" PT0242432-D201 240 * 320 42.72 x 60.26 x 2.3 36.72 x 48.96 MCU 350
2.4" PT0244823-A001  480 * 272 55.20 x 47.55 x 2.8 48.00 x 35.685 RAW DATA / SERIAL RGB / CCIR 220
2.8" PT0282432-B704 240 * 320 50.0 x 69.2 x 2.6 43.20 x 57.60 MCU / RGB / SPI 260
2.8" PT0282432T-B704(RTP) 240 * 320 50.0 x 69.2 x 3.8 43.20 x 57.60 MCU / RGB / SPI 208
2.8" PT0282432-D503 240 * 320 50.0 x 69.2 x 2.5 43.20 x 57.60 MCU 260
2.8" PT0282432-E501 240 * 320 50.0 x 69.2 x 2.45 43.20 x 57.60 MCU / RGB / SPI 300
2.8" PT0282432T-E501(RTP) 240 * 320 50.0 x 69.2 x 3.6 43.20 x 57.60 MCU / RGB / SPI 220
3.5" PT0353224-C601 320 * 240 76.9 x 64.0 x 3.1 70.08 x 52.56 MCU / RGB / SPI 400
3.5" PT0353224T-C601(RTP) 320 * 240 76.9 x 64.0 x 4.2 70.08 x 52.56 MCU / RGB / SPI 320
3.5" PT0353224-C701 320 * 240 76.9 x 63.9 x 3.26 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601  300
3.5" PT0353224T-C701(RTP) 320 * 240 76.9 x 63.9 x 4.4 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601  200
3.5" PT0353224-D102 320 * 240 76.9 x 63.9 x 3.2 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601  400
3.5" PT0353224T-D102(RTP) 320 * 240 76.9 x 63.9 x 4.3 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601  350
3.5" PT0353224-E201 320 * 240 76.9 x 63.9 x 3.15 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601  360
3.5" PT0353224T-E201(RTP) 320 * 240 76.9 x 63.9 x 4.25 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601  288
3.5" PT0353224-E501 320 * 240 76.9 x 63.9 x 3.05 70.08 x 52.56 MCU / RGB / SPI 300
3.5" PT0353248-B207 320 * 480 55.66 x 85.04 x2.40 48.96 x 73.44 MCU / RGB / SPI 300
3.5" PT0353248-B701 320 * 480 54.66 x 82.94 x 2.05 48.96 x 73.44 MCU 180
3.5" PT0353248-C001 320 * 480 54.5 x 83.0 x 2.1 48.96 x 73.44 8 bit MCU 300
3.5" PT0353248T-C001(RTP) 320 * 480 54.5 x 83.0 x 3.3 48.96 x 73.44 8 bit MCU 240
4.0" PT0404880-B001 480 * 800 57.14 x 96.85 x 2.05 51.84 x 86.4   MIPI 300
4.0" PT0404880-B701 480 * 800 58.94 x 97.80 x 2.0 51.84 x 86.4   MIPI 300
4.0" PT0404880T-B701(RTP) 480 * 800 58.94 x 97.80 x 3.2 51.84 x 86.4   MIPI 280
4.0" PT0404880-B901 480 * 800 57.14 x 96.85 x 1.80 51.84 x 86.4 SPI + RGB 300
4.3" PT0434827-A413 480 * 272 105.5 x 67.2 x 2.9 95.04 x 53.856 TTL Parallel RGB 600
4.3" PT0434827T-A413(RTP) 480 * 272 105.5 x 67.2 x 4.05 95.04 x 53.856 TTL Parallel RGB 480
4.3" PT0434827-A416 480 * 272 105.5 x 67.2 x 2.9 95.04 x 53.856 TTL Parallel RGB 450
4.3" PT0434827T-A416(RTP) 480 * 272 105.5 x 67.2 x 4.05 95.04 x 53.856 TTL Parallel RGB 360
4.3" PT0434827-C801 480 * 272 105.5 x 67.2 x 2.9 95.04 x 53.856 TTL Parallel RGB 400
4.3" PT0434827T-C801(RTP) 480 * 272 105.5 x 67.2 x 4.0 95.04 x 53.856 TTL Parallel RGB 350
4.3" PT0434880-B101 480 * 800 60.86 x 104.5 x 1.95 56.16 x 93.60 3-wire SPI + RGB interface 300
4.3" PT0434880TC-B101(CTP) 480 * 800 85 x 120 x 3.68 56.16 x 93.60 3-wire SPI + RGB interface 250
4.5" PT0454885-A001 480 * 854 60.62 x 108.25 x 1.9 55.44 x 98.637 MPU / RGB+SPI 300
5.0" PT0508048-A701 800 * 480 120.8 x 75.9 x 3.2 108.0 x 64.8 TTL Parallel RGB 350
5.0" PT0508048T-A701(RTP) 800 * 480 120.8 x 75.9 x 4.31 108.0 x 64.8 TTL Parallel RGB 250
5.0" PT0508048TC-A701(CTP) 800 * 480 120.8 x 76.0 x 4.43 108.0 x 64.8 TTL Parallel RGB 350
5.0" PT0508048-B001 800 * 480 120.7 x 75.8 x 2.9 108.0 x 64.8 TTL Parallel RGB 250
5.0" PT0508048T-B001(RTP) 800 * 480 120.7 x 75.8 x 4.1 108.0 x 64.8 TTL Parallel RGB 200
5.0" PT0508048TC-B001(CTP) 800 * 480 120.8 x 76.0 x 4.13 108.0 x 64.8 TTL Parallel RGB 200
5.0" PT0508048TC-B301(CTP) 800 * 480 128.8 x 88.3 x 4.45 108.0 x 64.8 TTL Parallel RGB 240
7.0" PT0708048-A302 800 * 480 165 x 104.44 x 5.2 152.4 x 91.44 TTL Parallel RGB 350
7.0" PT0708048T-A308(RTP) 800 * 480 165 x 104.44 x 6.4 152.4 x 91.44 TTL Parallel RGB 300
7.0" PT0708048-A902 800 * 480 165 x 100 x 6.6 max. 154.08 x 85.92 TTL Parallel RGB 250
7.0" PT0708048T-A902(RTP) 800 * 480 165 x 100 x 6.6 154.08 x 85.92 TTL Parallel RGB 200
7.0" PT0708048T-C604(RTP) 800 * 480 164.9 x 100.0 x 5.1 max. 154.08 x 85.92 TTL Parallel RGB 200
7.0" PT0708048TC-C603(CTP) 800 * 480 164.9 x 100.0 x 5.3 max. 154.08 x 85.92 TTL Parallel RGB 250



Factory pictures:

mono Graphic 128x160 FSTN STN LCD displaymono Graphic 128x160 FSTN STN LCD displaymono Graphic 128x160 FSTN STN LCD displaymono Graphic 128x160 FSTN STN LCD displaymono Graphic 128x160 FSTN STN LCD displaymono Graphic 128x160 FSTN STN LCD display

Exhibition pictures: mono Graphic 128x160 FSTN STN LCD displaymono Graphic 128x160 FSTN STN LCD displaymono Graphic 128x160 FSTN STN LCD displaymono Graphic 128x160 FSTN STN LCD displaymono Graphic 128x160 FSTN STN LCD display

mono Graphic 128x160 FSTN STN LCD displaymono Graphic 128x160 FSTN STN LCD display

Company Introduction:

One of the Leading Suppliers of LCD/LCM Modules

Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.



To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.



Well Experienced Leadership

Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.



Providing Excellent Services

Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.



Owning Factories in Taiwan and Mainland China

Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.



We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.



To know more, contact us today.
