Home > Instruments & Meters > Laboratory Instruments > Laboratory Centrifuge > Tabletop Refrigerated Centrifuge TDL-5M
Tabletop Refrigerated Centrifuge TDL-5M
US$ 1,000 - 2,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
LXY
Model Number:
TDL-5M
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Tabletop Low Speed Refrigerated Centrifuge TDL-8MUS$ 3,000 - 4,000MOQ: 1 Unit -
GL-25MS 25000rpm High Speed Continuous CentrifugeUS$ 16,000 - 18,000MOQ: 1 Unit
-
GL-25M Continuous Flow CentrifugeUS$ 10,000 - 11,000MOQ: 1 Unit
-
TD4XD Cell Washing CentrifugeUS$ 200 - 1,000MOQ: 1 Unit
-
TGL-18MS Tabletop High Speed Refrigerated CentrifugeUS$ 3,000 - 4,000MOQ: 1 Unit
Brand Name
LXY
Model Number
TDL-5M
Place of Origin
China
Specifications
Microcomputer control, brushless motor, touching panel, programmable operation, RCF is automatically calculated.High Capacity Refrigerated Centrifuge
ABS housing
Brushless motor
Imported refrigeration unit
Stainless steel chamber
High Capacity Refrigerated Centrifuge
- LED/LCD display
- Microcomputer control
- Stainless steel chamber
- Real-time conversion of RPM/RCF
- Working data automatically stored
- ABS housing, which is anticorrosive
- Adopt converter motor without brush
- Touching panel, programmable operation
- Allocated rotors to be selected and used by customers
- Provide ten programs of centrifugal curve to adjust speed
- Many kinds of tube racks, which is cinvenient and replaceable
- Short running function, easy to diversification centrifugation
- Installed with unbalanced unit,gate lid,over speed and over temperature protection device
- Imported refrigerated unit, NON-CFC refrigeration system, measure up to environmental standards
Technical data
Model |
TDL-5M |
Max Speed |
5000 r/min |
Max RCF |
4390×g |
Speed Accuracy |
±50 r/min |
Temperature Range |
−5°c—~+35°c |
Temperature Accuracy |
±1°c |
Compressor |
Imported/R404a |
Timer Ranger |
0~99min |
Power Supply |
220V 50HZ 15A |
Noice |
<65dB(A) |
Dimension |
710×460×420mm(L×W×H) |
Weight |
80kg |

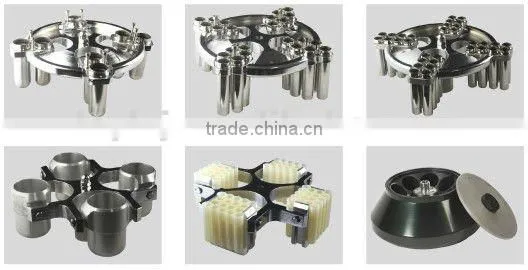

Allocate Rotor
No. |
Max Speed |
Max RCF |
Max Capacity |
Remarks |
No.1 Swing Rotor |
5000 rpm |
4390×g |
100ml×4 |
|
No.2 Swing Rotor |
4000 rpm |
2810×g |
50ml×8 |
|
|
4000 rpm |
2810×g |
15ml×24/32 |
|
|
4000 rpm |
2810×g |
7ml×48/72 |
|
No.3 Angle Rotor |
4000 rpm |
2200×g |
8×96well |
|
No.4 Microplate Rotor |
8000 rpm |
9100×g |
100ml×8 |
|
