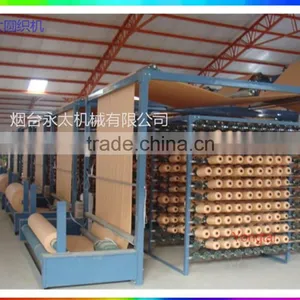

Help CenterPlastic Woven Bag Circular Loom,
Related Products
-
Circular Loom,flat Spinning Machine, Efficient, High SpeedUS$ 15,000 - 15,800MOQ: 1 Set -
Circular Loom,small ,high Spped, SBY-850*6,frequency-automaticUS$ 8,900 - 9,800MOQ: 1 Set
-
Large 8 Shuttles Circular Loom, High Spped,US$ 26,990 - 27,450MOQ: 1 Set
-
Big Circular Loom, 6 Shuttles,flat Spinning MachineUS$ 23,500 - 24,500MOQ: 1 Set
-
SBY-2200*8E Circular Loom, Flour Bag Making MachineUS$ 27,500 - 28,200MOQ: 1 Set
Six-shuttle circular loom technical parameters and performances
Type |
SBY-1400×6 |
Revolutions |
10-85rpm(variable frequency) |
Power of main motor |
5.5kw |
Main speed reducer |
Taper gear wheel speed reducer connected directly with the electrical motor |
Shuttles |
6 |
Track width |
125mm(the face of track is plated with hard chromium) |
Fold diameter |
1000-1350mm |
Number of warp |
Max 2160pcs |
Density of weft |
32-64pcs/100mm(changing weft density through changing gears) |
Theoretical output |
48-96m/h |
Warp diameter |
Max Φ 135mm |
Weft diameter |
Max Φ 105mm |
Involution electrical motor |
15kg.cm*2 |
Involution width |
Max 1400mm |
Involution diameter |
Max Φ 1100mm |
Involution style |
Double-cutting and double-rolling |
Length statistics style |
Mechanical three-shift length meter |
Specs of shuttles |
Φ38×230 or Φ38×270 |
Yarn plate specs |
Φ38 |
Let-off device |
Initiative let-off(torque electrical motor 8kg.cm×2) |
Let-off rubber covered roller |
Φ150mm×2515mm |
Warp-broken control |
It stops automatically when warp breaks |
Weft-end control |
Electrical motor style weft-end system |
Lubricating style |
The cam is lubricated circularly by force through gear pump(oil is deposited and filtered by oil box); The draw runner of shuttles is lubricated through needle valve oil dripping |
Oil route protection |
It stops when oil route has jam |
Dimension |
17.2*3.35*4.4 |
Weight |
About 5.8t |
Device characters:
1. Small-cam designed, the inertia of start-up is small and the speed is high.
2. Gear wheel reducer is connected straightly with the main electrical motor, high efficiency and long life. This solves the low efficiency problem of turbine speed reducer with moving strap and put an end to the hidden trouble that the swaying needle wheel reducer can’t resist shocking and can’t start with high frequency. This can reduce the energy consumption of the whole equipment and decrease the maintenance cost.
3. The dynamotor type weft detector is sensitive and reliable and cannot be influenced by dusts. It can stop automatically when weft ends. The yield of product is high.
4. The cam is lubricated circularly by force, this can promote the efficiency of the machine. It has oil route jam alarming device, avoiding abnormal wearing and tearing of the parts.
5. Turbine speed reducer for cloth rolling adopts flexible connections. This can prolong the life of the speed reducer.
6. It is more economical and efficient than SBY-2200×6E when the fold diameter is less than 1700mm.
7. The structure of device is reasonable, simple and reliable. It is reliable to operate. The quick-wear parts are few. The maintenance is convenient. The revolving cost is low.
8. The track with swallow-tailed cam prevent shuttles out.
9. The electrical system is controlled by PLC.
