128 x 64 Graphic LCD PHG1206X2

128 x 64 Graphic LCD PHG1206X2 thumbnail-1
128 x 64 Graphic LCD PHG1206X2 thumbnail-2
128 x 64 Graphic LCD PHG1206X2 thumbnail-3
128 x 64 Graphic LCD PHG1206X2 thumbnail-4
128 x 64 Graphic LCD PHG1206X2 thumbnail-5
128 x 64 Graphic LCD PHG1206X2 thumbnail-6
128 x 64 Graphic LCD PHG1206X2 photo-1
128 x 64 Graphic LCD PHG1206X2 photo-2
128 x 64 Graphic LCD PHG1206X2 photo-3
128 x 64 Graphic LCD PHG1206X2 photo-4
128 x 64 Graphic LCD PHG1206X2 photo-5
128 x 64 Graphic LCD PHG1206X2 photo-6
US$ 3.6 - 6 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Palm Technology
Model Number:
PHG1206X2
Contact Supplier Request Quote Chat Now
Palm Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Kaohsiung
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Palm Technology
Model Number PHG1206X2
Type Graphic

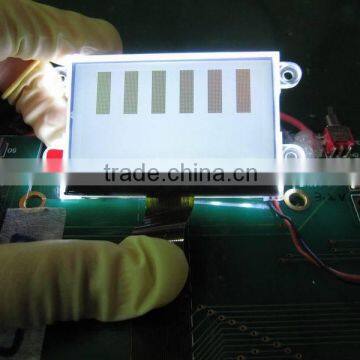

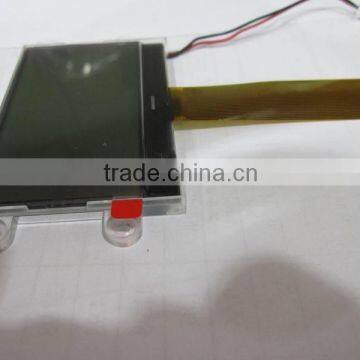

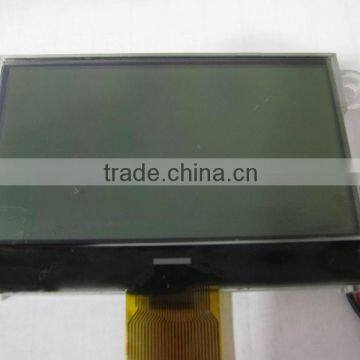

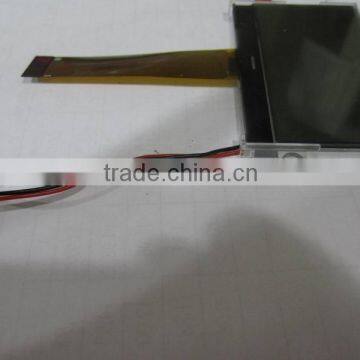

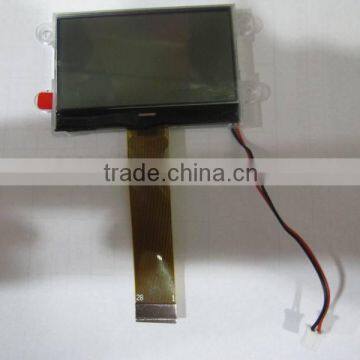

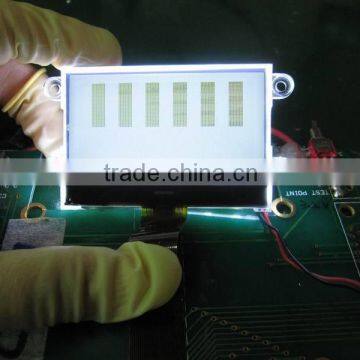

 128 x 64 Graphic LCD PHG1206X2

Key Specifications/Special Features:



LCD type: FSTN

Number of dots: 128 x 64 dots

Module dimensions: 80.5 x 45.0/ 64.0 x 43.0 mm

Viewing area: 60.0 x 32.6 mm

Dot size: 0.40 x 0.40 mm

Dot pitch: 0.43 x 0.43 mm

Power supply: +3V



  **The real dimensions of the product, welcome to purchase our samples.

*** Price can be discussed by real requirement.



Graphic Type LCD Module:

Display Format
Dots x Dots 		Model No. Outline Dimension
LCM W x H mm
(COG LCD W x H mm) 		Viewing Area
W x H mm 		Dot Size
W x H mm 		Dot Pitch
W x H mm
128 x 32 PHG1203D1 42.0 x 17.66 39.0 x 8.66 0.22 x 0.22 0.24 x 0.24
128 x 64 PHG1206A4 40.5 x 34.0
(38.3 x 33.0)		 33.8 x 22.2 0.225 x 0.285 0.24 x 0.30
128 x 64 PHG1206E 42.0 x 30.0 37.0 x 20.0 0.24 x 0.25 0.27 x 0.28
128 x 64 PHG12061F2 65.0 x 39.2
(63.0 x 37.7)		 60.0 x 29.0 0.38 x 0.38 0.41 x 0.41
128 x 64 PHG12061G 77.0 x 39.2
(63.0 x 37.7)		 60.0 x 29.0 0.38 x 0.38 0.41 x 0.41
128 x 64 PHG1206I 46.1 x 33.0
(43.8 x 30.7)		 39.5 x 20.0 0.245 x 0.245 0.27 x 0.27
128 x 64 PHG12062M 35.2 x 29.0
(34.0 x 27.8)		 31.0 x 19.0 0.2 x 0.24 0.22 x 0.26
128 x 64 PHG1206Q 65.0 x 39.15
(63.0 x 37.7)		 60.0 x 29.0 0.38 x 0.38 0.41 x 0.41
128 x 64 PHG1206S1 47.4 x 44.4
(46.0 x 36.0)		 41.8 x 26.1 0.29 x 0.34 0.307 x 0.357
128 x 64 PHG1206X2 80.5 x 45.0
(64.0 x 43.0)		 60.0 x 32.6 0.40 x 0.40 0.43 x 0.43
128 x 64 PHG12A06A 74.8 x 54.5
(63.0 x 42.5)		 59.0 x 32.0 0.40 x 0.40 0.43 x 0.43
128 x 64 PHG12A06B 78.0 x 50.5
(68.0 x 47.0)		 63.84 x 35.68 0.44 x 0.46 0.46 x 0.48
128 x 64 PHG12A06C 38.2 x 27.13
(36.0 x 26.0)		 34.0 x 18.5 0.21 x 0.233 0.235 x 0.258
128 x 64 PHG12A06D 35.2 x 33.0
(33.0 x 31.0)		 30.0 x 24.0 0.1809 x 0.298 0.2109 x 0.328
128 x 64 PQG1206B 93.0 x 70.0 70.7 x 38.8 0.48 x 0.48 0.52 x 0.52
128 x 80 PHG1208A1 40.5 x 34.0
(38.3 x 33.0)		 35.3 x 24.34 0.259 x 0.259 0.274 x 0.274
128 x 128 PHG1212CW6 36.6 x 44.5
(36.5 x 42.5)		 33.5 x 33.5 0.20 x 0.215 0.22 x 0.235
128 x 128 PHG1212G 46.0 * 54.4
(46.0 * 52.4)		 43.0 x 42.8 0.275 x 0.285 0.29 x 0.30
128 x 128 PHG1212I 36.6 x 39.3
(34.0 x 37.3)		 28.0 x 28.0 0.182 x 0.182 0.202 x 0.202
128 x 128 PLG1212B 92.0 x 106.0 73.0 x 73.0 0.50 x 0.50 0.55 x 0.55
132 x 64 PHG1306H 77.0 x 47.5
(75.0 x 45.5)		 72.0 x 36.5 0.5 x 0.5 0.52 x 0.52
240 x 64 PBG2406A 125.0 x 60.0 111.6 x 37.0 0.41 x 0.47 0.44 x 0.50
240 x 64 PQG2406A 180.0 x 65.0 132.0 x 39.0 0.49 x 0.49 0.53 x 0.53
240 x 128 PQG2412A 144.0 x 104.0 114.0 x 64.0 0.40 x 0.40 0.45 x 0.45
240 x 160 PHG2416A1 69.1 x 52.4
(69.1 x 51.4)		 60.6 x 41.4 0.22 x 0.22 0.24 x 0.24
240 x 160 PQG2416A2 77.4 x 61.0 73.4 x 48.0 0.261 x 0.261 0.281 x 0.281
240 x 320
(Duty :1/320)		 PMGG2432A 83.3 x 92.1 60.6 x 79.8 0.225 x 0.225 0.24 x 0.24
320 x 240 PFG3224A 167.1 x 109.0 122.0 x 92.0 0.33 x 0.33 0.36 x 0.36
320 x 240
(Duty : 1/240)		 PMGG2432B 92.1 x 83.3 79.8 x 60.6 0.225 x 0.225 0.24 x 0.24
320 x 240                     (Duty : 1/240) PMGG2432C 92.1 x 83.3 79.8 x 60.6 0.225 x 0.225 0.24 x 0.24





TFT PRODUCT LIST
Display Size
(inch) 		Model No. Resolution Outline Dimension
W x H x D mm 		Active Area
W x H mm 		Interface
1.5" PT0151212-A701 128 * 128 32.35 x 38 x 2.6 25.5 x 26.5 MCU / SPI
1.77" PT0181216-B101 128 * 160 34.0 x 45.83 x 2.75 28.032 x 35.040 8 bit MCU
2.0" PT0201722-B301 176 * 220 38.08 x 51.3 x 2.45 31.68 x 39.60 8/16 bit MCU
2.0" PT0201722-B606 176 * 220 38.5 x 51.15 x 2.5 31.68 x 39.60 MCU / SPI
2.0" PT0201722T-B606 176 * 220 38.5 x 51.15 x 4.1 31.68 x 39.60 MCU / SPI
2.4" PT0242432-B707 240 * 320 42.72 x 60.26 x 2.6 36.72 x 48.96 MCU
2.4" PT0242432T-B707 240 * 320 42.72 x 60.26 x 3.75 36.72 x 48.96 MCU
2.4" PT0242432-D201 240 * 320 42.72 x 60.26 x 2.4 36.72 x 48.96 MCU
2.4" PT0243224-A302 320 * 240 53.00 x 46.42 x 2.05 48.00 x 36.00 Serial / RGB
2.8" PT0282432-B704 240 * 320 50.0 x 69.2 x 2.6 43.20 x 57.60 MCU / RGB / SPI
2.8" PT0282432T-B704 240 * 320 50.0 x 69.2 x 3.8 43.20 x 57.60 MCU / RGB / SPI
2.8" PT0282432-D503 240 * 320 50.0 x 69.2 x 2.5 43.20 x 57.60 MCU
3.5" PT0353224-C601 320 * 240 76.9 x 64.0 x 3.1 70.08 x 52.56 MCU / RGB / SPI
3.5" PT0353224T-C601 320 * 240 76.9 x 64.0 x 4.2 70.08 x 52.56 MCU / RGB / SPI
3.5" PT0353224-C701 320 * 240 76.9 x 63.9 x 3.26 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601
3.5" PT0353224T-C701 320 * 240 76.9 x 63.9 x 4.4 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601
3.5" PT0353224-D102 320 * 240 76.9 x 63.9 x 3.2 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601
3.5" PT0353224T-D102 320 * 240 76.9 x 63.9 x 4.3 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601
3.5" PT0353224-E201 320 * 240 76.9 x 63.9 x 3.15 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601
3.5" PT0353224T-E201 320 * 240 76.9 x 63.9 x 4.25 70.08 x 52.56 Serial/Parallel RGB / CCIR656 / CCIR601
3.5" PT0353224-E501 320 * 240 76.9 x 63.9 x 3.05 70.08 x 52.56 MCU / RGB / SPI
3.5" PT0353248-B207 320 * 480 55.66 x 85.04 x2.40 48.96 x 73.44 Serial and RGB interface
3.5" PT0353248-B701 320 * 480 54.66 x 82.94 x 2.05 48.96 x 73.44 MCU
3.5" PT0353248-C001 320 * 480 54.5 x 83.0 x 2.1 48.96 x 73.44 8 bit MCU
3.5" PT0353248T-C001 320 * 480 54.5 x 83.0 x 3.3 48.96 x 73.44 8 bit MCU
4.0" PT0404880-B001 480 * 800 57.14 x 96.85 x 2.05 51.84 x 86.4 MIPI
4.3" PT0434827-A413 480 * 272 105.5 x 67.2 x 2.9 95.04 x 53.856 TTL Parallel RGB
4.3" PT0434827T-A413 480 * 272 105.5 x 67.2 x 4.05 95.04 x 53.856 TTL Parallel RGB
4.3" PT0434827-A416 480 * 272 105.5 x 67.2 x 2.9 95.04 x 53.856 TTL Parallel RGB
4.3" PT0434827T-A416 480 * 272 105.5 x 67.2 x 4.05 95.04 x 53.856 TTL Parallel RGB
4.3" PT0434827-C801 480 * 272 105.5 x 67.2 x 2.9 95.04 x 53.856 TTL Parallel RGB
4.3" PT0434827T-C801 480 * 272 105.5 x 67.2 x 4.0 95.04 x 53.856 TTL Parallel RGB
4.3" PT0434880-B001 480 * 800 61.06 x 104.6 x 2.05 56.16 x 93.60 MIPI
4.5" PT0454885-A001 480 * 854 60.62 x 108.25 x 1.9 55.44 x 98.637 MPU / RGB+SPI
4.5" PT0454885-A101 480 * 854 60.52 x108.15 x 1.85 55.44 x 98.637 MIPI
5.0" PT0508048-A701 800 * 480 120.8 x 75.9 x 3.2 108.0 x 64.8 TTL Parallel RGB
5.0" PT0508048T-A701 800 * 480 120.8 x 75.9 x 4.31 108.0 x 64.8 TTL Parallel RGB
5.0" PT0508048TC-A701(CTP) 800 * 480 120.8 x 76.0 x 4.43 108.0 x 64.8 TTL Parallel RGB
5.0" PT0508048-B001 800 * 480 120.7 x 75.8 x 2.9 108.0 x 64.8 TTL Parallel RGB
5.0" PT0508048T-B001 800 * 480 120.7 x 75.8 x 4.1 108.0 x 64.8 TTL Parallel RGB
5.0" PT0508048TC-B001(CTP) 800 * 480 120.8 x 76.0 x 4.13 108.0 x 64.8 TTL Parallel RGB
7.0" PT0708048-A302 800 * 480 165 x 104.44 x 5.2 152.4 x 91.44 TTL Parallel RGB
7.0" PT0708048T-A308 800 * 480 165 x 104.44 x 6.4 152.4 x 91.44 TTL Parallel RGB
7.0" PT0708048-A902 800 * 480 164.9 x 100 x 5.1 154.08 x 85.92 TTL Parallel RGB
7.0" PT0708048T-A902 800 * 480 165 x 100 x 6.6 154.08 x 85.92 TTL Parallel RGB
7.0" PT0708048-C603 800 * 480 164.9 x 100.0 x 3.4 154.08 x 85.92 TTL Parallel RGB
7.0" PT0708048T-C603 800 * 480 164.9 x 100.0 x 5.1 154.08 x 85.92 TTL Parallel RGB
7.0" PT0708048-D001 800 * 480 164.9 x 100.0 x 5.7 154.08 x 85.92 TTL Parallel RGB
7.0" PT0708048-D002 800 * 480 164.9 x 100.0 x 5.7 154.08 x 85.92 TTL Parallel RGB
7.0" PT0708048-D301 800 * 480 165.0 x 104.4 x 5.2 154.08 x 85.92 MPU
7.0" PT0708048TC-D202(CTP) 800 * 480 195.60 x 130.00 x 7.95 154.08 x 85.92 TTL Parallel RGB
7.0" PT07010260-B401 1024 * 600 165.75 x 105.39 x 4.785 153.6 x 90.0 LVDS
8.0" PT0808060-A201 800 * 600 183.0 x 141.0 x 5.6 162.0 x 121.5 TTL Parallel RGB
8.4" PT0848060-A001 800 * 600 203.0 x 145.9 x 5.7 170.40 x 127.80 LVDS
10.1" PT101WXGA-A301 1280 * 800 229.46 x 149.1 x 2.5 216.96 x 135.60 LVDS
10.1" PT101WXGA-B001 1280 * 800 229.46 x 149.2 x 2.8 216.96 * 135.60 LVDS
10.4" PT104XGA-A001 1024 * 768 238.6 x 175.8 x 7.47 210.4 x 157.8 LVDS
10.4" PT104XGATC-A001 1024 * 768 264.60 x 204 x 9.9 210.4 x 157.8 LVDS
12.1" PT121XGA-A001 1024 * 768 260.5 x 240 x 7.2 245.76 x 184.32 LVDS







Company Introduction:

One of the Leading Suppliers of LCD/LCM Modules

Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.



To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.



Well Experienced Leadership

Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.



Providing Excellent Services

Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.



Owning Factories in Taiwan and Mainland China

Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.



We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.



To know more, contact us today.
