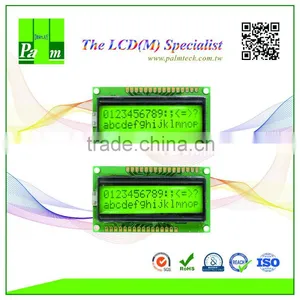

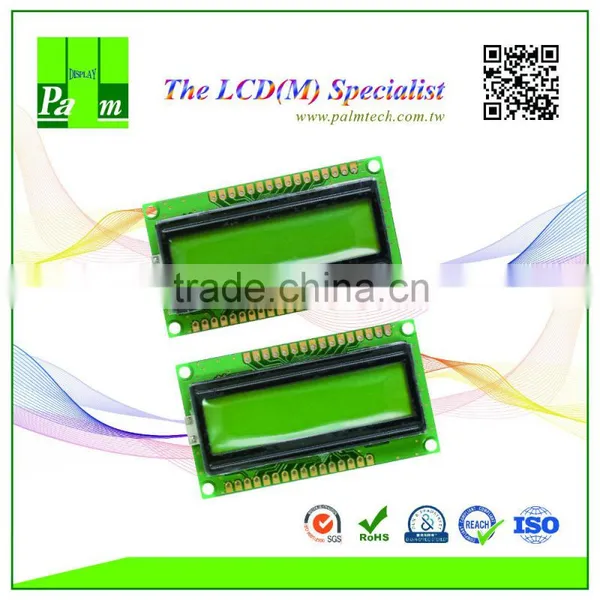

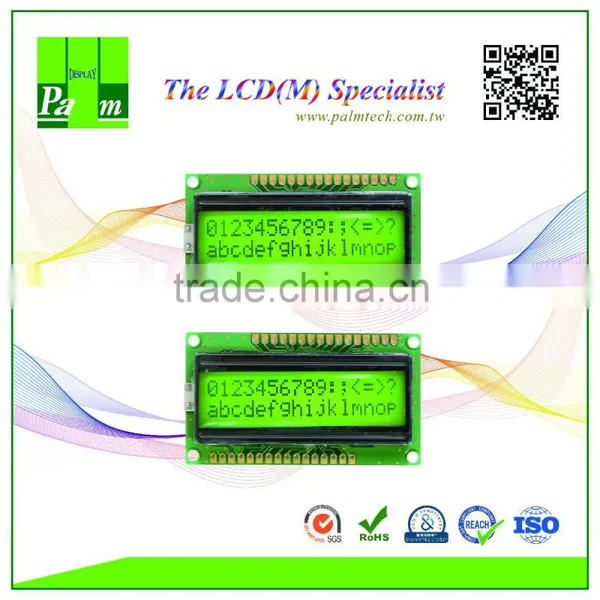

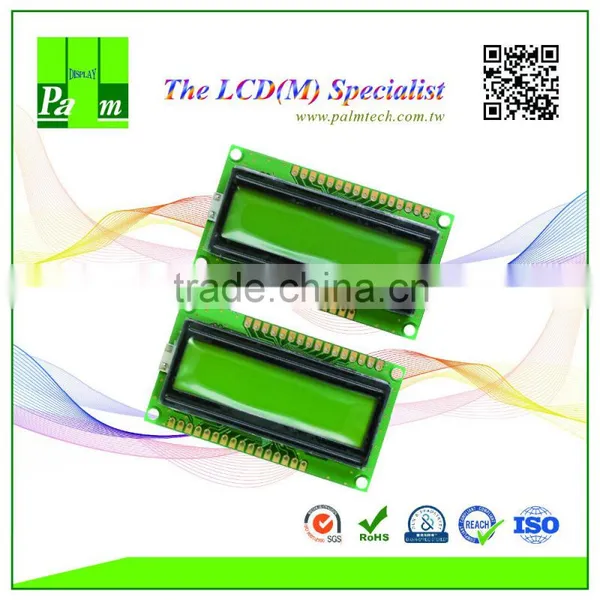

1602 16X2 STN mono LCD display Module
- 10000 Piece / Pieces per Month
- Kaohsiung
- T/T
- negative segment character running machine lcd display,practical STN,blue backlight, fitness equipment
- digital fire alarm installation module display, HTN segment display with blue led lcd panel
- negative autoreclose circuit-breaker lcd display, segment module with blue led
- charger negative character lcd display,white led ,battery segment small flexible display
- character small charger lcd display ,custom battery display ,white led
- segment positive temperature time clock lcd display,blue TN white backlight
Product Details
Place of Origin: | Taiwan | Brand Name: | Palm Technology | Model Number: | PLC1602HW |
Type: | COB |
Product Description
https://www.china.cn/product-detail/1602-16X2-STN-mono-LCD-display_60518635439.html

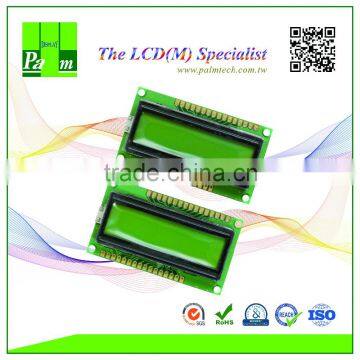

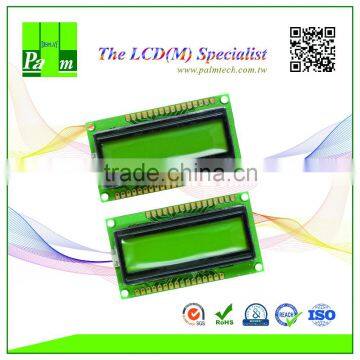

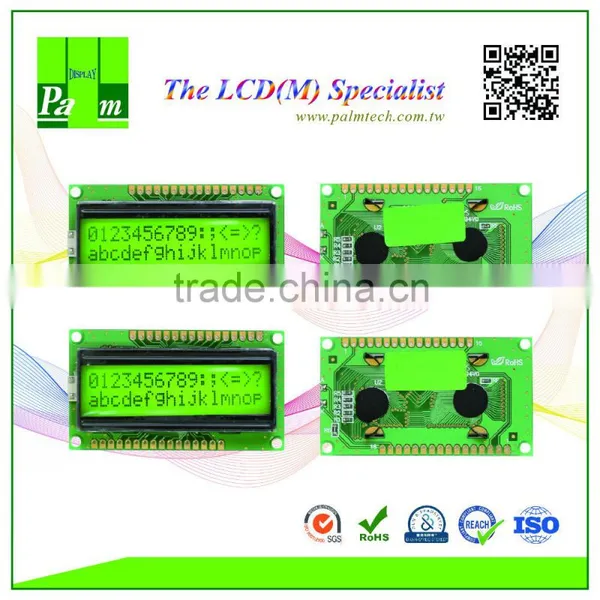

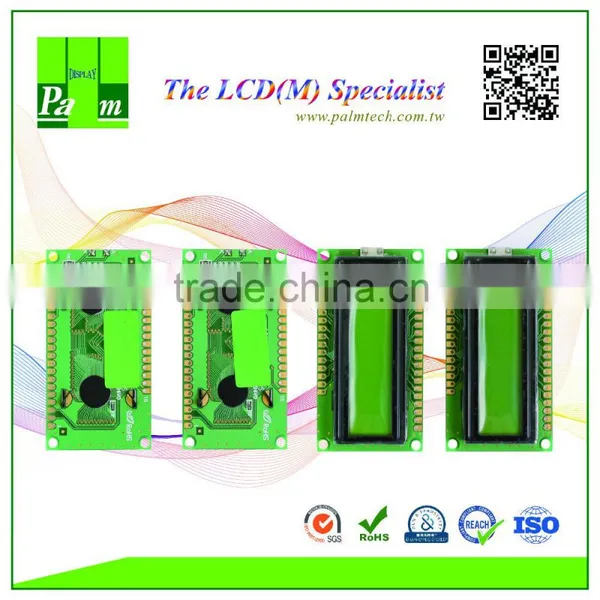

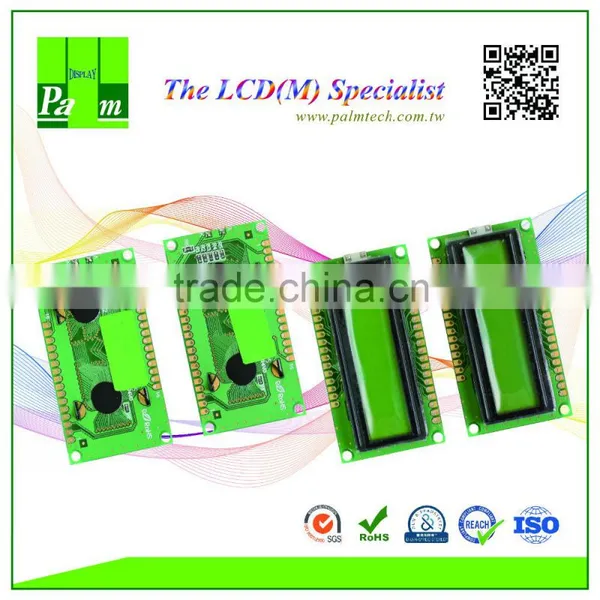

product: PLC1602HW LCD Modules 16X2 STN character type display
Key Specifications/Special Features:
Character LCM
16 characters x 2 lines
Module dimensions: 65.5 mm (L) x 36.7 mm (W)
Viewing area: 54.0 x 14.4mm
Character size: 2.55 x 4.99 mm
Dot size: 0.47 x 0.58 mm
Dot pitch: 0.52 x 0.63 mm
Matching control LSI: SPLC780D or equivalent
With backlight or without backlight
COB type
**To know more about performances and dimensions of the products, welcome to purchase our samples.
***Price can be discussed by real requirement.
Product List- Character type:
Display Format Char x Line | Model No. | Outline Dimension W x H mm | Viewing Area W x H mm | Character Size W x H mm | Dot Size W x H mm | Dot Pitch W x H mm |
8 x 2 | PLC0802AW | 58.0 x 32.0 | 38.0 x 16.0 | 2.96 x 5.56 | 0.56 x 0.66 | 0.60 x 0.70 |
16 x 1 | PHC1601A | 57.6 x 22.3 | 54.2 x 9.8 | 2.62 x 5.24 | 0.46 x 0.68 | 0.54 x 0.76 |
16 x 1 | PLC1601BW | 80.0 x 36.0 | 64.5 x 13.8 | 3.07 x 6.56 | 0.55 x 0.75 | 0.63 x 0.83 |
16 x 1 | PMC1601A | 80.0 x 36.0 | 64.5 x 16.0 | 3.07 x 5.73 | 0.55 x 0.75 | 0.63 x 0.83 |
16 x 2 | PHC1602D | 54.8 x 27.0 | 51.0 x 14.5 | 2.47 x 6.37 | 0.47 x 0.77 | 0.50 x 0.80 |
16 x 2 | PHC1602E | 85.0 x 31.7 | 82.4 x 21.6 | 4.10 x 7.55 | 0.78 x 0.90 | 0.83 x 0.95 |
16 x 2 | PLC1602A1W | 85.0 x 32.6 | 64.5 x 16.4 | 3.00 x 5.23 | 0.56 x 0.61 | 0.61 x 0.66 |
16 x 2 | PLC1602D1W | 84.0 x 44.0 | 64.5 x 16.4 | 3.00 * 5.23 | 0.56 x 0.61 | 0.61 x 0.66 |
16 x 2 | PLC1602GW | 122.0 x 44.0 | 99.0 x 24.0 | 5.20 x 9.55 | 1.00 x 1.15 | 1.05 x 1.20 |
16 x 2 | PLC1602HW | 65.5 x 36.7 | 54.0 x 14.4 | 2.55 x 4.99 | 0.47 x 0.58 | 0.52 x 0.63 |
16 x 2 | PLC1602JW | 85.0 x 36.0 | 64.5 x 16.4 | 3.00 x 5.23 | 0.56 x 0.61 | 0.61 x 0.66 |
16 x 2 | PMC1602D | 85.0 x 30.0 | 64.5 x 16.0 | 2.96 x 4.86 | 0.56 x 0.66 | 0.60 x 0.70 |
16 x 2 | PMC1602X | 59.0 x 29.3 | 52.0 x 15.0 | 2.45 x 4.08 | 0.45 x 0.54 | 0.50 x 0.59 |
16 x 2 | PQC1602B | 85.0 x 29.5 | 65.0 x 16.0 | 2.95 x 5.55 | 0.55 x 0.65 | 0.60 x 0.70 |
16 x 2 | PQC1602D | 80.0 x 36.0 | 65.0 x 16.0 | 2.95 x 5.55 | 0.55 x 0.65 | 0.60 x 0.70 |
16 x 4 | PLC1604AW | 87.0 x 60.0 | 61.8 x 25.2 | 2.95 x 4.75 | 0.55 x 0.55 | 0.60 x 0.60 |
20 x 2 | PLC2002AW | 116.0 x 37.0 | 83.0 x 18.6 | 3.20 x 5.55 | 0.60 x 0.65 | 0.65 x 0.70 |
20 x 2 | PYC2002F | 180.0 x 40.0 | 149.0 x 23.0 | 6.0 x 9.66 | 1.12 x 1.12 | 1.22 x 1.22 |
20 x 2 | PLC2002HW | 75.7 x 37.6 | 61.0 x 15.1 | 2.45 x 5.55 | 0.45 x 0.65 | 0.50 x 0.70 |
20 x 4 | PLC2004AW | 98.0 x 60.0 | 76.0 x 25.2 | 2.95 x 4.75 | 0.55 x 0.55 | 0.65 x 0.60 |
24 x 2 | PLC2402AW | 118.0 x 36.0 | 94.5 x 18.0 | 3.20 x 5.55 | 0.60 x 0.65 | 0.65 x 0.70 |
40 x 2 | PLC4002AW | 182.0 x 33.5 | 152.5 x 16.5 | 3.20 x 5.55 | 0.60 x 0.65 | 0.65 x 0.70 |
40 x 4 | PLC4004A1W | 190.0 x 54.0 | 147.0 x 29.5 | 2.78 x 4.89 | 0.50 x 0.55 | 0.57 x 0.62 |
Product List for TFT:
Display Size (inch) | Model No. | Resolution | Outline Dimension W x H x D mm | Active Area W x H mm | Interface |
1.5" | PT0151212-A704 | 128 * 128 | 32.35 x 38 x 2.6 | 25.5 x 26.5 | MCU / SPI |
1.77" | PT0181216-B101 | 128 * 160 | 34.0 x 45.83 x 2.75 | 28.032 x 35.040 | 8 bit MCU |
2.0" | PT0201722-B301 | 176 * 220 | 38.08 x 51.3 x 2.45 | 31.68 x 39.60 | 8/16 bit MCU |
2.4" | PT0242432-B707 | 240 * 320 | 42.72 x 60.26 x 2.6 | 36.72 x 48.96 | MCU |
2.4" | PT0242432T-B707(RTP) | 240 * 320 | 42.72 x 60.26 x 3.75 | 36.72 x 48.96 | MCU |
2.4" | PT0242432-D101 | 240 * 320 | 42.72 x 60.26 x 2.3 | 36.72 x 48.96 | 3-line SPI |
2.4" | PT0242432T-D101(RTP) | 240 * 320 | 42.72 x 60.26 x 3.4 | 36.72 x 48.96 | 3-line SPI |
2.4" | PT0242432-D201 | 240 * 320 | 42.72 x 60.26 x 2.3 | 36.72 x 48.96 | MCU |
2.4" | PT0244823-A001 | 480 * 272 | 55.20 x 47.55 x 2.8 | 48.00 x 35.685 | RAW DATA / SERIAL RGB / CCIR |
2.8" | PT0282432-B704 | 240 * 320 | 50.0 x 69.2 x 2.6 | 43.20 x 57.60 | MCU / RGB / SPI |
2.8" | PT0282432T-B704(RTP) | 240 * 320 | 50.0 x 69.2 x 3.8 | 43.20 x 57.60 | MCU / RGB / SPI |
2.8" | PT0282432-D503 | 240 * 320 | 50.0 x 69.2 x 2.5 | 43.20 x 57.60 | MCU |
3.5" | PT0353224-D102 | 320 * 240 | 76.9 x 63.9 x 3.2 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
3.5" | PT0353224T-D102(RTP) | 320 * 240 | 76.9 x 63.9 x 4.3 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
3.5" | PT0353248-B207 | 320 * 480 | 55.66 x 85.04 x2.40 | 48.96 x 73.44 | MCU / RGB / SPI |
3.5" | PT0353248-B701 | 320 * 480 | 54.66 x 82.94 x 2.05 | 48.96 x 73.44 | MCU |
3.5" | PT0353248-C001 | 320 * 480 | 54.5 x 83.0 x 2.1 | 48.96 x 73.44 | 8 bit MCU |
3.5" | PT0353248T-C001(RTP) | 320 * 480 | 54.5 x 83.0 x 3.3 | 48.96 x 73.44 | 8 bit MCU |
4.0" | PT0404880-B701 | 480 * 800 | 58.94 x 97.80 x 2.0 | 51.84 x 86.4 | MIPI |
4.0" | PT0404880T-B701(RTP) | 480 * 800 | 58.94 x 97.80 x 3.2 | 51.84 x 86.4 | MIPI |
4.0" | PT0404880-B901 | 480 * 800 | 57.14 x 96.85 x 1.80 | 51.84 x 86.4 | SPI + RGB |
4.3" | PT0434827-A413 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
4.3" | PT0434827T-A413(RTP) | 480 * 272 | 105.5 x 67.2 x 4.05 | 95.04 x 53.856 | TTL Parallel RGB |
4.3" | PT0434827-C801 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
4.3" | PT0434827T-C801(RTP) | 480 * 272 | 105.5 x 67.2 x 4.0 | 95.04 x 53.856 | TTL Parallel RGB |
4.3" | PT0434880-B101 | 480 * 800 | 60.86 x 104.5 x 1.95 | 56.16 x 93.60 | 3-wire SPI + RGB interface |
4.3" | PT0434880TC-B101(CTP) | 480 * 800 | 85 x 120 x 3.68 | 56.16 x 93.60 | 3-wire SPI + RGB interface |
5.0" | PT0508048-A701 | 800 * 480 | 120.8 x 75.9 x 3.2 | 108.0 x 64.8 | TTL Parallel RGB |
5.0" | PT0508048T-A701(RTP) | 800 * 480 | 120.8 x 75.9 x 4.31 | 108.0 x 64.8 | TTL Parallel RGB |
5.0" | PT0508048TC-A701(CTP) | 800 * 480 | 120.8 x 76.0 x 4.43 | 108.0 x 64.8 | TTL Parallel RGB |
7.0" | PT0708048-A302 | 800 * 480 | 165 x 104.44 x 5.2 | 152.4 x 91.44 | TTL Parallel RGB |
7.0" | PT0708048T-A308(RTP) | 800 * 480 | 165 x 104.44 x 6.4 | 152.4 x 91.44 | TTL Parallel RGB |
7.0" | PT0708048-A902 | 800 * 480 | 165 x 100 x 6.6 max. | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT0708048T-A902(RTP) | 800 * 480 | 165 x 100 x 6.6 | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT0708048-C603 | 800 * 480 | 164.9 x 100.0 x 3.4 | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT0708048T-C604(RTP) | 800 * 480 | 164.9 x 100.0 x 5.1 max. | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT0708048TC-C603(CTP) | 800 * 480 | 164.9 x 100.0 x 5.3 max. | 154.08 x 85.92 | TTL Parallel RGB |
7.0" | PT0708048-D204 | 800 * 480 | 164.9 x 100.0 x 3.5 | 153.84 x 85.63 | 24-bit Parallel RGB |
7.0" | PT0708048T-D204(RTP) | 800 * 480 | 164.9 x 100.0 x 4.6 | 153.84 x 85.63 | 24-bit Parallel RGB |
7.0" | PT0708048TC-D204(CTP) | 800 * 480 | 195.6 x 130.0 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
7.0" | PT0708048TC-D204T(CTP) | 800 * 480 | 164.9 x 101.55 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
7.0" | PT07010260-B401 | 1024 * 600 | 165.75 x 105.39 x 3.5 | 153.6 x 90.0 | LVDS |
8.0" | PT0808060-A201 | 800 * 600 | 183.0 x 141.0 x 5.6 | 162.0 x 121.5 | TTL Parallel RGB |
8.4" | PT0848060-A001 | 800 * 600 | 203.0 x 145.9 x 5.7 | 170.40 x 127.80 | LVDS |
10.4" | PT104XGATC-A001(CTP) | 1024 * 768 | 264.60 x 204.0 x 9.99 | 210.4 x 157.8 | LVDS |
12.1" | PT121XGA-A001 | 1024 * 768 | 260.5 x 240 x 7.2 | 245.76 x 184.32 | LVDS |

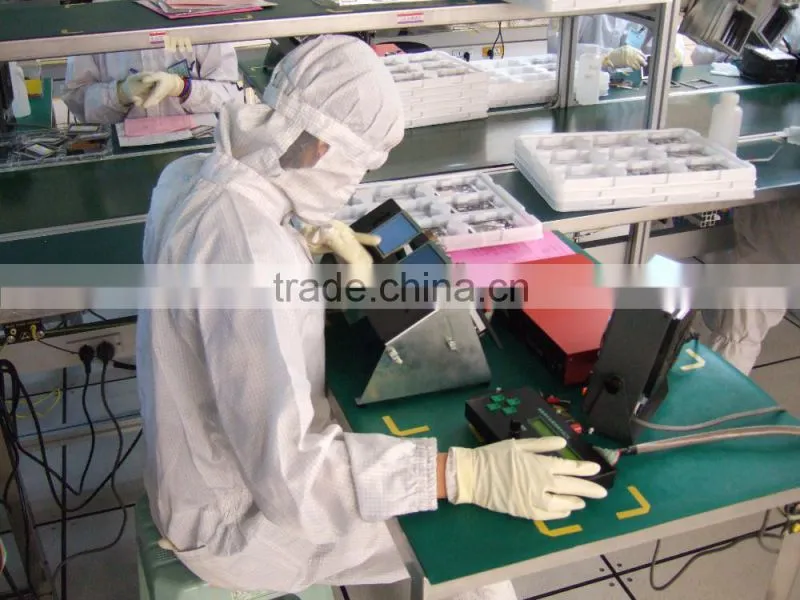

Factory Pictures:

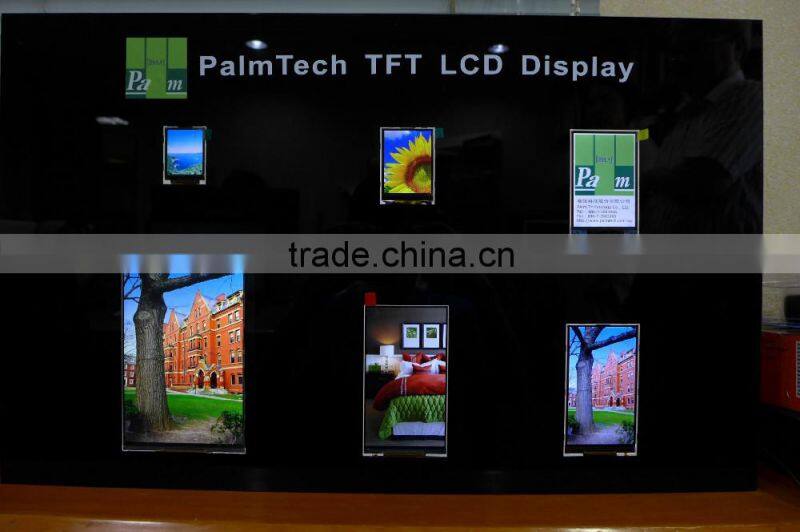

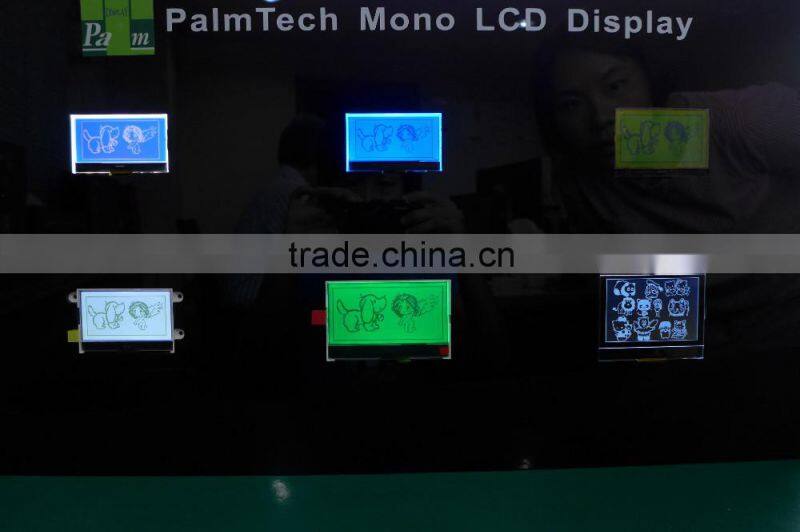

Exhibition Pictures:
Company Introduction:
One of the Leading Suppliers of LCD/LCM Modules
Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.
To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.
Well Experienced Leadership
Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.
Providing Excellent Services
Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.
Owning Factories in Taiwan and Mainland China
Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.
We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.
To know more, contact us today.
