Home > Consumer Electronics > Display & Accessories > LCD Module > STN FSTN LCD Character 2004 LCD Display Module 20x4

STN FSTN LCD Character 2004 LCD Display Module 20x4

Name: STN FSTN LCD Character 2004 LCD Display Module 20x4
Brand: Palm Technology
SKU: 122653363

STN FSTN LCD Character 2004 LCD Display Module 20x4 thumbnail-1

STN FSTN LCD Character 2004 LCD Display Module 20x4 thumbnail-2

STN FSTN LCD Character 2004 LCD Display Module 20x4 thumbnail-3

STN FSTN LCD Character 2004 LCD Display Module 20x4 thumbnail-4

STN FSTN LCD Character 2004 LCD Display Module 20x4 thumbnail-5

STN FSTN LCD Character 2004 LCD Display Module 20x4 thumbnail-6

STN FSTN LCD Character 2004 LCD Display Module 20x4 photo-1

STN FSTN LCD Character 2004 LCD Display Module 20x4 photo-2

STN FSTN LCD Character 2004 LCD Display Module 20x4 photo-3

STN FSTN LCD Character 2004 LCD Display Module 20x4 photo-4

STN FSTN LCD Character 2004 LCD Display Module 20x4 photo-5

STN FSTN LCD Character 2004 LCD Display Module 20x4 photo-6

US$ 5.5 - 7 MOQ: 100 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

Palm Technology

Model Number:

PLC2004AW

Contact Supplier Request Quote Chat Now

Palm Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Kaohsiung

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name Palm Technology

Model Number PLC2004AW

Type Other, COB, COB Module

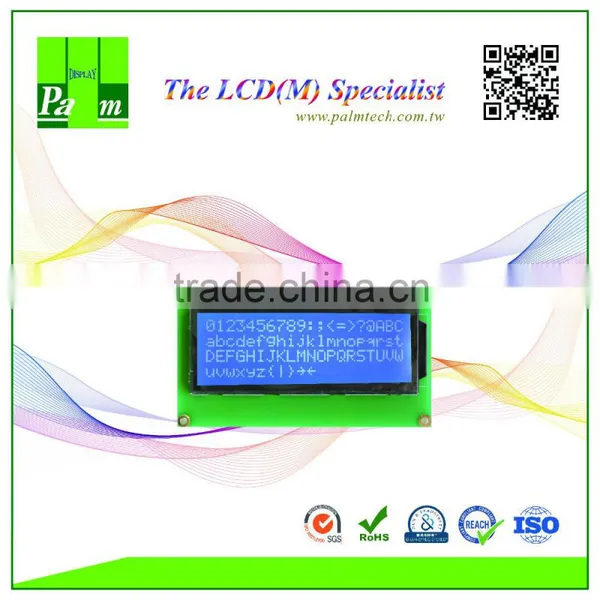

PLC2004AW LCD Module 20X4 Character type Y-G led COB display

product photo for ref. only.

Exhibition pictures:

Factory pictures:

Key Specifications/Special Features:

LCM characters

20 characters x 4 lines

Module dimensions: 98.0mm (L) x 60.0mm (W) x max 13.5mm (H)

Viewing area: 76.0 x 25.2 mm

Character size: 2.95 x 4.75 mm

Dot size: 0.55 x 0.55 mm

Dot pitch: 0.65 x 0.60 mm

Matching control LSI: SPLC780D or equivalent

With backlight or without backlight

COB type

**To know more about performances and dimensions of the products, welcome to purchase our samples.

***Price can be discussed by real requirement.

Product List- Character type:

Display Format Char x Line	Model No.	Outline Dimension W x H mm	Viewing Area W x H mm	Character Size W x H mm	Dot Size W x H mm
8 x 2	PLC0802AW	58.0 x 32.0	38.0 x 16.0	2.96 x 5.56	0.56 x 0.66
16 x 1	PHC1601A	57.6 x 22.3	54.2 x 9.8	2.62 x 5.24	0.46 x 0.68
16 x 1	PLC1601BW	80.0 x 36.0	64.5 x 13.8	3.07 x 6.56	0.55 x 0.75
16 x 1	PMC1601A	80.0 x 36.0	64.5 x 16.0	3.07 x 5.73	0.55 x 0.75
16 x 2	PHC1602D	54.8 x 27.0	51.0 x 14.5	2.47 x 6.37	0.47 x 0.77
16 x 2	PHC1602E	85.0 x 31.7	82.4 x 21.6	4.10 x 7.55	0.78 x 0.90
16 x 2	PLC1602A1W	85.0 x 32.6	64.5 x 16.4	3.00 x 5.23	0.56 x 0.61
16 x 2	PLC1602D1W	84.0 x 44.0	64.5 x 16.4	3.00 * 5.23	0.56 x 0.61
16 x 2	PLC1602GW	122.0 x 44.0	99.0 x 24.0	5.20 x 9.55	1.00 x 1.15
16 x 2	PLC1602HW	65.5 x 36.7	54.0 x 14.4	2.55 x 4.99	0.47 x 0.58
16 x 2	PLC1602JW	85.0 x 36.0	64.5 x 16.4	3.00 x 5.23	0.56 x 0.61
16 x 2	PMC1602D	85.0 x 30.0	64.5 x 16.0	2.96 x 4.86	0.56 x 0.66
16 x 2	PMC1602X	59.0 x 29.3	52.0 x 15.0	2.45 x 4.08	0.45 x 0.54
16 x 2	PQC1602B	85.0 x 29.5	65.0 x 16.0	2.95 x 5.55	0.55 x 0.65
16 x 2	PQC1602D	80.0 x 36.0	65.0 x 16.0	2.95 x 5.55	0.55 x 0.65
16 x 4	PLC1604AW	87.0 x 60.0	61.8 x 25.2	2.95 x 4.75	0.55 x 0.55
20 x 2	PLC2002AW	116.0 x 37.0	83.0 x 18.6	3.20 x 5.55	0.60 x 0.65
20 x 2	PYC2002F	180.0 x 40.0	149.0 x 23.0	6.0 x 9.66	1.12 x 1.12
20 x 2	PLC2002HW	75.7 x 37.6	61.0 x 15.1	2.45 x 5.55	0.45 x 0.65
20 x 4	PLC2004AW	98.0 x 60.0	76.0 x 25.2	2.95 x 4.75	0.55 x 0.55
24 x 2	PLC2402AW	118.0 x 36.0	94.5 x 18.0	3.20 x 5.55	0.60 x 0.65
40 x 2	PLC4002AW	182.0 x 33.5	152.5 x 16.5	3.20 x 5.55	0.60 x 0.65
40 x 4	PLC4004A1W	190.0 x 54.0	147.0 x 29.5	2.78 x 4.89	0.50 x 0.55

Product List- Graphic type:

Display Format Dots x Dots	Model No.	Outline Dimension LCM W x H mm (COG LCD W x H mm)	Viewing Area W x H mm	Dot Size W x H mm	Dot Pitch W x H mm
128 x 32	PHG1203D1	42.0 x 17.66	39.0 x 8.66	0.22 x 0.22	0.24 x 0.24
128 x 64	PHG1206A4	40.5 x 34.0 (38.3 x 33.0)	33.8 x 22.2	0.225 x 0.285	0.24 x 0.30
128 x 64	PHG1206E	42.0 x 30.0	37.0 x 20.0	0.24 x 0.25	0.27 x 0.28
128 x 64	PHG12061F2	65.0 x 39.2 (63.0 x 37.7)	60.0 x 29.0	0.38 x 0.38	0.41 x 0.41
128 x 64	PHG12061G	77.0 x 39.2 (63.0 x 37.7)	60.0 x 29.0	0.38 x 0.38	0.41 x 0.41
128 x 64	PHG1206I	46.1 x 33.0 (43.8 x 30.7)	39.5 x 20.0	0.245 x 0.245	0.27 x 0.27
128 x 64	PHG12062M	35.2 x 29.0 (34.0 x 27.8)	31.0 x 19.0	0.2 x 0.24	0.22 x 0.26
128 x 64	PHG1206Q	65.0 x 39.15 (63.0 x 37.7)	60.0 x 29.0	0.38 x 0.38	0.41 x 0.41
128 x 64	PHG1206S1	47.4 x 44.4 (46.0 x 36.0)	41.8 x 26.1	0.29 x 0.34	0.307 x 0.357
128 x 64	PHG1206X2	80.5 x 45.0 (64.0 x 43.0)	60.0 x 32.6	0.40 x 0.40	0.43 x 0.43
128 x 64	PHG12A06A	74.8 x 54.5 (63.0 x 42.5)	59.0 x 32.0	0.40 x 0.40	0.43 x 0.43
128 x 64	PHG12A06B	78.0 x 50.5 (68.0 x 47.0)	63.84 x 35.68	0.44 x 0.46	0.46 x 0.48
128 x 64	PHG12A06C	38.2 x 27.13 (36.0 x 26.0)	34.0 x 18.5	0.21 x 0.233	0.235 x 0.258
128 x 64	PHG12A06D	35.2 x 33.0 (33.0 x 31.0)	30.0 x 24.0	0.1809 x 0.298	0.2109 x 0.328
128 x 64	PHG12A06P	56.6 x 44.2 (54.6 x 42.2)	50.6 x 31.0	0.334 x 0.403	0.364 x 0.433
128 x 64	PLG1206GW	80.0 x 54.0 (76.1 x 44.5)	70.7 x 38.8	0.48 x 0.48	0.52 x 0.52
128 x 64	PQG1206B	93.0 x 70.0	70.7 x 38.8	0.48 x 0.48	0.52 x 0.52
128 x 80	PHG1208A1	40.5 x 34.0 (38.3 x 33.0)	35.3 x 24.34	0.259 x 0.259	0.274 x 0.274
128 x 128	PHG1212CW6	36.6 x 44.5 (36.5 x 42.5)	33.5 x 33.5	0.20 x 0.215	0.22 x 0.235
128 x 128	PHG1212G	46.0 * 54.4 (46.0 * 52.4)	43.0 x 42.8	0.275 x 0.285	0.29 x 0.30
128 x 128	PHG1212I	36.6 x 39.3 (34.0 x 37.3)	28.0 x 28.0	0.182 x 0.182	0.202 x 0.202
128 x 128	PLG1212B	92.0 x 106.0	73.0 x 73.0	0.50 x 0.50	0.55 x 0.55
132 x 64	PHG1306H	77.0 x 47.5 (75.0 x 45.5)	72.0 x 36.5	0.5 x 0.5	0.52 x 0.52
240 x 64	PBG2406A	125.0 x 60.0	111.6 x 37.0	0.41 x 0.47	0.44 x 0.50
240 x 64	PQG2406A	180.0 x 65.0	132.0 x 39.0	0.49 x 0.49	0.53 x 0.53
240 x 128	PQG2412A	144.0 x 104.0	114.0 x 64.0	0.40 x 0.40	0.45 x 0.45
240 x 160	PHG2416A1	69.1 x 52.4 (69.1 x 51.4)	60.6 x 41.4	0.22 x 0.22	0.24 x 0.24
240 x 160	PQG2416A2	77.4 x 61.0	73.4 x 48.0	0.261 x 0.261	0.281 x 0.281
240 x 320 (Duty :1/320)	PMGG2432A	83.3 x 92.1	60.6 x 79.8	0.225 x 0.225	0.24 x 0.24
320 x 240	PFG3224A	167.1 x 109.0	122.0 x 92.0	0.33 x 0.33	0.36 x 0.36
320 x 240 (Duty : 1/240)	PMGG2432B	92.1 x 83.3	79.8 x 60.6	0.225 x 0.225	0.24 x 0.24
320 x 240 (Duty : 1/240)	PMGG2432C	92.1 x 83.3	79.8 x 60.6	0.225 x 0.225	0.24 x 0.24

Company Introduction:

One of the Leading Suppliers of LCD/LCM Modules

Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.

To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.

Well Experienced Leadership

Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.

Providing Excellent Services

Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.

Owning Factories in Taiwan and Mainland China

Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.

We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.

To know more, contact us today.
