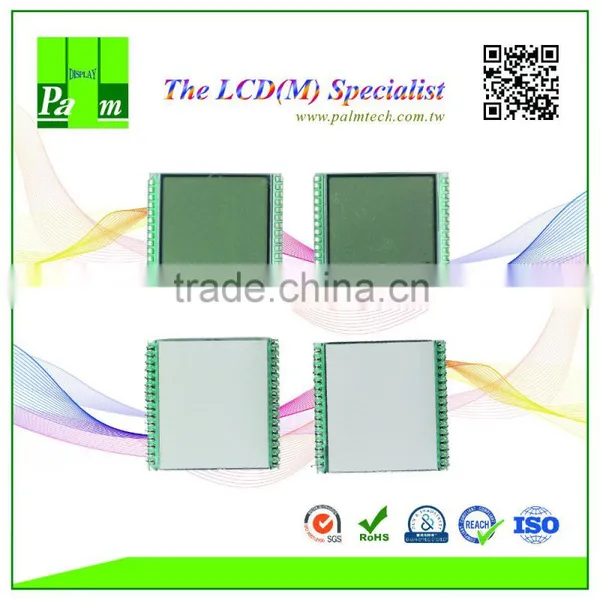

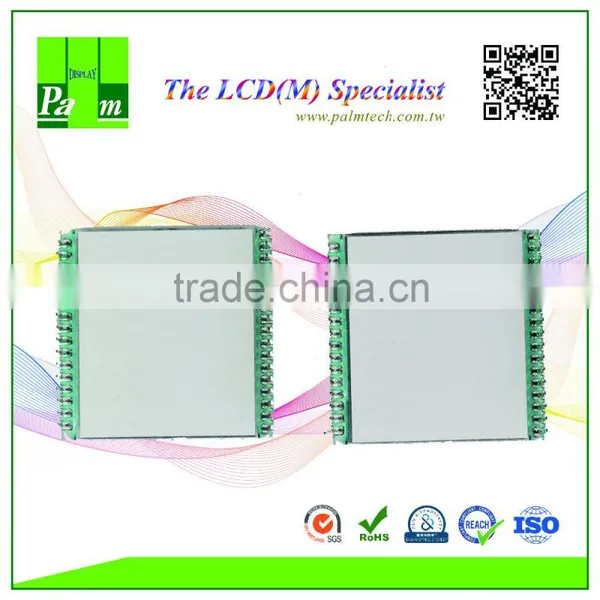

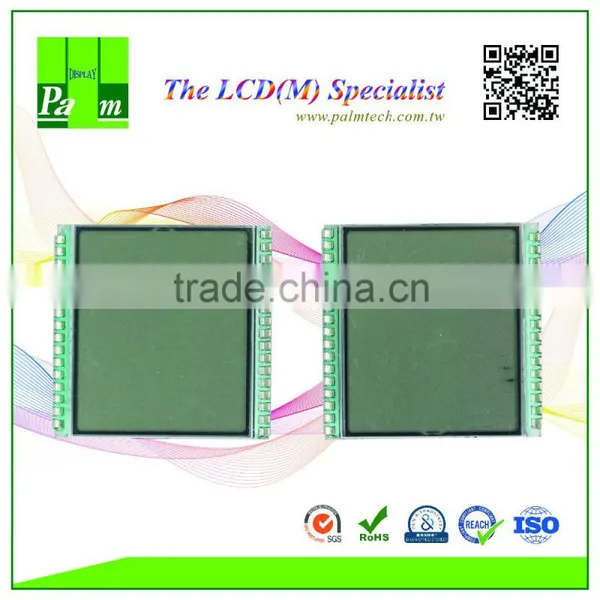

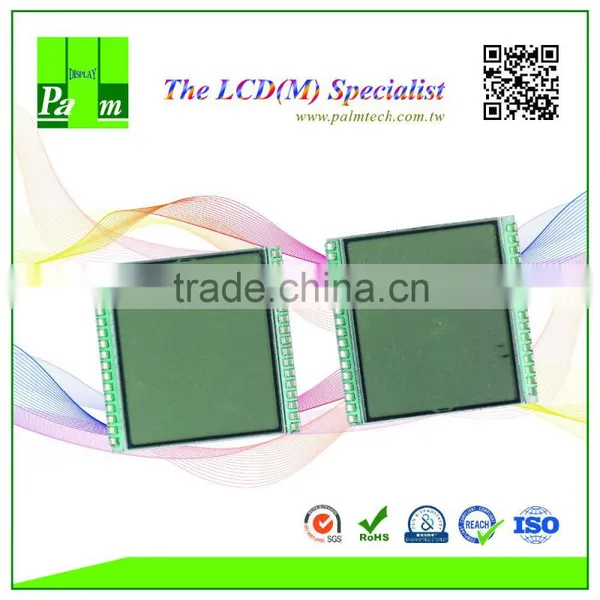

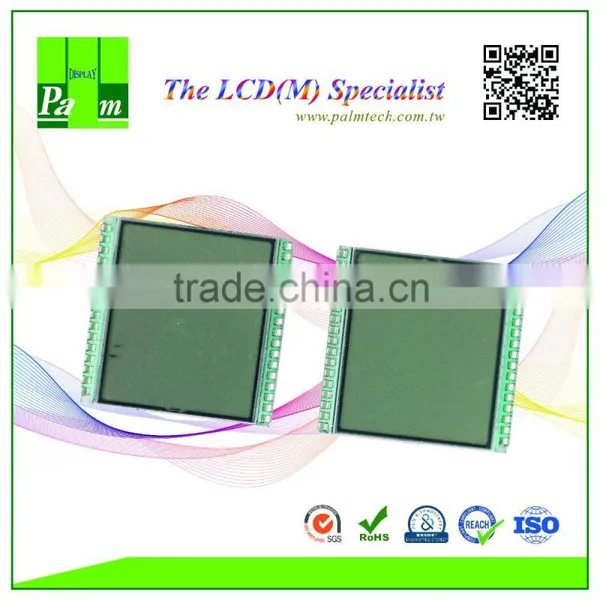

Small customized TN LCD with metal pin display
USD $0.4 - $1.5
/ Piece
100 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- Kaohsiung
- T/T
You May Like
-
Digital thermometer hygrometer used for travelling weather station pocket type
-
Wireless Atomic Table Clock, Thermometer/Display In/Out Temperature, Blue/Green Backlight Selectable
-
Weather Station Clock with Forecast/Desk/Digital Clock with in/Outdoor Temperature and Humidity
-
Wired Weather Station/Desk/Digital Clock with In/Outdoor Temperature Display
-
MAX / MIN Temperature And Humidity Automatic Memory Digital Thermometer Hygrometer
-
Atomic Projection Desk Clock with Indoor Temperature and Big Character Display
Product Details
| Place of Origin: | Taiwan | Brand Name: | Palm Technology | Model Number: | TN LCD metal pin |
| Type: | TN |
Product Description
https://www.china.cn/product-detail/Small-customized-TN-LCD-with-metal_60535687213.htmlSmall and customized TN LCD with metal pin
Key Specifications/Special Features:
Module: TN LCD
Customized TN LCD display is available here.
**To know more about performances and dimensions of the products, welcome to purchase our samples.
***Price can be discussed by real requirement.
TFT product list:
| Display Size (inch) | Model No. | Resolution | Outline Dimension W x H x D mm | Active Area W x H mm | Interface |
| 1.5" | PT0151212-A704 | 128 * 128 | 32.35 x 38 x 2.6 | 25.5 x 26.5 | MCU / SPI |
| 1.77" | PT0181216-B101 | 128 * 160 | 34.0 x 45.83 x 2.75 | 28.032 x 35.040 | 8 bit MCU |
| 2.0" | PT0201722-B301 | 176 * 220 | 38.08 x 51.3 x 2.45 | 31.68 x 39.60 | 8/16 bit MCU |
| 2.0" | PT0201722-B606 | 176 * 220 | 38.5 x 51.15 x 2.5 | 31.68 x 39.60 | MCU / SPI |
| 2.0" | PT0201722T-B606(RTP) | 176 * 220 | 38.5 x 51.15 x 4.1 | 31.68 x 39.60 | MCU / SPI |
| 2.4" | PT0242432-B707 | 240 * 320 | 42.72 x 60.26 x 2.6 | 36.72 x 48.96 | MCU |
| 2.4" | PT0242432T-B707(RTP) | 240 * 320 | 42.72 x 60.26 x 3.75 | 36.72 x 48.96 | MCU |
| 2.4" | PT0242432-D101 | 240 * 320 | 42.72 x 60.26 x 2.3 | 36.72 x 48.96 | 3-line SPI |
| 2.4" | PT0242432T-D101(RTP) | 240 * 320 | 42.72 x 60.26 x 3.4 | 36.72 x 48.96 | 3-line SPI |
| 2.4" | PT0242432-D201 | 240 * 320 | 42.72 x 60.26 x 2.3 | 36.72 x 48.96 | MCU |
| 2.4" | PT0244823-A001 | 480 * 272 | 55.20 x 47.55 x 2.8 | 48.00 x 35.685 | RAW DATA / SERIAL RGB / CCIR |
| 2.8" | PT0282432-B704 | 240 * 320 | 50.0 x 69.2 x 2.6 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432T-B704(RTP) | 240 * 320 | 50.0 x 69.2 x 3.8 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432-D503 | 240 * 320 | 50.0 x 69.2 x 2.5 | 43.20 x 57.60 | MCU |
| 2.8" | PT0282432-E501 | 240 * 320 | 50.0 x 69.2 x 2.45 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432T-E501(RTP) | 240 * 320 | 50.0 x 69.2 x 3.6 | 43.20 x 57.60 | MCU / RGB / SPI |
| 3.5" | PT0353224-C601 | 320 * 240 | 76.9 x 64.0 x 3.1 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353224T-C601(RTP) | 320 * 240 | 76.9 x 64.0 x 4.2 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353224-C701 | 320 * 240 | 76.9 x 63.9 x 3.26 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224T-C701(RTP) | 320 * 240 | 76.9 x 63.9 x 4.4 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224-D102 | 320 * 240 | 76.9 x 63.9 x 3.2 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224T-D102(RTP) | 320 * 240 | 76.9 x 63.9 x 4.3 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224-E201 | 320 * 240 | 76.9 x 63.9 x 3.15 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224T-E201(RTP) | 320 * 240 | 76.9 x 63.9 x 4.25 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224-E501 | 320 * 240 | 76.9 x 63.9 x 3.05 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353248-B207 | 320 * 480 | 55.66 x 85.04 x2.40 | 48.96 x 73.44 | MCU / RGB / SPI |
| 3.5" | PT0353248-B701 | 320 * 480 | 54.66 x 82.94 x 2.05 | 48.96 x 73.44 | MCU |
| 3.5" | PT0353248-C001 | 320 * 480 | 54.5 x 83.0 x 2.1 | 48.96 x 73.44 | 8 bit MCU |
| 3.5" | PT0353248T-C001(RTP) | 320 * 480 | 54.5 x 83.0 x 3.3 | 48.96 x 73.44 | 8 bit MCU |
| 4.0" | PT0404880-B001 | 480 * 800 | 57.14 x 96.85 x 2.05 | 51.84 x 86.4 | MIPI |
| 4.0" | PT0404880-B701 | 480 * 800 | 58.94 x 97.80 x 2.0 | 51.84 x 86.4 | MIPI |
| 4.0" | PT0404880T-B701(RTP) | 480 * 800 | 58.94 x 97.80 x 3.2 | 51.84 x 86.4 | MIPI |
| 4.0" | PT0404880-B901 | 480 * 800 | 57.14 x 96.85 x 1.80 | 51.84 x 86.4 | SPI + RGB |
| 4.3" | PT0434827-A413 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827T-A413(RTP) | 480 * 272 | 105.5 x 67.2 x 4.05 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827-A416 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827T-A416(RTP) | 480 * 272 | 105.5 x 67.2 x 4.05 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827-C801 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827T-C801(RTP) | 480 * 272 | 105.5 x 67.2 x 4.0 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434880-B101 | 480 * 800 | 60.86 x 104.5 x 1.95 | 56.16 x 93.60 | 3-wire SPI + RGB interface |
| 4.3" | PT0434880TC-B101(CTP) | 480 * 800 | 85 x 120 x 3.68 | 56.16 x 93.60 | 3-wire SPI + RGB interface |
| 4.5" | PT0454885-A001 | 480 * 854 | 60.62 x 108.25 x 1.9 | 55.44 x 98.637 | MPU / RGB+SPI |
| 5.0" | PT0508048-A701 | 800 * 480 | 120.8 x 75.9 x 3.2 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048T-A701(RTP) | 800 * 480 | 120.8 x 75.9 x 4.31 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048TC-A701(CTP) | 800 * 480 | 120.8 x 76.0 x 4.43 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048-B001 | 800 * 480 | 120.7 x 75.8 x 2.9 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048T-B001(RTP) | 800 * 480 | 120.7 x 75.8 x 4.1 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048TC-B001(CTP) | 800 * 480 | 120.8 x 76.0 x 4.13 | 108.0 x 64.8 | TTL Parallel RGB |
| 5.0" | PT0508048TC-B301(CTP) | 800 * 480 | 128.8 x 88.3 x 4.45 | 108.0 x 64.8 | TTL Parallel RGB |
| 7.0" | PT0708048-A302 | 800 * 480 | 165 x 104.44 x 5.2 | 152.4 x 91.44 | TTL Parallel RGB |
| 7.0" | PT0708048T-A308(RTP) | 800 * 480 | 165 x 104.44 x 6.4 | 152.4 x 91.44 | TTL Parallel RGB |
| 7.0" | PT0708048-A902 | 800 * 480 | 165 x 100 x 6.6 max. | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048T-A902(RTP) | 800 * 480 | 165 x 100 x 6.6 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-C603 | 800 * 480 | 164.9 x 100.0 x 3.4 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048T-C604(RTP) | 800 * 480 | 164.9 x 100.0 x 5.1 max. | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048TC-C603(CTP) | 800 * 480 | 164.9 x 100.0 x 5.3 max. | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-D001 | 800 * 480 | 164.9 x 100.0 x 5.7 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-D002 | 800 * 480 | 164.9 x 100.0 x 5.7 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048T-D201(RTP) | 800 * 480 | 164.9 x 100.0 x 7.3 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT0708048-D204 | 800 * 480 | 164.9 x 100.0 x 3.5 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048T-D204(RTP) | 800 * 480 | 164.9 x 100.0 x 4.6 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D204(CTP) | 800 * 480 | 195.6 x 130.0 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D204T(CTP) | 800 * 480 | 164.9 x 101.55 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048-D205 | 800 * 480 | 164.9 x 100.0 x 3.5 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048T-D205(RTP) | 800 * 480 | 164.9 x 100.0 x 4.7 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D205(CTP) | 800 * 480 | 195.6 x 130.0 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048TC-D205T(CTP) | 800 * 480 | 164.9 x 101.55 x 5.75 | 153.84 x 85.63 | 24-bit Parallel RGB |
| 7.0" | PT0708048-D301 | 800 * 480 | 165.0 x 104.4 x 5.2 | 154.08 x 85.92 | MPU |
| 7.0" | PT0708048TC-D202(CTP) | 800 * 480 | 195.60 x 130.00 x 7.95 | 154.08 x 85.92 | TTL Parallel RGB |
| 7.0" | PT07010260-B401 | 1024 * 600 | 165.75 x 105.39 x 3.5 | 153.6 x 90.0 | LVDS |
| 8.0" | PT0808060-A201 | 800 * 600 | 183.0 x 141.0 x 5.6 | 162.0 x 121.5 | TTL Parallel RGB |
| 8.4" | PT0848060-A001 | 800 * 600 | 203.0 x 145.9 x 5.7 | 170.40 x 127.80 | LVDS |
Graphic LCD Module product list:
| Display Format Dots x Dots | Model No. | Outline Dimension LCM W x H mm (COG LCD W x H mm) | Viewing Area W x H mm |
| 128 x 32 | PHG1203D1 | 42.0 x 17.66 | 39.0 x 8.66 |
| 128 x 64 | PHG1206A4 | 40.5 x 34.0 (38.3 x 33.0) | 33.8 x 22.2 |
| 128 x 64 | PHG1206E | 42.0 x 30.0 | 37.0 x 20.0 |
| 128 x 64 | PHG12061F2 | 65.0 x 39.2 (63.0 x 37.7) | 60.0 x 29.0 |
| 128 x 64 | PHG12061G | 77.0 x 39.2 (63.0 x 37.7) | 60.0 x 29.0 |
| 128 x 64 | PHG1206I | 46.1 x 33.0 (43.8 x 30.7) | 39.5 x 20.0 |
| 128 x 64 | PHG12062M | 35.2 x 29.0 (34.0 x 27.8) | 31.0 x 19.0 |
| 128 x 64 | PHG1206Q | 65.0 x 39.15 (63.0 x 37.7) | 60.0 x 29.0 |
| 128 x 64 | PHG1206S1 | 47.4 x 44.4 (46.0 x 36.0) | 41.8 x 26.1 |
| 128 x 64 | PHG1206X2 | 80.5 x 45.0 (64.0 x 43.0) | 60.0 x 32.6 |
| 128 x 64 | PQG1206B | 93.0 x 70.0 | 70.7 x 38.8 |
| 128 x 80 | PHG1208A1 | 40.5 x 34.0 (38.3 x 33.0) | 35.3 x 24.34 |
| 128 x 128 | PHG1212CW6 | 36.6 x 44.5 (36.5 x 42.5) | 33.5 x 33.5 |
| 128 x 128 | PHG1212G | 46.0 * 54.4 (46.0 * 52.4) | 43.0 x 42.8 |
| 128 x 128 | PHG1212I | 36.6 x 39.3 (34.0 x 37.3) | 28.0 x 28.0 |
| 128 x 128 | PLG1212B | 92.0 x 106.0 | 73.0 x 73.0 |
| 132 x 64 | PHG1306H | 77.0 x 47.5 (75.0 x 45.5) | 72.0 x 36.5 |
Exhibition pictures:

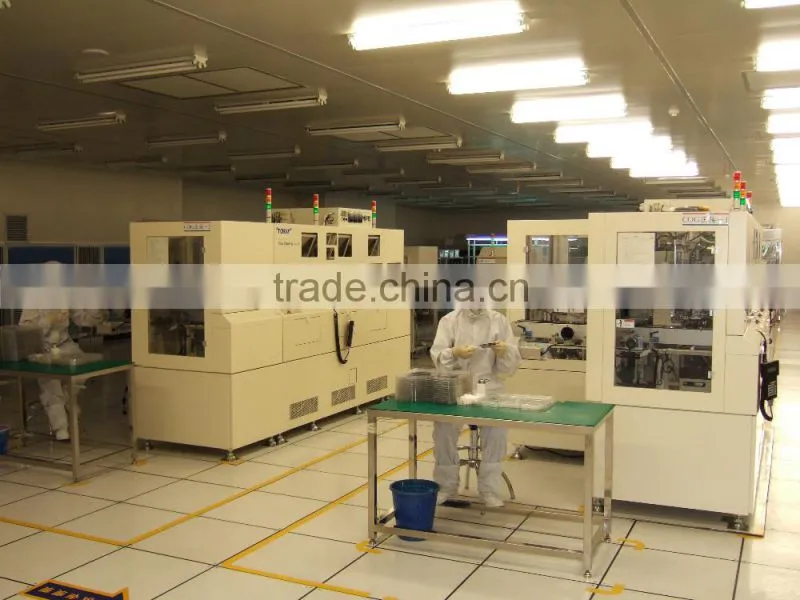

Factory pictures:
Company Introduction:
One of the Leading Suppliers of LCD/LCM Modules
Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.
To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.
Well Experienced Leadership
Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.
Providing Excellent Services
Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.
Owning Factories in Taiwan and Mainland China
Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.
We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.
To know more, contact us today.
