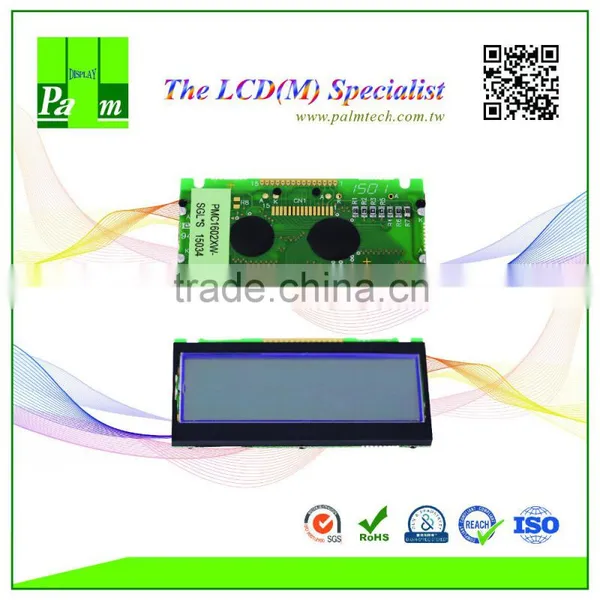

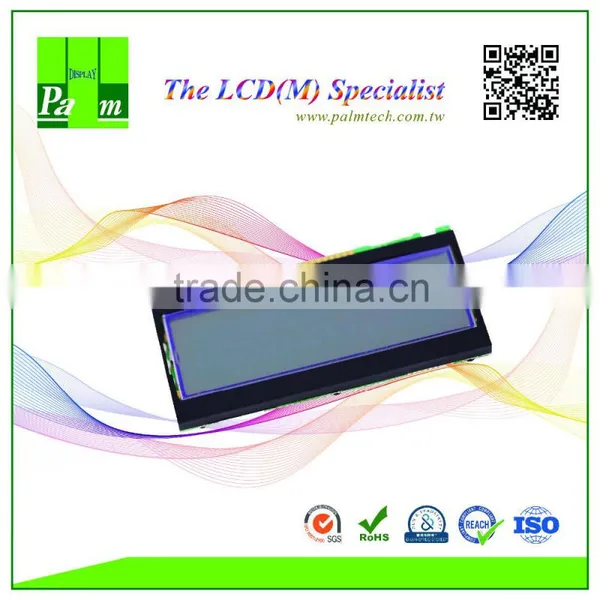

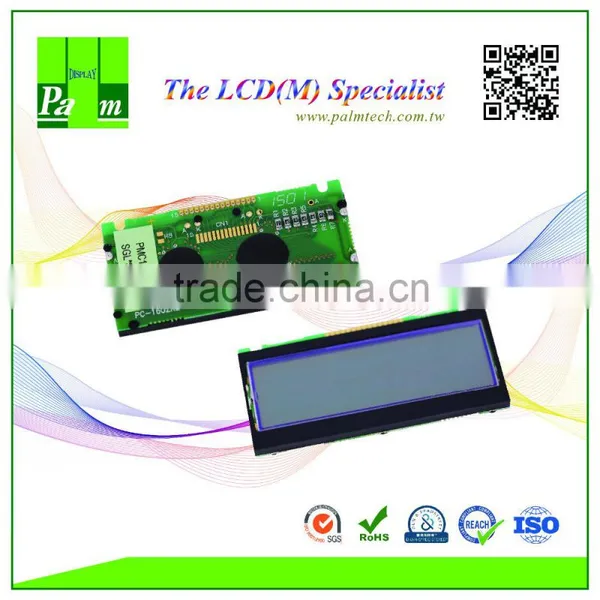

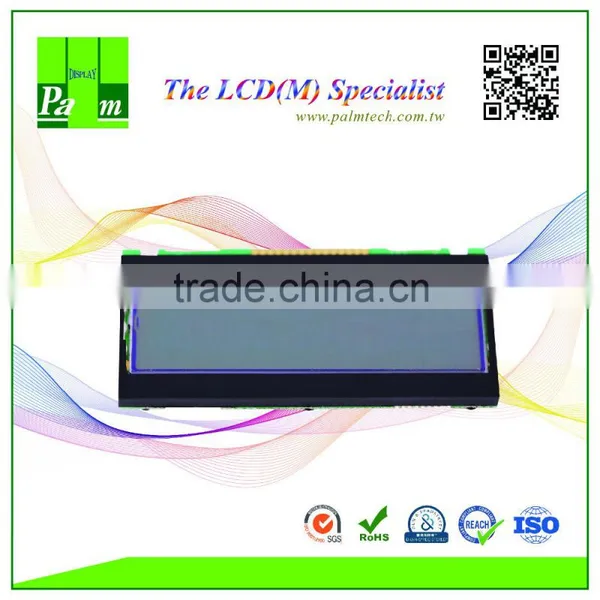

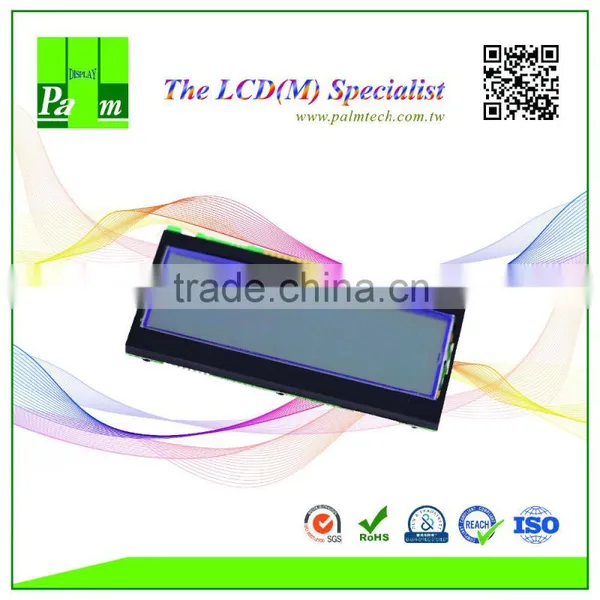

SPLC780D 16x2 Character STN LCD Module
https://img13.fr-trading.com/product-detail/SPLC780D-16x2-Character-STN-LCD-Module_60500390735.html
product: PMC1602X Taiwan based supplier LCD Character Module 16X2 OEM ODM available
Key Specifications/Special Features:
Characters LCM
16 characters x 2 lines
Module dimensions: 59.0mm (L) x 29.3mm (W) x max 5.5mm (H)
Viewing area: 52.0 x 15.0mm
Character size: 2.45 x 4.08mm
Dot size: 0.45 x 0.54mm
Dot pitch: 0.50 x 0.59mm
Matching control LSI: SPLC780D or equivalent
With backlight or without backlight
COB type
**To know more about performances and dimensions of the products, welcome to purchase our samples.
***Price can be discussed by real requirement.
Product Lists:
| CHARACTER TYPE | ||||||
| Display Format Char x Line |
Model No. | Outline Dimension W x H mm |
Viewing Area W x H mm |
Character Size W x H mm |
Dot Size W x H mm |
Dot Pitch W x H mm |
| 8 x 2 | PLC0802AW | 58.0 x 32.0 | 38.0 x 16.0 | 2.96 x 5.56 | 0.56 x 0.66 | 0.60 x 0.70 |
| 16 x 1 | PHC1601A | 57.6 x 22.3 | 54.2 x 9.8 | 2.62 x 5.24 | 0.46 x 0.68 | 0.54 x 0.76 |
| 16 x 1 | PLC1601BW | 80.0 x 36.0 | 64.5 x 13.8 | 3.07 x 6.56 | 0.55 x 0.75 | 0.63 x 0.83 |
| 16 x 1 | PMC1601A | 80.0 x 36.0 | 64.5 x 16.0 | 3.07 x 5.73 | 0.55 x 0.75 | 0.63 x 0.83 |
| 16 x 2 | PHC1602D | 54.8 x 27.0 | 51.0 x 14.5 | 2.47 x 6.37 | 0.47 x 0.77 | 0.50 x 0.80 |
| 16 x 2 | PHC1602E | 85.0 x 31.7 | 82.4 x 21.6 | 4.10 x 7.55 | 0.78 x 0.90 | 0.83 x 0.95 |
| 16 x 2 | PLC1602A1W | 85.0 x 32.6 | 64.5 x 16.4 | 3.00 x 5.23 | 0.56 x 0.61 | 0.61 x 0.66 |
| 16 x 2 | PLC1602D1W | 84.0 x 44.0 | 64.5 x 16.4 | 3.00 * 5.23 | 0.56 x 0.61 | 0.61 x 0.66 |
| 16 x 2 | PLC1602GW | 122.0 x 44.0 | 99.0 x 24.0 | 5.20 x 9.55 | 1.00 x 1.15 | 1.05 x 1.20 |
| 16 x 2 | PLC1602HW | 65.5 x 36.7 | 54.0 x 14.4 | 2.55 x 4.99 | 0.47 x 0.58 | 0.52 x 0.63 |
| 16 x 2 | PLC1602JW | 85.0 x 36.0 | 64.5 x 16.4 | 3.00 x 5.23 | 0.56 x 0.61 | 0.61 x 0.66 |
| 16 x 2 | PMC1602D | 85.0 x 30.0 | 64.5 x 16.0 | 2.96 x 4.86 | 0.56 x 0.66 | 0.60 x 0.70 |
| 16 x 2 | PMC1602X | 59.0 x 29.3 | 52.0 x 15.0 | 2.45 x 4.08 | 0.45 x 0.54 | 0.50 x 0.59 |
| 16 x 2 | PQC1602B | 85.0 x 29.5 | 65.0 x 16.0 | 2.95 x 5.55 | 0.55 x 0.65 | 0.60 x 0.70 |
| 16 x 2 | PQC1602D | 80.0 x 36.0 | 65.0 x 16.0 | 2.95 x 5.55 | 0.55 x 0.65 | 0.60 x 0.70 |
| 16 x 4 | PLC1604AW | 87.0 x 60.0 | 61.8 x 25.2 | 2.95 x 4.75 | 0.55 x 0.55 | 0.60 x 0.60 |
| 20 x 2 | PLC2002AW | 116.0 x 37.0 | 83.0 x 18.6 | 3.20 x 5.55 | 0.60 x 0.65 | 0.65 x 0.70 |
| 20 x 2 | PYC2002F | 180.0 x 40.0 | 149.0 x 23.0 | 6.0 x 9.66 | 1.12 x 1.12 | 1.22 x 1.22 |
| 20 x 2 | PLC2002HW | 75.7 x 37.6 | 61.0 x 15.1 | 2.45 x 5.55 | 0.45 x 0.65 | 0.50 x 0.70 |
| 20 x 4 | PLC2004AW | 98.0 x 60.0 | 76.0 x 25.2 | 2.95 x 4.75 | 0.55 x 0.55 | 0.65 x 0.60 |
| 24 x 2 | PLC2402AW | 118.0 x 36.0 | 94.5 x 18.0 | 3.20 x 5.55 | 0.60 x 0.65 | 0.65 x 0.70 |
| 40 x 2 | PLC4002AW | 182.0 x 33.5 | 152.5 x 16.5 | 3.20 x 5.55 | 0.60 x 0.65 | 0.65 x 0.70 |
| 40 x 4 | PLC4004A1W | 190.0 x 54.0 | 147.0 x 29.5 | 2.78 x 4.89 | 0.50 x 0.55 | 0.57 x 0.62 |
TFT Product list:
| Display Size (inch) |
Model No. | Resolution | Outline Dimension W x H x D mm |
Active Area W x H mm |
Interface |
| 1.5" | PT0151212-A704 | 128 * 128 | 32.35 x 38 x 2.6 | 25.5 x 26.5 | MCU / SPI |
| 1.77" | PT0181216-B101 | 128 * 160 | 34.0 x 45.83 x 2.75 | 28.032 x 35.040 | 8 bit MCU |
| 2.0" | PT0201722-B301 | 176 * 220 | 38.08 x 51.3 x 2.45 | 31.68 x 39.60 | 8/16 bit MCU |
| 2.0" | PT0201722-B606 | 176 * 220 | 38.5 x 51.15 x 2.5 | 31.68 x 39.60 | MCU / SPI |
| 2.0" | PT0201722T-B606(RTP) | 176 * 220 | 38.5 x 51.15 x 4.1 | 31.68 x 39.60 | MCU / SPI |
| 2.4" | PT0242432-B707 | 240 * 320 | 42.72 x 60.26 x 2.6 | 36.72 x 48.96 | MCU |
| 2.4" | PT0242432T-B707(RTP) | 240 * 320 | 42.72 x 60.26 x 3.75 | 36.72 x 48.96 | MCU |
| 2.4" | PT0242432-D101 | 240 * 320 | 42.72 x 60.26 x 2.3 | 36.72 x 48.96 | 3-line SPI |
| 2.4" | PT0242432T-D101(RTP) | 240 * 320 | 42.72 x 60.26 x 3.4 | 36.72 x 48.96 | 3-line SPI |
| 2.4" | PT0242432-D201 | 240 * 320 | 42.72 x 60.26 x 2.3 | 36.72 x 48.96 | MCU |
| 2.4" | PT0244823-A001 | 480 * 272 | 55.20 x 47.55 x 2.8 | 48.00 x 35.685 | RAW DATA / SERIAL RGB / CCIR |
| 2.8" | PT0282432-B704 | 240 * 320 | 50.0 x 69.2 x 2.6 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432T-B704(RTP) | 240 * 320 | 50.0 x 69.2 x 3.8 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432-D503 | 240 * 320 | 50.0 x 69.2 x 2.5 | 43.20 x 57.60 | MCU |
| 2.8" | PT0282432-E501 | 240 * 320 | 50.0 x 69.2 x 2.45 | 43.20 x 57.60 | MCU / RGB / SPI |
| 2.8" | PT0282432T-E501(RTP) | 240 * 320 | 50.0 x 69.2 x 3.6 | 43.20 x 57.60 | MCU / RGB / SPI |
| 3.5" | PT0353224-C601 | 320 * 240 | 76.9 x 64.0 x 3.1 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353224T-C601(RTP) | 320 * 240 | 76.9 x 64.0 x 4.2 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353224-C701 | 320 * 240 | 76.9 x 63.9 x 3.26 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224T-C701(RTP) | 320 * 240 | 76.9 x 63.9 x 4.4 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224-D102 | 320 * 240 | 76.9 x 63.9 x 3.2 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224T-D102(RTP) | 320 * 240 | 76.9 x 63.9 x 4.3 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224-E201 | 320 * 240 | 76.9 x 63.9 x 3.15 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224T-E201(RTP) | 320 * 240 | 76.9 x 63.9 x 4.25 | 70.08 x 52.56 | Serial/Parallel RGB / CCIR656 / CCIR601 |
| 3.5" | PT0353224-E501 | 320 * 240 | 76.9 x 63.9 x 3.05 | 70.08 x 52.56 | MCU / RGB / SPI |
| 3.5" | PT0353248-B207 | 320 * 480 | 55.66 x 85.04 x2.40 | 48.96 x 73.44 | MCU / RGB / SPI |
| 3.5" | PT0353248-B701 | 320 * 480 | 54.66 x 82.94 x 2.05 | 48.96 x 73.44 | MCU |
| 3.5" | PT0353248-C001 | 320 * 480 | 54.5 x 83.0 x 2.1 | 48.96 x 73.44 | 8 bit MCU |
| 3.5" | PT0353248T-C001(RTP) | 320 * 480 | 54.5 x 83.0 x 3.3 | 48.96 x 73.44 | 8 bit MCU |
| 4.3" | PT0434827-A416 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827T-A416(RTP) | 480 * 272 | 105.5 x 67.2 x 4.05 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827-C801 | 480 * 272 | 105.5 x 67.2 x 2.9 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434827T-C801(RTP) | 480 * 272 | 105.5 x 67.2 x 4.0 | 95.04 x 53.856 | TTL Parallel RGB |
| 4.3" | PT0434880-B101 | 480 * 800 | 60.86 x 104.5 x 1.95 | 56.16 x 93.60 | 3-wire SPI + RGB interface |
~~ there are more products we can provide your, please feel free to contact with us! ~~

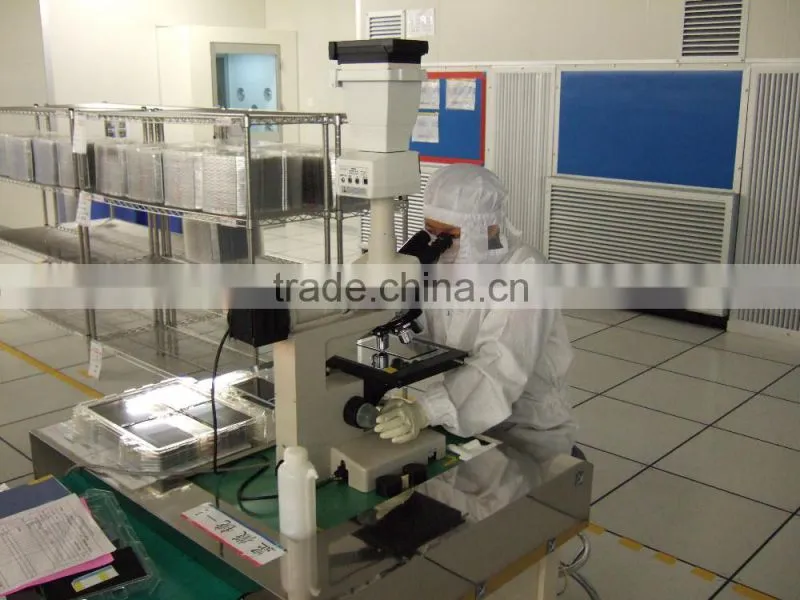

Factory pictures:
Exhibition pictures:
Company Introduction:
One of the Leading Suppliers of LCD/LCM Modules
Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.
To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.
Well Experienced Leadership
Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.
Providing Excellent Services
Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.
Owning Factories in Taiwan and Mainland China
Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.
We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.
To know more, contact us today.
