Standard LCD Modules 16X2 PLC1602A1W FSTN Neg.

Standard LCD Modules 16X2 PLC1602A1W FSTN Neg. thumbnail-1
Standard LCD Modules 16X2 PLC1602A1W FSTN Neg. thumbnail-2
Standard LCD Modules 16X2 PLC1602A1W FSTN Neg. photo-1

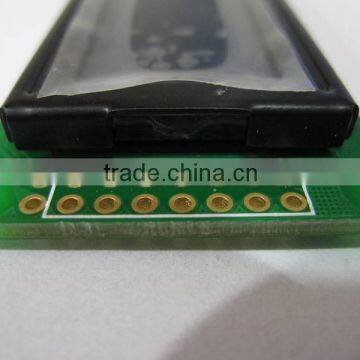

Standard LCD Modules 16X2 PLC1602A1W FSTN Neg. photo-2
US$ 3.2 - 5 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Taiwan, China
Brand Name:
Palm Technology
Model Number:
PLC1602A1W
Contact Supplier Request Quote Chat Now
Palm Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Kaohsiung
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Taiwan, China
Brand Name Palm Technology
Model Number PLC1602A1W
Type COB

 Standard LCD Modules 16X2 PLC1602A1W FSTN Neg.

Key Specifications/Special Features:



Character LCM

16 characters x 2 lines

Module dimensions: 85.0mm (L) x 32.6 mm (W) max

Viewing area: 64.5 x 16.4 mm

Character size: 3.00  x 5.23 mm

Dot size: 0.56 x 0.61 mm

Dot pitch: 0.61 x 0.66 mm

Matching control LSI: SPLC780D or equivalent

With backlight or without backlight

COB type



 **To know more about performances and dimensions of the products, welcome to purchase our samples.

 ***Price can be discussed by real requirement.





Product Lists- Character Type

Display Format
Char x Line 		Model No. Outline Dimension
W x H mm 		Viewing Area
W x H mm 		Character Size
W x H mm 		Dot Size
W x H mm 		Dot Pitch
W x H mm
8 x 2 PLC0802AW 58.0 x 32.0 38.0 x 16.0 2.96 x 5.56 0.56 x 0.66 0.60 x 0.70
16 x 1 PHC1601A 57.6 x 22.3 54.2 x 9.8 2.62 x 5.24 0.46 x 0.68 0.54 x 0.76
16 x 1 PLC1601BW 80.0 x 36.0 64.5 x 13.8 3.07 x 6.56 0.55 x 0.75 0.63 x 0.83
16 x 1 PMC1601A 80.0 x 36.0 64.5 x 16.0 3.07 x 5.73 0.55 x 0.75 0.63 x 0.83
16 x 2 PHC1602D 54.8 x 27.0 51.0 x 14.5 2.47 x 6.37 0.47 x 0.77 0.50 x 0.80
16 x 2 PHC1602E 85.0 x 31.7 82.4 x 21.6 4.10 x 7.55 0.78 x 0.90 0.83 x 0.95
16 x 2 PLC1602A1W 85.0 x 32.6 64.5 x 16.4 3.00 x 5.23 0.56 x 0.61 0.61 x 0.66
16 x 2 PLC1602D1W 84.0 x 44.0 64.5 x 16.4 3.00 * 5.23 0.56 x 0.61 0.61 x 0.66
16 x 2 PLC1602GW 122.0 x 44.0 99.0 x 24.0 5.20 x 9.55 1.00 x 1.15 1.05 x 1.20
16 x 2 PLC1602HW 65.5 x 36.7 54.0 x 14.4 2.55 x 4.99 0.47 x 0.58 0.52 x 0.63
16 x 2 PLC1602JW 85.0 x 36.0 64.5 x 16.4 3.00 x 5.23 0.56 x 0.61 0.61 x 0.66
16 x 2 PMC1602D 85.0 x 30.0 64.5 x 16.0 2.96 x 4.86 0.56 x 0.66 0.60 x 0.70
16 x 2 PMC1602X 59.0 x 29.3 52.0 x 15.0 2.45 x 4.08 0.45 x 0.54 0.50 x 0.59
16 x 2 PQC1602B 85.0 x 29.5 65.0 x 16.0 2.95 x 5.55 0.55 x 0.65 0.60 x 0.70
16 x 2 PQC1602D 80.0 x 36.0 65.0 x 16.0 2.95 x 5.55 0.55 x 0.65 0.60 x 0.70
16 x 4 PLC1604AW 87.0 x 60.0 61.8 x 25.2 2.95 x 4.75 0.55 x 0.55 0.60 x 0.60
20 x 2 PLC2002AW 116.0 x 37.0 83.0 x 18.6 3.20 x 5.55 0.60 x 0.65 0.65 x 0.70
20 x 2 PYC2002F 180.0 x 40.0 149.0 x 23.0 6.0 x 9.66 1.12 x 1.12 1.22 x 1.22
20 x 4 PLC2004AW 98.0 x 60.0 76.0 x 25.2 2.95 x 4.75 0.55 x 0.55 0.65 x 0.60
24 x 2 PLC2402AW 118.0 x 36.0 94.5 x 18.0 3.20 x 5.55 0.60 x 0.65 0.65 x 0.70
40 x 2 PLC4002AW 182.0 x 33.5 152.5 x 16.5 3.20 x 5.55 0.60 x 0.65 0.65 x 0.70
40 x 4 PLC4004A1W 190.0 x 54.0 147.0 x 29.5 2.78 x 4.89 0.50 x 0.55 0.57 x 0.62







Company Introduction:

One of the Leading Suppliers of LCD/LCM Modules

Palm Technology was founded in 1994 and is now one of the leading suppliers of LCD/LCM modules. We offer standard and customized modules for industrial instruments, wearable devices, audio appliances, smartphones, information appliances, remote controls, GPS, media players, MPEG4, digital still cameras, toys, POS systems, DVD players and other related items.



To enhance and raise our market competition in price, quality and diverse products, we are also involved in backlights, resistive touch panels, capacitive touch panels and IC businesses to serve customers better.



Well Experienced Leadership

Our head engineer, with more than two decades of industrial experience and was previously employed in Hitachi as an engineer, is an expert in the field of LCD/LCM designs. He leads our talented R&D team in developing new products quarterly. Send us your ideas and we can turn them into real products.



Providing Excellent Services

Our company supplies various products and high quality services. We strive to present strong trusts and loyalty to our customers worldwide, therefore customers look to us not only as a supplier, but also as a strategic partner.



Owning Factories in Taiwan and Mainland China

Our factories are both located in Mainland China and Taiwan. With these two production plants, our China factory mainly produces simple structures, consumer products and low end products as well as our Taiwan factory takes advantage of advanced technique to support complex structures which with customers main boards and MCU circuit designs, industrial products and with high reliability products.



We will try to satisfy our customers based on their requirements, and choose the most suitable factory to produce the products.



To know more, contact us today.
