IWS-1632A Multi-azimuth Pipe Pressing Tools for press pipe fittings of 16&20&25/26&32,light weight and easy to use,perfect crimpIWS-1632A Multi-azimuth Pipe Pressing Tools
1. 40% Labor Saved
2. 45% Work Space Saved
3. 30% Lighter In Weight
4. 360° Rotary Press Head
* Features:
1. 360° Rotary Press Head, suitable for narrow space pressing operation
2. For large size fittings crimping
3. With two folding handles
4. With 16&20&25/26&32 die sets
* Four newly innovation:
1. With fix shaft, avoid die set dismatch
2. Change the die set quickly
3. With pressure numerical adjustment, increase the service life

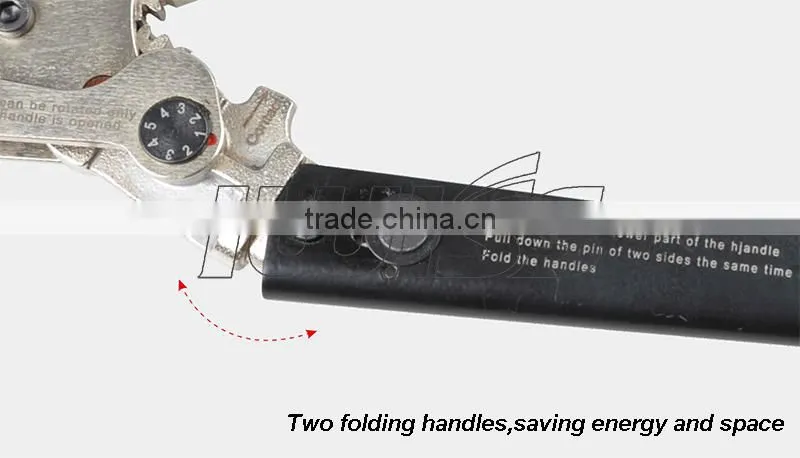

4. Two folding handles,saving energy and space
* Operation steps:
Operating principle:
Two folding handles, the length between two handles is more short,It is convenient for operation; compared to one time crimp operation of old type crimper,the new tool’s crimp can be completed with 3 times,save energy and more convenient.
How to use folding handles:

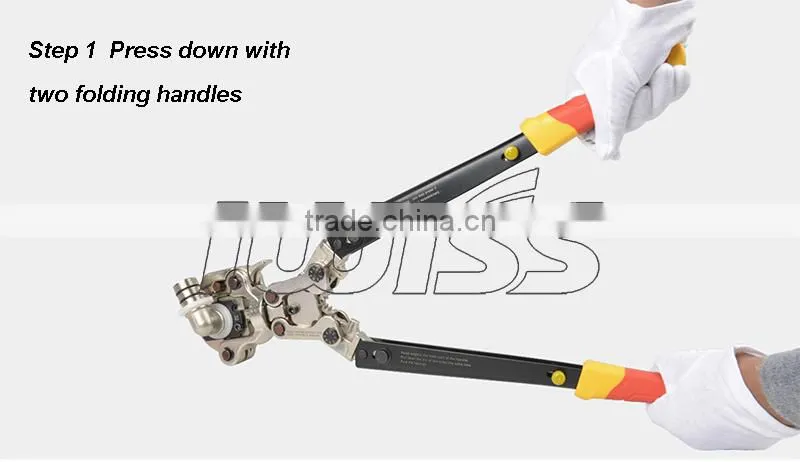

1. With folding handle,Press down with two folding handles

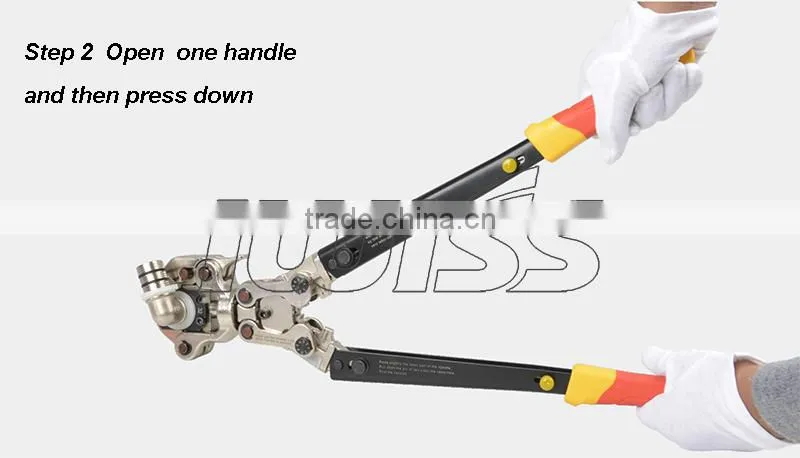

2. Open one handle(unfolding) and then press down

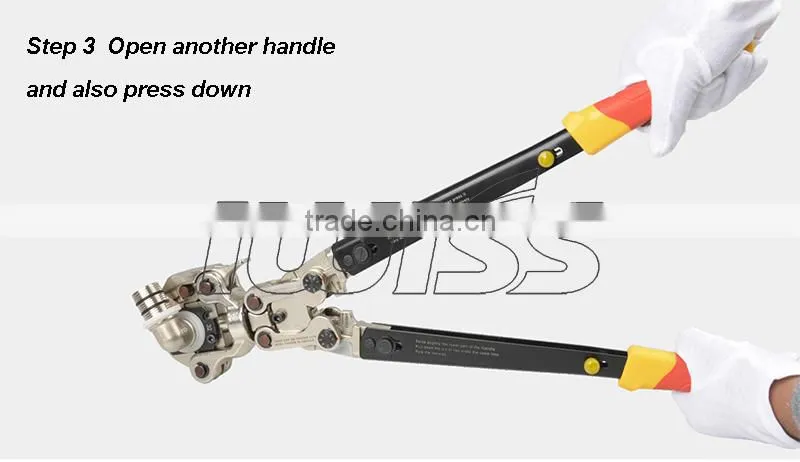

3. Open another handle(unfolding) and also press down

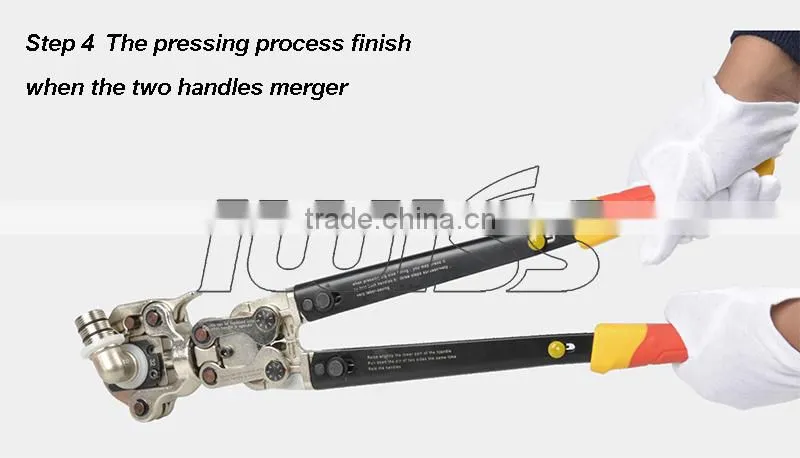

4. The pressing process finish when the two handles merger
*IWS-1632A with a function of pressure numerical adjustment,which help to adjust the pressure when pressing.
Here is the process to operate this function:

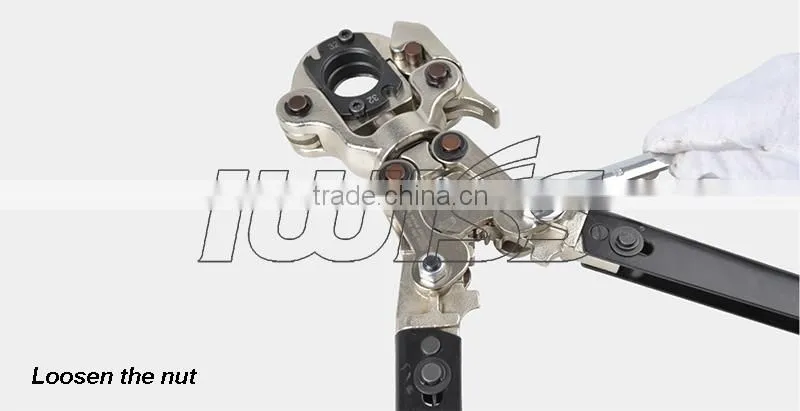

1. Loosen the nut

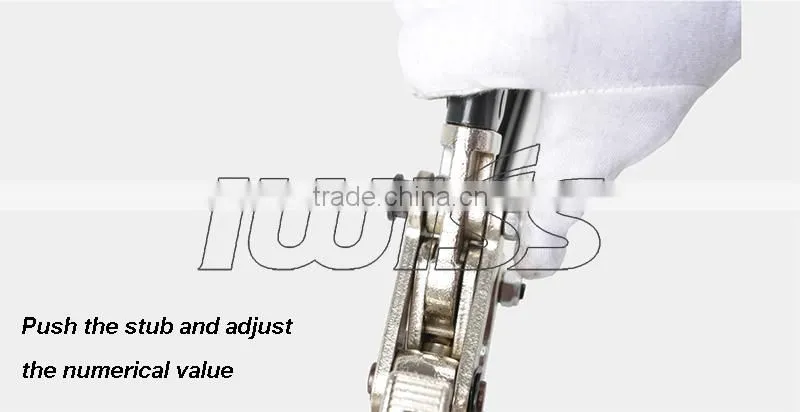

2.Push the stub and adjust the numerical value

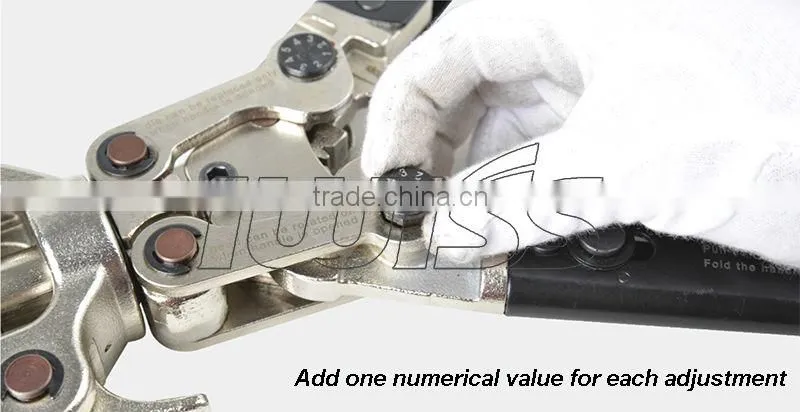

3.Add one numerical value for each adjustment

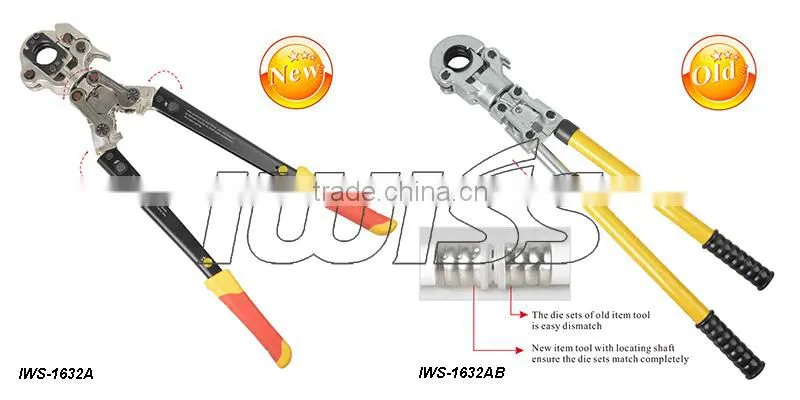

* Comparision of New tool with Old tool:
Item No. |
IWS-1632A |
IWS-1632AB |
Energy save |
Yes |
No |
Perfect crimp |
Yes |
No |
360°rotate head |
Yes |
Yes |
Folding handles |
Yes |
No |
Die set mismatch |
No |
Yes |
Pressure numerical adjustment |
Yes |
No |
Weight |
2.8kg |
4kg |
Length(cm/inch) |
55/21.6 |
78/30.7 |
Handles distance(cm/inch) |
50/19.7 |
95/37.4 |
Press range(AWG) |
16-32 |
16-32 |
* Variant Products of IWS series pipe pressing tools:
(Click item number to check detail)
| Item | Dies | Length (cm/inch) | Weight (KG) | Folding Handle | Rotary Head | Dual-Head | PEX Pipe | PAP Pipe | Copper Pipe |
| IWS-1632A | 16&20&25/26&32 | 55/21.6 | 2.8 | √ | √ | √ | √ | ||
| IWS-1632AB | 16&20&25&32 | 78/30.7 | 4.0 | √ | √ | √ | |||
| IWS-1632B | 16&20&25/26&32 | 59/23.2 | 2.9 | √ | √ | ||||
| IWS-1632BC | 16&20&25&32 | 78/30.7 | 4.1 | √ | √ | ||||
| IWS-1620A | 16&20 | 38/15 | 1.5 | √ | √ | ||||
| IWS-1620B | 16&20 | 38/15 | 1.3 | √ | |||||
| IWS-1620BC | 16&20 | 48/18.9 | 2.3 | √ | |||||
| IWS-1620C | 16&20 | 38/15 | 1.3 | √ | √ | ||||
| AM-1632Q | 16&20&25&32 | 16.5 | √ | ||||||
| IWS-1632C | 16&20&25&32 | 60/23.6 | 2.5 | √ | |||||
| IWS-1625A | 16&20&25 | 58/22.8 | 2.6 | √ | |||||
| IWS-1625AB | 16&20&25 | 58/22.8 | 2.4 | √ | |||||
| IWS-1625AC | 16&20&25 | 51/20 | 2.3 | √ | |||||
| IWS-1620CD | 16&20 | 50/19.7 | 1.6 | √ | |||||
| IWS-1620BD | 16 or 20 | 38/15 | 1.3 | √ | |||||
| IWS-F | 3/8″,1/2″,3/4″,1″ | 37/15 | 1.5 | √ | √ | ||||
| IWS-FA | 3/8″,1/2″,3/4″,1″ | 37/15 | 1.3 | √ | √ | ||||
| IWS-1P | 1″ | 37/15 | 1.5 | √ | |||||
| IWS-34P | 3/4″ | 35/13.8 | 1.3 | √ | |||||
| IWS-12P | 1/2″ | 35/13.8 | 1.3 | √ | |||||
| IWS-1234P | 1/2″,3/4″ | 39/15.4 | 1.5 | √ | √ | ||||
| IWS-1096G | 3/8″, 1/2″,5/ 8″,3/4″,1″ | 30/11.8 | 0.6 | √ | |||||
| AM-1632QA | 3/8″,1/2″,5/ 8”,3/4″,1″ | 17 | √ |
* Packing Detail:
Item No. |
Size |
set/carton |
G.W./set |
N.W./carton |
G.W./carton |
IWS-1632A |
670X270X330 |
5 |
5 |
25 |
26 |
* Shipping Information:
1. Express support: By DHL, FedEx, TNT, UPS, EMS, China Post Air Mail and so on.
2. Sea Shipping
* Shipping terms:
1. EXW
2. FOB
3. CIF(CNF)
