Fully Automatic Making Machine For The Metal Can

Name: Fully Automatic Making Machine For The Metal Can
Brand: NEW DODO
SKU: 122647759

Fully Automatic Making Machine For The Metal Can thumbnail-1

Fully Automatic Making Machine For The Metal Can photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Automatic Grade:

Automatic

Usage:

Metal Forming Machine, Can end making machine

Contact Supplier Request Quote Chat Now

Shantou Xinqing Cannery Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shantou

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Automatic Grade Automatic

Place of Origin Guangdong, China

Brand Name NEW DODO

Model Number NEW DODO

Voltage 22V

Power(W) 5.75KW

Dimension(L*W*H) 2185X323X1846

Weight 2000KG

Certification CE certificate

Warranty 1 year

After-sales Service Provided Overseas service center available

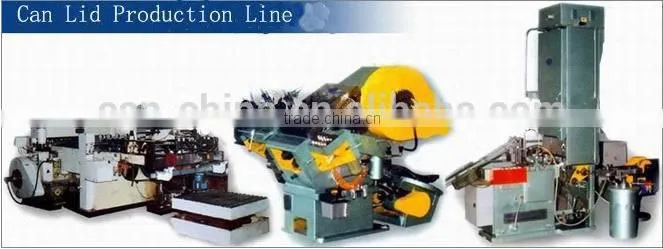

Fully Automatic Making Machine For The Metal Can Lids/Ends Components/EOEs

Product Description

Fully automatic can end making machine description:

1. Sheet cutting

* Blades are made of top quality tool steel, through strict heat treating, compact and durable.
* Side & front gauges adopted to ensure perpendicular & parallel cutting.
* Central lubrication system adopted for the essential sliding parts.
* Safety device makes running more smoothly.
* Sheet guide and support are hard chrome plated or adopt nylon to avoid scratch.
* Suitable for tinplate or aluminium.
* Two round cutters are incorporated to cut unwanted sheet side so as to get accurate strip length.

SPECIFICATIONS:

Machine Type	GT1B9
Max. Sheet Size	1170x1170mm
Min. Sheet Size	750x508mm
Range of Sheet Thickness	0.4mm(max)
Max. Strip Width	260mm
Strokes Per Minute	75-150 Strokes
Power Required	5.75 KW
Floor Space Overall Height	L4520xW2505xH1615mm
Net Weight	8000kgs

2. Lid pressing and forming equipment with auto infeeding , auto wasting, auto out feeding and auto lubricating performance, availabe to equipped with dual (or single ) pressing die and mold, dual (or single) curling die and mold, as well as non-round lid die and mold and can-body stretching die and mold. It is also equipped with control and safe protection devices of overload, double sheet infeeding, conveyor and waste jam ,safety cover and control level error, air and oil trouble . etc.

SPECIFICATIONS:

Norminal preesing force	45T
Stroke rarge	80MM
Stroke pulse	200shots/min.
Max. stretching depth	30mm
Min infeeding range	40mm
Die hardle diameter	40mm
Max. close height	197mm
For can diameter	Dual die 52- 99 single die 153
Width to be cut	100-240m
Tinplae length to be cut	600-960mm
Power required	4KW
Dimensions	2185X323X1846
Weight	4100kg

3. Automatic lid lining and drying equpment with a vertical latex liner and double ways in oven dryer, desinged for lining seal later on lid and drying. By replacing some different can-size parts, it is available for various sizes of lids. It adopts vertical infrared oven and PLC.

SPECIFICATIONS:
