Liquid Blister Packing Machine , Butter Packing Machine ,peanut Butter Packing Machine

US$ 8,000 - 10,000 MOQ: 1 Unit

Key Specifications

Application:

Commodity, Food

Packaging Type:

Other, cup

Packaging Material:

Plastic

Pingyang Anbo Machinery Factory

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Application Commodity, Food

Packaging Type Other, cup

Packaging Material Plastic

Automatic Grade Automatic

Driven Type Electric

Voltage 220V/380V

Power 3.5kw

Place of Origin Zhejiang, China

Model Number ANBO-80

Weight 450kg

Dimension(L*W*H) 1600X560X1450mm

Certification CE Certificate

After-sales Service Provided Engineers available to service machinery overseas

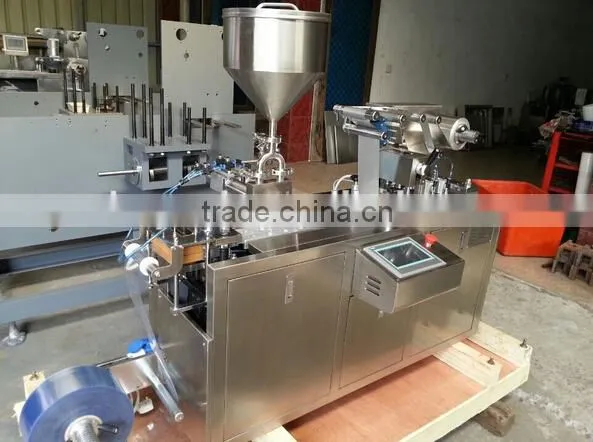

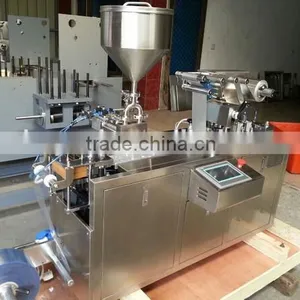

Liquid blister packing machine

Product Description

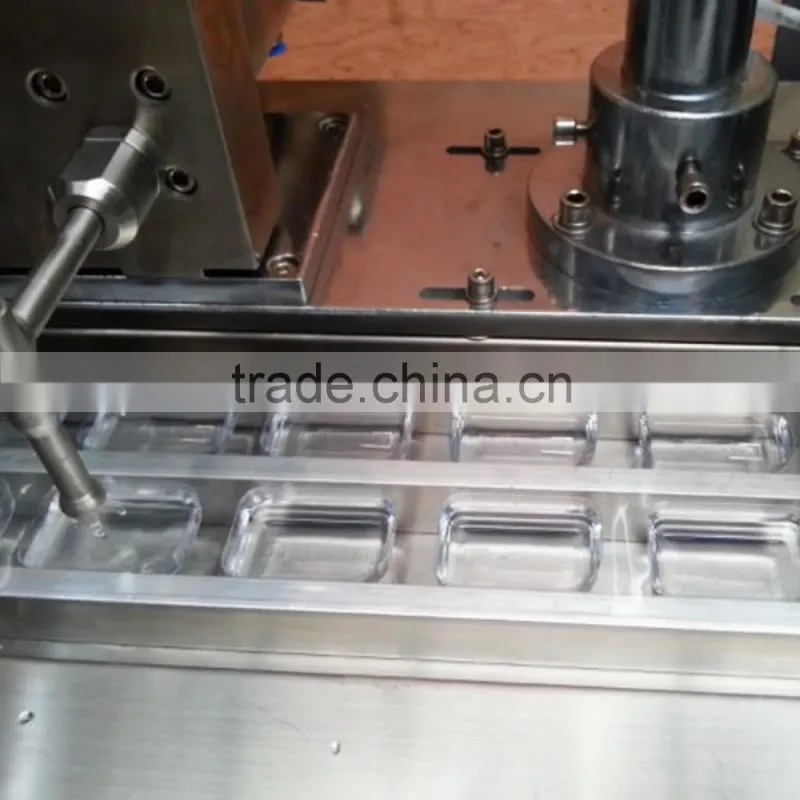

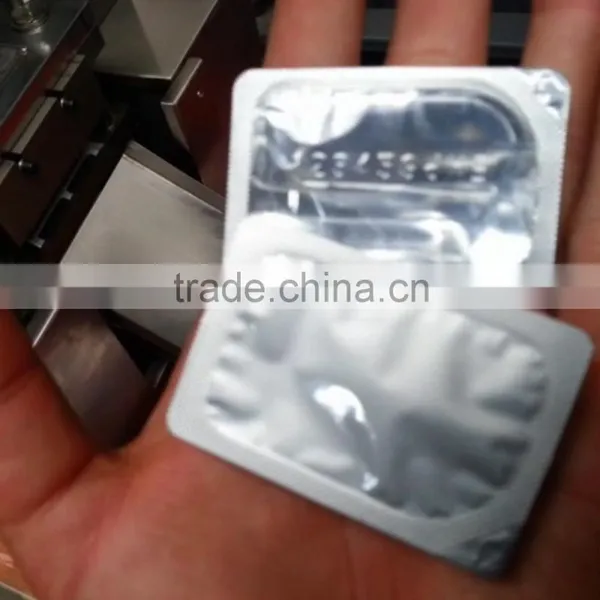

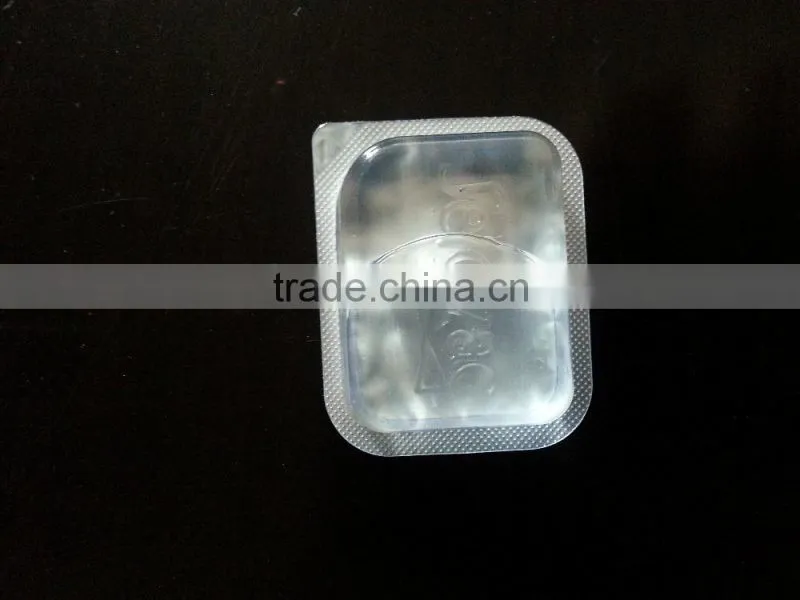

1. This machine pack liquid in cup, tray container, for example jam, honey, butter,etc

Working flow;

roll— heating——Forming —— Automatic liquid feeding —— PE/ALU foil sealing — Cutting —— Products output

Feature:

1. All materials contact parts are in S.S.316.

2. With automatic liquid doser.

3.Different shape mould available.

Punch frequency	10-33times /min
Packing efficiency	2400 cups/hour
Max forming area and depth	70X100X15mm(Depth can be designed according to customer requirements)
Standards plate	80X57mm(Can be designed according to customer requirements)
Standard adjustable range of stroke	30-80mm(Can be designed according to customer requirements)
Air pressure	0.6-0.8Mpa
Power supply	380V/220V 50Hz 3.8Kw
Main motor power	0.75Kw
PVC	0.15-0.5X80mm
PTP aluminium foil	0.02-0.035X80mm
Dialyzingpaper	50-100gX80mm
Cooling	Tap water or recycled wate
Overall dimension	1600X560X1450mm(LXWXH)
Machine weight	450Kg
