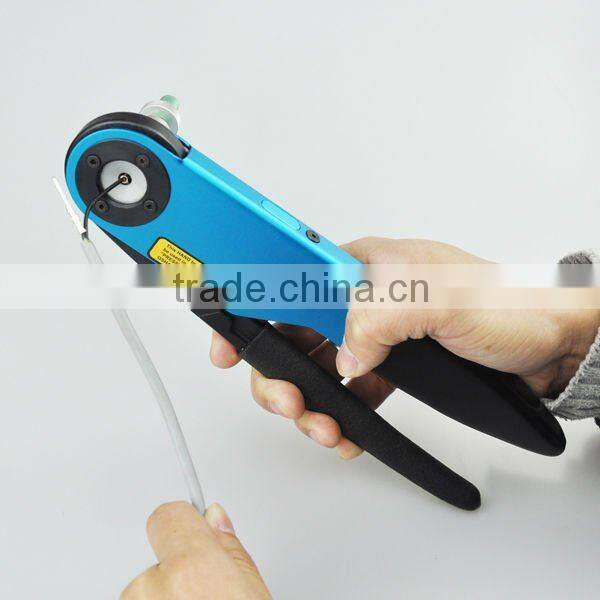

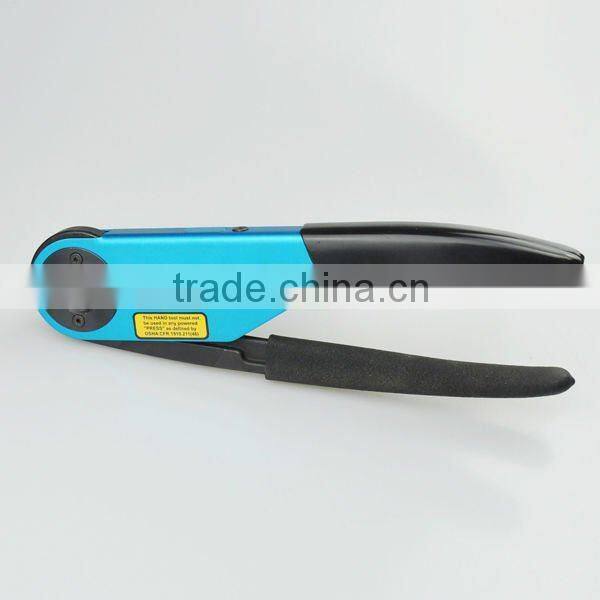

W2 Standard Adjustable Crimping Tool
Negotiable
/ Piece
1 Piece(Min.Order)
- 5000 Piece / Pieces per Month
- Ningbo Shanghai
- T/T Credit Card
You May Like
-
W1 DFMS Crimping Tools suit for heavy duty connectors
-
W2 harting weidmuller crimping tools(OEM)
-
AM-016 pneumatic Heavy Duty Connectors crimping machine
-
AM-2546 series pneumatic solar crimping tools for MC3/MC4 connectors
-
WX-0525TX and FSB-0525TX harting weidmuller crimping tools(OEM) For Heavy Duty
-
AN-0540HX harting weidmuller crimping tools(OEM) For Heavy Duty
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Iwiss | |
| Model Number | W2 | Type | Mini Pliers | |
| Material | Other, copper alloy | Application | Other, Turned Contacts |
Product Description
Specifications
1.crimping range:AWG12-262.Standard:M22520/1-01
3.Special indent configurations

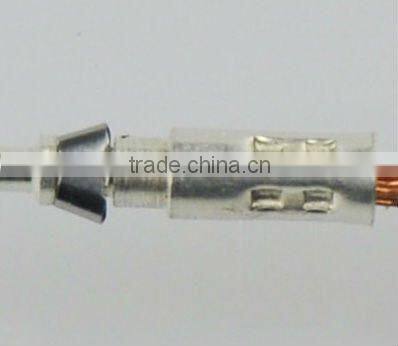

W2 Standard Adjustable Crimping Tool applicable for special terminals in wire size AWG12-26(3.33-0.128mm2)
on non-welding connection complied with standard electric connection. When crimping, put the terminals into the crimping pliers laterally. When the demanded pressing force is reached, the brake unit would release the crimping jaw automatically. Thus it could ensure high quality crimping standard after repeatedly crimping.

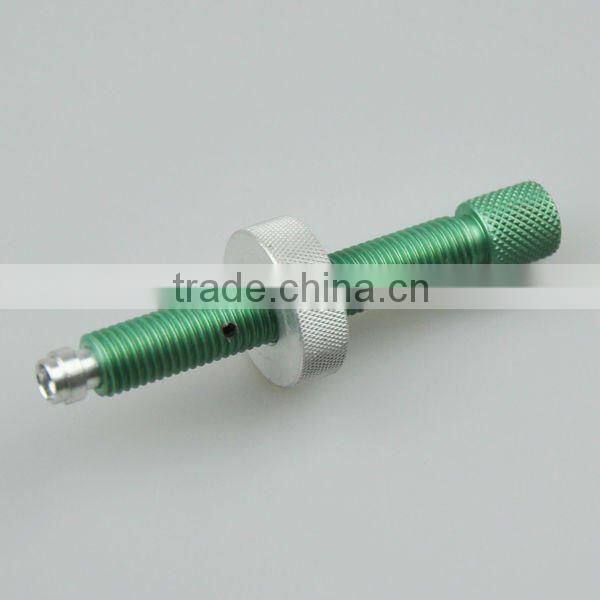

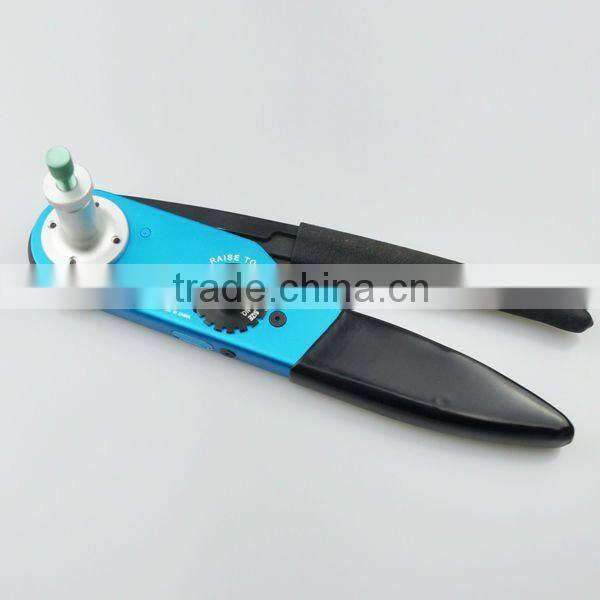

Over a thousand turret heads are available to adapt the tool frame to your specific military or proprietary contact/wire combination
Adjustment plate stalls | Crimping working Dia.(mm/inch) | |
A(GO) | B(NO GO) | |
1 | 0.71/0.028 | 0.84/0.033 |
2 | 0.81/0.032 | 0.94/0.037 |
3 | 0.91/0.036 | 1.04/0.041 |
4 | 0.99/0.039 | 1.12/0.044 |
5 | 1.14/0.045 | 1.27/0.050 |
6 | 1.32/0.052 | 1.45/0.057 |
7 | 1.50/0.059 | 1.63/0.064 |
8 | 1.73/0.068 | 1.86/0.073 |

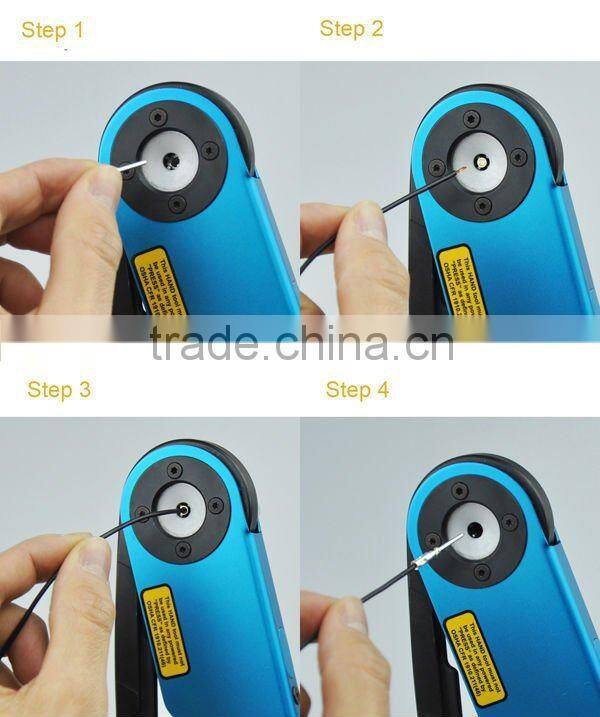

Operation steps
