Specifications
W1Q Pneumatic Heavy Duty Connector Crimping ToolsOperation Guide(M22520/2-01, AWG16-28) CE Approval.

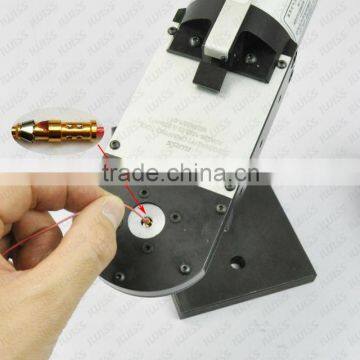

1. Application and Feature * This W1Q(WA22) pneumatic heavy duty connector crimping tools to meet the U.S. military standard (M22520/2-01) the wire contact body crimp in the electrical connector requirements. The range of the crimping pliers to connect the wire standard wire 16AWG (1.32mm2) to 28AWG (0.32mm2), #16-22 contact body. The material of the contact body for the copper alloy material after the partial annealing.

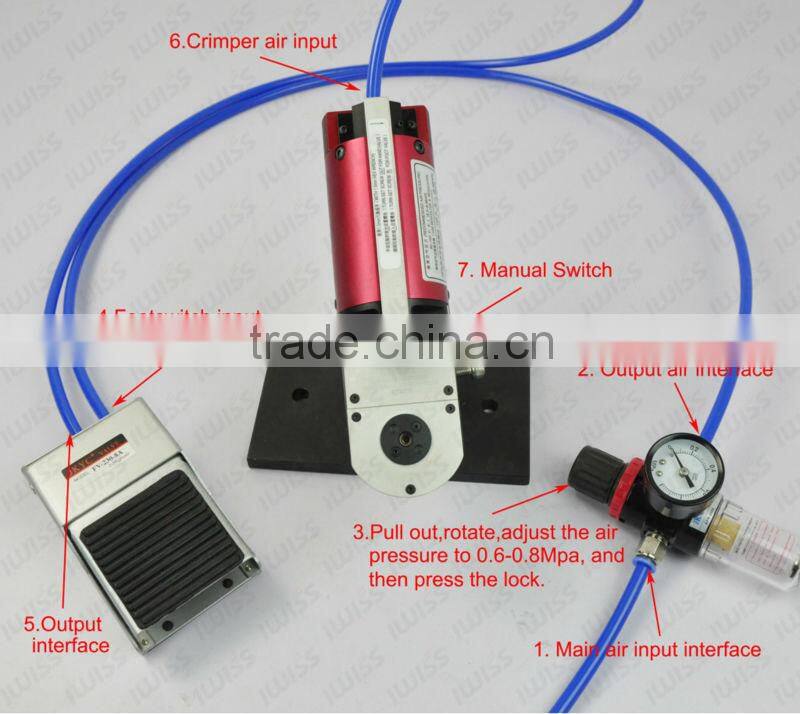

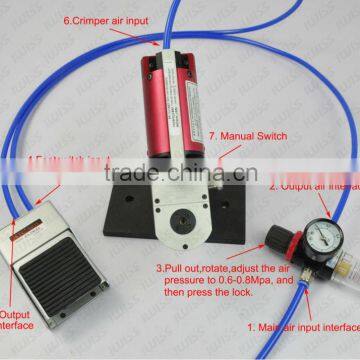

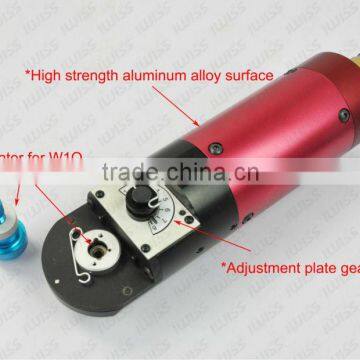

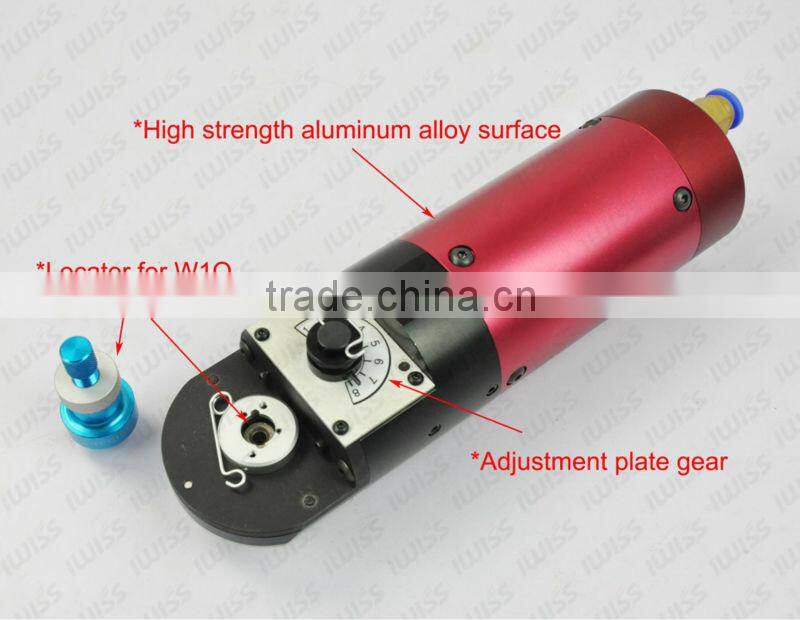

2. The structure and principle * The Iwiss crimping pliers crimping work curve propelling mechanism, force passed to the four by four curves of the handle head cavity briquetting, briquetting do linear motion to the heart briquetting front getting pressure tooth crimp contact body and complete the wire and the contact body of the crimp. Four the indenter blocks retreat movement coordination, the indentation depth of a consistent, reliable way to ensure the quality of the wire and crimp contact. * The crimping pliers internal pawl and rack with self-locking mechanism to ensure crimping consistent. If insufficient air pressure or air supply time is too short, can not be properly completed crimp briquetting self-locking mechanism without refund, you should adjust the air pressure to increase the supply time to briquetting movement to reach stall position, return to normal to use. * The pressure pliers eight stalls, by lifting the dial (remove the pins) and rotate the pointer on the dial stalls, put down the dial and confirm the dial has been flat on the panel before they start work. * The Iwiss crimping pliers can use their own manual switch or an external pedal (not both). Screws the conversion manually switch pedal with the outside world applications 1.5mm hex wrench, adjust the clamp body rear arrow pointing M3 hexagon socket screw, pressing the manual switch feel a stretch for manual control of the state, screws screwed manually switch no resilient foot control state. Mediation should be careful not to force too large and are not familiar with the use of multiple mediation adapt.
