Stainless Steel Vegetable Washing Machine/machine for Fruit Washing

Stainless Steel Vegetable Washing Machine/machine for Fruit Washing photo-1
Stainless Steel Vegetable Washing Machine/machine for Fruit Washing photo-2
Stainless Steel Vegetable Washing Machine/machine for Fruit Washing photo-3

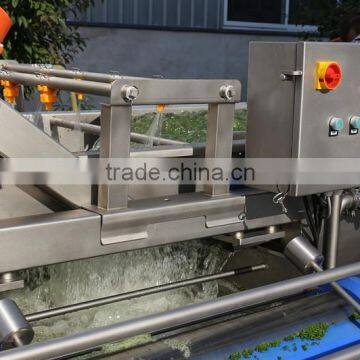

Stainless Steel Vegetable Washing Machine/machine for Fruit Washing photo-4

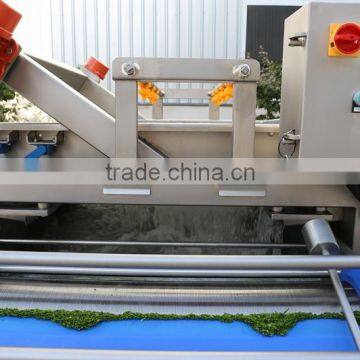

Stainless Steel Vegetable Washing Machine/machine for Fruit Washing photo-5
Stainless Steel Vegetable Washing Machine/machine for Fruit Washing photo-6
US$ 28,125 - 35,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
CDJX
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Hebei, China
Brand Name CDJX
Model Number CD750
Type Other, Washer, CD750
Voltage 220V/380V or customized
Power(W) 17.1kw
Weight approx 900kg
Dimension(L*W*H) 9040*1890*1750 mm
Certification CE ISO
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

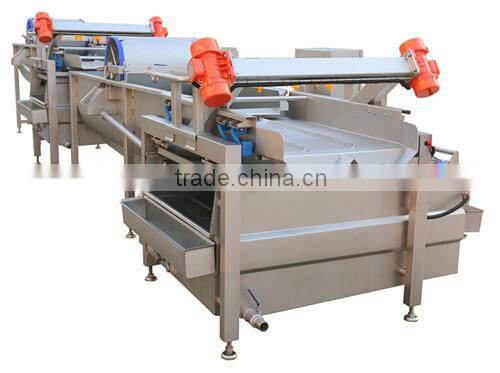

Vegetable Washing Machine CD750


Material: The machine wholly adopts SUS304 stainless steel.

Technical Description:

The spiral vegetable movement in the washer cylinder can remove both sand and floating tiny insects and impurities. The lateral fines removal drum has a good filterability enough to separate objects larger than 0.6mm, which can reduce water pollution maximum from vegetable leaves suction by water pump in a second time and increase circulating water service time. It can be taken down for cleaning and maintenance without any tools.

Feature:

1. Helical washing: CD750 permits the product to pass through the washing tank along an adjustable water spiral, which means a distance of approximately four times the length of the wash tank itself.
                                                                      Vegetable Washing Machine CD750
Type
Power (Kw)
Weight (Kg)
Capacity (Kg/h)
Water Tank Volume
(L)
Washing Tank Volume (L)


External Dimension
(mm)
CD750
17.1
900
700~1000
1300
700
9040*1890*1750


1. Helical washing: CD750 permits the product to pass through the washing tank along an adjustable water spiral, which means a distance of approximately four times the length of the wash tank itself.

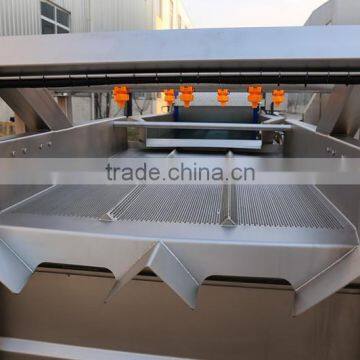

2. Special design for the sand trap, it’s at the bottom of the wash tank. Big particles and sand will be removed from the water flow and stay in the sand trap. So the clean water could be circulated. When change water, remove the sand trap to flush the sand.


3. Insects and fines removal part.

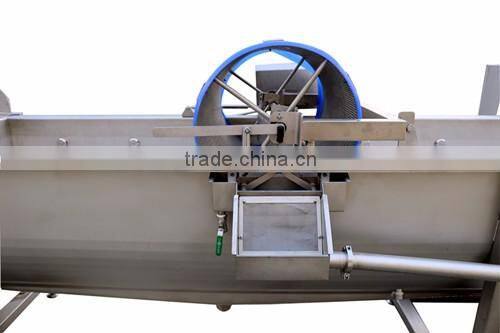

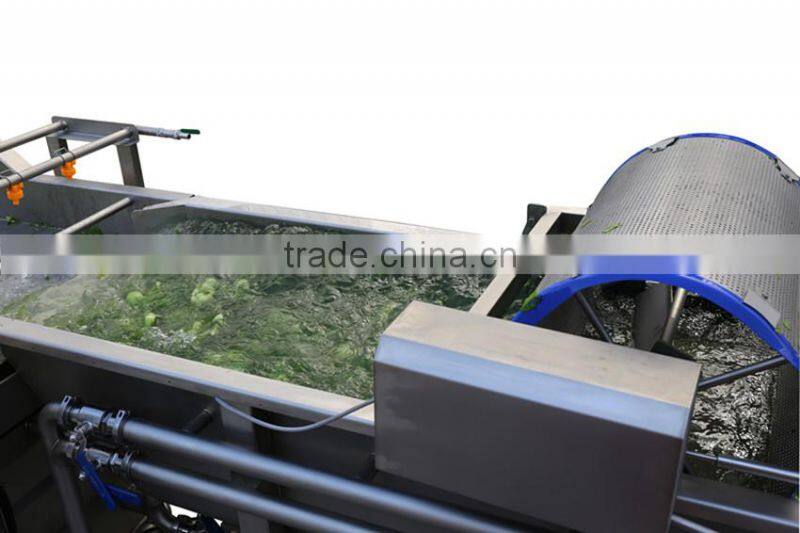

4. There is a lateral fines removal drum. The distance is 0.6mm, so very small particles could be removed and the fines could not get into the pump, which protects the water pump. Water flows through the filter drum back to the pump tank.

This fines drum can be easily tilted over and taken out completely from its fixtures to allow cleaning

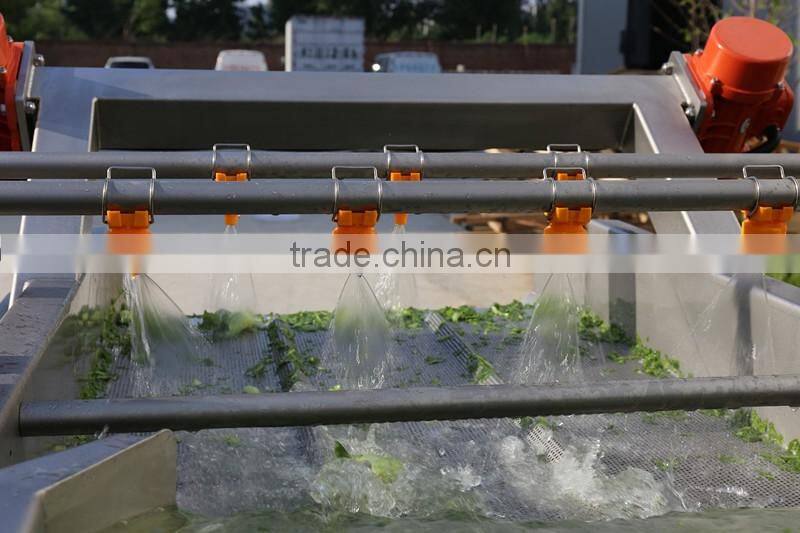

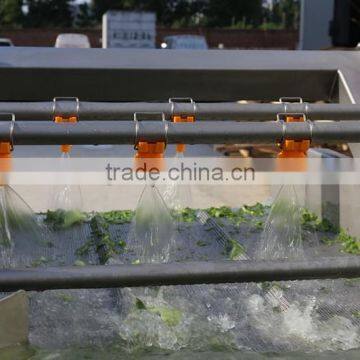

6. Water spray at the end of the washing line. It will clean the vegetables compeletely.



Detailed Images


Products washed by this machine
