Home > Construction & Decoration > Heat Insulation Material > Glass Wool > DRS Series Heat Shrinkable Tubings

DRS Series Heat Shrinkable Tubings

DRS Series Heat Shrinkable Tubings thumbnail-1
DRS Series Heat Shrinkable Tubings photo-1
US$ 0.001 - 1.2 MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
IWISS
Model Number:
DRS
Contact Supplier Request Quote Chat Now
Yueqing Iwiss Electric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo Shanghai Wenzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name IWISS
Model Number DRS
Type Other, Insulation tubes
Material Other, PE, Polyolefin
Application Low Voltage
Rated Voltage Iwiss Insulation tubes
Tensile Strength Iwiss Insulation tubes

Specifications

1.Flame retardant
2.Security
3.Convenient to use
4.Easy identification


Product Description

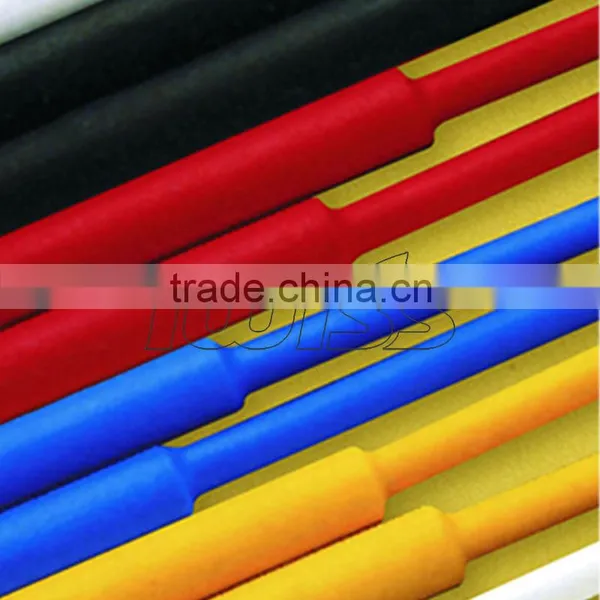

IWS Heat shrinkable tubings

·Function:  1. wire coat and  insulation.
                  2. make the joint of terminal  block and wire insulated.
                  3. divide the colors.
                  4. water-proof.
                  5. protection and insulation of insistors and electrical capacitors.
·Standard color :  black, white, red, blue,  yellow, green, brown, grey, orange
                            and purple.





Heat shrinkable tubings DRS series Heat shrinkable tubings

   Heat shrinkable tubings



ITEM.NO.

AS SUPPLIED

AFTER SHRINKANG

PACKING(M/ROLL)

I.D(mm)

THCKNESS

I.D(mm)

THICKNESS

DRS-1

1.0

0.2±0.05

0.5

0.4±0.05

400

DRS-1.5

1.5

0.2±0.05

0.75

0.4±0.05

300

DRS-2

2.0

0.25±0.05

1.0

0.45±0.1

200

DRS-2.5

2.5

0.25±0.05

1.25

0.45±0.1

DRS-3

3.0

0.25±0.05

1.5

0.45±0.1

DRS-3.5

3.5

0.25±0.05

1.75

0.45±0.1

100

DRS-4

4.0

0.25±0.05

2.0

0.45±0.1

DRS-5

5.0

0.35±0.05

2.5

0.55±0.1

DRS-6

6.0

0.35±0.05

3.0

0.55±0.1

DRS-7

7.0

0.35±0.05

3.5

0.55±0.1

DRS-8

8.0

0.35±0.05

4.0

0.55±0.1

DRS-9

9.0

0.35±0.05

4.5

0.55±0.1

DRS-10

10.0

0.35±0.05

5.0

0.60±0.1

DRS-11

11.0

0.35±0.05

5.5

0.60±0.1

DRS-12

12.0

0.35±0.1

6.0

0.70±0.1

DRS-13

13.0

0.35±0.1

6.5

0.70±0.1

DRS-14

14.0

0.35±0.1

7.0

0.70±0.1

DRS-15

15.0

0.35±0.1

7.5

0.70±0.1

DRS-16

16.0

0.35±0.1

8.0

0.70±0.1

DRS-18

18.0

0.4±0.1

9.0

0.80±0.1

50

DRS-20

20.0

0.5±0.1

10.0

0.90±0.1

DRS-22

22.0

0.5±0.1

11.0

0.90±0.1

DRS-25

25.0

0.5±0.1

12.5

0.90±0.1

DRS-28

28.0

0.5±0.1

14.0

0.90±0.1

25

DRS-30

30.0

0.5±0.1

15.0

1.00±0.2

DRS-35

35.0

0.5±0.1

17.5

1.00±0.2

DRS-40

40.0

0.5±0.1

20.0

1.00±0.2

DRS-50

50.0

0.5±0.1

25.0

1.00±0.2

DRS-60

60.0

0.6±0.1

30.0

1.20±0.2

DRS-70

70.0

0.6±0.1

35.0

1.20±0.2

DRS-80

80.0

0.6±0.1

40.0

1.20±0.2

DRS-90

90.0

0.6±0.1

45.0

1.30±0.2

DRS-100

100.0

0.7±0.1

50.0

1.30±0.2

DRS-120

120.0

0.7±0.1

60.0

1.30±0.2

DRS-150

150.0

0.8±0.1

75.0

1.60±0.2

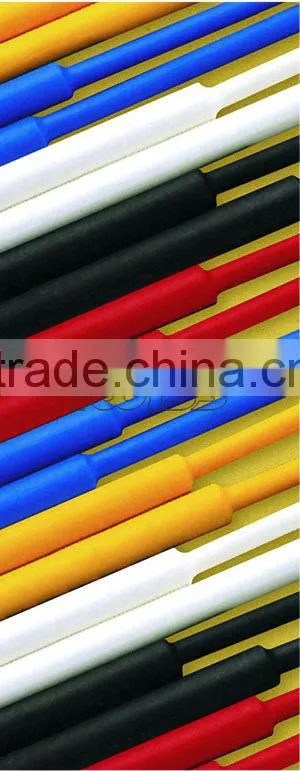

DRS series Heat shrinkable tubings
