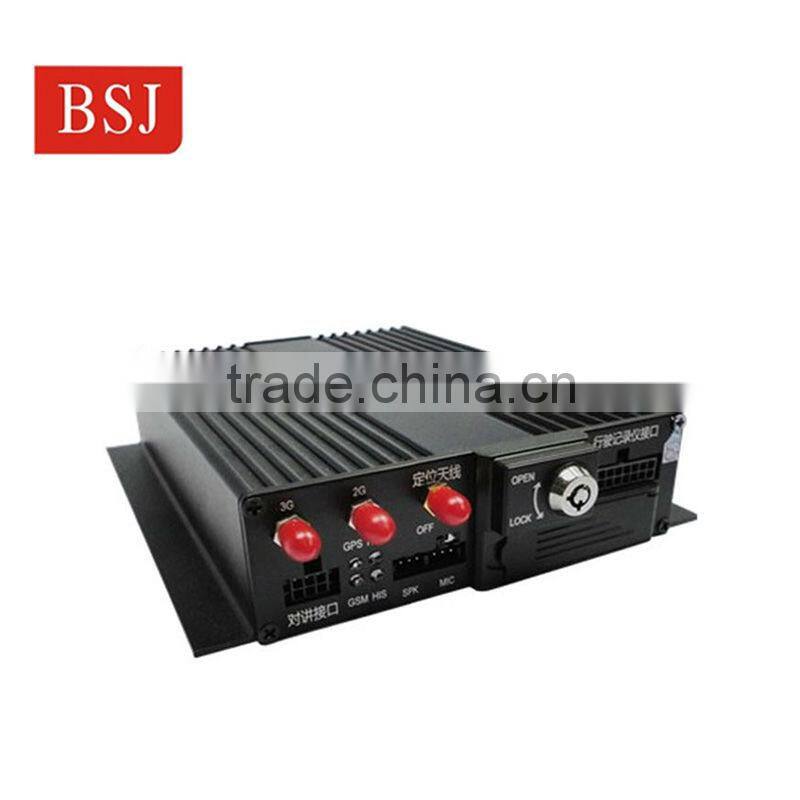

BSJ-G10 3G Video Recorder DVR Support Two Sim Card

Specifications

BSJ-G10 3G Video Recorder DVR Support two sim card
(1)3G network
(2)Video compression-H.264
(3)Top professional manufacturing

3G vehical GPS tracker support two-sim card

GPS chip: UBLOX













Inbuilt Tachographs below:



1·	3·	5·	7·	9·	11·	13·	15·
2·	4·	6·	8·	10·	12·	14·	16·





Tachographs

1.Indicator left

2.Indicator right

3.Brake

4.Velocity sensor

5.BOOTO

6.Location data detection

7.3.3v

8.Haisi communicate with single chip detection

9.CAN+

10.GND

11.CAN-

12.Transceiving GPS data

13.Reset

14.NULL

15.NULL

16.NULL





  Specfication          BSJ-G10  GSP Tracker

Items	Specifications
Dimension	187.2mm*131mm*40.8mm
Weight	500g
Video format	H.264
Video frame rate	5 f/s---25 f/s optional
Video standard	PAL, NTSC
Video quality	CIF(352*288) HD, support 4-channel AV image
Display	Connect one or 4-channel AV image
Storage	support 2 SD cards(up to 32GB per card)
Video system upgrade	upgrade via SD card
Orientation module	UBLOX
Working Voltage	12-36V operating voltage  <800mA(12V)
Communication	SMS/TCP/UDP
Support	Support EVDO/WCDMA
Channel	4-channel AV input; 1-channel audio input; 1-channel AV output;
Positioning precision	Less than 15m
Time precision	Global synchronous GPS time
Color	black
Support	With RS-232 communication port
Working temperature	-40~80°C
Storage temperature	-20~70°C



Application

1.Vehical Tracking

2.Fleet management





Function



Basic function	Real time tracking,upload data
	Remote controlling oil&circuit
	SOS
	ACC detect
	ACC checking
	Geo-fence, Mileage statistics
	Stop engine by remote
Alarm function	Movement alarm
	over-speed alarm
	Blackout&car burglar alarm
	parking overtime alarm
	main power off alarm







Certification





Quality Service System

1.SQA

2.Design Process Quality Assurance

3.Manufacturing Process Quality Assurance

4.OQC

5.Customer Service Quality Assurance

Why choose BSJ

Q: How many customers BSJ have now?

 A: More than 100000 overseas users are using BSJ tracking systems, mainly from South America, Africa, Southeast Asia and Eastern Europe. we are top 3 in tracking systems area in China

 ---------------------------------------------------------------------------------------------------------

 Q: How long to delivery order?

 A: Ship goods in 1-3 working days by DHL with competitive shipping cost, only need 3-5 working days to get at every corner of the world.

 ---------------------------------------------------------------------------------------------------------

Q: How about BSJ after-service?

 A: BSJ have a professional sales team to provide with you professional and considerate support, if needed, we can guide you operate GPS tracker and live GTS software online by MSN/Skype/Yahoo/G-Talk step by step .

 --------------------------------------------------------------------------------------------------------

Q: Does BSJ have ability tog modify device and software to meet our special needs?

A: Yes, sure. BSJ have professional engineers team to develop GPS tracker device and livegts tracking software to meet almost user’s need .

--------------------------------------------------------------------------------------------------------

Q: Any discount any preferential for the first cooperation.

A: Of course

Firmware

1.Boshijie firmware and software programming is configured by our in house team of engineers

2.This team is qualified to develop new firmware for customer’s protocol or for newly added functions

3.Boshijie welcomes customer inquiries and challenges for our team of engineers

4.Firmware development includes but not limited to :New firmware (different protocol) development ;                                                               Modification to current firmware                                                                                       New function development

Hardware

1. Backed by an R&D team of over 50 engineers, develop new hardware according to   customer’s requirements as well as further modifications based on our existing products.

2.Hardware design includes but not limited to:                       PCB Re-layout                                                                                                   New case design                                                                                                   External Device Integration

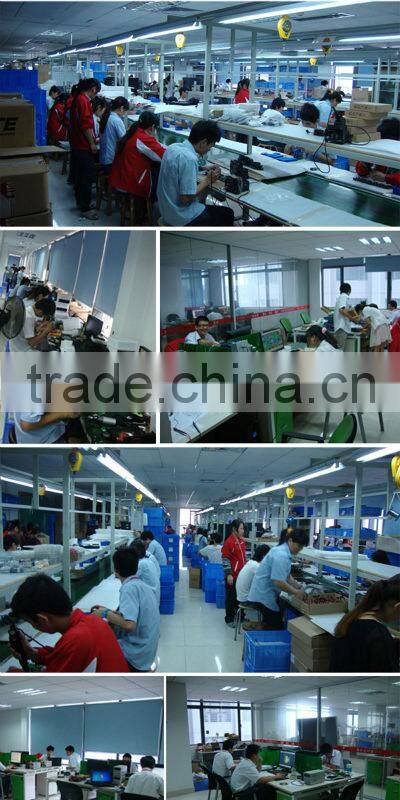

Factory



Welcome your visit to BSJ!!!
