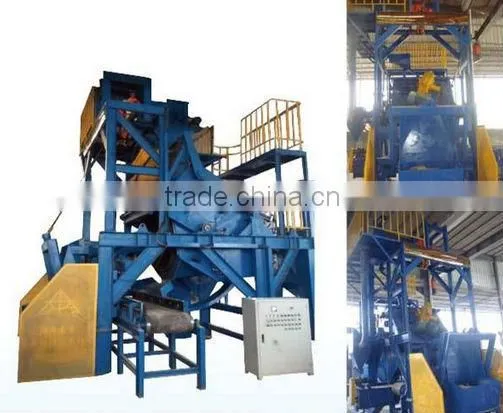

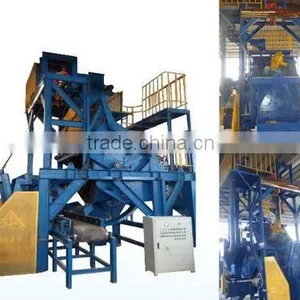

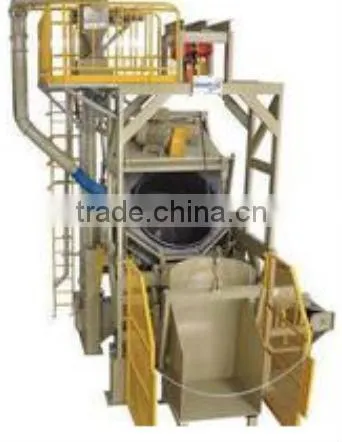

Leaning tumblast shot blasting machine
The tilting barrel shot blasting machine ,it is a new standard series equipment developed by our company.this machine could be used to clean artifacts that easy to flip down,non brittleness of the workpiece and casting /forging/welding parts that mould core is not deep.
Main model and parameters
Mode |
Effective volume |
Feeding amount |
blasting capacity |
Total power |
DT14 |
Ø1150x438/1050 |
Continuous/150Kg |
15 to 37Kw/4-10 |
80Kw-400Kw |
DT17 |
Ø1320x538-850 |
Continuous/150Kg |
22 to 37Kw/5-8 |
120Kw-420Kw |
DT20 |
Ø1492x550-1050 |
Continuous/150Kg |
22 to 37Kw/5-10 |
130Kw-480Kw |
More details
|
Barrel and the conveying system The enclosure of the barrel is made of casting iron, inside which the protecting plates are fastened with the bolts. The end-cover is set on one side of the barrel, so it is convenient to load or unload workpiece and it’s easy to replace the protecting plates and maintenance. |
|
Shot recycling and separating device of shot blasting machine The shot-recycling device consists of the screw belt between the protecting plates of the barrel and the enclosure, elevator and the separating sieve. |
|
Dust collector of shot blasting machine The machine adopts dry whirl type dust-collecting device. The separating efficiency is high. For the common green sand, the dust-collecting efficiency is up to 99% and 7μdust can be separated, so the cleaning condition is fine. |
|
Blast wheel of shot blasting machine The part is the main composition, which consists of impeller round plate, blades distributor, control cage, main shaft etc. |
1.Pre-sale services:
Provide the consultation of the equipment. According to the clients’ special requirement, offering the reasonable plan helping to select the equipment.Welcome to visit our factory.
2.Services during the sales:
Inspect the machine before leaving the factory.Oversea install and debug the equipment. Train the first-line operator.
3.After sale services:
Provide technical exchanging and timely problem solving support.
We are a specialized casting machinery factory,we can design product according to your demand. The products have stabile performance , good quality and reliable service. We allow a proper discount according to the quantity you order.If you have any question, pls dont feel any hesitate to ask me, I will try best to meet your demand,It's make our company great honour .
