Home > Products > PV Frame and Textile machinery > A186F Cotton Card Machine for Spinning Line
A186F Cotton Card Machine for Spinning Line
- 50 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Application: | Textile machinery, Textile machinery | Automatic Grade: | Automatic |
Production Capacity: | 15-30KG | Place of Origin: | Shandong, China | Brand Name: | QDHC |
Model Number: | A186F | Voltage: | Can be agjusted | Power(W): | 3300 |
Dimension(L*W*H): | 3684*2009 | Weight: | 4.5T | Certification: | CE/ISO |
Warranty: | One year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

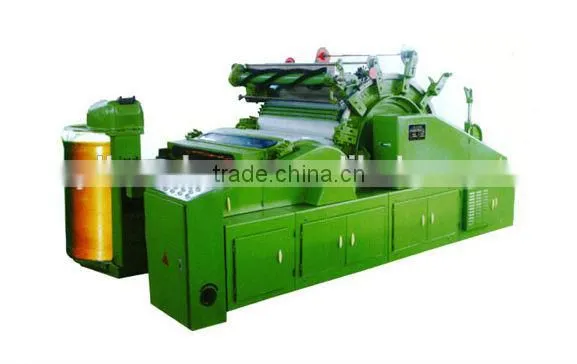

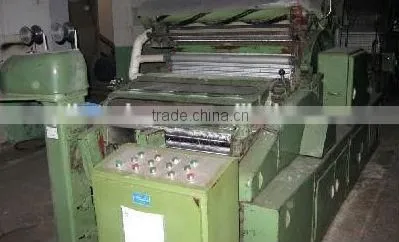

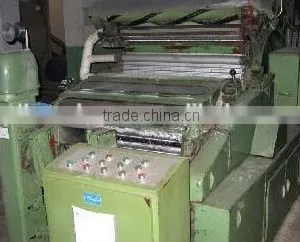

A186F Cotton Card Machine for Spinning Line
The machine first opening picking combination machine,then next process is drawing frame,main using for cotton fibre and chemical fiber.Opening, cardingn and removing the dust of the front-end cotton (chemical ).Making the crimp ,massive become straight filament,also removing the break seed ,dust and flock,then concentration of beam of fixed standard cotton sliver,store at the sliver bucket ,prepare for the next drawing process.
Main specifications and technical parameters:
Machine type | Right hand | Doffer speed | 19-35.7rpm |
Width | 1020mm | Draw ratio | 67.3-120.2 |
Lap specification | Diameter 550mm | Main motor | Motor 3.3kw |
Width 980 mm | Doffer motor 0.75/0.37kw | ||
Cylinder width | 1289 mm | Blowing motor(F)0.06kw | |
Cylinder speed | 330r/min(chemical) | Weight | 4500kg |
330r/min(cotton) | Dimension | 3684*2009.5mm(L*W) | |
Doffer width | 707mm | Output | 15-30kg/h |
1.Pre-sale services:
Provide the consultation of the equipment. According to the clients’ special requirement, offering the reasonable plan helping to select the equipment.Welcome to visit our factory.
2.Services during the sales:
Inspect the machine before leaving the factory.Oversea install and debug the equipment. Train the first-line operator.
3.After sale services:
Provide technical exchanging and timely problem solving support.
We promiss:
Same price ,with best quality,
Same quality,with best price.
If you are interested in our textile machinery
Please let me know.
TEL:0086-532-85191579 | 0086-18663958267 |
FAX:0086-532-85191579
Contact Us
- Qingdao Huachuan Machinery Co., Ltd.
- Contact nameRobbie Dou
- Phone86-532-85191579
- Address817#, haibin 6th Road,Jiaonan.Qingdao Qingdao,Shandong
