Sand Mixing Mill,foundry Resin Sand Mixing Mill,rotor Type Sand Mixing Mill,

Sand Mixing Mill,foundry Resin Sand Mixing Mill,rotor Type Sand Mixing Mill, thumbnail-1
Sand Mixing Mill,foundry Resin Sand Mixing Mill,rotor Type Sand Mixing Mill, photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Mixer Type:
Agitator
Product Type:
Other, Sand Mixing Machinery
Contact Supplier Request Quote Chat Now
Qingdao Huachuan Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Mixer Type Agitator
Product Type Other, Sand Mixing Machinery
Application Other, used for foundry
Additional Capabilities Milling
Place of Origin Shandong, China
Brand Name huachuan
Model Number S11 series
Max. Loading Capacity customizde
Voltage 110V-440V
Power(W) depend
Dimension(L*W*H) depend
Certification CE,ISO
Warranty One Year
After-sales Service Provided Overseas service center available

Specifications

1.Energy saving
2.Compeitive price
3.High quality
4.Large suitability, easy operability







   Sand Mixing Mill,foundry resin sand mixing mill,rotor type sand mixing mill







Description





Foundry Sand Mixing Machinery is mainly used for large and medium-sized foundry sand mixed system,  mold can be mixed dry sand, since the hard sand, sand and core sand surface can also be used for glass, ceramics , refractories and other industries a variety of mixed powder granular materials.


Principle of Sand Mixing Machinery


Foundry Sand Mixing Machinery is equipped with low-speed scraper with the best combination of rotor speed, sand volume, mixing ability, good overall performance sand.
Foundry Sand Mixing Machinery is equipped with diabase cast stone, tungsten carbide surfacing, fillers and other new materials, greatly improving the life of wearing parts
Foundry Sand Mixing Machinery is equipped with latest rotary discharge door open and flexible, reliable and completely solved the problem of sand at the bottom drain.
Foundry Sand Mixing Machinery is equipped with symmetric access door opened very convenient for maintenance and cleaning.
Foundry Sand Mixing Machinery is used very easy and install steel base.





Technical parameters of Sand Mixing Machinery







Item

S1110

S111A

S114C

S1118

S1120D

S1122

Diameter(mm)

Φ2000

Φ1220

Φ1820

Φ1800

Φ2000

Φ2240

Feeding amount of one line(kg)

110

140

500

500-650

900

1350

Productivity(t/h)

1.5~2.5

2.8~4

10~13

13~15

20

30

Speed of main spindle(r/min)

44

34.7

34

36

34

31

Power of main motor(kw)

4

5.5

15

22

37

55

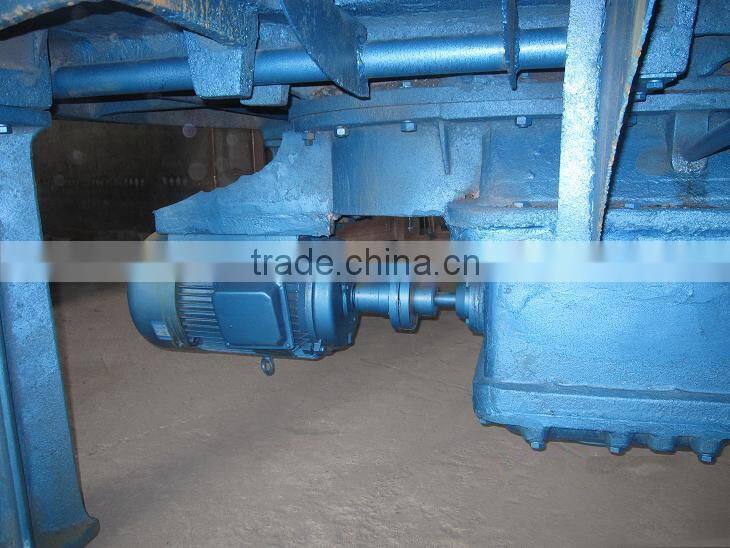

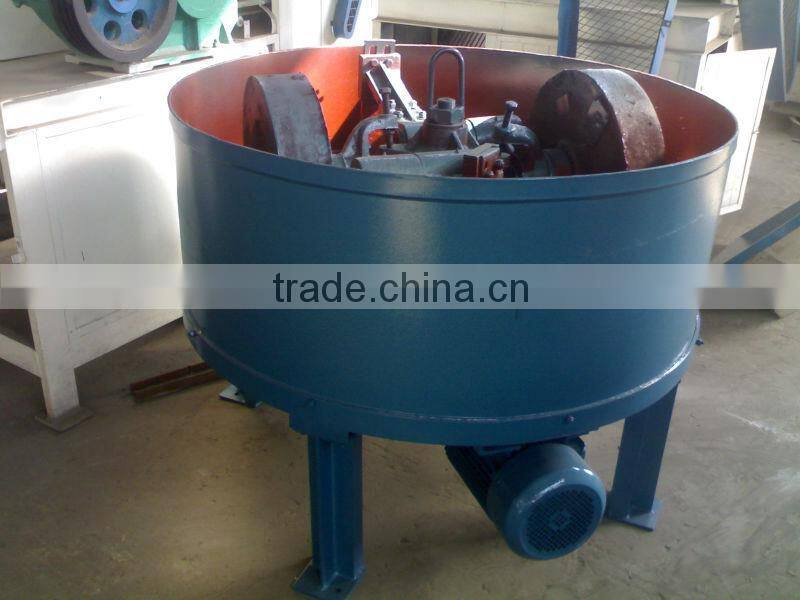

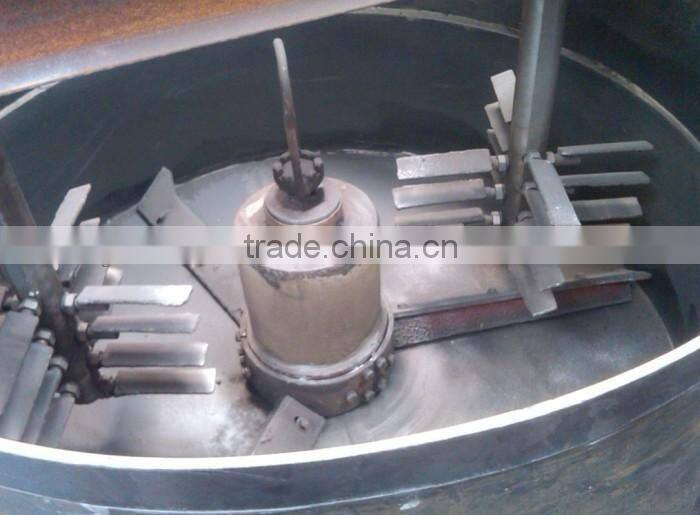

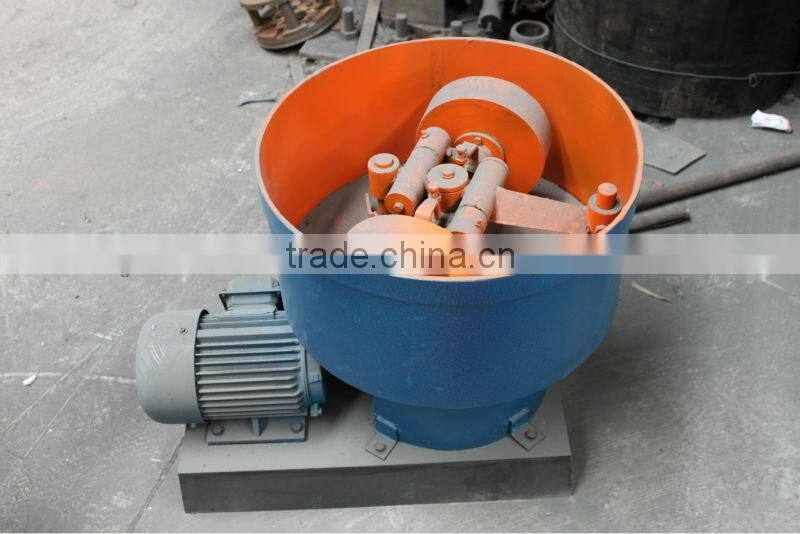

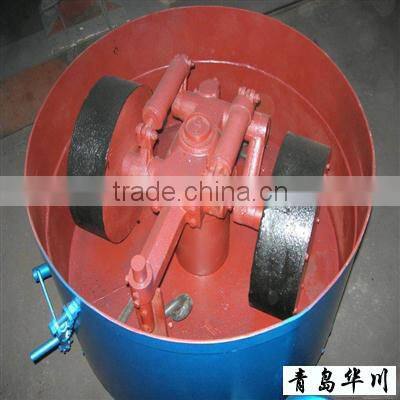

 picture of Sand Mixing Machinery



Sand Mixing Mill,foundry resin sand mixing mill,rotor type sand mixing mill,



Sand Mixing Mill,foundry resin sand mixing mill,rotor type sand mixing mill,





Sand Mixing Mill,foundry resin sand mixing mill,rotor type sand mixing mill, Sand Mixing Mill,foundry resin sand mixing mill,rotor type sand mixing mill,



Sand Mixing Mill,foundry resin sand mixing mill,rotor type sand mixing mill,  Sand Mixing Mill,foundry resin sand mixing mill,rotor type sand mixing mill,

Sand Mixing Mill,foundry resin sand mixing mill,rotor type sand mixing mill,Sand Mixing Mill,foundry resin sand mixing mill,rotor type sand mixing mill,





about the shipment



















with our customer











 Sand Mixing Mill,foundry resin sand mixing mill,rotor type sand mixing mill,





 Introduction of our factory





We are QINGDAO HUACHUAN MACHINERY CO., LTD.  Located in the machinery manufacture base of QINGDAO Seaport (top 10 of world), develop for over 30 years of experience of R&D and sales, pass of ISO 9000 managment system & CE quality certification. As one of the leading machinery manufacturers such as: Shot/Sand blasting machine(polish the steel surface rust, strength the steel qulity suit for steel plate, road surface, H beam, outer/inside pipe, oil pipeline casting etc);







Our slogan





Product excellence, service perfect. Good service deserves good reputation. Good results deserves good organization. We are keeping on working hard and develop better products.  Looking forward our long friendly cooperation with people from all of the world.





 We can design product according to your demand. The products have stabile performance , good quality and reliable service. We allow a proper discount according to the quantity you order.If you have any question, pls dont feel any hesitate to ask me, i will try best to meet your demand,It's make our company great honour .







If you are interested in this machine, Please let me know.
