Function and Features

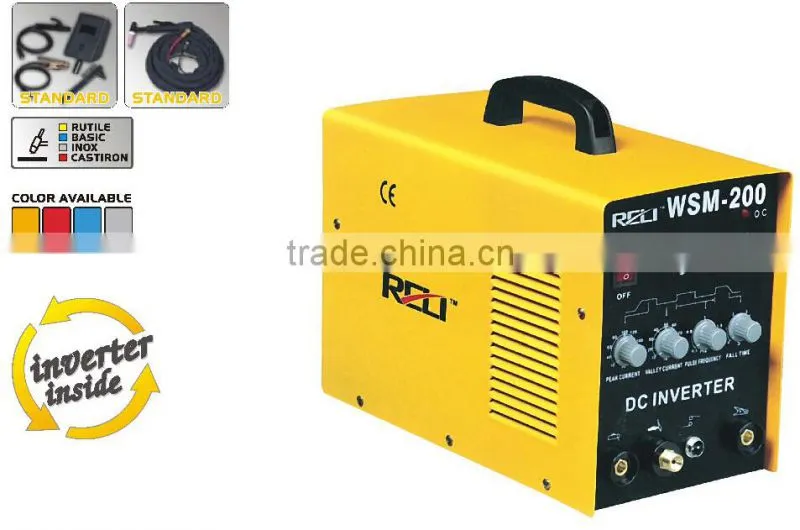

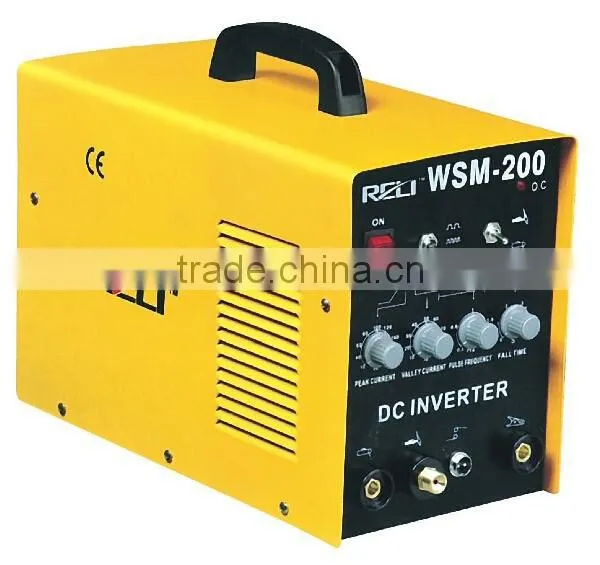

DC Inverter TIG/MMA Pulse WELDER
Features:
1. Minimizing, lightness ,high quality and energy-saving.
2. Good arc-starting and arc force ,it can resist disturbing stable arc and little spatter.
3. High welding quality, deep penetration and strong strength.
4. Auto protection of over-voltage and over-current.
5. Be able to work continuously,it can balance automatically when voltage is waving.
6. Suit for welding all kinds of basic welding rod.
7. Be able to weld cellulose rod.
8. Automatic voltage pulsation compensation capability,strongly against electricity network pulsation,stable and reliable welding current.
9. Color Available
10. OEM or ODM
Data sheet:
Item |
WSM-180 |
Power voltage(V)(1PH) |
220±15%AC,1PH |
Max input power(KVA) |
17.6 |
Frequency(Hz) |
50/60 |
Efficiency |
0.85 |
Max No-load Voltage(V) |
56 |
Current range(A) |
20-180 |
Max current(A) |
180 |
Rated duty cycle(%) |
60 |
Usable electrodes(MM) |
0.1-1.0 |
Protection degree |
IP21S |
Insulation class |
H |
Measurement(CM) |
48x26x41 |
Weight(KG) |
15 |
Cod.(NO) |
20110272 |
WSM Accessories

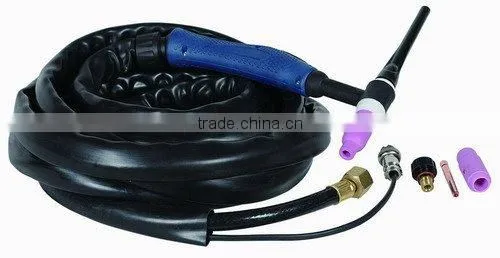

1- TIG TORCH with cable,
2- electrode holder with welding cable
3- earth clamp with cable.
4- a mask ,
5- a brush +chipping hammer.
Q: what is warranty time ?
A: 12 months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost .
Q: what is delivery time / lead time ?
A: 30 days
Q: what is your minimum order ?
A: 30 pcs
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- 100% at sight LC
Q: can we visit your factory ?
A: yes you can at your free time.
