Help Center200amp HIGH FREQUENCY AC DC POWER INVERTER WELDING MACHINE
Related Products
-
GIANT WSME-315 AC DC INVERTER TIG MMA PULSE WELDERUS$ 495 - 520MOQ: 4 Pieces -
220amp AC DC POWER INVERTER TIG WELDING MACHINEUS$ 290 - 320MOQ: 4 Pieces
-
MIG - 200PI Cheap Igbt Mini Reli Mig Mag Welding MachineUS$ 165 - 175MOQ: 10 Pieces
-
Portable Diy MIG - 200PI Igbt Inverter Co2 Mig Welding MahcineUS$ 165 - 175MOQ: 10 Pieces
-
Mini MIG - 200PI Ight Inverter Co2 Mig Welding MahcineUS$ 165 - 175MOQ: 10 Pieces
AC/DC WELDING MACHINE
Features:
1. Multi-function : Ac/Dc MMA, Ac/Dc pulse TIG
2. Quality square wave power supply, short current zero-crossing time,stable arc
3. Super cleaning ability of oxide film,continuosly adjustable cleaning width, bright and beautiful weld seam ,Especialy adapted to weld aluminum,magnesium and its alloy materials.
4. Comprehensive protection function of over voltage, low voltage, over current ,over heat .safe and relible
5. Easy to start arc, stable welding current, quick dynamic response, focused arc,AC welding without bias and beautiful welding forming.
6. panel with remote control interface, optional to be equipped with foot switch.
item |
tig-200p |
power voltage(V)(1PH) |
220±15%AC,single -phase |
Frequency(HZ) |
50/60 |
Rated input current (A) |
24.6 |
Output current (A) |
TIG 10-200 / MMA 10-150 |
Efficiency |
0.85 |
Duty cycle % |
60 |
No load Voltage(V) |
56 |
Rated duty voltage (V) |
TIG 18 / MMA 26 |
Pulse frequency (Hz) |
0.5-5 |
Pulse width % |
10-90 |
Ac balance % |
20-80 |
Current fall tims(s) 4T |
0-10 |
Remote control |
yes |
Arc initiation way |
HF |
Current range(A) |
5-200 |
Max current(A) |
200 |
Rated duty cycle(%) |
60% |
Power factor |
0.73 |
Protection degree |
IP21S |
Insulation class |
F |
Measurement(mm) |
600*440*415 |
Weight(kg) |
20 |
Cod.(NO.) |
112003 |

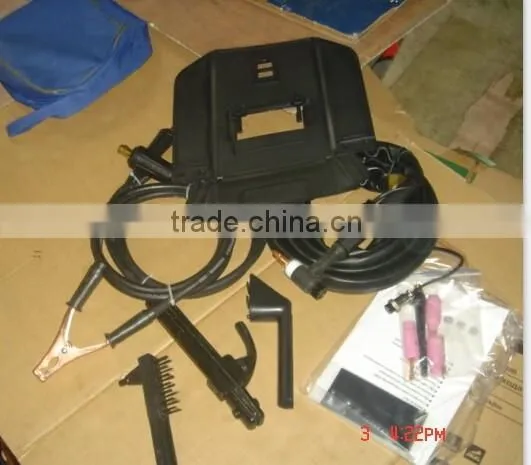

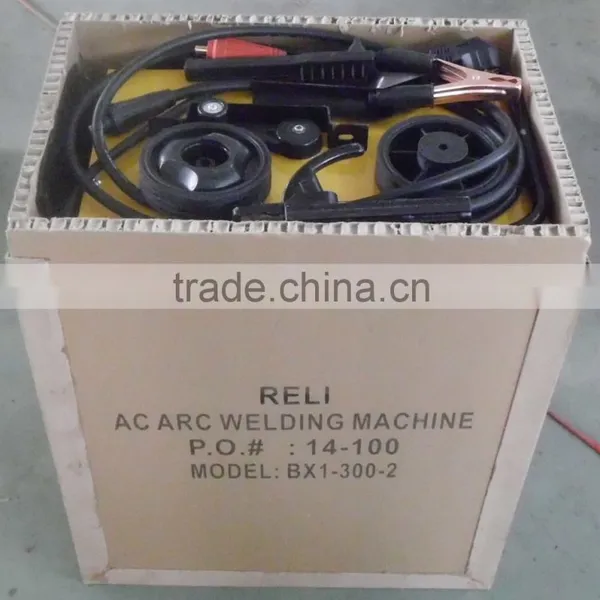

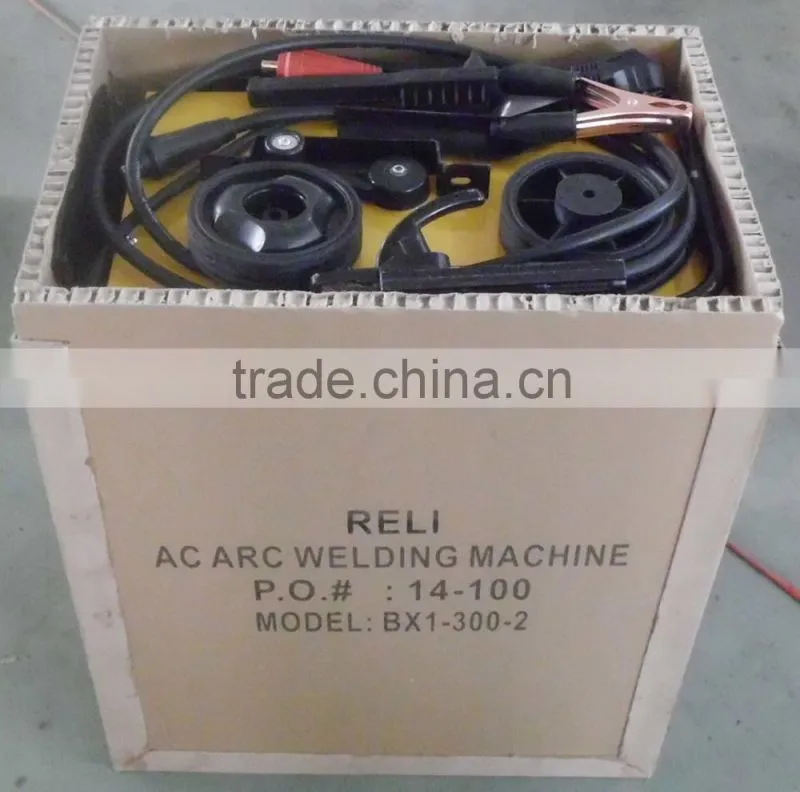

| Accessories of TIG series | ||||
| 1.TIG torch | 1pc | |||
| 2.earth clamp with cable | 1pc | |||
| tection mask | 1pc | |||
| 4.brush+chippping hammer | 1pc | |||
| 5.electrode holder with cable | 1pc | |||
Q: what is warranty time ?
A: 12 months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost
Q: what is delivery time / lead time ?
A: 30 days
Q: what is your minimum order ?
A: 5 pcs
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- 100% at sight LC
Q: can we visit your factory ?
A: yes you can at your free time.

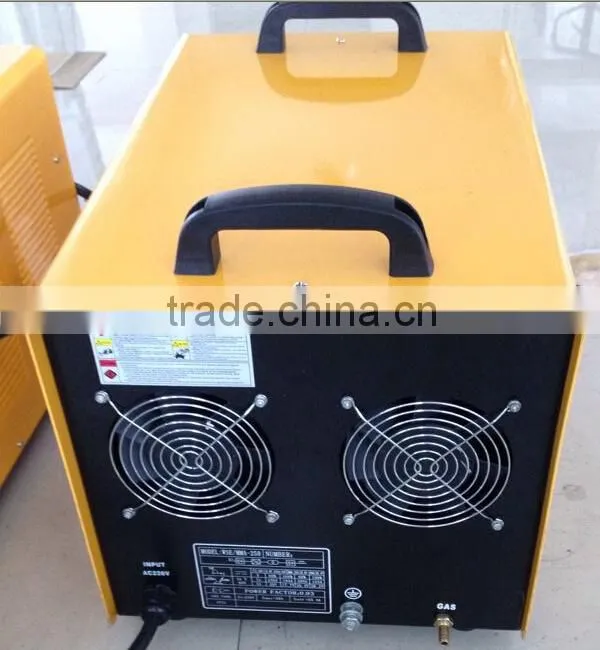

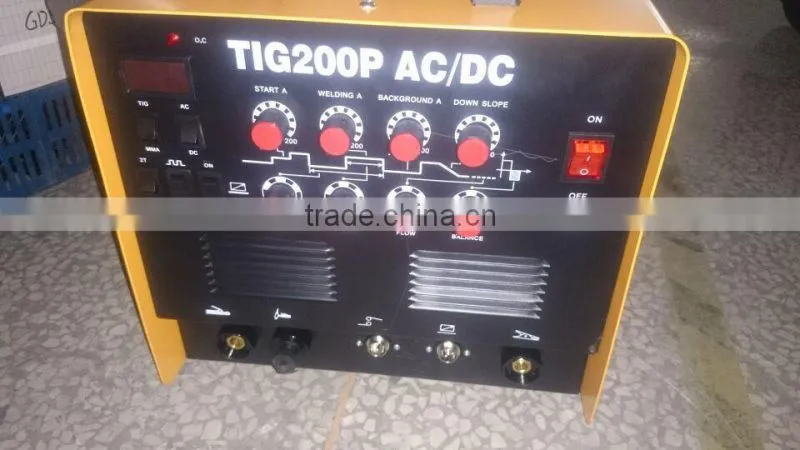

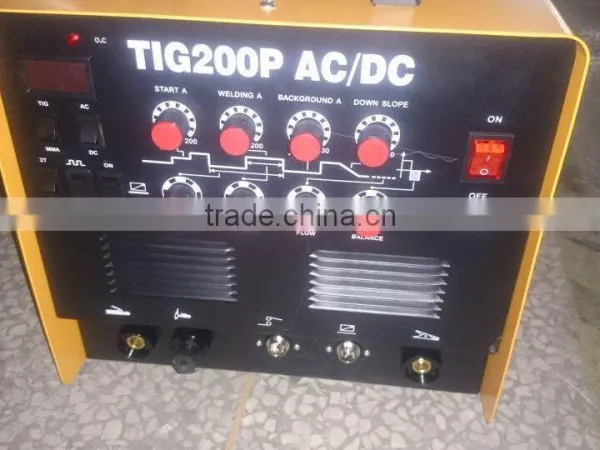

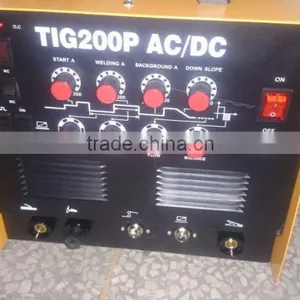

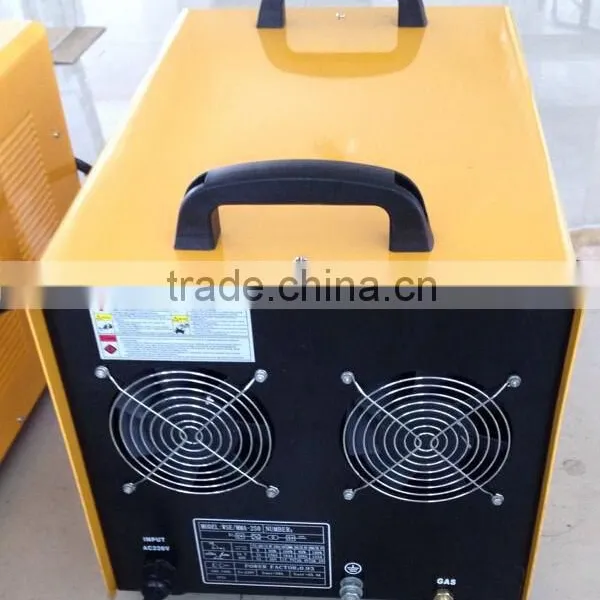

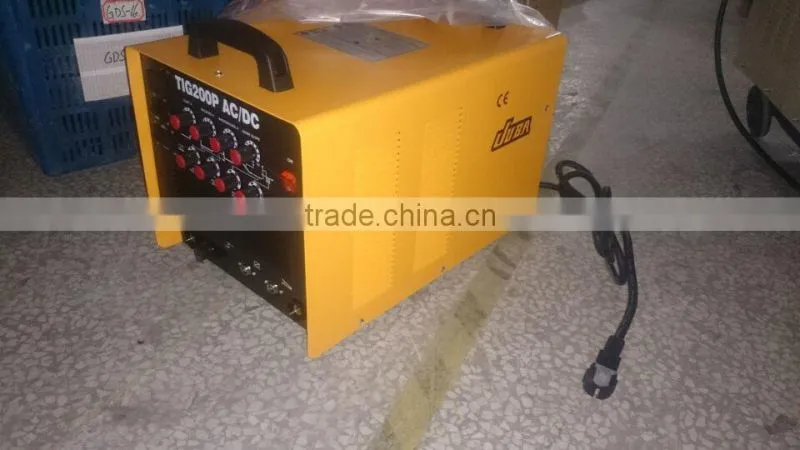

Machine pictures

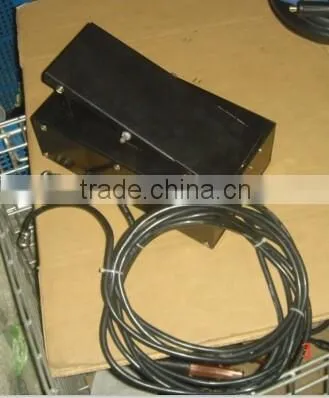

optional foot pedal
Q: what is warranty time ?
A: 12 months from you got the cargo.
During warranty time, we will supply the free parts by air in free,
after that date, we will supply spare parts in the base of part cost
Q: what is delivery time / lead time ?
A: 30 days
Q: what is your minimum order ?
A: 5 pcs
Q: what is your payment term ?
A: 1- 30% down payment for order confirmation, 70% before shipment.
2- 100% at sight LC
Q: can we visit your factory ?
A: yes you can at your free time.
