Diamond Grinder for Concrete Floor

Diamond Grinder for Concrete Floor photo-1
Diamond Grinder for Concrete Floor photo-2
Diamond Grinder for Concrete Floor photo-3
Diamond Grinder for Concrete Floor photo-4
Diamond Grinder for Concrete Floor photo-5
Diamond Grinder for Concrete Floor photo-6
US$ 9,000 - 11,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
XY
Model Number:
HTG-888-4
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN PORT
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Fujian, China
Brand Name XY
Model Number HTG-888-4
Type Floor Polisher
No-Load Speed 450-1950rmp
Rated Voltage 220V/380V three phase
Rated Input Power 15KW
Dimensions 135*85*120cm
Wheel Diameter 4*315mm
Frequency 50HZ/60HZ
Weight 515kg
Product Description

Product Application

XingYi Polishing and Grinding Machine  is suitable for concrete, terrazzo floor, granite and marble, dry or wet mode. It is widely used to do projects of decorative concrete and stone caring. It is an enterprise with technology and innovation. As manufacturer of grinding and polishing machine, XingYi is always on the leading stage.

SPECIFICATIONS FOR POLISHING AND GRINDING MACHINE(HTG-888-4)

Power

Motor power
HP
20
Amperage
A
29.3
Voltage
V
220-240V/380-440V three phase

Main performance parameters
Working width
mm
800
Rotating speed (max. & min.)
rpm
450-1950
Tool holder diameter
mm
4*315

Other parameters
Weight of machine
kg
515
Additional weight
kg
40
Water tank capacity
L
23

Main Features

1.The grinding machine can use for granite , concrete and terrazzo floor
2.High rotating speed:450-1950rpm ,high efficiency
3.Strong powerful:20HP.
4.For rough grinding it is can grinding 1200 square meters per day.
5.Can attach with industry vacuum series IVC220 and IVC380
Certifications
Detailed Images

Machine Parts

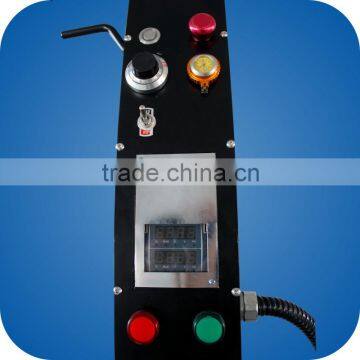

Name: Control panel
function : Show voltage, HZ, JZ, electric current, rotationg speed and working time on it while working.

Main Features

Name: dust -vacuum connector
function : it can connect with vacuum cleaner, and realize to working in a dust-free work place environment.

Machine Parts

Name: LED lamp
function : use to work in the night

Main Features

Name: Carrying pole
function :Easier for carry or transport.

Our Service

* We have more than 200 persons in our factory, including engineers team, sales team , technology team ect.

* Engineers are available to provide technology support overseas.

* seminar in march in erery year, exchange experience all over the world.


Packing & Delivery
Packaging
Size
135 (L) *  85(W) *  120(D)
Net Weight
555kgs



Packaging Details


The normal standard exported package is wooden box
Packaging
Size
135(L) *85(W) * 120(D)
Gross Weight
585kgs



Packaging Details


The normal standard exported package is wooden box
