Epoxy Floor Grinding and Polishing Machine

Epoxy Floor Grinding and Polishing Machine thumbnail-1
Epoxy Floor Grinding and Polishing Machine thumbnail-2
Epoxy Floor Grinding and Polishing Machine thumbnail-3
Epoxy Floor Grinding and Polishing Machine thumbnail-4
Epoxy Floor Grinding and Polishing Machine thumbnail-5
Epoxy Floor Grinding and Polishing Machine thumbnail-6
Epoxy Floor Grinding and Polishing Machine photo-1
Epoxy Floor Grinding and Polishing Machine photo-2
Epoxy Floor Grinding and Polishing Machine photo-3
Epoxy Floor Grinding and Polishing Machine photo-4
Epoxy Floor Grinding and Polishing Machine photo-5
Epoxy Floor Grinding and Polishing Machine photo-6
US$ 6,910 - 7,210 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, Stone Grinding Machine, Gear Driven Type
Use:
Marble
Contact Supplier Request Quote Chat Now
Xingyi Stone Caring Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xiamen port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Other, Stone Grinding Machine, Gear Driven Type
Use Marble
Production Capacity 200/month
Place of Origin Fujian, China
Brand Name XingYi
Model Number XY-Q9A
Voltage 380-440v three phase
Power(W) 11KW
Dimension(L*W*H) 132*88*119cm
Weight 340kg
Certification SGS TUV ISO9001
Warranty one year
After-sales Service Provided Overseas third-party support available

                     epoxy floor grinding and polishing machine

                               Q9A

Product Description

        If you choose a grinding machine for concrete or terrazzo, Q9Afloor grinder is the best choice not to be missed . 380-440V three phase electricity, working width achieve 750mm,rough grinding can grinding 2500square meters per day ,   Specially design of front wheels, a person can be easily moved.

 Features:

1.Thegrinding machine Q9A can  use for granite ,marble and concrete floor

2.high rotating speed:450-1950rpm ,high efficiency

3. strong powerful:15HP.

4.For rough grinding it is can grinding 2500square meters per day.

5.Can attach with industry vacuum series IVC220 and IVC380

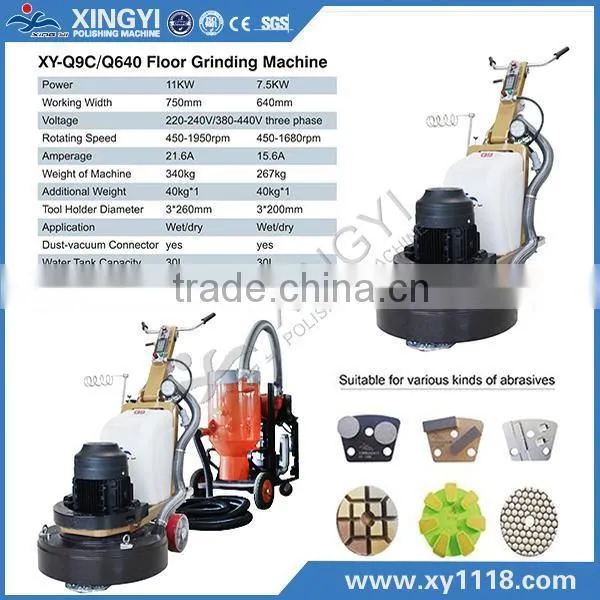

Technical Specification

Model

Q9A( planetary concrete floor grinding machine)

Voltage

380-440V

Rotating Speed

450-1950rpm

Operating width

750mm

Weight

340kg

Horse power

15HP

HZ

50/60HZ

Grinding head

260mm*3

Water tank

45L

Type

Gear Driven Type

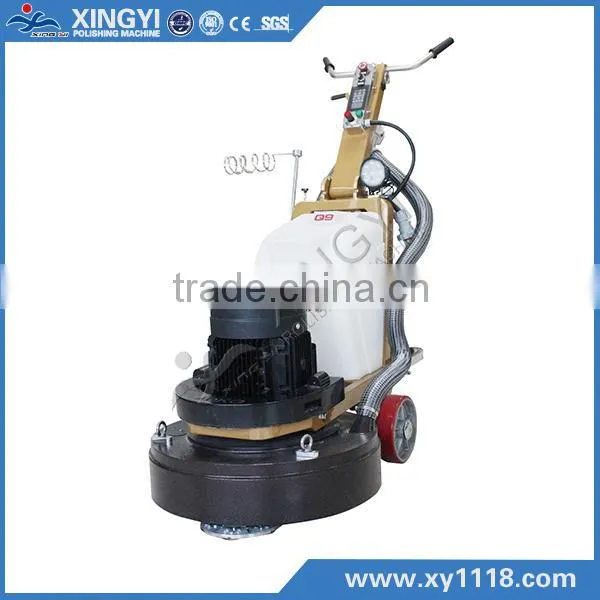

1.the full view:

epoxy floor grinding and polishing machine

2.planetary abrasive plate
epoxy floor grinding and polishing machine

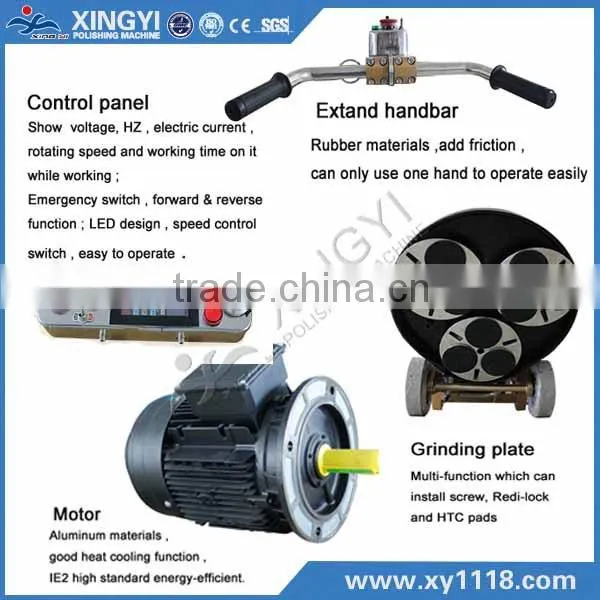

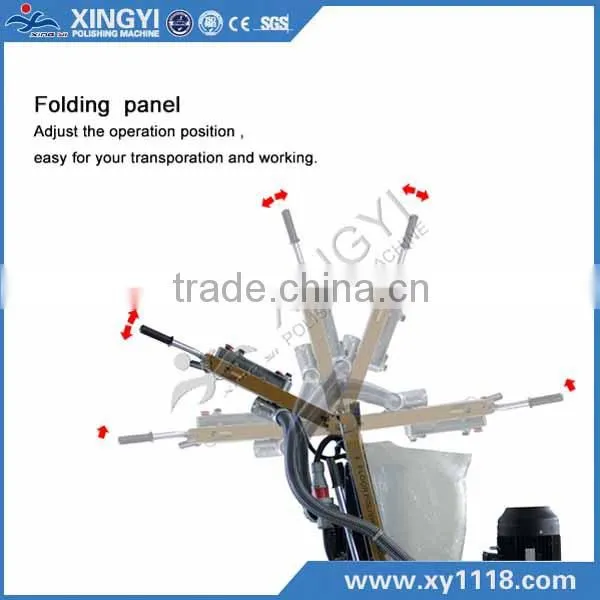

3.adjustable erogonomic handle

epoxy floor grinding and polishing machine

4.  connector  with vacuum cleaning

epoxy floor grinding and polishing machine

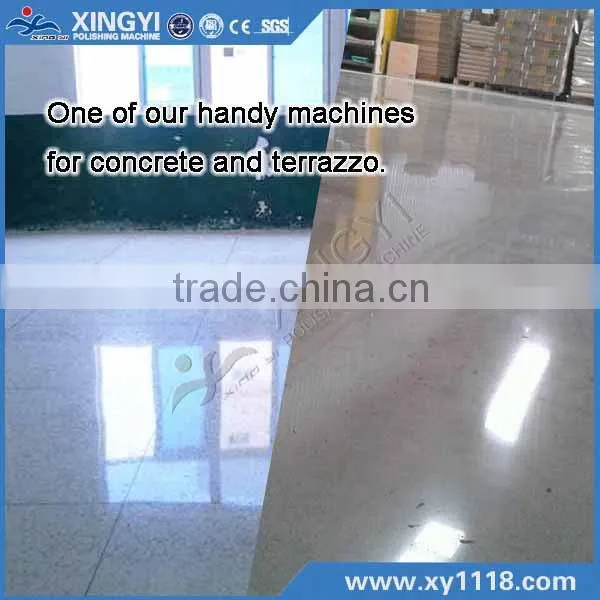

the effect after use  Q9A:

epoxy floor grinding and polishing machine



Packaging & Shipping

15HP surface floor grinding machine will use wooden case packing



epoxy floor grinding and polishing machine
