Home > Consumer Electronics > Water Heater & Components > Electric Water Heater > Infrared Heating Panel FX600T

Infrared Heating Panel FX600T

Name: Infrared Heating Panel FX600T
Brand: FUXIN
SKU: 122622697
Availability: InStock

Infrared Heating Panel FX600T thumbnail-1

Infrared Heating Panel FX600T thumbnail-2

Infrared Heating Panel FX600T thumbnail-3

Infrared Heating Panel FX600T thumbnail-4

Infrared Heating Panel FX600T thumbnail-5

Infrared Heating Panel FX600T thumbnail-6

US$ 70 - 130 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Electric Heater Type:

Infrared Heater

Infrared Heater Type:

Other, INFRARED PANEL HEATER

Heating Element:

Carbon Fiber

Contact Supplier Request Quote Chat Now

Shenzhen Wellen Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHENZHEN PORT

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Electric Heater Type Infrared Heater

Infrared Heater Type Other, INFRARED PANEL HEATER

Heating Element Carbon Fiber

Installation Ceiling, Desktop, Freestanding, Portable, Wall Mounted

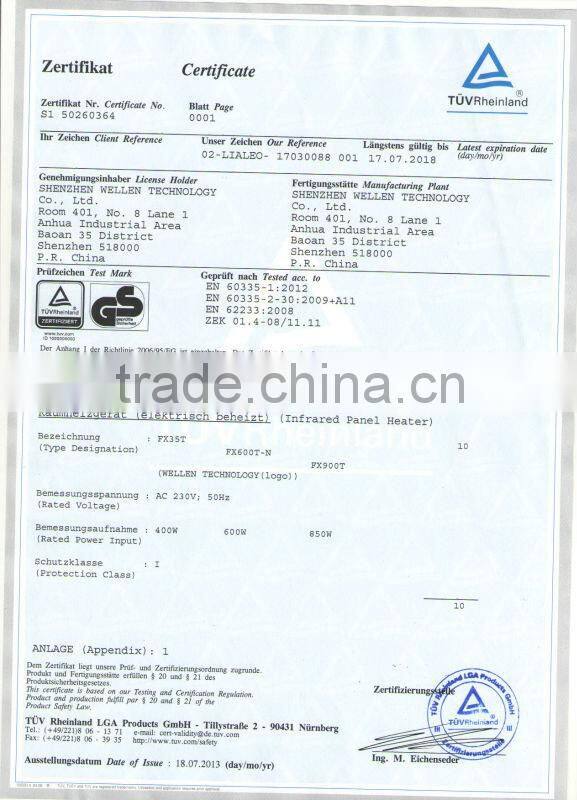

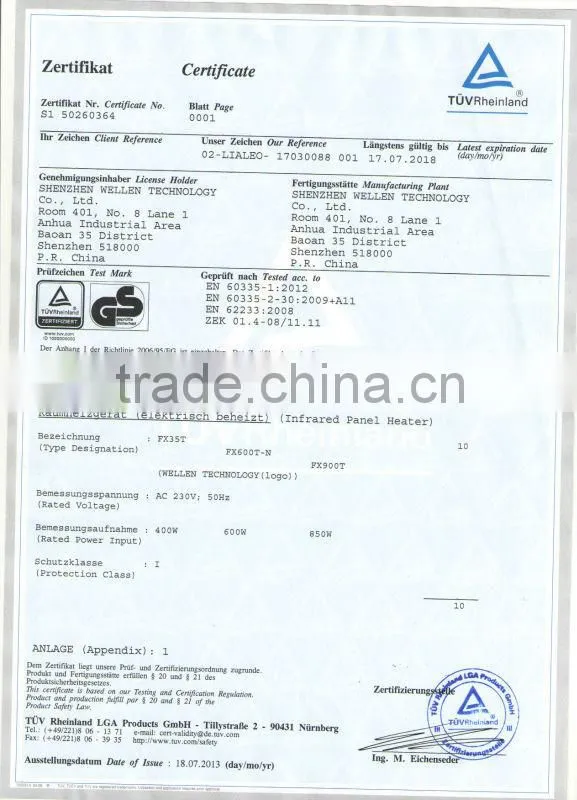

Certification CE, EMC, GS, Other, CE, EMC, GS, RoHS, TUV

Function Adjustable Thermostat, Deodorization, Overheat Protection, Remote Controlled

Use Bathroom, Bedroom, Living Room, Other, Bathroom, Bedroom, Living Room, School,office,gym,commerical building

Place of Origin Guangdong, China

Brand Name FUXIN

Model Number FX600T

Product:

infrared heating panel FX600T

a. uniform surface temperature

b. optimized wavelenghts

c. highest possible efficiency rates (almost 100% of input energy is transferred into IR waves)

FEATURE:

1.Model No.: FX600

2.Size: 600*900mm

3.Surface temperature: 80-90° C
4.Weight: 3.8kg
5.Voltage: 230 volts, 50 Hz
6.Walt: 550w
7.Surface colr: White

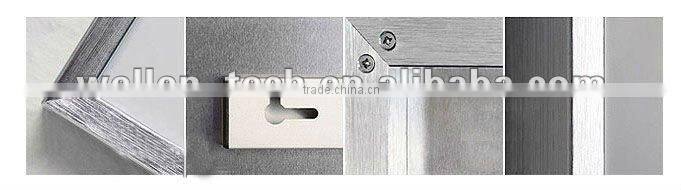

8.Frame: Alu frame
9.Cable: 2.5m with VDE certificate
10.Electromagnetic compatibility: Low emission
11.Recommend mounting: No assembly required, free stand

SIZES / POWER

As mentioned four standard sizes, . Other sizes and powers are availabe in OEM production. Please send us your requirements and we design and quote your individual panel.

Higher surface temperatures provide better efficiency rates .We offer our standard sizes with different powers/surface temperatures according to customers demand.

SIZE	POWER	VOLTAGE	WEIGHT	THICKNESS	COLOR / PICTURE
60*60CM	300 TO 450W	110-240V	5 KG	2.5CM	ON REQUEST
60*80cm	550 TO 700W	110-240V	7KG	2.5CM	ON REQUEST
60*100CM	850 TO 100W	110-240V	9 KG	2.5CM	ON REQUEST
60*120CM	900 TO 1100W	110-240V	12 KG	2.5CM	ON REQUEST

INSTALLATION / USAGE

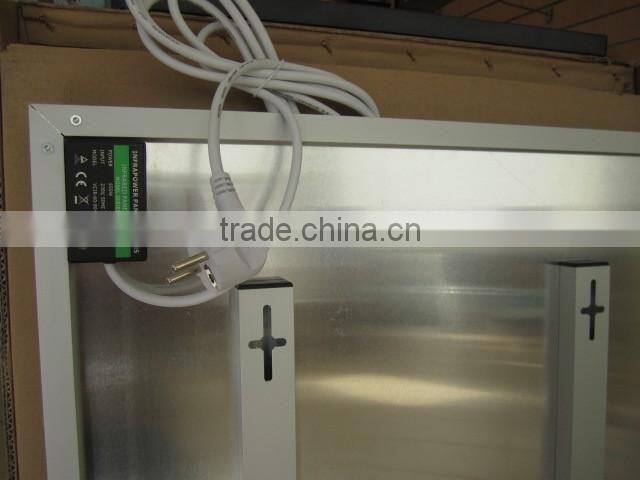

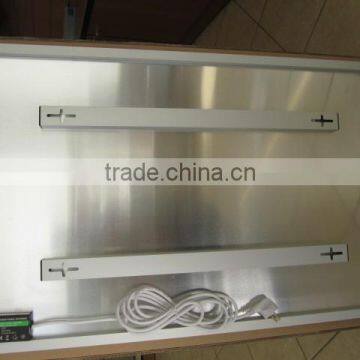

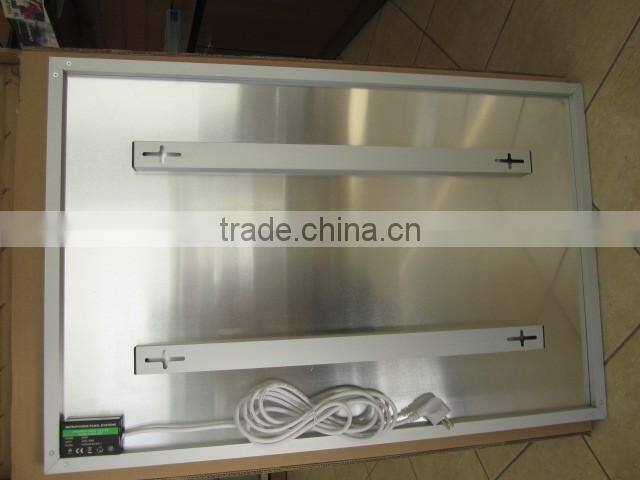

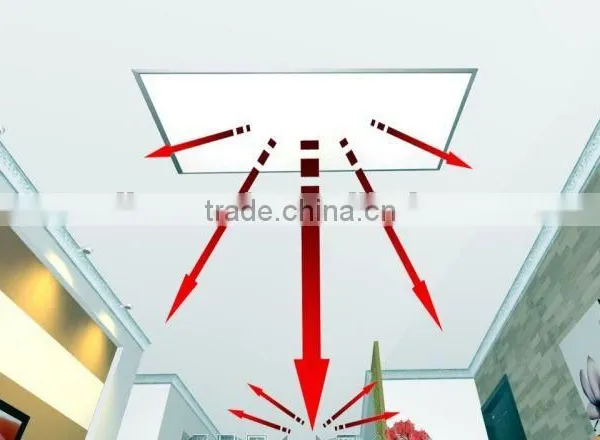

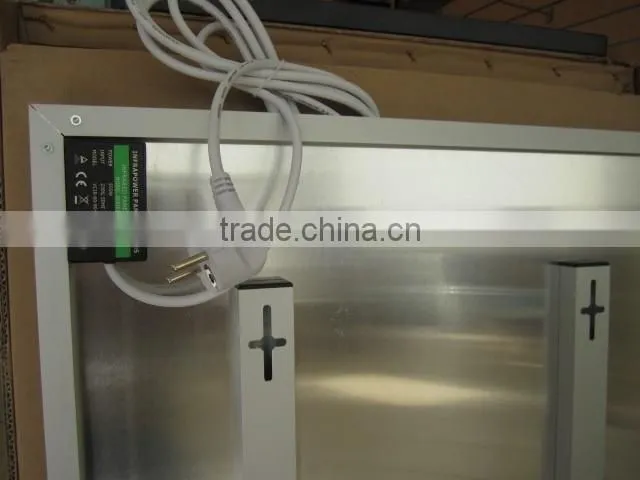

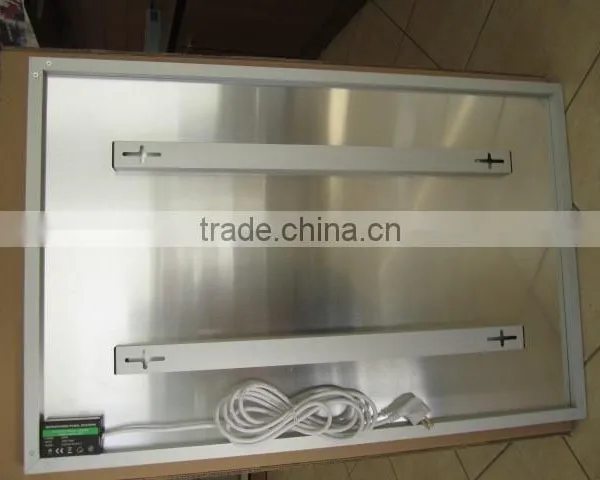

ALL panels are ready to use and fast installation possible (all necessary tools included in standard packing). Mounting of panel possible in 5 minutes (plug in type, 3m power cable). All panels can be either wall or/and ceiling mounted. Furthermore, we provide accessoires for floor standing.

Advantage:

1. Energy-saving

It can be used together with temperature controller to form infrared radiant heating system. According to the temperature needs of the user, the temperature in each room can be freely adjusted. When the indoor temperature reaches the preset temperature, the heating system will automatically stop and the heat accumulator begins to emit heat so as to maintain the preset temperature for a long time, saving energy and power.

2. Environmenal protection

Its energy is electricity so that is very evironmental.

3. Safety and comfortable

It won't explode or emit odor, wind or noist.

4. Long life expectancy

It can be used more than 20 years.

5. Health care

The heat radiant can change body microcirculation, cell organization under skin producing resonance, clearing the barrier of microcirculation, adjusting and balancing nervous system promoting metabolism, increasing body physical power. It is very good for your health.

II: Advantages

1) Stable

Super long life, over 100,000 hours working!

2) Economic

Over 98% electric conversion efficiency, can save up to 70% electricity than traditional heaters!

3) Ecological

No any harmful rays but only good far infrared rays for human! No any harmful gas comes out.

4) Silent

No any noise when working, it won’t affect your sleep.

5) Comfortable

It will not make the room air dry which is uncomfortable!

6) Fast

Instantly warm. You will feel warm within just one minute in front of the heater. the front surface of the heater can rise to 90 degree C within 5 minutes!

7) Modern

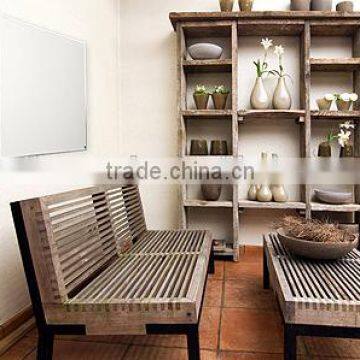

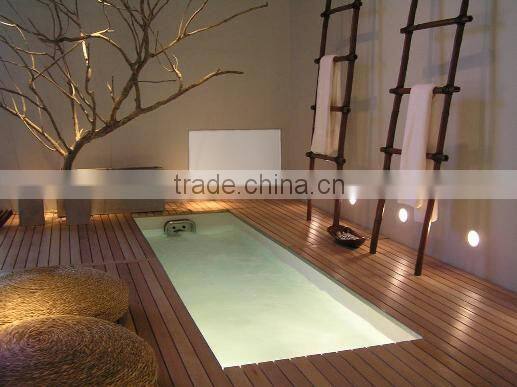

Decorate your rooms, all panels can be printed with favorite image and you can hang it in the living room, bedroom etc. warm your home in a modern way!

8) Safe

There are five over heat protection in the infrared panel heater, the electricity will be cut off once the panel temperature rise over 105 degree C!

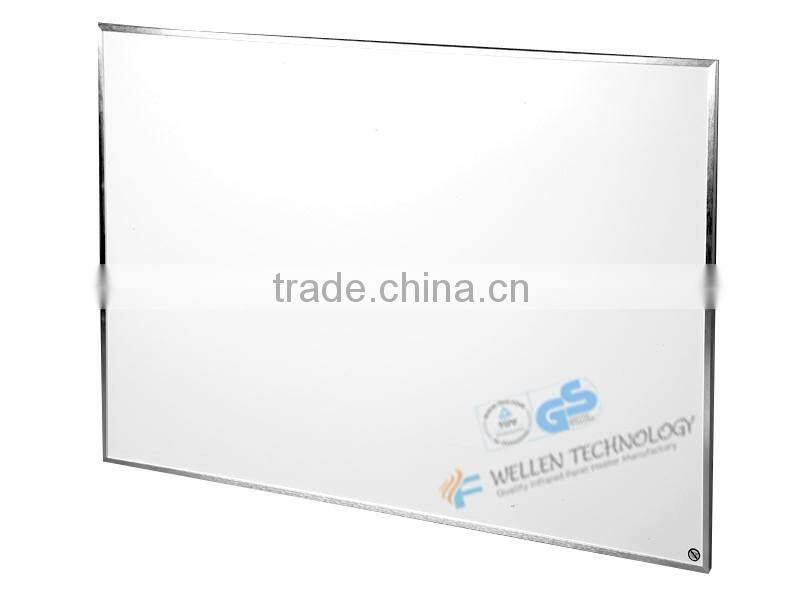

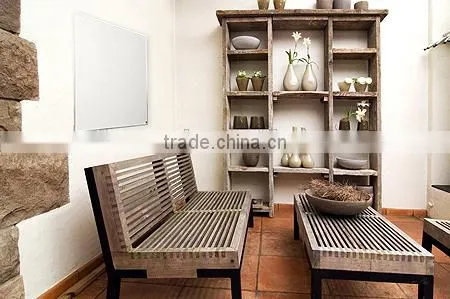

Product pictures:

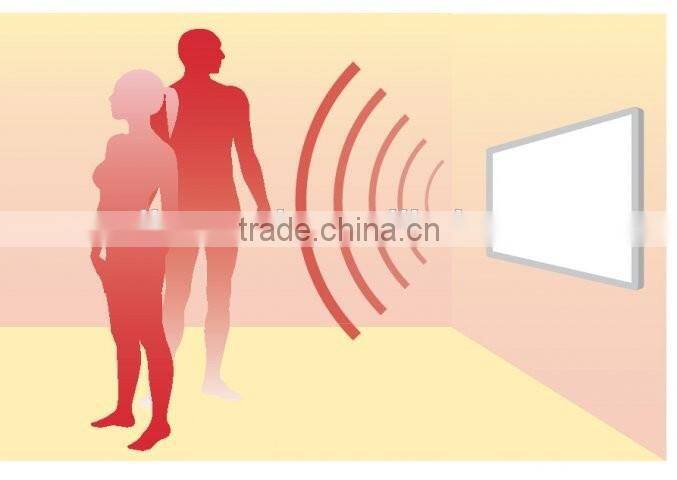

Why you should consider far infrared panel heater

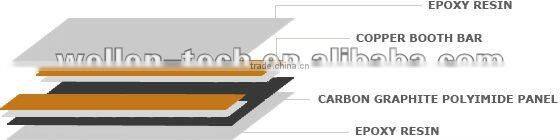

I: Structure

1)The heating element is nano carbon which can convert more than 98% of the electricity to heat. And nano carbon has the ability to radiate far infrared rays between 8-15μ which are very good for human health.

2)The carrier which hold the nano carbon is named epoxy resin, a kind of material that has super antioxidant and anti-aging Performance. This is the main reason why carbon heating panel has more than 100,000+ hours’ life.

3)The picture above is just a single heating sheet. For a finished infrared panel heater, will add insulation sheet and aluminium sheet to the back, and then assemble these into a stable alu frame.
