Straight Rubber Silicone Hose

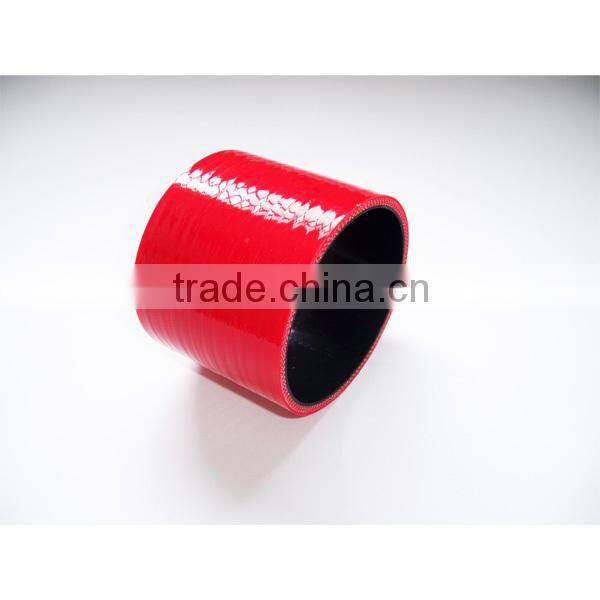

Straight Rubber Silicone Hose photo-1
US$ 0.5 - 10 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
HENGXING
Model Number:
straight silicone hose
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO / SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Shandong, China
Brand Name HENGXING
Model Number straight silicone hose

Specifications

1.High Quality Silicone Hose
2.Excellent finish
3.Export Factory Outlets
4.Reasonable Price
5.UV Water Ozone Resistant

HENGXING HIGH PERFORMANCE STRAIGHT SILICONE HOSE




Specification



Material 100% high quality silicone resin
Wall Thickness 2 to 6mm
Temperature -50°C - 240°C
Pressure 0.3 - 0.9 Mpa
Reinforced layer 3/4-ply polyester or Normex
Colors red/yellow/green/orange/white/black/blue etc.





Features

  • Made from top-grade silicone, Our PREMIUM QUALITY silicone hose provide increased pressure tolerance and longevity against long-tem exposure to high temperatures.

    straight rubber silicone hose




  • Constructed with 3/4-ply polyester or normex reinforcement, allowing the silicone hose to withstand higher temperatures and pressures.
  • Ultra-smooth inner bores and excellent flexibility.
  • Available in a variety of colors, including red, yellow, green, orange, white, black, blue etc, providing you with perfect match to your car’s body color.
  • straight rubber silicone hose
  • Easy installation without any modification required for a perfect fit



Product Range



A complete range of Universal silicone hoses are available for automotive, motocycle and ATV cooling system:



Straight Length Silicone Hose
45/90/135/180 degree Elbow Silicone Hose
Silicone Hump Hose
Silicone Reducer Hose
Silicone Hump Reducer Hose
U-shape Silicone Hose
T-shape Silicone Hose

 straight rubber silicone hose



straight rubber silicone hose

straight rubber silicone hose














Universal Hoses ( Please Contact for more.....)



Straight Length Silicone Hose Straight Reducer
Length  (mm) I.D.(mm) Length  (mm) I.D. > I.D.(mm)
76 25 76 32 > 25
76 28 76 32 > 28
76 30 76 35 > 25
76 32 76 35 > 28
76 35 76 35 > 32
76 38 76 38 > 22
76 41 76 38 > 25
76 45 76 38 > 28
76 48 76 38 > 32
76 51 76 38 > 35
76 54 76 40 > 35
76 57 76 45 > 32
76 60 76 45 > 38
76 63 76 51 > 38
76 65 76 51 > 45
76 68 76 54 > 51
76 70 76 57 > 51
76 76 76 60 > 51
76 80 76 63 > 51
76 83 76 63 > 57
76 89 76 70 > 51
76 95 76 70 > 57
76 102 76 70 > 60
76 114 76 70 > 64
76 127 76 76 > 51
100 32 76 76 > 57
100 38 76 76 > 63
100 45 76 76 > 67
100 50 76 76 > 70
100 57 76 80 > 70
100 64 76 90 > 70
100 70 76 90 > 80
100 76 76 90 > 83
203 50 76 102 > 76
203 57
203 64
203 70
203 76
203 83
203 89
203 95
203 102
305 50
305 57
305 64
305 70
305 76
305 83
305 89
305 95
305 102



45 degree Elbow 90 degree Elbow
Leg Length  (mm) I.D. (mm) Leg Length  (mm) I.D. (mm)
102 25 102 25
102 28 102 28
102 30 102 30
102 32 102 32
102 38 102 38
102 45 102 45
102 48 102 48
102 51 102 51
102 54 102 54
102 57 102 57
102 60 102 60
102 63 102 63
102 70 102 70
102 76 102 76
102 80 102 80
102 83 102 83
102 89 102 89
102 95 102 95
102 102 102 102



45 degree Reducer 90 degree Reducer
Leg Length  (mm) I.D. > I.D.(mm) Leg Length  (mm) I.D. > I.D.(mm)
102 25 > 32 102 25 > 32
102 32 > 38 102 32 > 38
102 32 > 44 102 32 > 44
102 38 > 44 102 38 > 44
102 38 > 51 102 38 > 51
102 44 > 51 102 44 > 51
102 51 > 57 102 51 > 57
102 51 > 64 102 51 > 64
102 57 > 64 102 64 > 70
102 57 > 70 102 64 > 76
102 57 > 76 102 76 > 89
102 64 > 70 102 76 > 102
102 64 > 76 102 70 > 76
102 70 > 76 102 57 > 76
102 76 > 89 102 57 > 64
102 76 > 102 102 57 > 70





straight rubber silicone hose
