Vertical wall mounted mini storage tank electric water heater

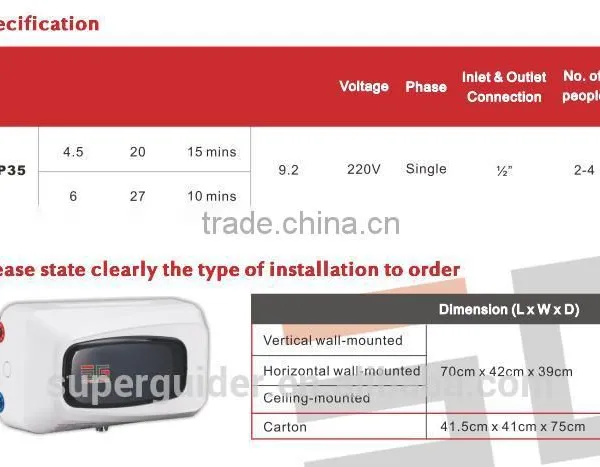

| Model | Power | Current | Voltage | Dimensions | Capacity(gallon) |
| SP35 vertical | 6000W | 27A | 220V | 70*42*39cm | 9.2 |
SP35 Mini-Storage Series combine features of instant and storage types, which enables instant heat-up and storage of hot water. It is best suit for small family or group of 2-4 people.
- Won "Taiwan Excellence Award".
- Trendy appearance.
- High level waterproof.
- Standard factory temperature setting at 65°C.
- Capable of providing 40°C of hot water up to 100 liters.
- Hidden installation inside ceiling is available for saving ground space.
- Quality 304 stainless steel inner design, construction plastic material cover.
- Indicating light clearly shows power status: ON-heating or OFF-keep warm.
- Special inner tank design for instant heating that provides continuous hot water.
- Thickness of above 3.8cm flame-retardant insulation layer enables good warmth-keeping.
- Unique heating element design that increases heat convection scope, which allow evenly heat-up of water thus able to provide sufficient hot water.
- Safety devices including pressure relief valve and check valve, leakage circuit breaker, auto cut-off of power supply device upon abnormal situation and further stage of protection from unusual high temperature drained heating.

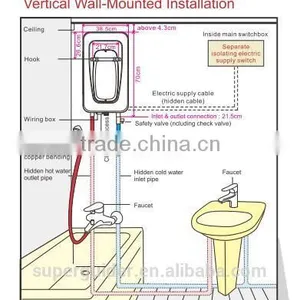

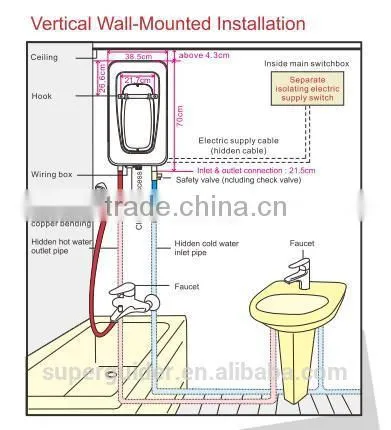

Installation
- Install as close to faucet as possible to prevent heat lost in pipe.
- Ensuring the tripod or wall-mounted hook is tight when installing.
Water Connection
- Connect safety valve to cold water inlet. Connect pressure releasing pipeon pressure releasing hole of the safety valve can avoid danger cause by pressure releasing.
- Note that the pressure releasing hole should never be blocked.
- Keep the cold water inlet faucet open, it is normal if safety valve drips during heating.
- Inlet water pressure is recommended to remain under 1kgf / cm². However, highly recommended to install pressure decreasing valve when pressure exceed 2kgf / cm².
- Inlet and outlet connection gauge should be the same according to the product specification.
- Install safety valve is necessary ensuring the safety.
Power Connection
- Power cord is either black or red. Make sure to connect the green earth cord correctly.
- Note that the blue dot inlet pipe indicates cold water inlet pipe whereas red dot indicates hot water outlet, make sure installation is correct.
Super Guider is one of the leading brands of electric water heater in Taiwan since 1981, throughout the years, not only is well-known by domestic customers, but also has won warm praise from worldwide customers.
30 years of professional, Super Guider has been approved for ISO 9001 International Quality Assurance Certificate, CE from European Union, SASO from Saudi Arabia, KC from Korea, and CB from IECEE.In Taiwan, our storage electric water heaters have been approved for Energy-Saving Mark whereas instant electric water heaters are the First to pass the national standard of CNS as well as MIT Mark. Moreover, Super Guider also received several awards, such as "Great Achievement Award" for National Inventions, "Silver Medal" at the Far East Invention Exhibition and “Golden Reputation” from Taiwan and won "Taiwan Excellent Award 2013 "
Making shower time more comfortable is always what Super Guider is striving for; from the outstanding Research and Development team that always catching up with technology, to finding and purchasing high quality parts, to prominent design elite, to professional and proficient manufacturing team, to friendly and sincere sales, to lastly enthusiastic after-sales service. Every stage is given the utmost care with customer-oriented goal and non-stopping improvement concept.
Super Guider; being a guider, is always keeping up with the trend by developing trendy and functional water heaters. The brand new logo [SG] and CIS adopted in 2011 is to give the World a professional impression and trustworthiness, as well as shaping a prosperous future.
Super Guider, your superior guider for water heaters!
