Specifications
A-2300 Professional 300W beam moving head light1:300 Watt Hybrid Spot / Wash / Beam Projector
2:CMY Color Mixing
3:16Channel
A-2300 Professional 300W beam moving head light
FEATURES
• 300 Watt Hybrid Spot / Wash / Beam Projector
• CMY Color Mixing
• 8 Static / Replaceable Dichroic Colors including CTO, CTB and UV
• 6 rotating / indexing gobos (replaceable)
• Very tight 7.5° beam angle / extreme output ACL EFFECT!
• Extreme Light output – over 30,000 Lumens!
• 16 Bit Movement Pan/Tilt
• 3 Phase Motors for fast movements
• Rotating / Indexing Prism 3-Facet
• Variable Frost for hard edge BEAM or WASH effect
• Digital LCD Blue / White Menu Display
• Pan / Tilt , Pan450-540° Tilt265° selectable
• 16 DMX Channels standard
• DMX Record function on-board
• 4 User settable personality DMX traits
• Compact case design (250 size case)
TECHNICAL SPECIFICATIONS
• DMX Channels: Standard mode: 16 DMX channels
• Control: RDMX, 3 pin or 5pin DMX in/out
• Dimmer: Yes
• Strobe: Yes
• Power supply:220-240v / 50hz
• Power consumption: 3.7A 446W
• Fuse: 5T /3.6A
• Lamp: MSR300/2 Fast Fit Philips single end discharge lamp
• Lamp life: 300W, CRI 75, 8000°K, 750 HRS
• Lux: 33,150 @ 30’
• Dimensions: ( L x W x H ) 16.9” x 17.6” x 20” /
429.26 x 447.04 x 508mm
• Weight: 56.2 lbs. / 25.5 kg
• Rigging: Rigging included
1 x safety cable
1 x data cable (3-pin)
DMX TRAITS
16-Bit Basic Mode:
|
Channel 1 |
Value 0 - 255 |
Function PAN 8-bit |
|
|
|
2 |
0 - 255 |
TILT 8-bit |
|
|
|
3 |
0 - 255 |
PAN fine 16-bit |
|
|
|
4 |
0 - 255 |
TILT fine 16-bit |
|
|
|
5 |
0 - 255 |
Pan/Tilt Speed |
|
|
|
6 |
0 - 255 |
Color |
|
|
|
7 |
0 - 255 |
Dimmer |
|
|
|
8 |
0 - 255 |
Shutter/strobe |
|
|
|
9 |
0 - 255 |
Gobo wheel |
|
|
|
10 |
0 - 255 |
Gobo Wheel Index & |
|
|
|
|
|
Rotating Effect |
|
|
|
11 |
0 - 255 |
Cyan 0 to 100% |
|
|
|
12 |
0 - 255 |
Magenta 0 to 100% |
|
|
|
13 |
0 - 255 |
Yellow 0 to 100% |
|
|
|
14 |
0 - 255 |
CMY Speed |
|
|
|
15 |
0 - 255 |
Frost |
|
|
|
16 |
0 - 255 |
Reset |
|
|
|

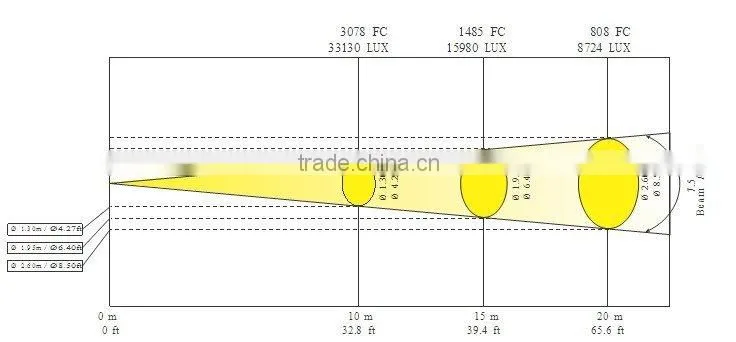

PHOTOMETRICS
Beam 300
Photometric Beam Angle Data
Beam Angle 7.5°
