Durable latest led snowfall curtain light tubes
Description of led snowfall curtain light tubes

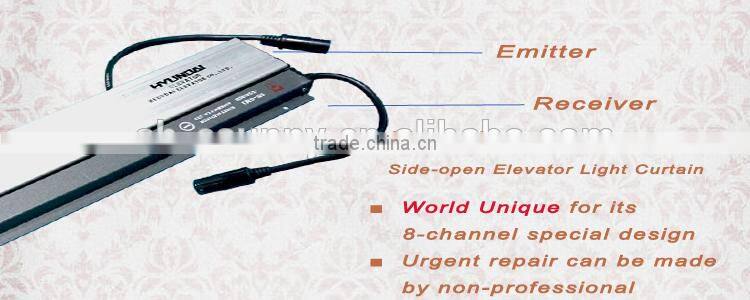

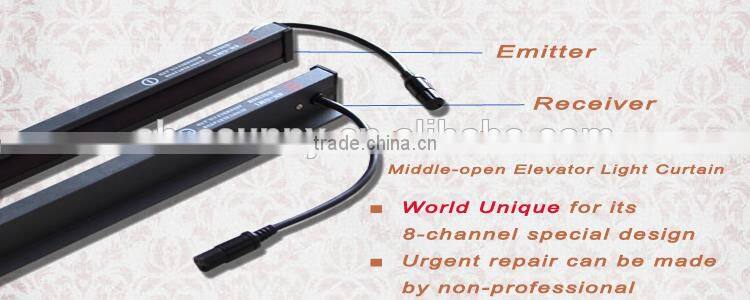

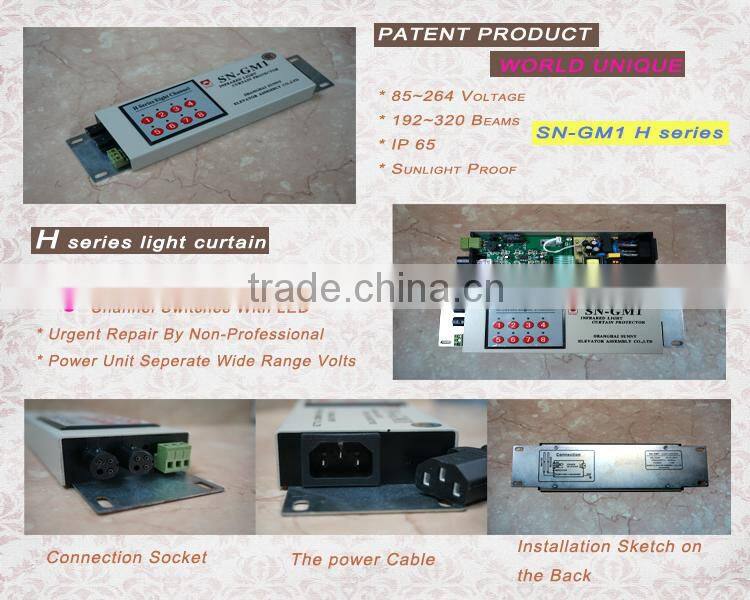

SUNNY elevator light curtain H series has obtained national invention patent (No. ZL01105213.9), which is widely used in luxury elevator and is famous for its 8-channel special design, which means any one can make urgent repair by pushing the blinking switch on the control box to avoid great inconvenience to the elevator users when some diode is broken.

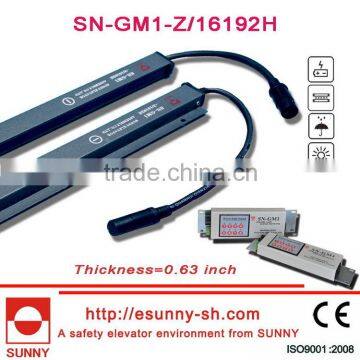

SUNNY light curtain, with 64 pairs of diode inside, 192 beams and 10 ms quick response time, is much safer and much more reliable than the product in the market, which ensure the safest protection area even the door is nearly closed ( door width is under 300mm).
Specification of led snowfall curtain light tubes
| Specification | Model | |
| 192H | 320HG | |
| No. of diodes | 64 | 64 |
| Max. beams | 192 | 320 |
| Min. beams | 192 | 192 |

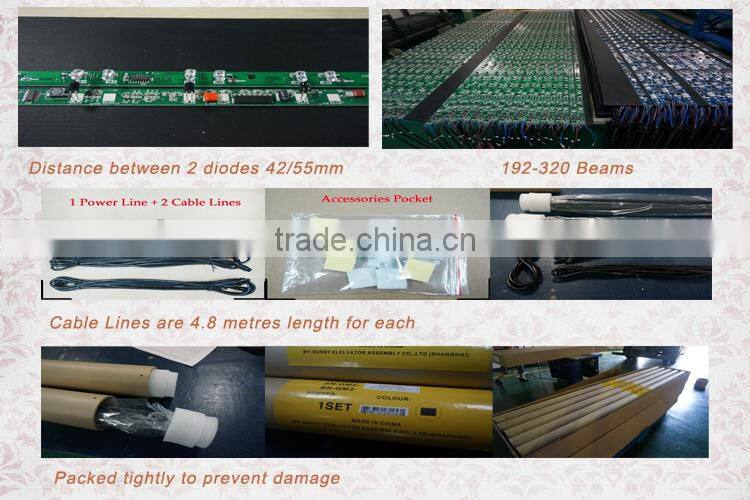

| Distance between Two Diodes | emitter/ receiver 42/ 55 mm | |
| Size | 1980 height x 30 width x 9/16/35 thickness mm | |

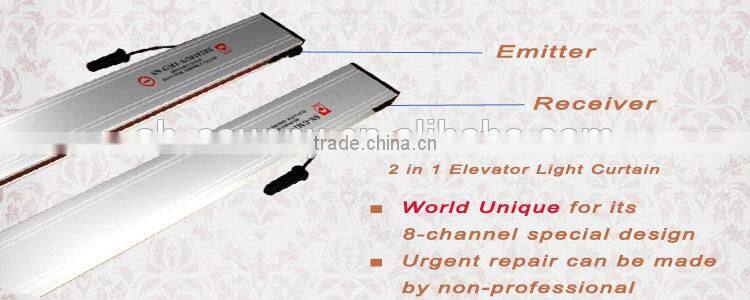

| Hitachi/ Mitsubishi/ Toshiba 2 in 1 light curtain available | ||
| Light curtain Detecting Distance | 0~4.5 meters Customized to reach 20 meter | |
| Light-proof | can work under the sunlight ≥100,000 lux | |
| Installation Tolerance | Vertical ≤± 20mm, horizontal ≤ ± 10mm, angle ≤ ±7° | |
| Working Temperature | -25℃~+65℃ | |
| IP | Ip33 circuit strip Ip63 controller box | |
| Response Time | ≤80 ms | |
| Cable Strength | 3C, 4.5M*2, 1 million times of life | |
| EMC | En61000 GB/T17626 | |
| Timeout Response | 25±5s Buzzer rouse | |
| Power | ≤ 7.5 VA | |
| Voltage Range | 85~264VAC 60/50Hz | |

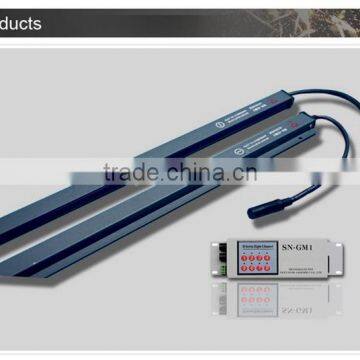

- 1 x Controller box
- 1 x Emitter
- 1 x Receiver
- 2 x Signal Cable
- 1 x Power Cable
- 1 x Accessories Pocket
- 1 x User Manual

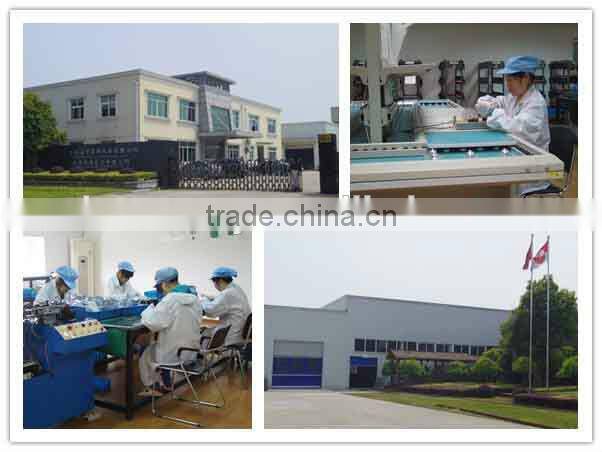

Shanghai Sunny Elevator Assembly Co.,Ltd, found in 1992, is a 24-year professional manufacturer specialized in designing and producing Opto-Electro-Mechanical products. Our main products are elevator light curtains, photoelectric switches and elevator buttons. Twenty-four years' experience in the elevator industry ensures us to provide our clients reliable products, leading-edge technology and perfect after-sales service. Our long –time clients include Hyundai (served as OEM), Hitachi,Otis, Mitsubishi, KONE, Guangri Elevator, Wittur etc.
