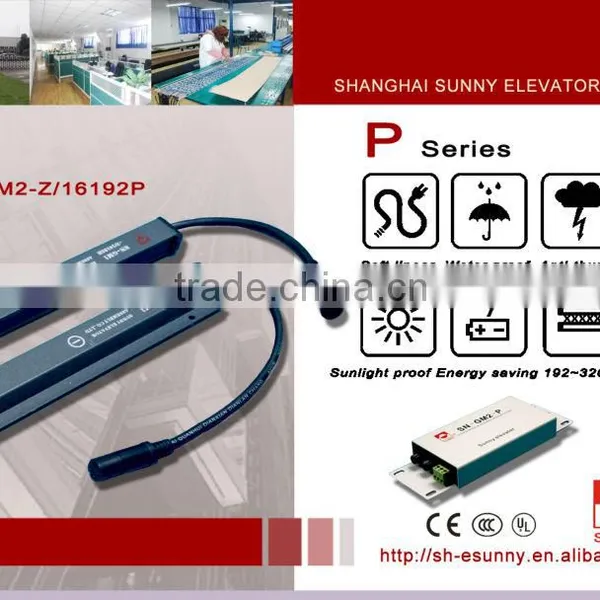

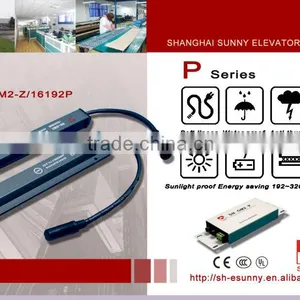

Infrared Elevator Parts
TYPE: SN-GM2-Z/16192P
Specification
TECHNICAL SPECIFICATIONS | |
Model |
SN-GM2-Z/16192P |
Number of Diode |
64 |
Distance Between Diodes |
42mm middle/ 55mm side |
Maximum Beams |
192 |
Minimum Beams |
192 |
Highest Beam |
1800±50mm |
Lowest Beam |
17±5mm |
Size |
30(width) * 35( thickness) * 1980mm (height) |
Detecting Distance |
0~~~~4,000mm + 500mm (standard), 20,000mm for custmization |
Vertical displacement at 0 mm |
≤ ±20mm |
Horizontal displacement at 0 mm |
≤ ±10mm |
Angular displacement at 0 mm |
≤ ± 8° |
Cable reliablity |
3C passed three-core flexibility wire, tensile resistance < 15N, endure 1,000,000 time twist, length 4.5M ±10% |
Light immunity |
≥ 100,000 lux |
Immune to Sun Light and Refelection |
Yes |
EMC Compliance |
Emission to EN 12015 and Immunity to EN 12016 |
CE Compliances |
YES |
UL Compliances |
Yes! UL 508,17th Edition, Jan,1999. File NO. E230770 |
Operating temperature range |
-25----+65 |
IP Rating |
IP63detector IP65 controllerbox |
Vibration Test |
5-55HZ, amplitutde 0.19mm, 20min |
Response Time (NPN or PNP) |
NO |
Response Time ( Relay ) |
≤ 80 ms |
Timeout function |
30 ± 5 s |
Power Consumption |
≤ 7.5 VA |
Signal Output |
Relay Output |
Power Indicator |
YES, LED Light |
Status Indicator |
YES, LED Light |
Buzzer in Receiver |
active if anything block the light beam for continuous 25 second |
Voltage Tolerance |
80~240V 60/50HZ |
Description
Sunny P series light curtain is a standand type, it has the same quality and specification as its H series, but no channel switch design. P series has two main features. First, fixed beam with model 384Pand 192P, flexible beam with model 640PG and 320PG. The operation principle of flexible beams. When above 300mm, the number of infrared beam will increase to 320 in order to reduce the blind zone caused by long distance.
The second feature is failure diode tolerance. The receiver is composed of four single circuit boards, there are two LED in the top board. One is used for power indication which is always lighting in normal condition. The other only lights up when one or several diodes fail to work. It means the lights curtain is working under sickness. In three minutes, the broken diode will be removed automatically from funtion, and the elevator recovers
Production
Family Product
Commercial Terms
1.P ayment type----TT/Western Union/L/C/Paypal/Aliexpress
2. a .By air (DHL / Fedex / TNT/ UPS / EMS)
b.By Sea
About us
Shanghai Sunny Elevator Assembly Co.,Ltd, found in 1992, is a 22-year professional manufacturer specialized in designing and producing Opto-Electro-Mechanical products. Our main products are elevator light curtains, photoelectric switches and elevator buttons. The company has a complete set of equipment and instruments in terms of mechanism, sheetmetal, plastics, moulding, electric appliance,together with SMT line, which are respectively used in key parts of production, assembling, and quality detecion. Such full range of equipments is rare in the field and greatly increases our production flexibility and R&D capabilities. Twenty years' experience in the elevator industry ensures us to provide our clients reliable products, leading-edge technology and perfect after-sales service.
