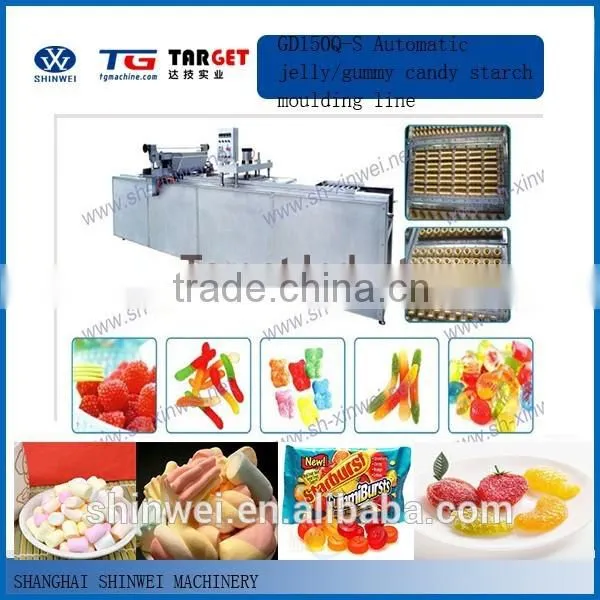

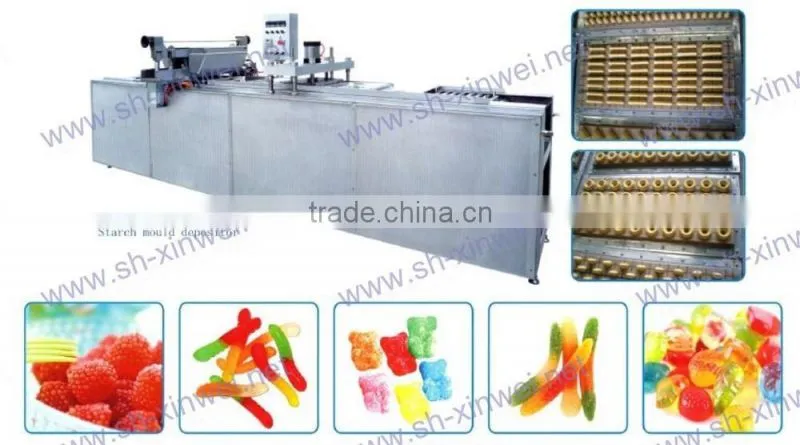

GD150Q-S Automatic jelly/gummy candy starch moulding line

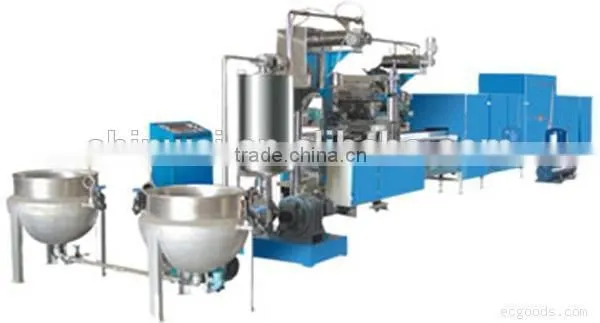

The processing line is advanced and continuous for making different size of gelatin-type soft/gummy/jelly candies . It is ideal equipment to produce high quality soft candies. With the sanitary structure design, on one hand it can produce one or two colors candy; on the other hand, it can automatically blend the essence pigment and fermenting liquid in accurate quantity ratio. High-degree automation ensures of stable production and saves time and labor force and occupations to serve the purpose of reducing the cost.
Working Process Description
- Starch and water are mixed in container to get starch slurry;
- Starch slurry, water, glucose syrup and sugar are mixed in the Automatic Batching Dissolution System to form mass solution and heated up to required temperature, cooked to get required sugar content;
- Cooked starch syrup is conveyed to Injection Cooking Machine through pump and pipeline to be condensed and cooked into required starch sugar paste, which is to be kept in Storage Tank for the next process;
- Automatic Toner Tank to get required color, flavor;
- Modulated sugar paste is conveyed into Hopper of Depositor to deposited into starch mould to get starch jelly candy with various colors and shape
Main technical parameters |
SM-8000II |
Production capacity |
80-100kgs/h |
Power |
95Kw |
Steam 7-8Bar |
850kgs/h |
Constringent air 0.6Mpa |
40m3/h |
Water consumption |
Depends on production |
-2-2°C Cool water |
0.35m3/min |
Working environment temperature |
26-28°C |
Humidity |
< 50% |
Our Services:
After-sale service for abroad customers
1. Free training of machine installion, operation and maintenance will be provided by our engineer.
2. Some spare parts will be sent with the machine for free. It is available to buy the parts from us forever at low price.
3. We will support customers after-service forever by call, email and video etc.
4. If necessary, our engineer is available to go to customer's factory for machine installation and adjustment
Packaging & Shipping
Wooden packing
1.Product production is completed, by the quality inspection department to check
2.After inspection qualified, clean for whole machine
3.Packing: a. Inside the machine put desiccant b. Add 6 cm thick foam plate around the machine, Then, winding stretch film for reinforcement, and combined with bubble wrap c. On wood packaging on the outside of the machine, then use metal reinforcement with steel
4.Container:according to different products for reinforcement
